1. Processor: GM8135S+SC2135
2. Platform: 163eye.cc
3. Video standard: NTSC PAL
4. Video format: FHD(1920*1080P), VGA(640*480P),QVGA(320*240P)
5. Video mode: Manual video recording, time recording, alarm recording
6. Video playback mode: Mobile client + PC client
7. Audio input and output: Input: Built-in microphone 38DB; output: Built-in speaker
8. Minimum illumination: 0.1Lux/F1.2
9. Image rotation: Mirror / upside down
10. Video control: Support
11. Built-in clock with battery: 40mA lithium battery
Specification:
| General |
| Allowable Voltage |
DC 5V1.6A |
| Performance |

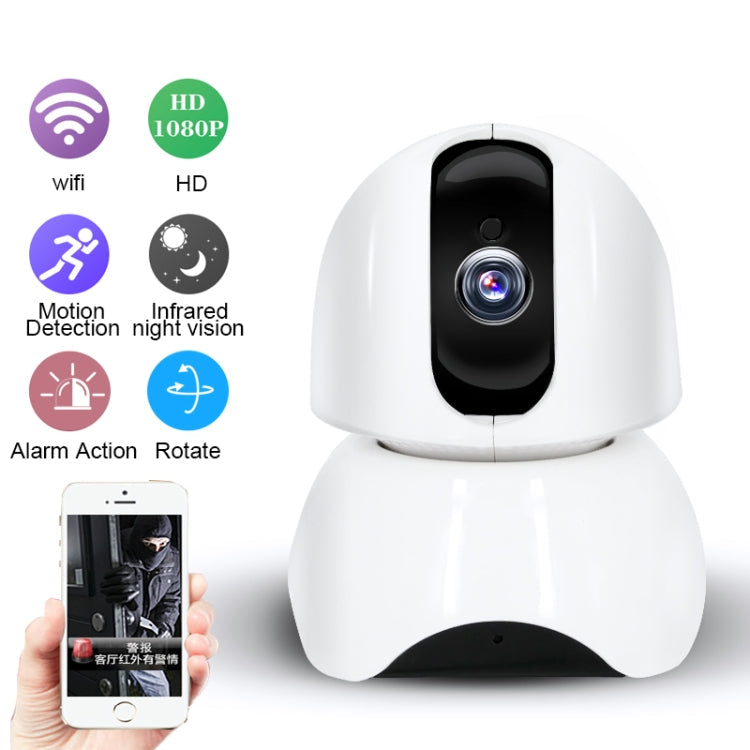

Motion detection, Night Vision, Intelligent detection, Alarm detection |
| Memory |
up to 128GB (not included) |
| View Angle |
Horizontal rotation 340 degrees vertical 70 degrees |
|
| Network |
| Wireless |
WiFi 802.11 b/g/n |
| Protocol |
DDNS, NTP, SMTP, UPNP, DHCP, RTSP, IP, HTTP, TCP/UDP |
|
| System / Hardware |
| Operating System |
Embedded LINUX operating system |
| Sensor |
1/3 HD CMOS 2 megapixel CMOS sensor |
|
| Media Format |
| Video Compression Format |
H.264 |
|
| Physical Environment |
| Operate Temperature |
0 to 55 Degree Celsius |
|
| Package Include |
| Package Contents |

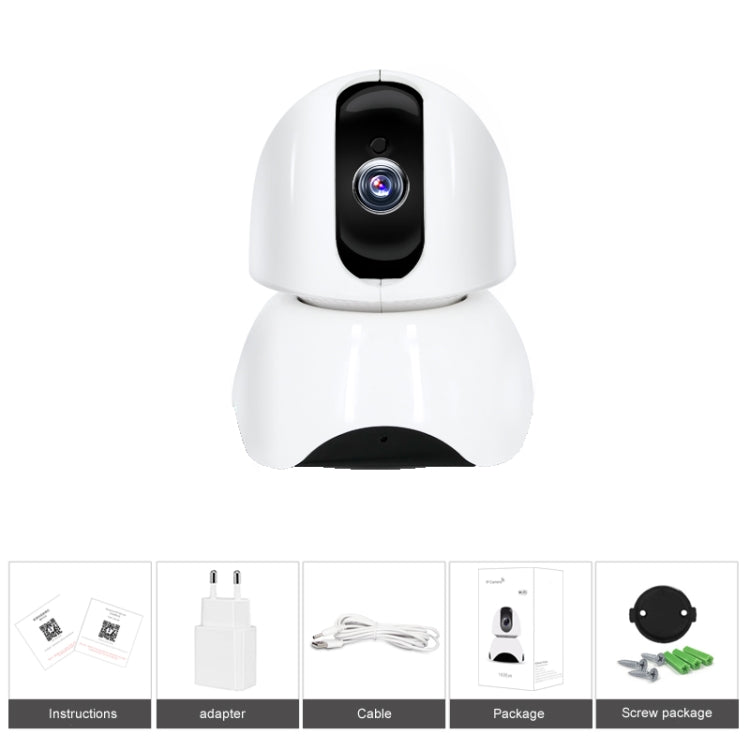

1 x Camera 1 x USB Cable 1 x Power Adapter (US, UK, EU, AU Optional) 1 x User Manual 1 x Screws Set |
|
| Package Weight |
| One Package Weight |
0.37kgs / 0.80lb |
| One Package Size |
15cm * 9.2cm * 9.2cm / 5.91inch * 3.62inch * 3.62inch |
| Carton Weight |
14.00kgs / 30.86lb |
| Carton Size |
40cm * 40cm * 30cm / 15.75inch * 15.75inch * 11.81inch |
| Loading Container |
20GP: 555 cartons * 30 pcs = 16650 pcs 40HQ: 1289 cartons * 30 pcs = 38670 pcs
|
|
