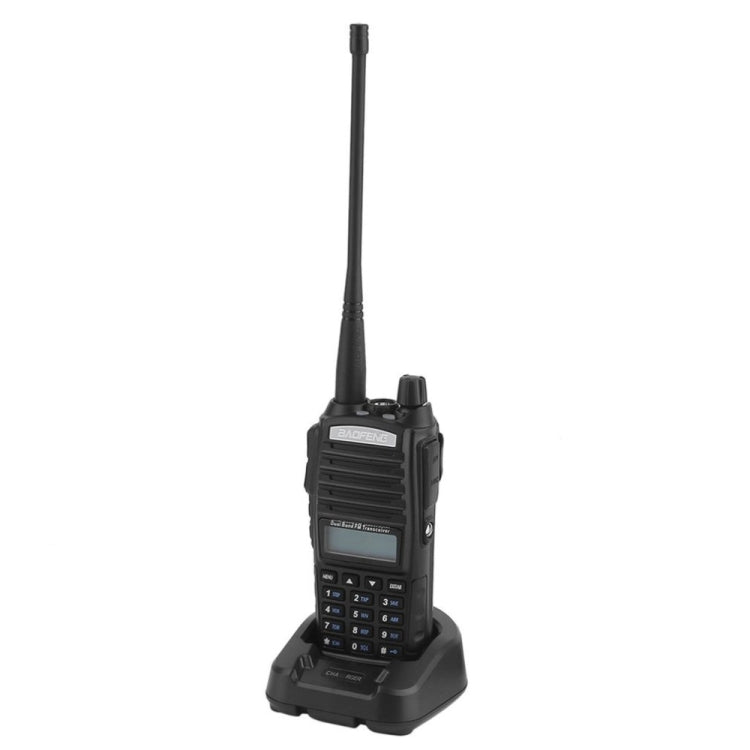

Description
1. Mini body, compact and portable to carry in pocket.
2. Dual-Band Display, Dual Frequency Display, Dual-Standby.

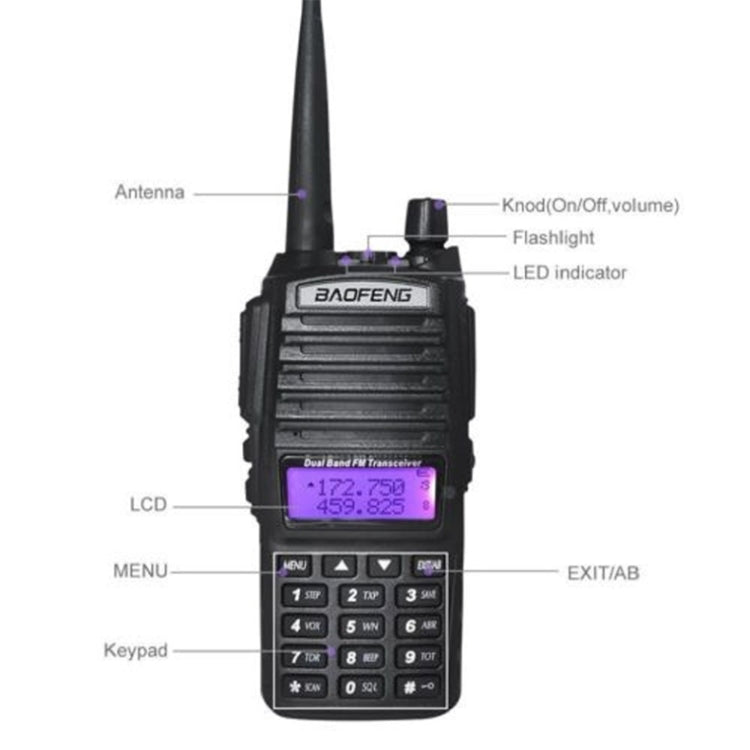

3. Flashlight lighting function.
4. U-U, V-V, U-V working function.
5. Channel scan table editing function (freely select channel to participate in scanning)
6. VOX voice control function
7. parameter:
Frequency Range: FM:65-108MHz; VHF:136.000-174.00MHz; UHF: 400-480.00MHz
Number of channels: 128

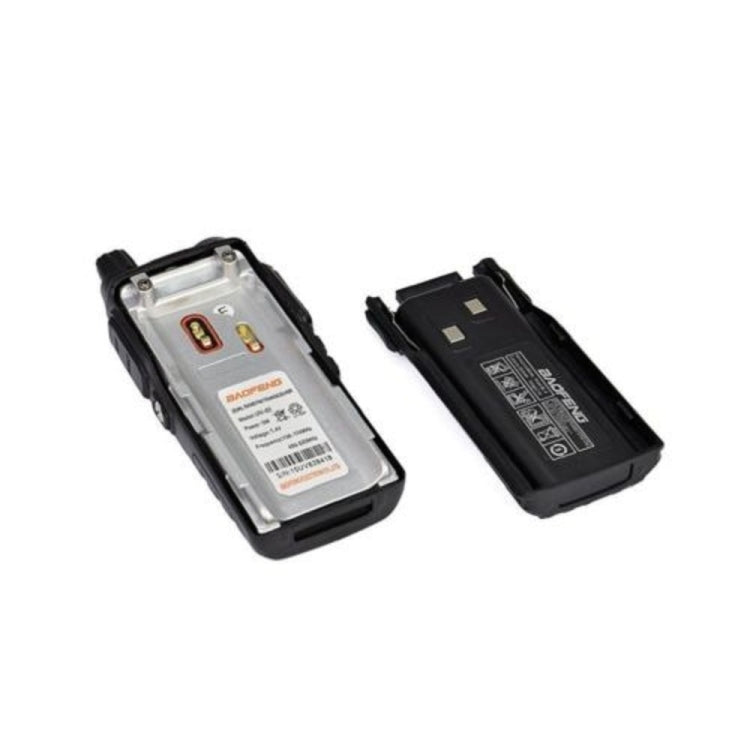

Operating Voltage: DC 7.2V 2800MAH lithium battery
Step frequency: 2.5/6.25/10/12.5/20/25KHz
Frequency stability: +/- 2.5PPM

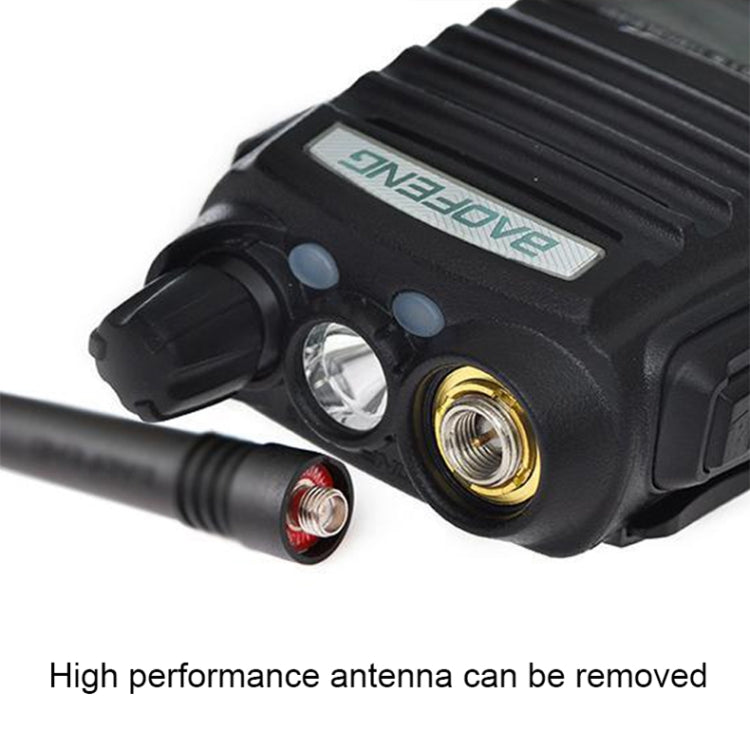

Antenna: 50Ohm
Size: (110mm x 58mm x 32mm) (height x width x thickness)
Current: Less than or equal to 1.4A (4W)
Modulation sensitivity: 8-12mV
Modulation distortion: Less than 10%
Modulation limit: Broadband Less than 5KHz, narrow band Less than 2.5KHz
Sub-audio/digital sub-audio frequency offset: 0.75KHz+/-50Hz, 0.37KHz+/-30Hz
Modulation characteristics: 6dB / frequency increase per multiple
Reference sensitivity: -122dBm (12dB SINAD)
Audio power: 1W
Audio distortion: less than 10%
Modulation receiving bandwidth: 5K
Clutter suppression: greater or equal to 65dB
Adjacent channel selectivity (wide band, narrow band): greater or equal to 65dB, greater or equal to 60dB
Intermodulation (broadband, narrow band): greater or equal to 60dB, greater or equal to 55dB
Blocking: greater or equal to 85dB
Spreading distance range: about 5-10 km in open area, about 3-5 km in obstruction

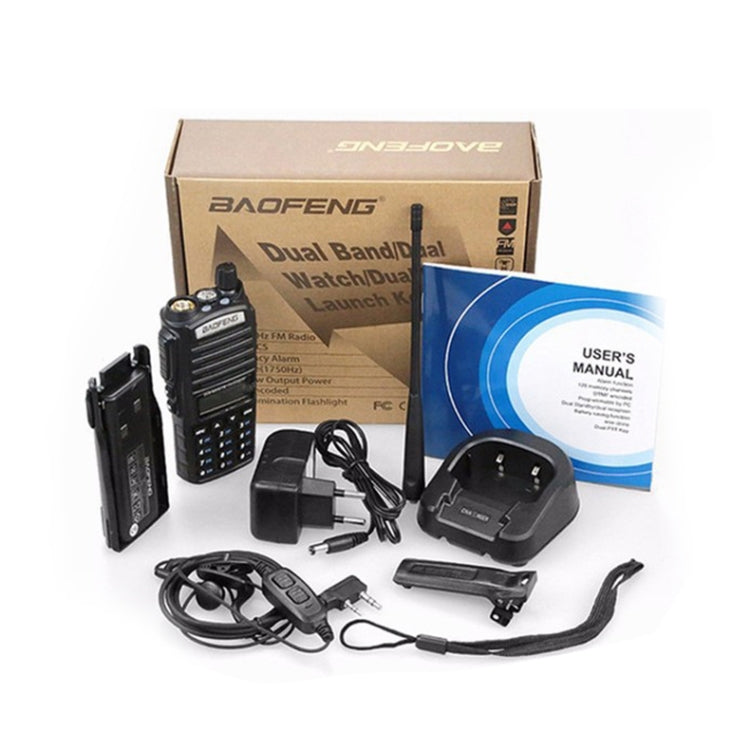

8. Package:
main machine x 1
antenna x 1
battery x 1
charger x 1
belt clip x 1
hand lanyard x 1
manual x 1
Specification:
| Package Weight |
| One Package Weight |
0.54kgs / 1.19lb |
| One Package Size |
21cm * 18cm * 6.5cm / 8.27inch * 7.09inch * 2.56inch |
| Carton Weight |
14.73kgs / 32.47lb |
| Carton Size |
46cm * 42cm * 40cm / 18.11inch * 16.54inch * 15.75inch |
| Loading Container |
20GP: 345 cartons * 30 pcs = 10350 pcs
40HQ: 801 cartons * 30 pcs = 24030 pcs
|
|
