Description

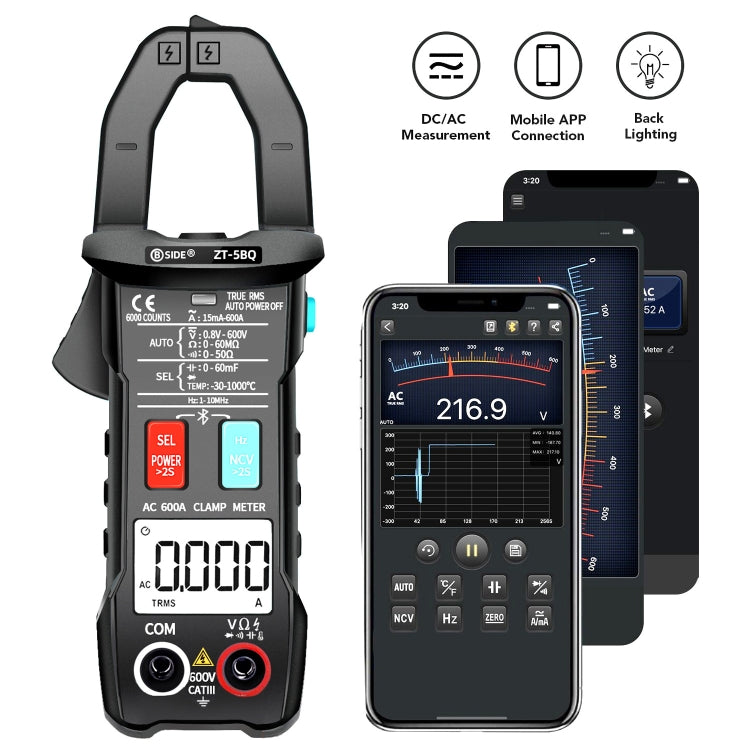

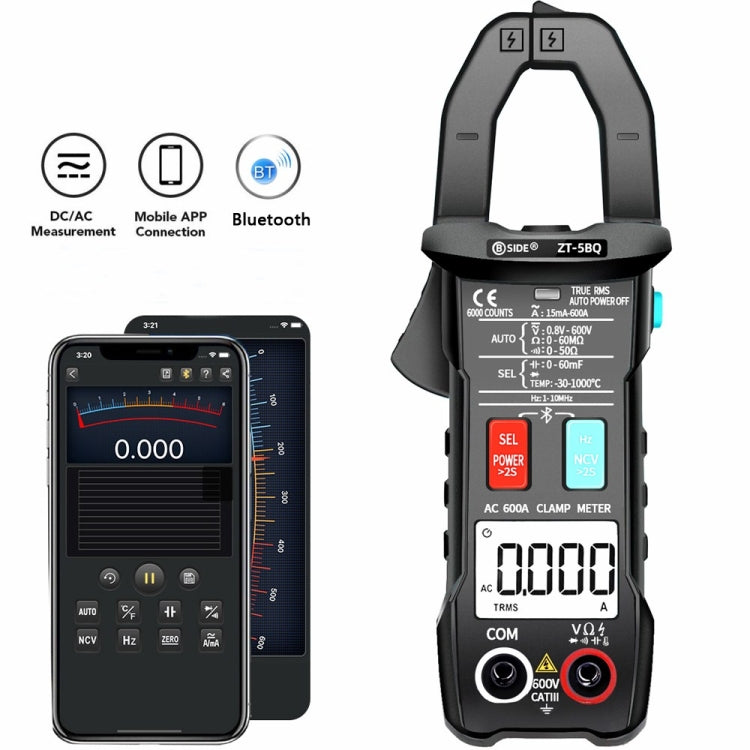

1. Bluetooth connection: the mobile phone can directly control the multimeter.
2. More applications of measurement data: data logging, data graphing, data exchange, data storage and export, threshold alarm.
3. Multimeter collaboration: The application can connect four Bluetooth multimeters and monitor the measurement data of the four multimeters in real time at the same time.
4. Intelligent calculation function: use the data in the multimeter to quickly calculate the power and other mathematical formulas.
5. Remote assistance: real-time remote screen synchronization, convenient communication, real-time monitoring without distance and ultra-long distance.
6. Find a multimeter user communication platform
7. Display: 6000 count display
8. DC voltage: 6V / 60V / 600V ± (0.5% +3)
9. AC voltage: 6V / 60V / 600V ± (1.0% +3)
10. Alternating current: 600mA / 6A / 60A / 600A ± (2.0% +3)
11. Capacitance: 6nF ± (5.0% +20); 60nF / 600nF / 6uF / 60uF / 600uF ± (3.5%+ 4); 6mF ± (5.0%+ 5)
12. Resistance: ±6KΩ(1.5% +3); 60KΩ/ 600KΩ/6MΩ±(1.0% +3); 60MΩ±(1.5%+ 3)
13. Frequency: 6Hz / 60Hz / 600Hz / 6kHz / 600kHz / 6MHz / MHz ± (1%+ 2)
14. Temperature: 1000 degrees Celsius ~ -20 / -4 ~ 1832 ± (3% + 5)
15. NCV (non-contact voltage detection): yes
16. Diode test: Yes
17. Continuity: Yes
18. Power supply: 1.5V AAA x 2 (not included)
19. Dimensions: 170mm x 61mm x 28mm
20. Weight: 117 grams
Specification:
| Package Weight |
| One Package Weight |
0.35kgs / 0.78lb |
| One Package Size |
22cm * 12cm * 6cm / 8.66inch * 4.72inch * 2.36inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
45cm * 52cm * 32cm / 17.72inch * 20.47inch * 12.6inch |
| Loading Container |
20GP: 356 cartons * 40 pcs = 14240 pcs
40HQ: 826 cartons * 40 pcs = 33040 pcs
|
|
