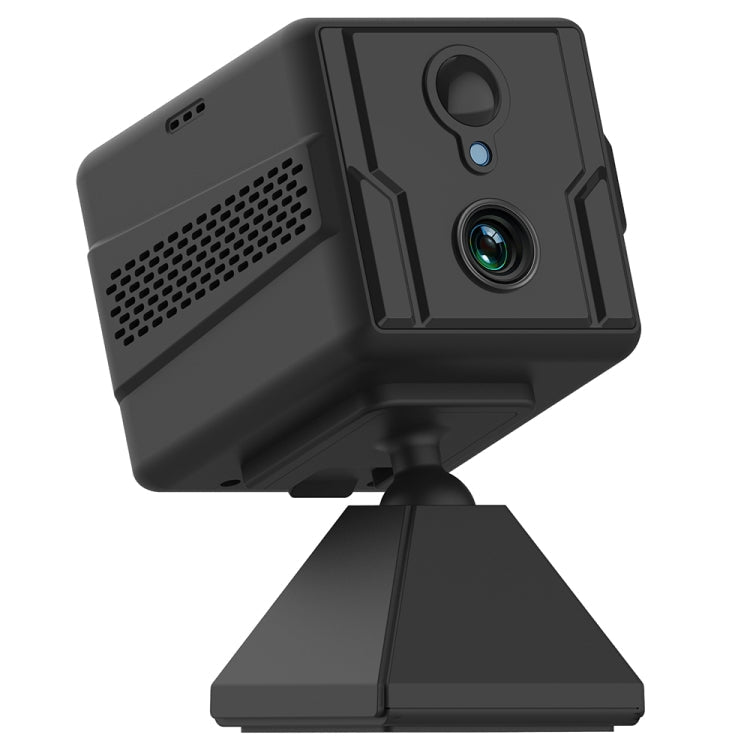

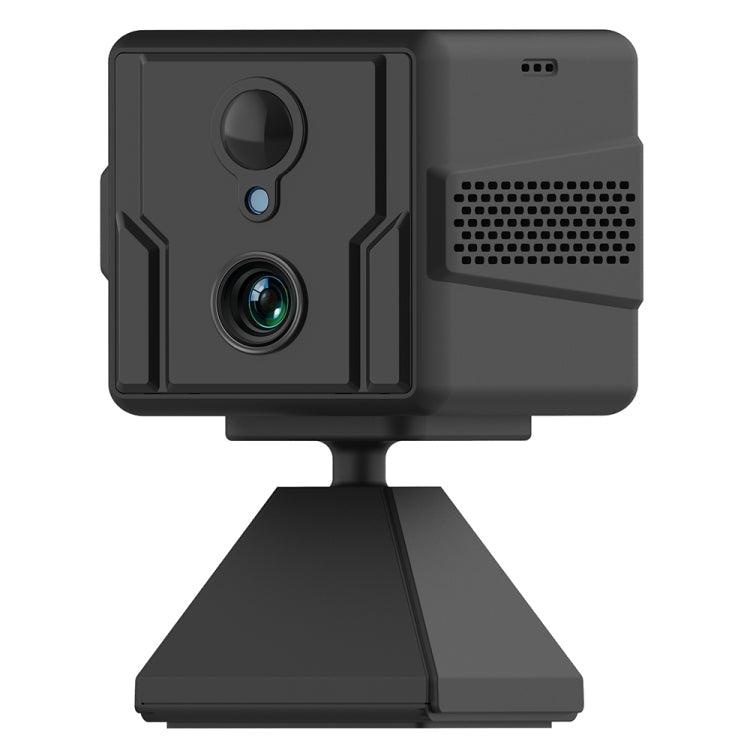

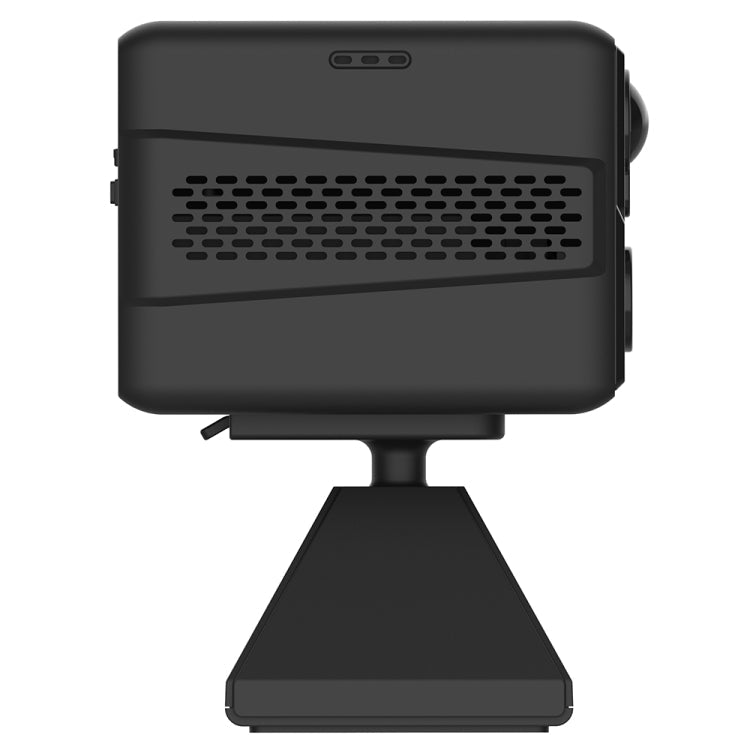

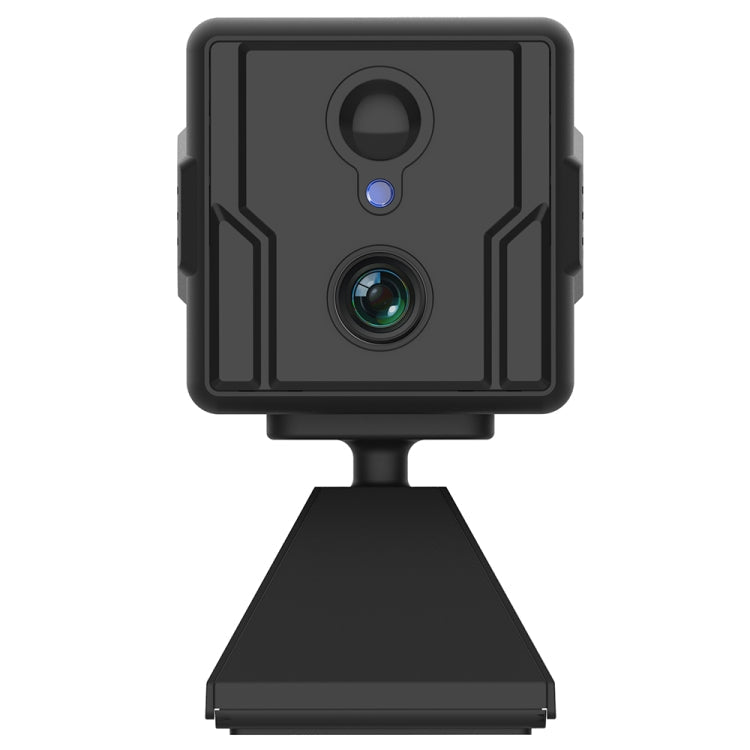

Description
1. Built-in 4G network chip, with its own network, can be deployed monitoring & recording anywhere in seconds.

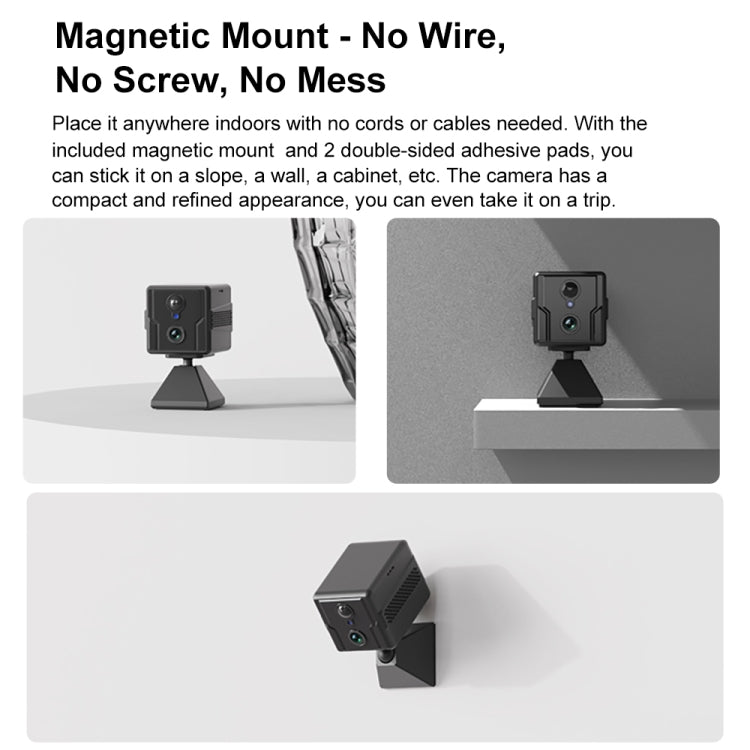

2. 10 days Monitoring unplug in. Upgrade ultra-low power chips, quick wake-up function. Magnetic mount easy to use.
3. DV Mode long standby motion sensor recording without 4g network. Multi-purpose to meet the differnet needs.
4. Full 1080P HD and IR night vision built-in IRCUT, 3 days free cloud storage.
5. Alarm video: support two-way voice call. Built-in speaker and high-sensitivity microphone,can talk to family members at any time via mobile phone.
6. System:
- Operating system: Linux
- Number of online users: 4 users watch online at the same time
- App: O-KAM
7. Collection:
- Processor: Ingenic T31
- Memory: 8M
- Image Sensor: 2MP CMOS / 1080P
- Minimum illumination: V0.3-0.5 Lux (Color mode), 0 Lux (B&W mode)
- Lens: 4G Lens, IR-Cut integrated, standard lens diameter 10mm
- View Angle: (H)120 degree, (D)140 degree
8. Video:

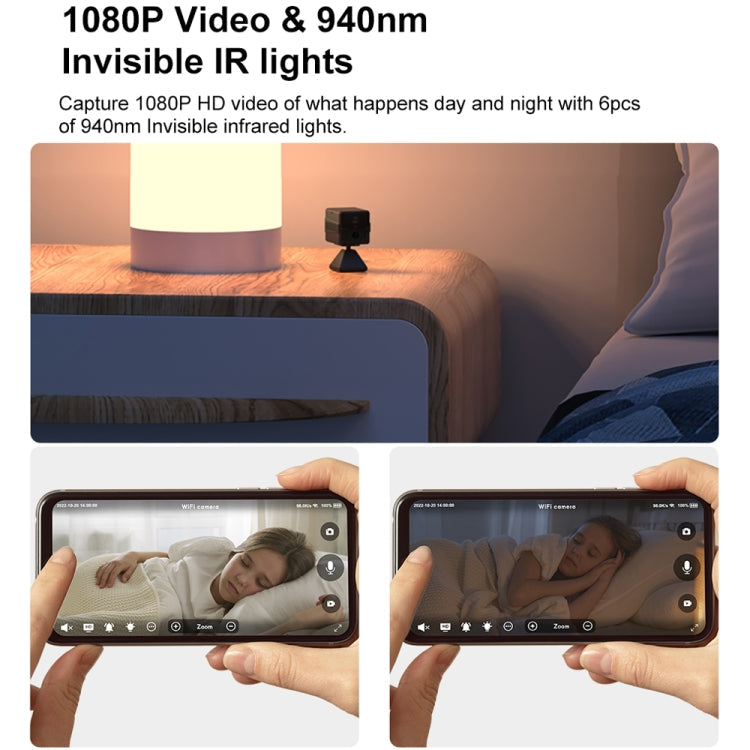

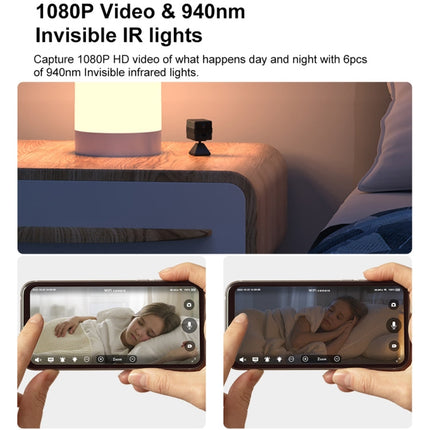

- Night vision: 6pcs 940nm SMT IR Led, range 6-8 meters black and white night vision
- Compression standard: H.264+/H.264/MJPEF/JPEG
- Multi-stream: main stream: 1080P/15fps, sub-stream:360P/15fps
- Bit rate: CBR/VBR two rate control models, and the output rate range is 128-4096kbps
- Image adjustment: brightness, contrast, tilt, pan adjustable, OSD display
9. Audio:
- Input: built-in 38dB mirophone
- Output: built-in 8 Ohm 1W Speaker
- Sampling frequency/Bit Wide: 8KHz/16bit
- Code rate: G711A
10. Network:
- Wireless Connection: Scan the QR Code of the device to add
- EUR Cat1: FDD:B1/B3/B7/B8/B20
- EUR Cat1: TDD:B38/B40/B41
- Wireless security encryption: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
11. Storage:
- External storage: support TF card up to 128G
- Cloud storage: 3 days free cloud storage
12. Power:
- Rated voltage: DC 5V
- Built-in vattery: 2800mAh
- Working time: battery lasts up to 10-12days without charging
- Working temperature: -10-55 degree Celsius
- Working humidity: 90%
13. AI:

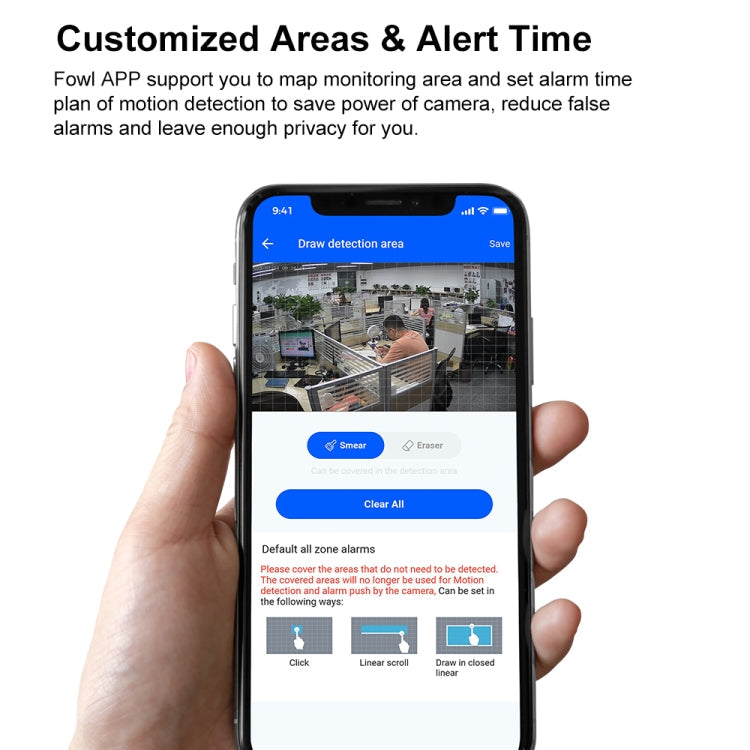

- Alarm detection: support humanoid and motion detection, PIR detection
- Humanoid detection: filtering invalid video content
Specification:
| Package Weight |
| One Package Weight |
0.23kgs / 0.51lb |
| One Package Size |
13cm * 9cm * 5cm / 5.12inch * 3.54inch * 1.97inch |
| Carton Weight |
12.80kgs / 28.22lb |
| Carton Size |
50cm * 30cm * 31cm / 19.69inch * 11.81inch * 12.2inch |
| Loading Container |
20GP: 573 cartons * 50 pcs = 28650 pcs
40HQ: 1331 cartons * 50 pcs = 66550 pcs
|
|
