Description
Features1. MTK three chips, stable performance

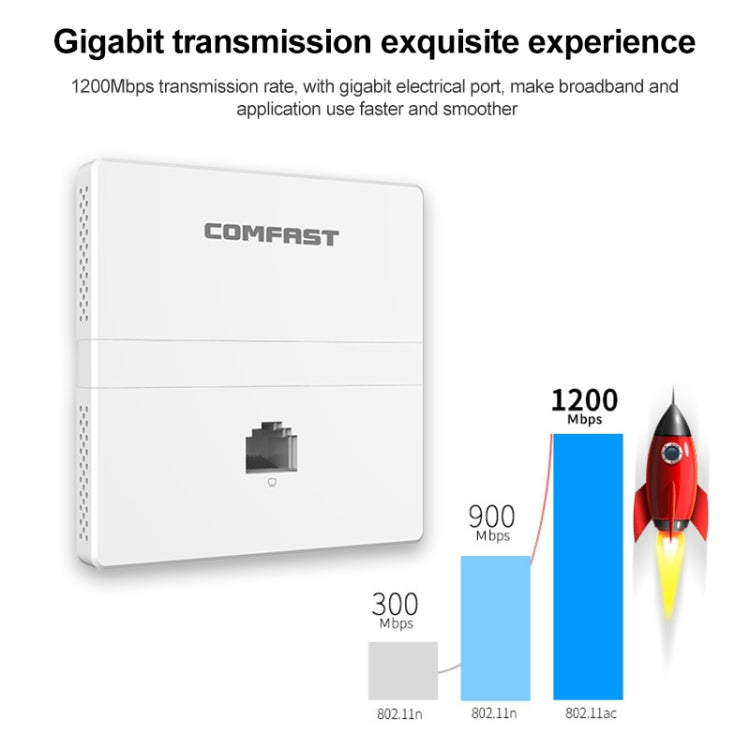

2. 1200Mbps dual-band, Gigabit Ethernet port
3. RJ45 network port output wired network connection
4. 48V standard POE power supply, remote power supply
5. Memory 128M, flash memory 16M
6. Transmit power 200mW (23dBm) max
Specification1. Hardware Specifications:
Chip: MT7621DAT+MT7613B+MT7603E
Memory: 128MB
Flash: 16MB
2. Antenna specifications: built-in antenna, 2.4Gx2, 5.8Gx2, antenna standard: support IEEE802.11b/g/n

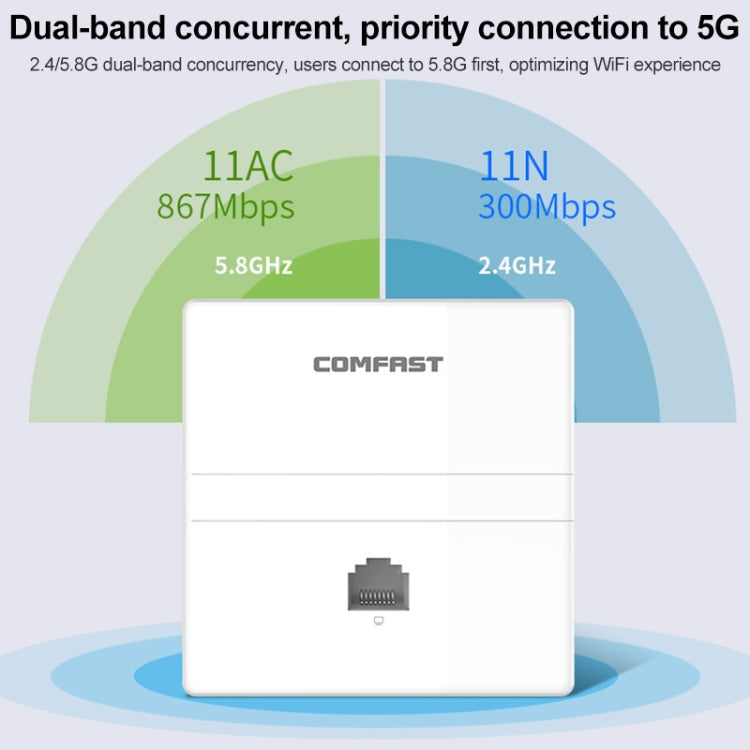

3. Wireless speed: 2.4GHz: 300Mbps/5.8GHz: 867Mbps
4. RF parameters:
Transmit power: 80mW (19dBm)
Receive sensitivity: -96dBm
Operating frequency: 2.412GHz-2.472GHz, 5.180GHz-5.825GHz
5. Physical interface:
1 10/100/1000Mbps WAN RJ45 port, support 48V POE power supply
1 10/100/1000Mbps LAN RJ45 port, support POE power supply, can connect to the Internet
6. Power supply:
Power supply mode: POE power supply, support 802.3af/802.3at standard
7. Power consumption: less than 12W
8. Shell material: ABS
9. MTBF: greater than 250000H
10. Dimensions: 86 x 86 x 33mm
Specification:
| Package Weight |
| One Package Weight |
0.19kgs / 0.43lb |
| One Package Size |
10cm * 10cm * 5cm / 3.94inch * 3.94inch * 1.97inch |
| Carton Weight |
20.00kgs / 44.09lb |
| Carton Size |
38cm * 38cm * 32cm / 14.96inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 577 cartons * 100 pcs = 57700 pcs
40HQ: 1339 cartons * 100 pcs = 133900 pcs
|
|
