Description
1. Memory: 64MB, flash memory: 16MB, power amplifier chip: SE2576L*2
2. Antenna specification: 5dBi*2 external antenna
3. Transmitting frequency: 500mW, receiving sensitivity: -96dBm
4. Antenna standard: IEEE802.11b/g/n standard
5. Power adapter: 48V 0.32A
6. Installation method: wall-mounted, pole-mounted
7. Material: ABS, plastic
8. Working temperature: -10 to 65 degrees Celsius
9. Storage temperature: -40 to 70 degrees Celsius
10. Working humidity: 10-90%RH
11. Storage temperature: 5-90%RH
12. Power consumption: less than 8W

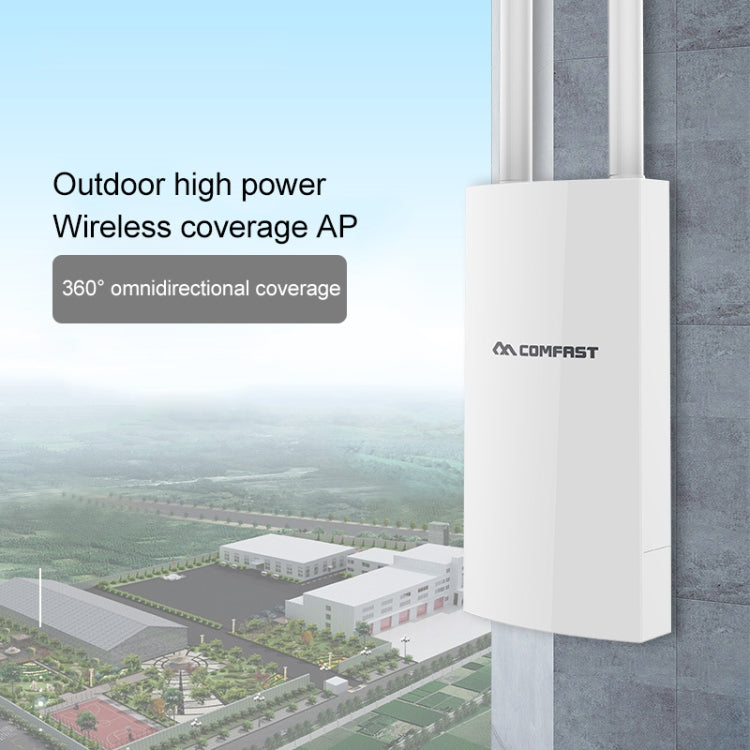

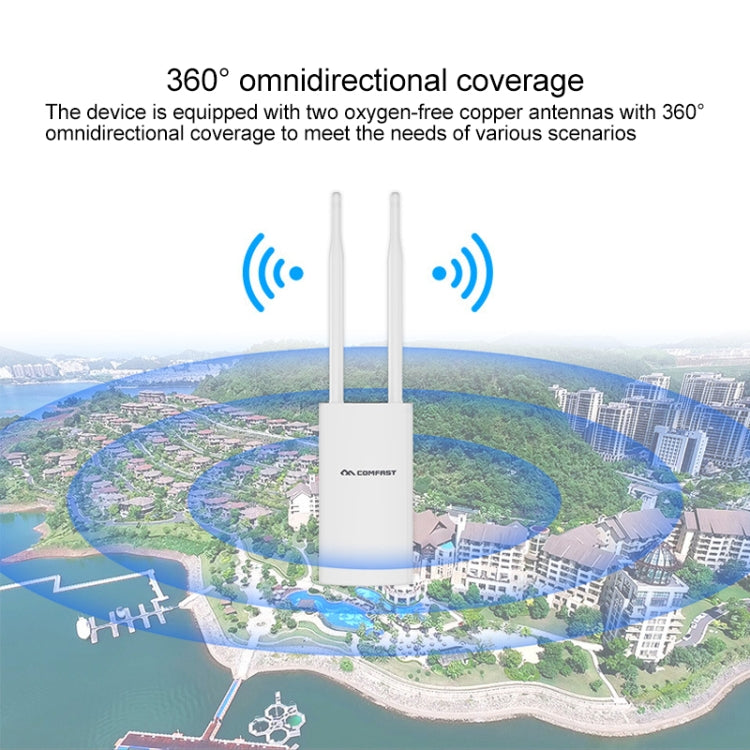

13. Two external oxygen-free copper antennas, 360-degree omnidirectional coverage, to meet the needs of various scenarios
14. Built-in PA SE2576L, improve wireless transceiver performance
15. Can accommodate 50 terminal devices online at the same time, and ensure fast, stable and smooth Internet access
16. Outdoor IP66 protection level can resist many complex and changeable harsh environments
17. Support PoE network cable power supply, the power supply distance is less than or equal to 100 meters

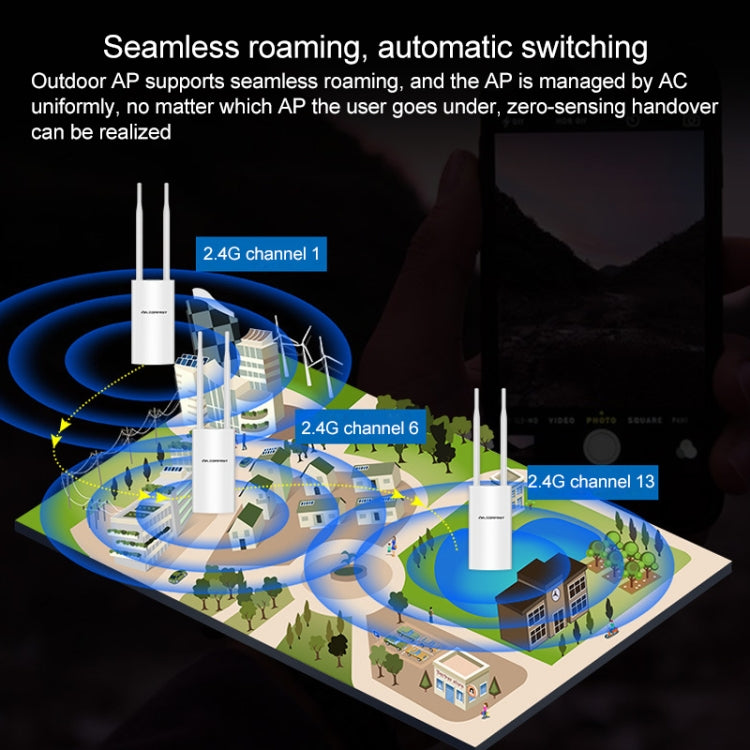

18. Wireless roaming, automatic switching
19. Support COMFAST wireless outdoor AP unified management and configuration, upgrade, data query, etc.
20. Dimensions: 353x85x44mm
Specification:
| General |
| Transmission Rate |
1200Mbps |
| Antenna Types |
Two external oxygen-free copper antennas |
| Standards |
IEEE 802.11 b/g/n |
|
| Environment |
| Storage Temperature |
-40 - 70 Degrees Celsius |
| Operating Humidity |
10 - 95% RH, non-condensing |
| Storage Humidity |
5% to 90% RH non-condensing |
|
| Package Weight |
| One Package Weight |
0.58kgs / 1.28lb |
| One Package Size |
24cm * 19cm * 6cm / 9.45inch * 7.48inch * 2.36inch |
| Carton Weight |
12.08kgs / 26.63lb |
| Carton Size |
48cm * 38cm * 30cm / 18.9inch * 14.96inch * 11.81inch |
| Loading Container |
20GP: 487 cartons * 20 pcs = 9740 pcs
40HQ: 1131 cartons * 20 pcs = 22620 pcs
|
|
