Description

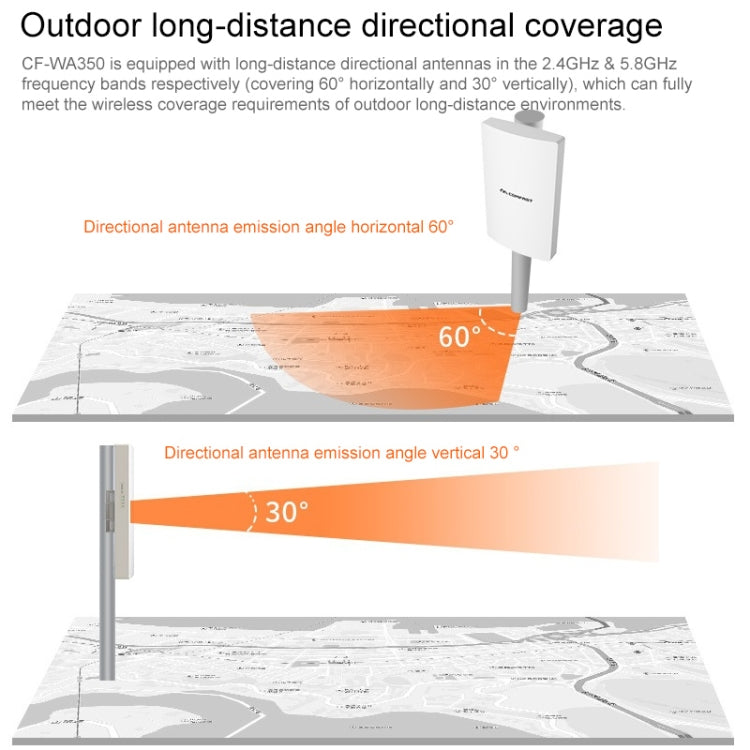

1. 13dbi directional antenna, wide WIFI coverage (directional coverage 100-150 meters)
2. Qualcomm chip, stronger and more stable performance.

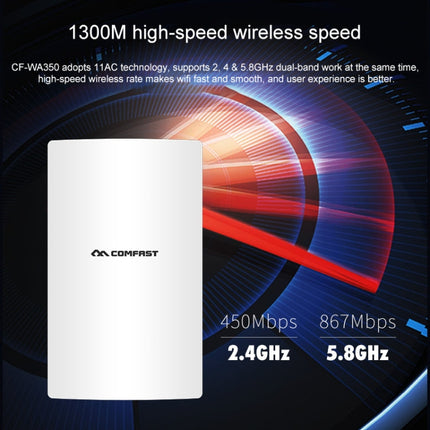

3. Gigabit Ethernet port, 1300M wireless rate, dual-band WIFI, faster transmission rate.
4. 48V PoE supports for flexible deployment and allows the device to be reset remotely.
5. Weatherproof IP67-rated housing resists harsh climates.
6. Support AP, Router, Repeater as operation mode.
Specification:
1. Qualcomm QCA9563+QCA8337+QCA9886 chip solution
2. Memory 128MB Flash 16MB
3. Amplifier chip: 2.4G SE2576L 5.8G SKY85728-11
4. Antenna: 2.4GHz 11dBi directional antenna 5.8GHz 13dBi directional antenna

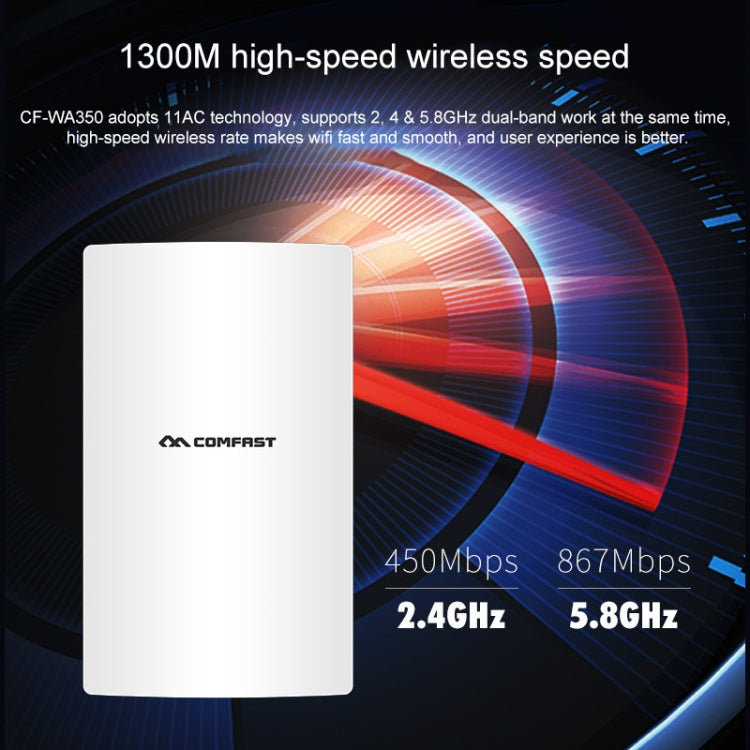

5. Wireless speed: 2.4GHz: 450Mbps 5.8GHz: 867Mbps
6. Transmit power: 500mW (27dBm)
7. Receive sensitivity: -96dBm
8. Operating frequency: 802.11ac/n/a 5.18-5.825GHz 802.11b/g/n 2.412-2.482GHz

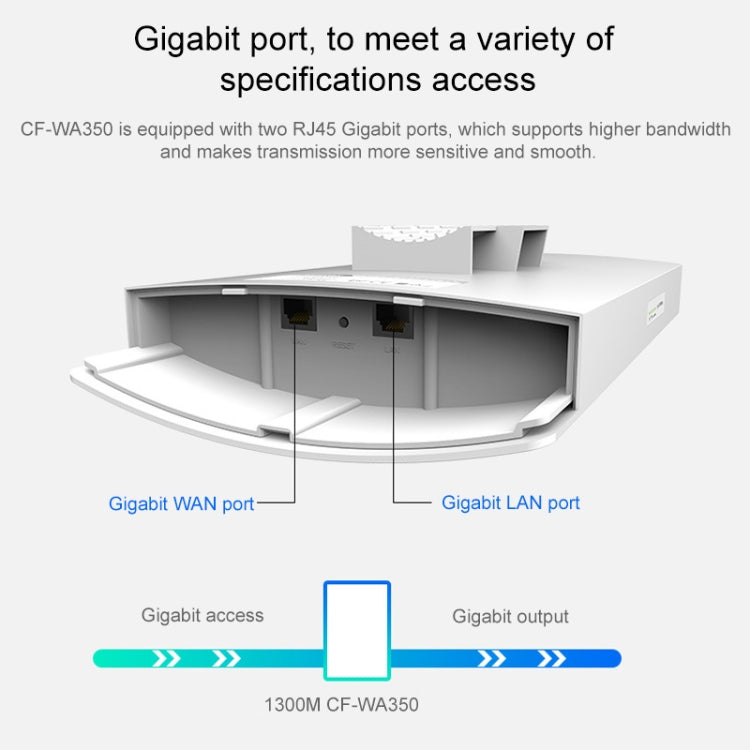

9. Physical interface:
- 1 x 10/100/1000Mbps WAN RJ45 port
- 1 x 10/100/1000Mbps LAN RJ45 port
- 1 x RESET button
10. Power supply: 48V 1.5A POE power adapter
11. Dimensions: 300x180x50mm
Specification:
| Package Weight |
| One Package Weight |
1.45kgs / 3.20lb |
| One Package Size |
40cm * 25cm * 10cm / 15.75inch * 9.84inch * 3.94inch |
| Carton Weight |
9.50kgs / 20.94lb |
| Carton Size |
52cm * 41cm * 32cm / 20.47inch * 16.14inch * 12.6inch |
| Loading Container |
20GP: 390 cartons * 6 pcs = 2340 pcs
40HQ: 907 cartons * 6 pcs = 5442 pcs
|
|
