Description
1. Motherboard chip: Qualcomm QCA9531 650Mhz clocked CPU; power amplifier chip: SE2576L; 64MDDR2
2. Antenna specifications: 2x14dBi smart dual-polarized antenna
3. Wireless standard: support IEEE802.11b/g/n standard
4. Radio frequency parameters: Transmitting power: 500mW (27dBm) Receiving sensitivity: -96dBm Working frequency: 802.11b/g/n: 2.3GHz-2.7GHz
5. Wireless rate: 300Mbps

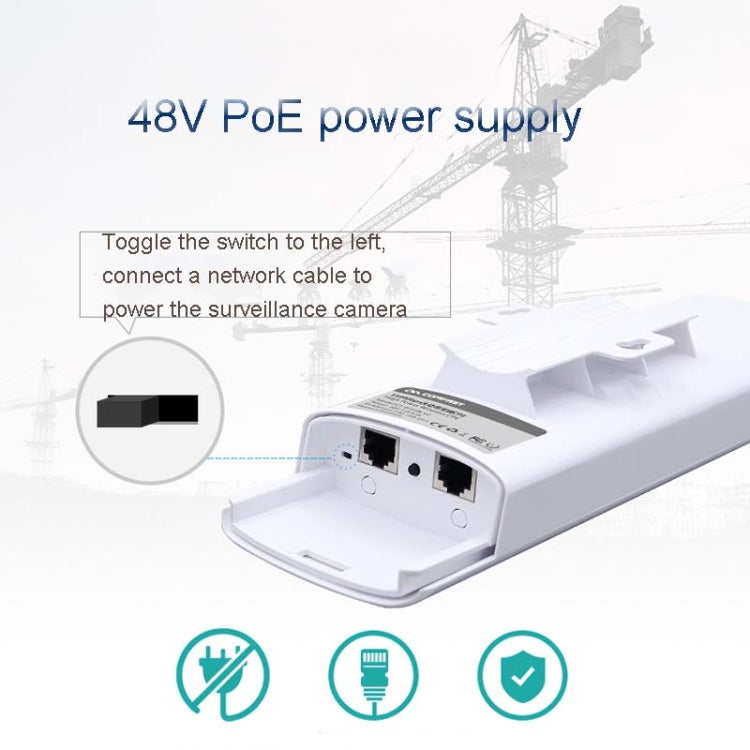

6. Physical interface: 1 10/100Mbps WAN RJ45 Ethernet port; 1 10/100Mbps LAN RJ45 Ethernet port; 1 POE output toggle switch, 1 RESET button
7. Indicator lights: 8 indicator lights
8. Power supply: power supply mode: support 802.3af/802.3at compatible power supply; power adapter: 48V 0.32A POE power adapter;
9. Power consumption: about 7W

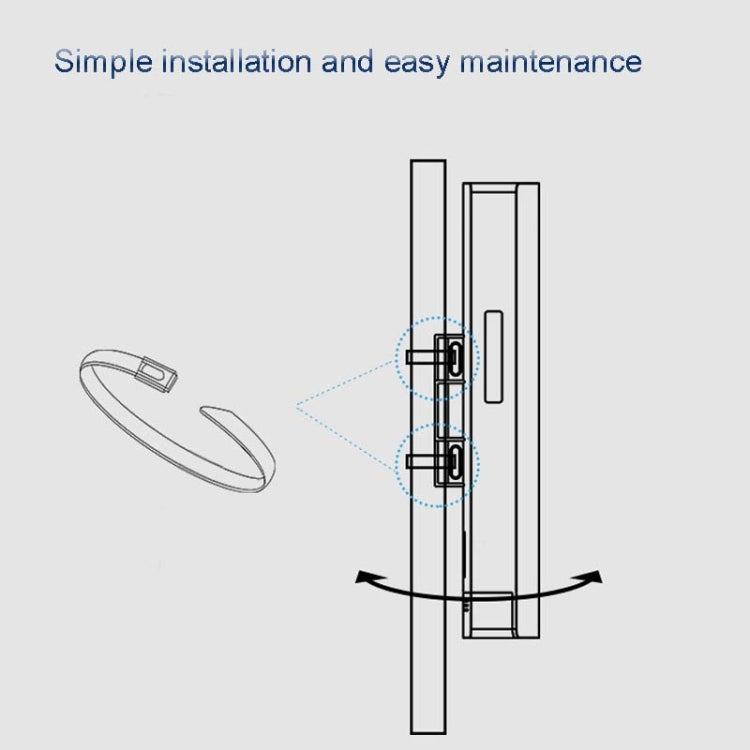

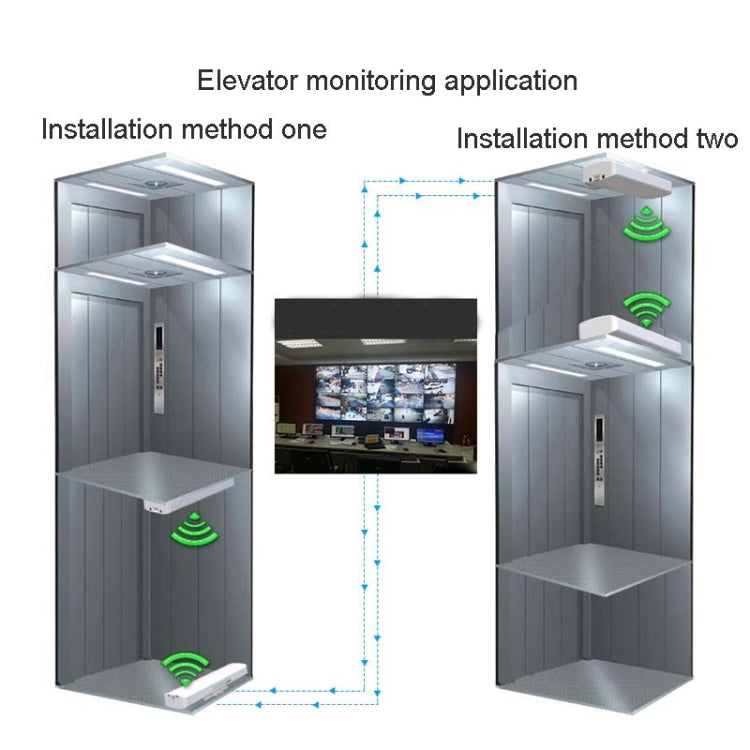

10. Installation method: pole-mounted installation, wall-mounted installation, bracket installation
11. Product size: 262x80x53mm
12. Product net weight: 322g

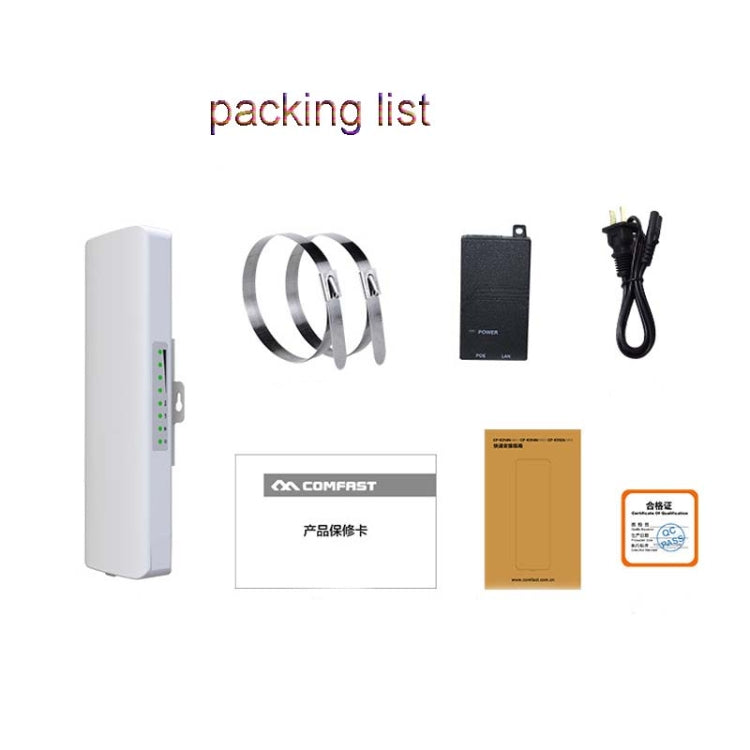

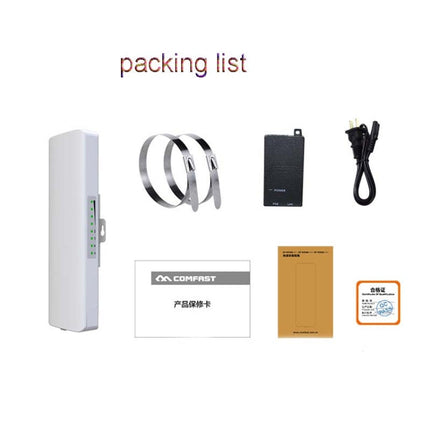

13. Packing list: stainless steel cable tie, POE power supply, power cord, network bridge, installation guide
Specification:
| Package Weight |
| One Package Weight |
1.54kgs / 3.40lb |
| One Package Size |
34cm * 12cm * 16cm / 13.39inch * 4.72inch * 6.3inch |
| Carton Weight |
16.40kgs / 36.16lb |
| Carton Size |
45cm * 37cm * 35cm / 17.72inch * 14.57inch * 13.78inch |
| Loading Container |
20GP: 457 cartons * 10 pcs = 4570 pcs
40HQ: 1062 cartons * 10 pcs = 10620 pcs
|
|
