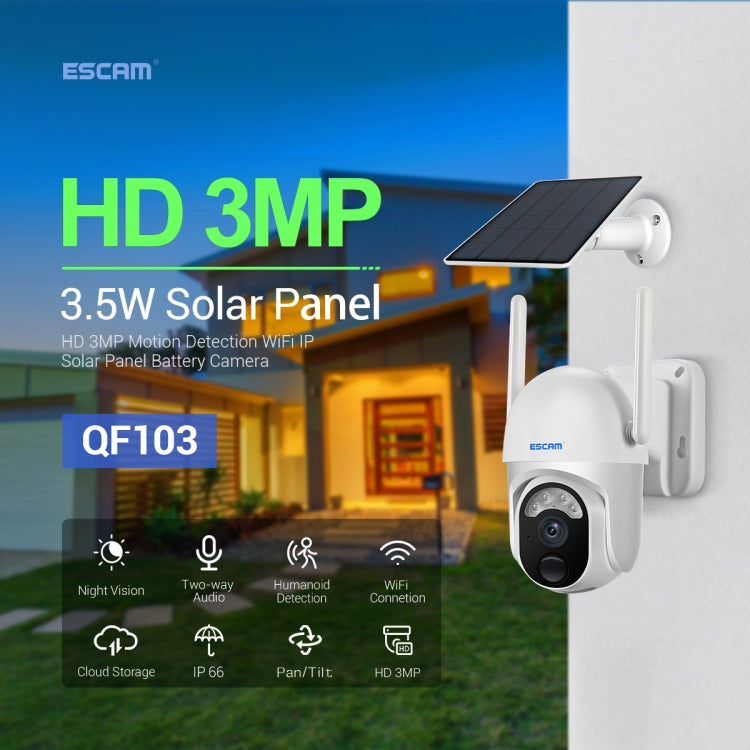

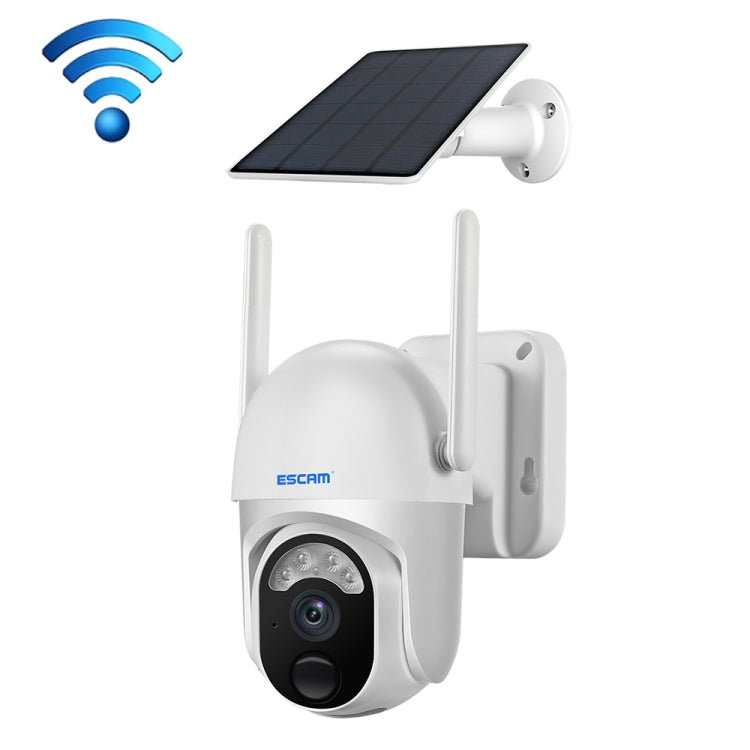

Description
Features
1. The product can be quickly woken up and enter the standby state to achieve intelligent power saving

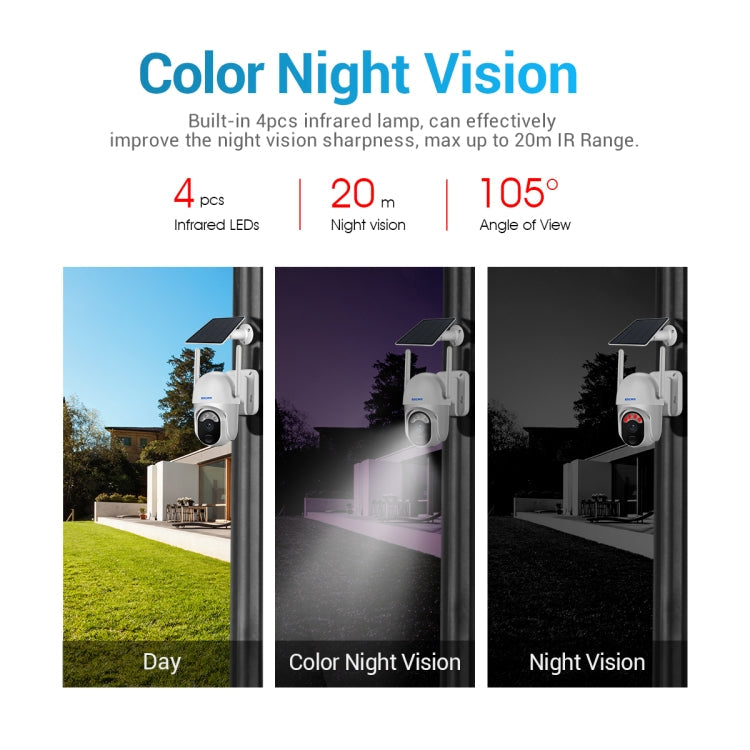

2. 3 million pixel high-definition image, intelligent dual-light full-color night vision

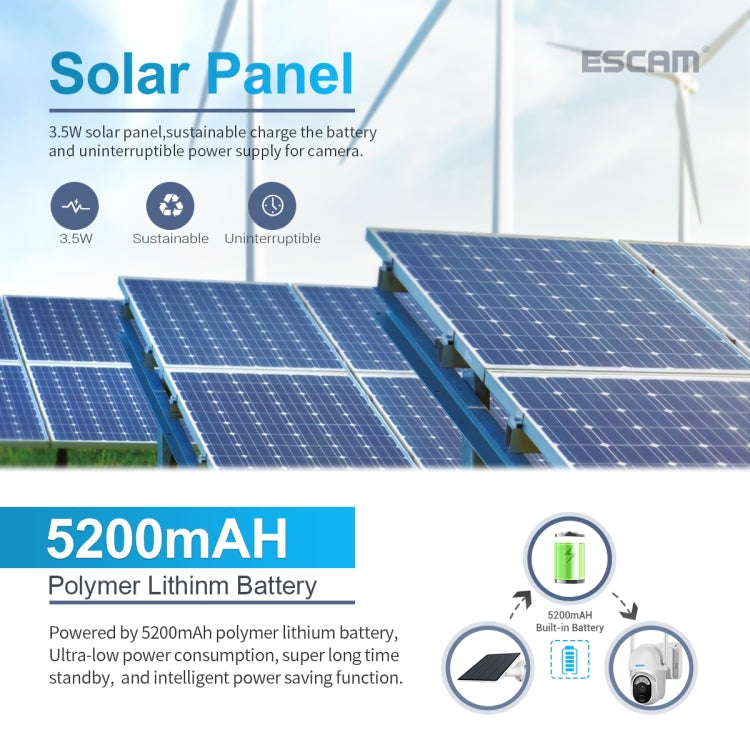

3. Built-in 5200mAh battery, removable solar panel for continuous charging, ultra-low power consumption, ultra-long standby time

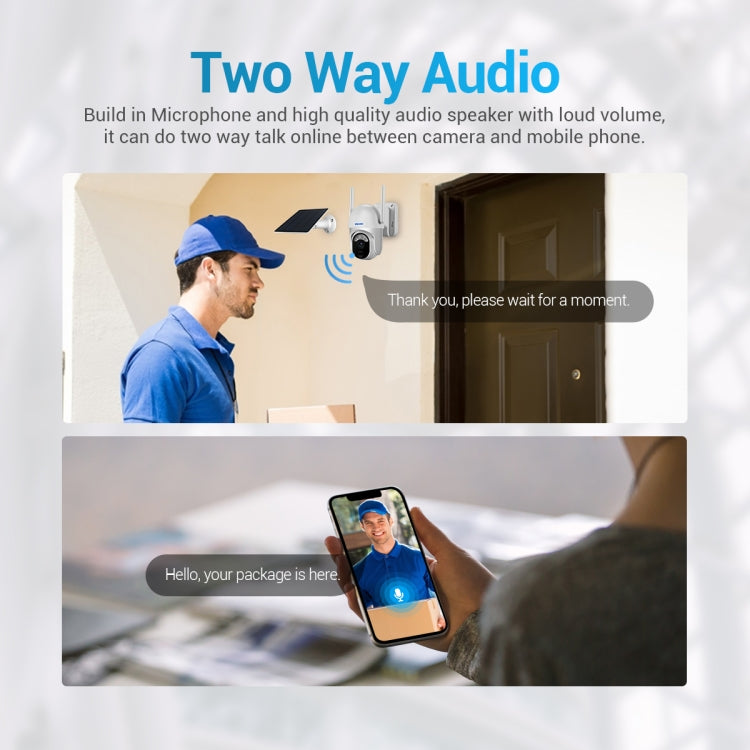

4. Built-in microphone and speaker, support two-way voice intercom
5. Built-in PIR alarm sensor, provide accurate and real-time alarm, push the mobile phone APP
6. Support PTZ control, 330 degrees left and right, 90 degrees up and down
7. Support cloud storage and 128G TF card local storage
8. APP: Support Android/IOS, name UBox
9. IP66 outdoor protection
Parameter:

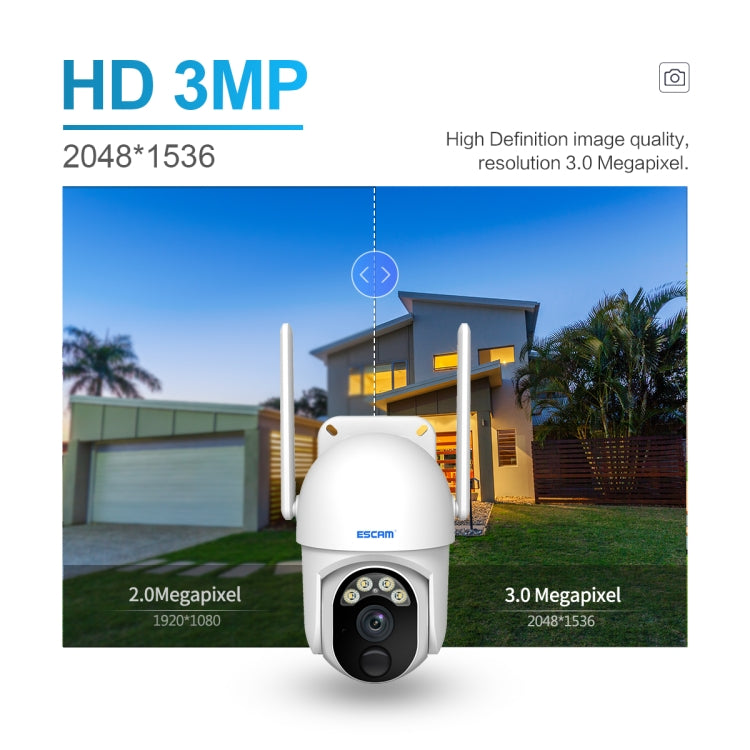

1. Pixel: 2048x1536 3MP
2. Alarm mode:
Detection mode: PIR human body induction + AI humanoid detection
Detection distance: 20m
Detection angle: 120 degrees
Alarm method: double induction confirmation push alarm information to mobile phone
3. PTZ:
Gimbal angle: horizontal 355 degrees / vertical 120 degrees
Rotation speed: horizontal 55 degrees/second / vertical 40 degrees/second
4. Night Vision Mode:
Infrared light: Infrared LED distance 30m
White light: White LED distance 30m
5. Voice:
Built-in speaker: 3W
Built-in microphone: monitoring range 20m
6. Lens:
Focal length: 3.6mm
Angle: 120 degrees
7. Storage:
Cloud storage: cloud storage (alarm recording)
Local storage: TF card (maximum 128G)
8. Power supply:
Power supply mode: solar + 18650 battery
Solar cell power: 3.5W
Battery capacity: support 2 18650 batteries (2x2600mAh)
Maximum working power: 3W
Standby power: 0.003W
9. Working environment: indoor/outdoor
10. Operating temperature: -30 degrees - +60 degrees
11. Working humidity: 0%~90%RH

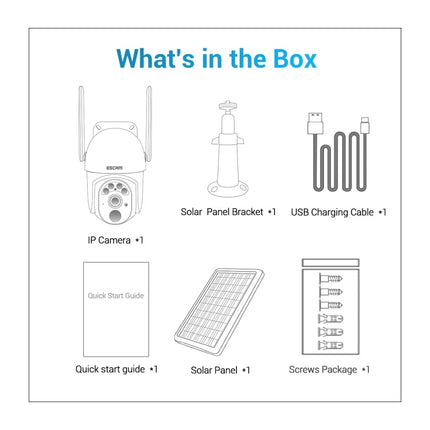

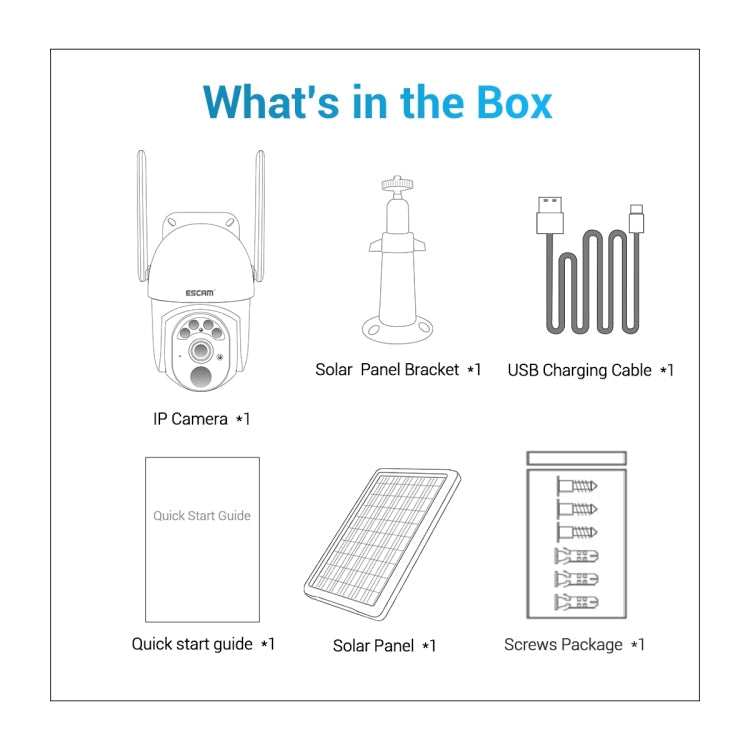

Product List:
- Solar panel x 1
- WIFI camera x 1
- Screw Pack x 1
- USB charging cable x 1
- Manual x 1
- Positioning paper x 1
Specification:
| General |
| Performance |
Motion detection, Night Vision, Alarm detection |
| Memory |
up to 128GB (not included) |
| Function |
PTZ, Motion Detect, Cloud storage |
|
| System / Hardware |
| Mobile Access |
Android, iPhone OS |
| Image Flip Function |
Horizontal Flip, Vertical Flip |
| Pan/Tilt-Horizontal Angle |
355 degrees |
| Pan/Tilt-Vertical Angle |
120 degrees |
|
| Media Format |
| Video Compression Format |
H.265 |
|
| NVR |
| Operation temperature |
-30 to 60 Degree Celsius |
| Operation humidity |
Less than 90 percent |
|
| Physical Environment |
| Operate Temperature |
-30 to 60 Degree Celsius |
| Working Humidity |
0 to 90 percent |
|
| Package Weight |
| One Package Weight |
0.88kgs / 1.93lb |
| One Package Size |
18cm * 17cm * 14cm / 7.09inch * 6.69inch * 5.51inch |
| Carton Weight |
11.50kgs / 25.35lb |
| Carton Size |
36cm * 36cm * 40cm / 14.17inch * 14.17inch * 15.75inch |
| Loading Container |
20GP: 514 cartons * 12 pcs = 6168 pcs
40HQ: 1194 cartons * 12 pcs = 14328 pcs
|
|
