Description
1. Excellent motherboard compatibility, suitable for INTEL AMD
2. The cold head has a built-in light source, colorful breathing light effect, and the light is soft and not good for eyes

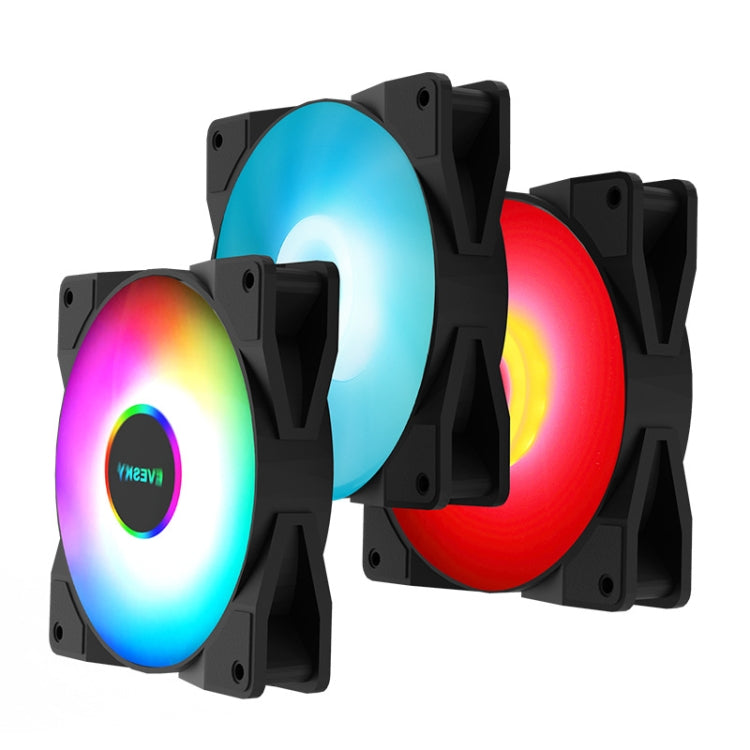

3. 9-blade design, full of wind power, anti-vibration pad design at the bottom, effective anti-vibration, tight fit.

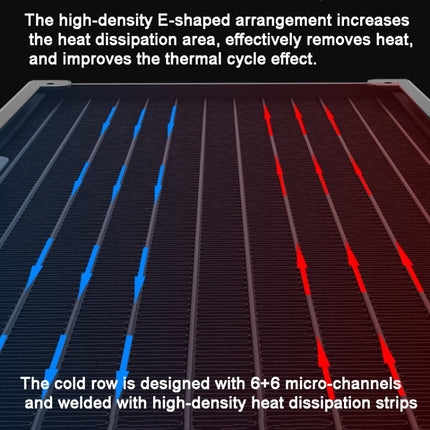

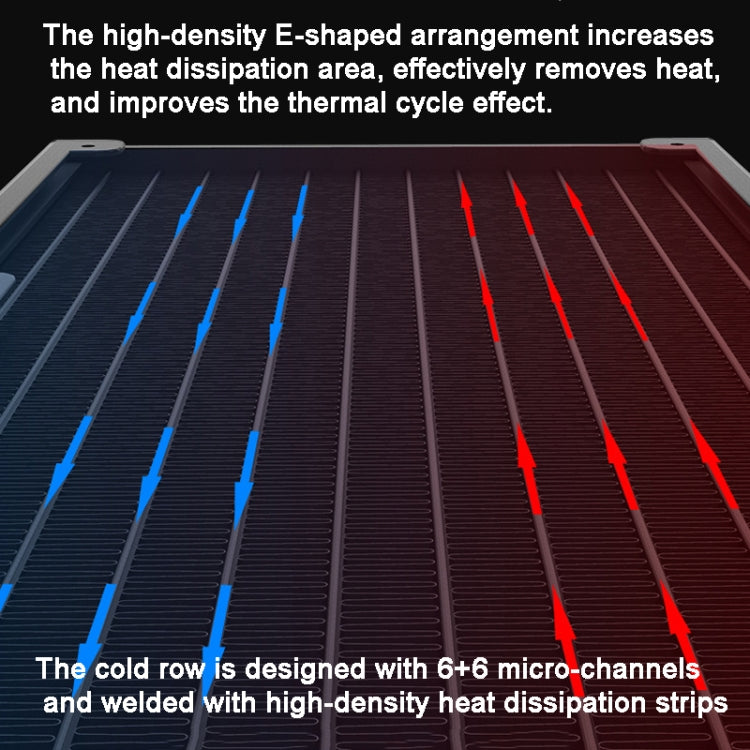

4. The high-density E-shaped arrangement increases the heat dissipation area, effectively removes heat, and improves the thermal cycle effect.

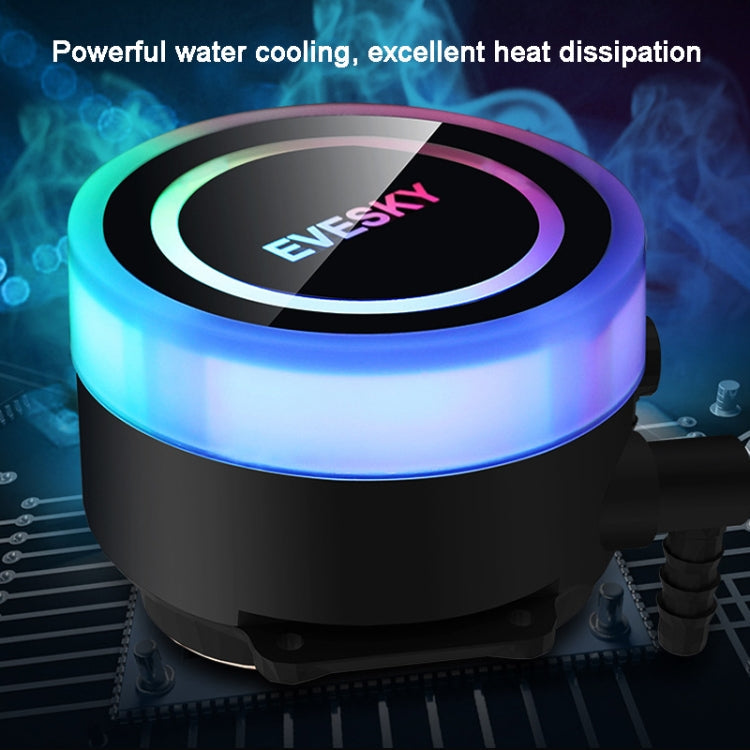

5. Powerful water-cooled power system, water-cooled operation without noise, fast heat dissipation
6. 12 RGB lamp beads, the color wheel scrolls cool and extraordinary.

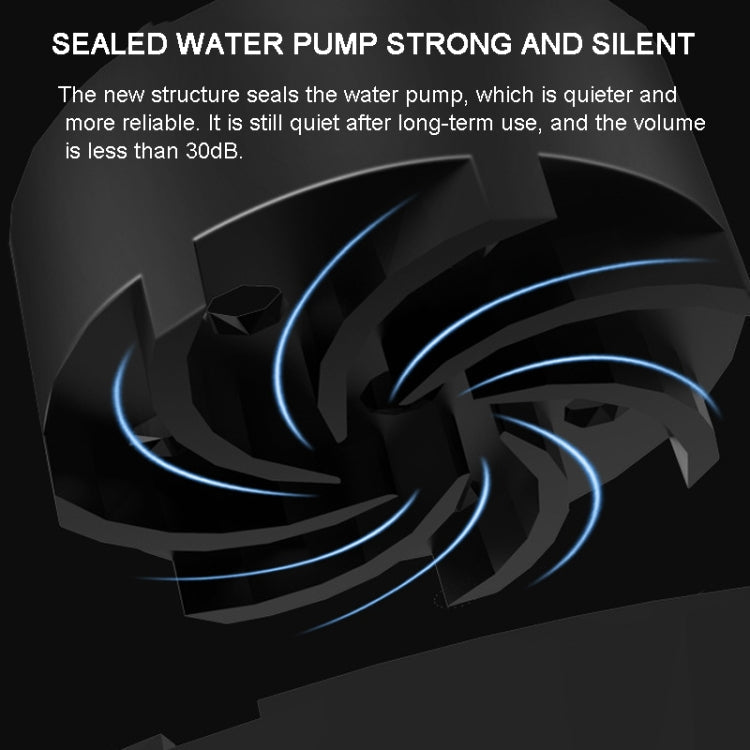

7. Sealed water pump, quieter and more reliable, still quiet after long-term use, the volume is less than 30dB.

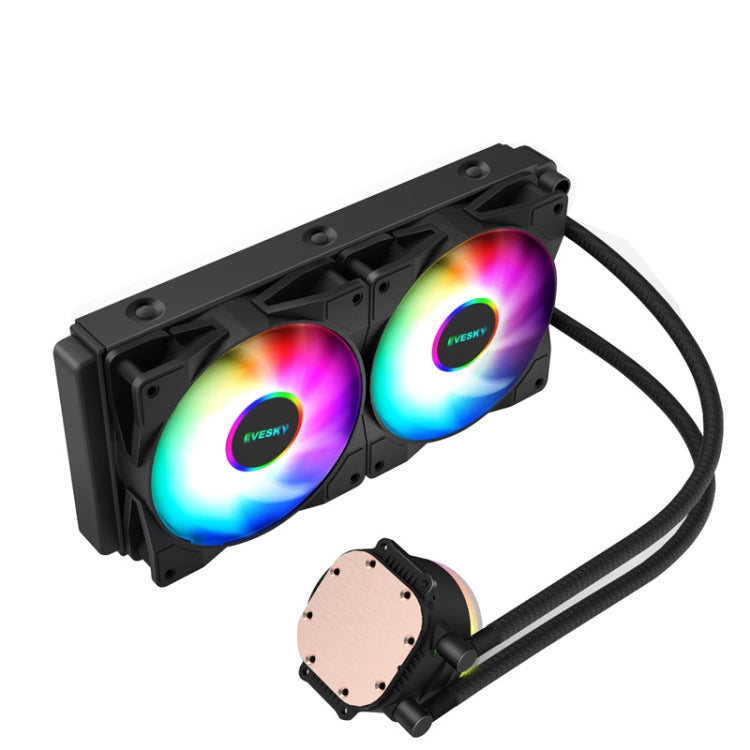

8. The pure copper base has a smooth finish and is finely polished to fit more closely with the processor.
Parameter:
120mm/240mm/360mm
1. Rated voltage: 12V

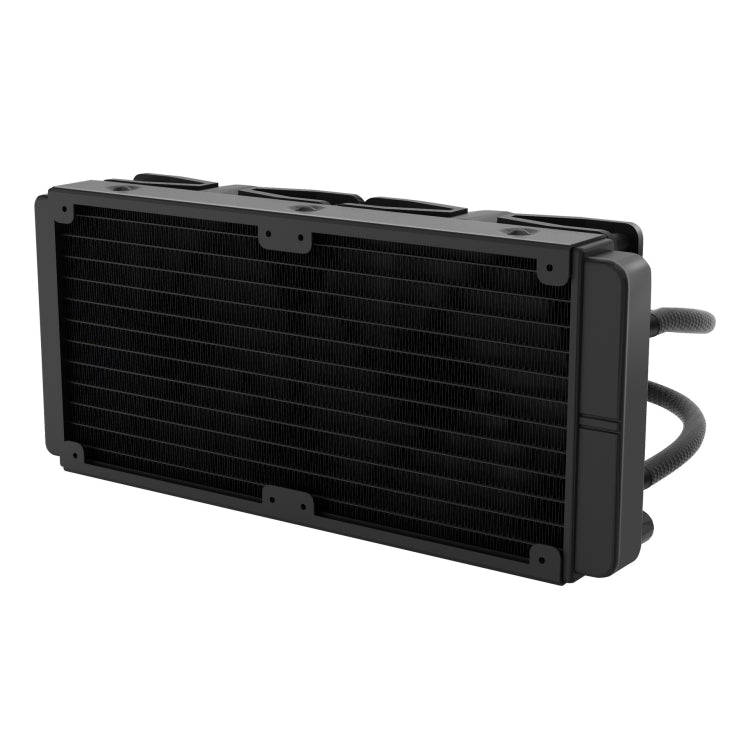

2. Radiator material: aluminum alloy
3. Radiator size: 120mm: 153 x 120 x 27.5mm, 240mm: 276 x 120 x 27.5mm, 360mm: 397 x 120 x 27.5mm
4. Fan size: 120 x 120 x 25MM
5. Fan speed: 800-1800RPM (+/-10%)
6. Fan air volume: 45.6 CFM (EACH)
7. Fan life: greater than or equal to 40000HOURS, 25 degrees Celsius
8. Fan control method: 4PIN PWM
9. Water pump size: OD70 x 32MM
10. Water pump noise: less than 26.9dBa
11. Pump speed: 2600RPM (+/-10%)
12. Pump working voltage: 4-12V
13. Water pump power consumption: 1.92W (single row)
14. Platform support:
-For AMD SOCKET FM1, FM2, FM2+, AM2, AM2+, AM3, AM3+, AM4
-For INTEL SOCKET LGA2011/2011-V3, 1366, 1150, 1151, 1155, 1156, 775
Specification:
| Package Weight |
| One Package Weight |
1.50kgs / 3.32lb |
| One Package Size |
19cm * 15cm * 5cm / 7.48inch * 5.91inch * 1.97inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
51cm * 40cm * 13cm / 20.08inch * 15.75inch * 5.12inch |
| Loading Container |
20GP: 1005 cartons * 20 pcs = 20100 pcs
40HQ: 2334 cartons * 20 pcs = 46680 pcs
|
|
