Description

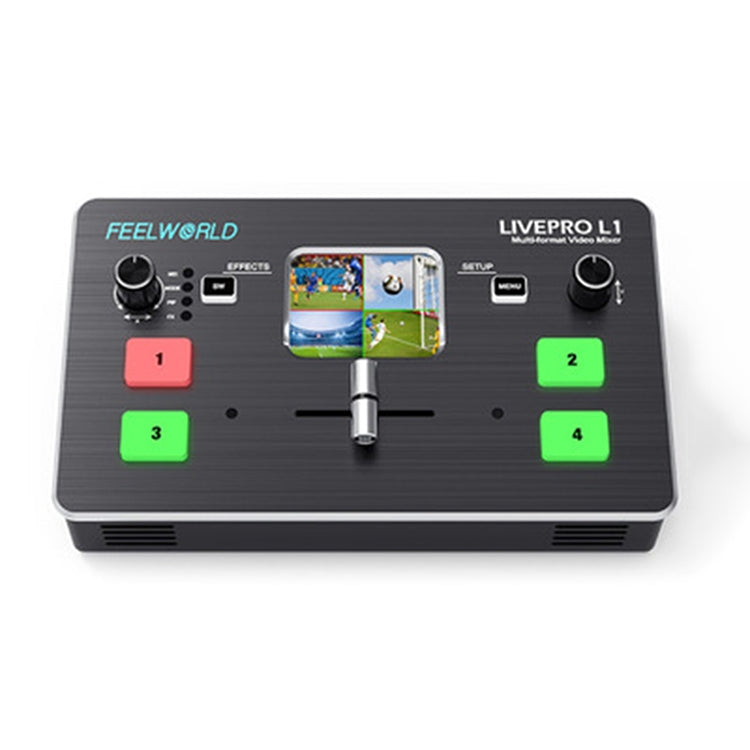

1. Screen size: 2.0 inches TFT screen
2. Backlight source: LED

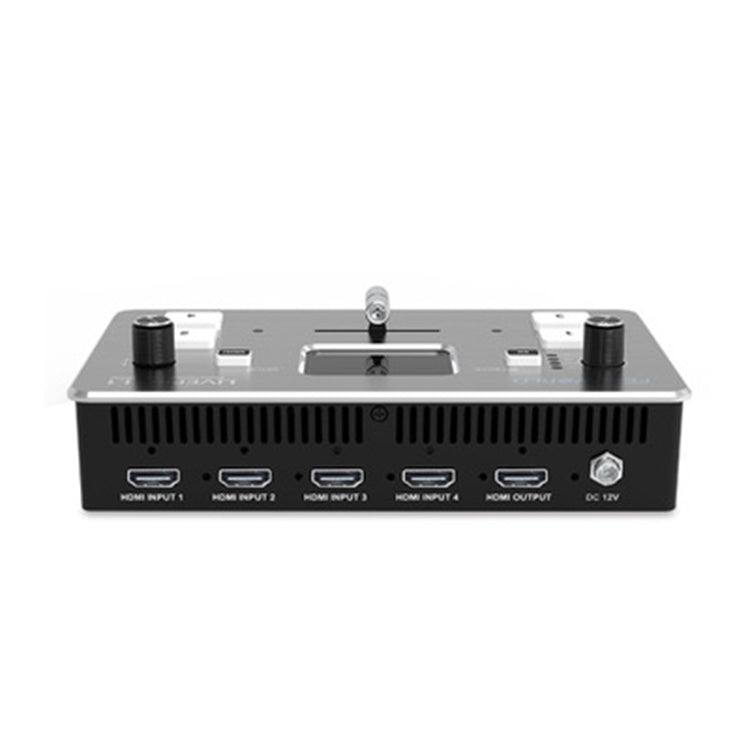

3. Input: 4 x HDMI

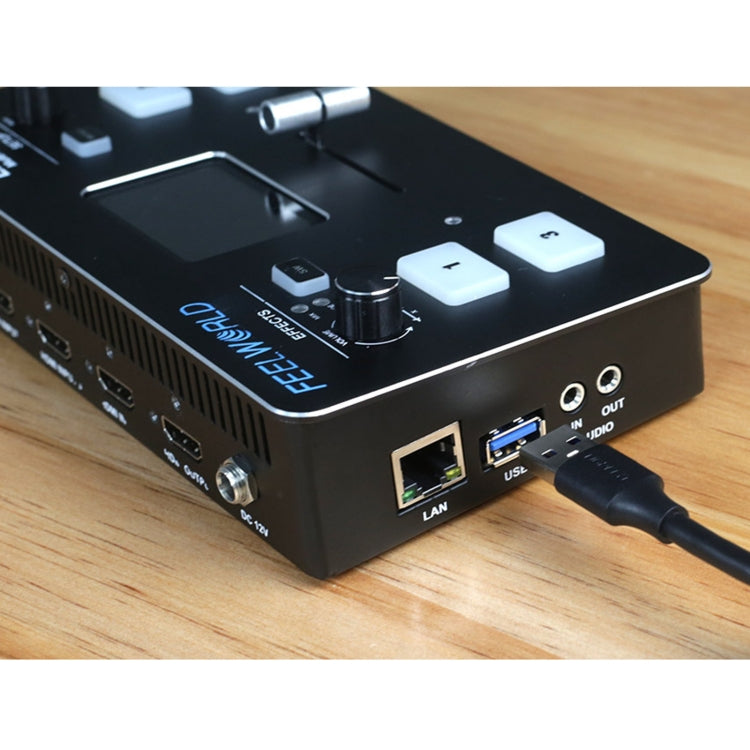

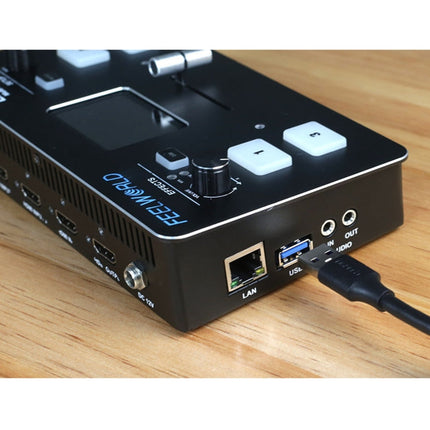

4. Output: 1 x HDMI, 1xUSB Type A USB3.0

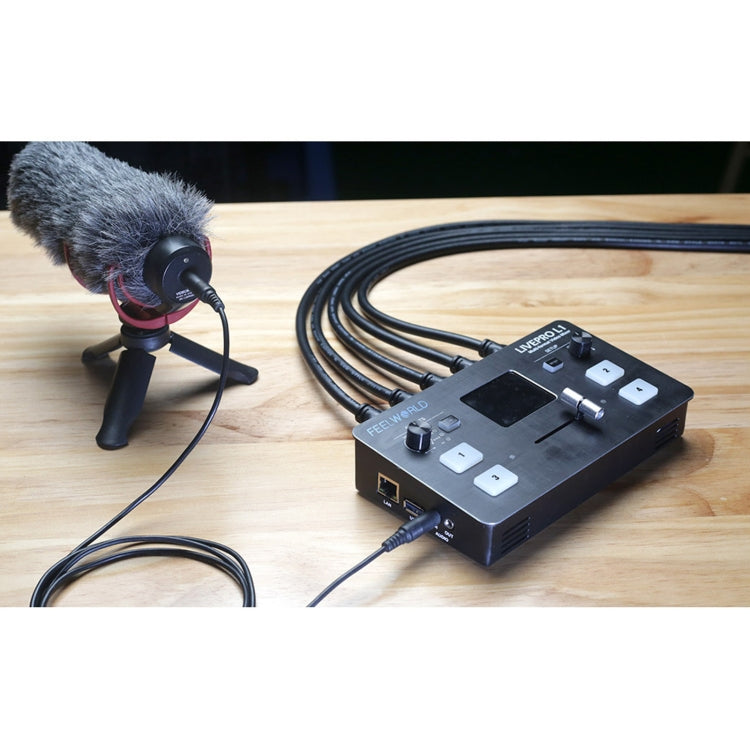

5. Audio input: 1x3.5mm audio socket
6. Audio output: 1x3.5mm audio socket
7. Input resolution: HDMI, SMPTE 720p@50/60 |1080i@50 | 1080p@23/24/30/50/60; VESA 1024x768@60 |; 1280x720@60|1280x768@60 |1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60| 1440x900@60| 1600x1200@60 | 1680x1050@60 |1920x1080@50i| 1920??1080@60 |; 1920x1080@60i|1920x1200@60
8. Output resolution: HDMI, SMPTE 720p@60 |1080p@60; VESA 1024x768@60 | 1280x720@60|1280x768@60 |1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60| 1440x900@60| 1680x1050@60 | 1920x1080@60
9. Power: 18W
10. Working temperature: -30-50 Degrees Celsius
11. Working humidity: 10%~85%
12. Single machine size: 185x 110x 39mm
13. Stand-alone weight: 648g
Specification:
| Package Weight |
| One Package Weight |
0.89kgs / 1.95lb |
| One Package Size |
37cm * 28cm * 12cm / 14.57inch * 11.02inch * 4.72inch |
| Carton Weight |
14.00kgs / 30.86lb |
| Carton Size |
61cm * 57cm * 38cm / 24.02inch * 22.44inch * 14.96inch |
| Loading Container |
20GP: 201 cartons * 10 pcs = 2010 pcs
40HQ: 468 cartons * 10 pcs = 4680 pcs
|
|
