Description

Features

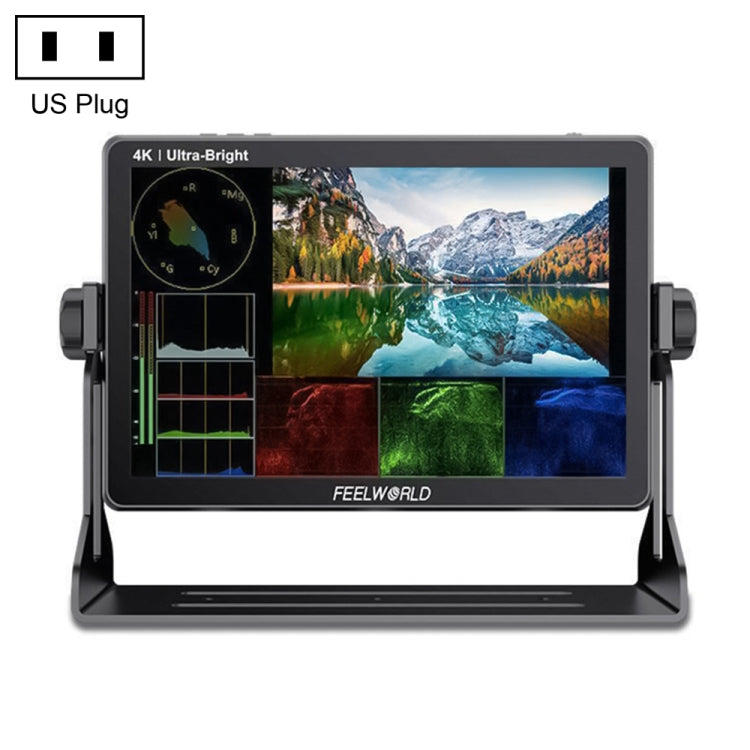

1. 10.1-inch 1920x1200 full HD IPS screen

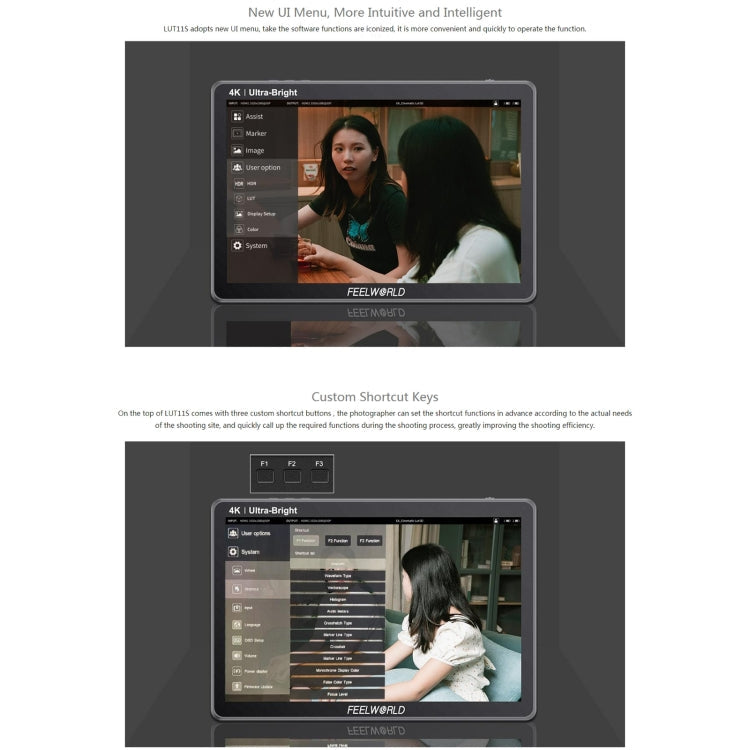

2. Touch screen menu operation, improve shooting efficiency

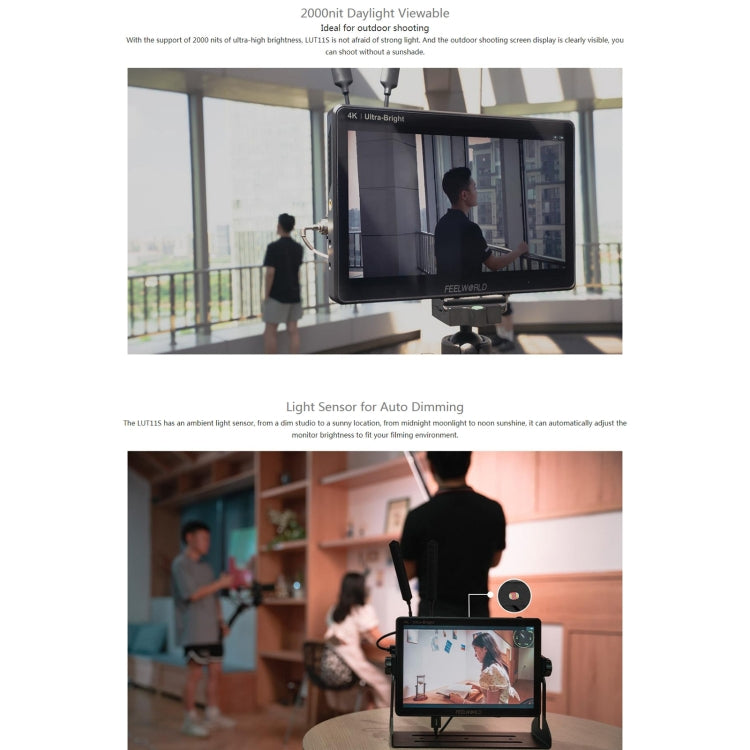

3. Ultra-bright 2000nit, clearly visible in the sun
4. Light sensor auto dimming
5. Support 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
6. Support HDR monitoring, what you see is what you get
7. Dual HDMI inputs support up to 4K 60Hz

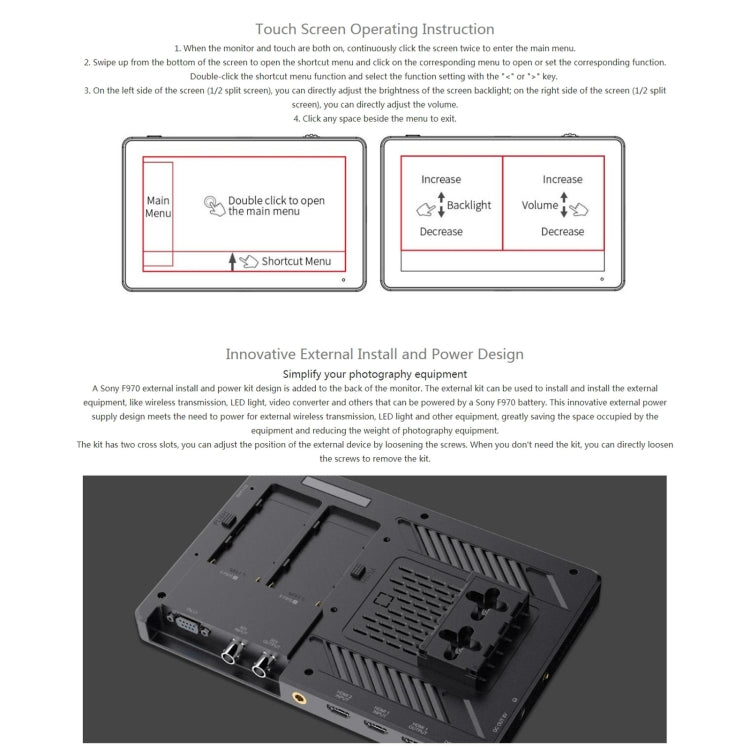

8. F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment

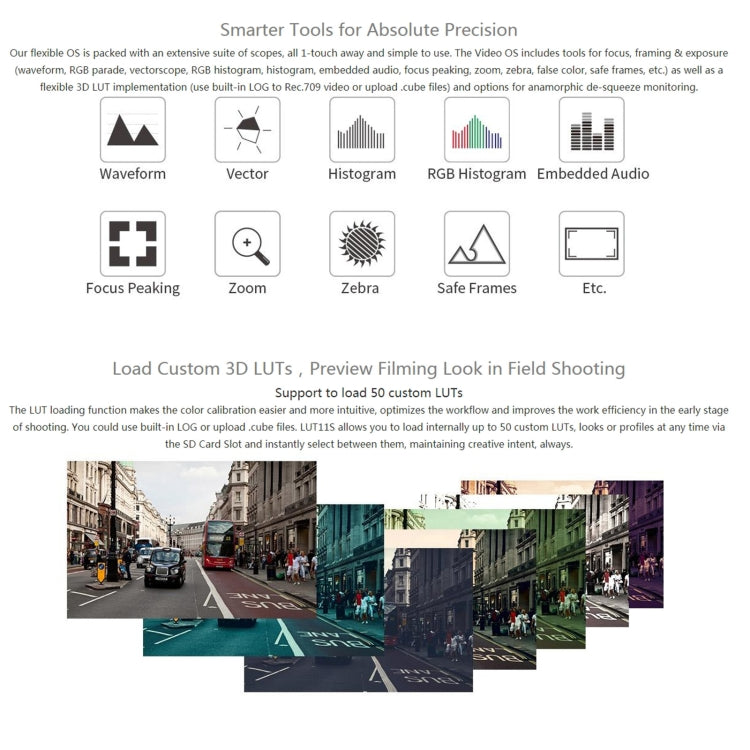

9. With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
10. Built-in Tally Indicators (Red, Green, Yellow)
11. Stereo Earphone output
12. DC 8V power out to power your DSLR camera or mirrorless camera

Specifications

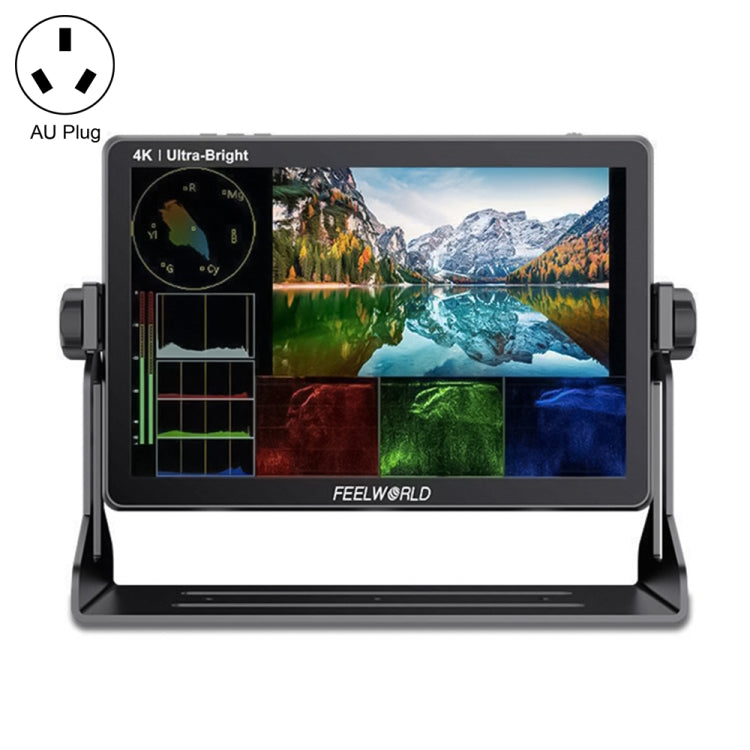

1. Model: LUT11S

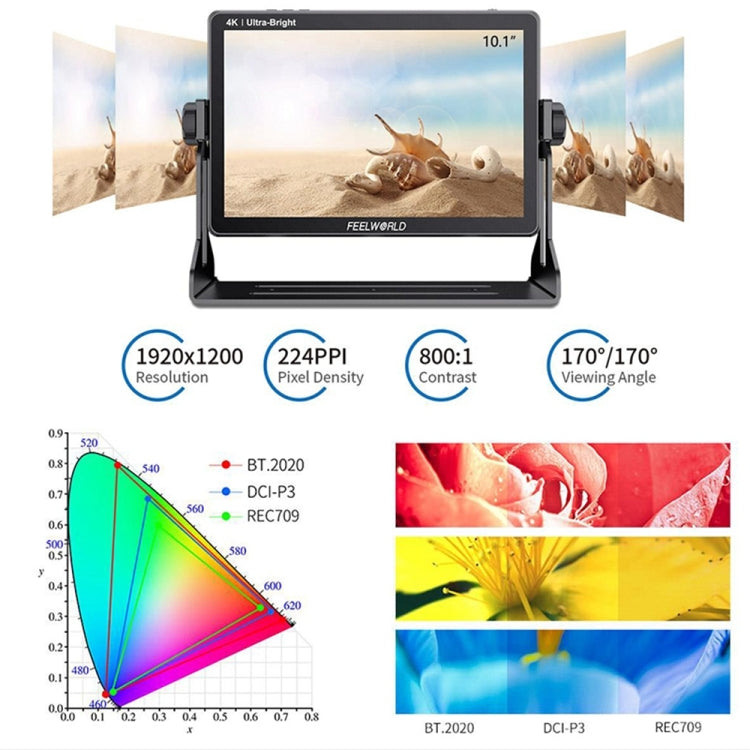

2. Screen Size: 10.1 incn IPS
3. Resolution: 1920x1200 pixels
4. Pixel Pitch: 0.113(W) x 0.113(H) (mm)
5. Aspect Ratio: 16:10
6. Brightness: 2000cd/m2
7. Contrast Ratio: 800:1
8. Backlight: LED
9. Viewing Angle: 85 degree/85 degree (L/R) 85 degree/85 degree(U/D)

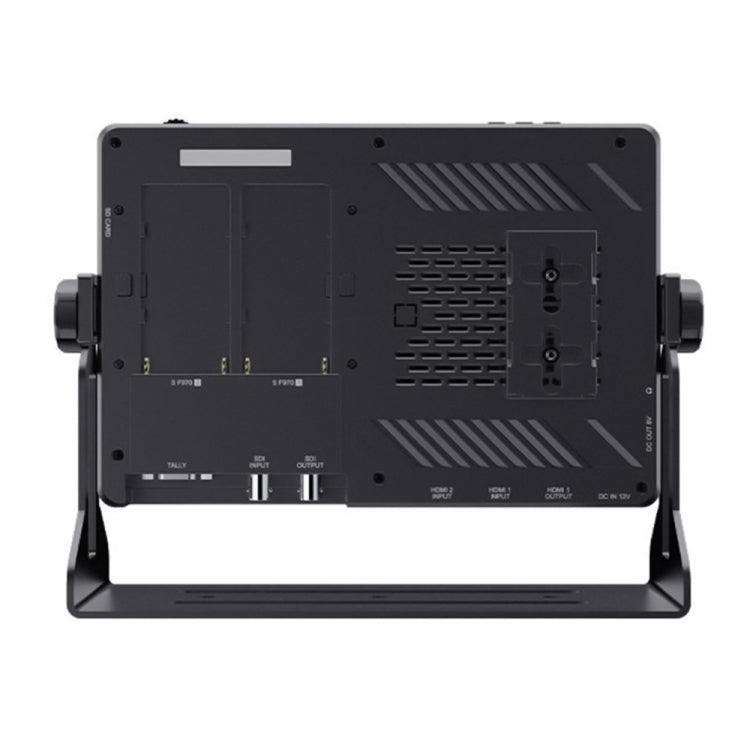

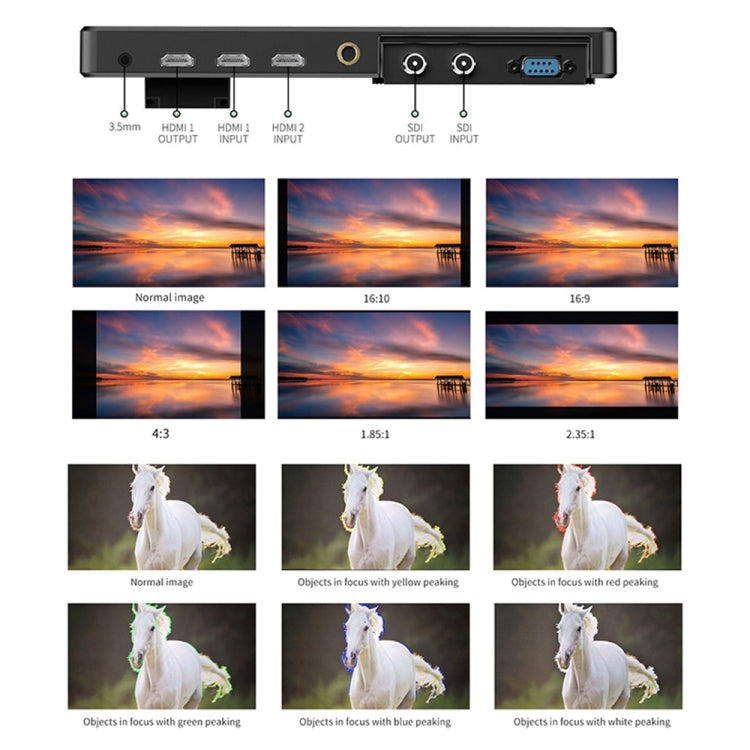

Input
- 2 X HDMI: HDMI
- 1 X SDI: 3G-SDI
- 1 X Tally: 9 Pin Connect

Output
- 1 X HDMI: HDMI
- 1 X SDI: 3G-SDI
- 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
- Audio: 3.5mm Stereo Headphone

SDI Input Support Format
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 2048x1080i (60/59.94/50)
- 2048x1080p (60/59.94/50/30/29.97/25/24/23.98)

SDI Output Support Format
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080i(60/59.94/50)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input/ Output Support Format
- 480i/576i/480p/576p
- 1080i (60/59.94/50)
- 720p (60/59.94/50/30/29.97/25/24/23.98)
- 1080p (60/59.94/50/30/29.97/25/24/23.98)
- 3840x2160p (60/50/30/29.97/25/24/23.98)
- 4096x2160p (60/50/30/29.97/25/24/23.98)

General
1. Input Voltage: DC7-24V
2. Power Consumption: Less than or equal to 28W
3. Working Temperature: -10degree C~50degree C
4. Storage Temperature: -20 degree C~60degree C

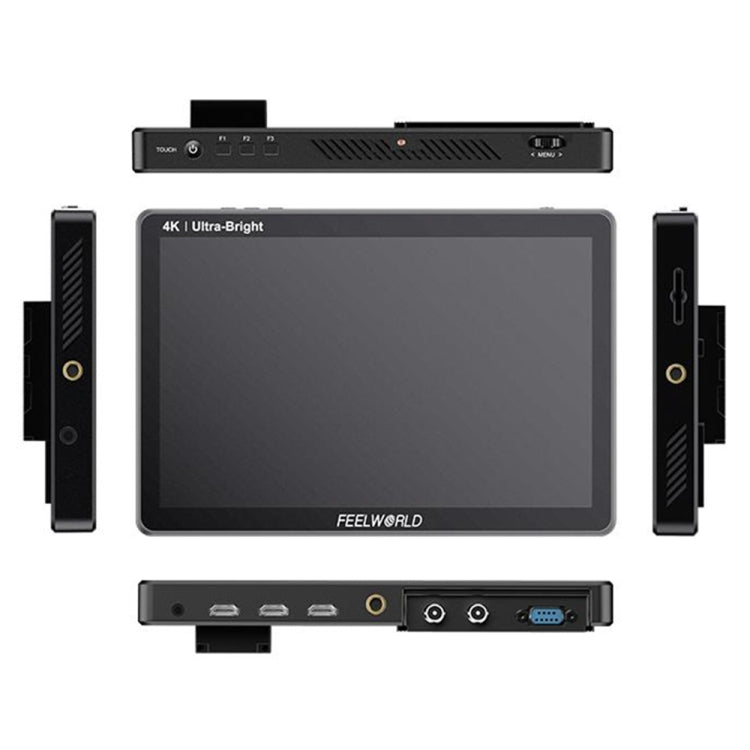

5. Install Way: 1/4 INCH -20 Thread Socket ( Left, Right, Bottom)
6. Unit Size: 242Lx156Hx23D(mm)
7. Unit Weight: 810g

Package List
1. Monitor x 1
2. Mini HDMI cable x 1
3. Power adapter x 1
4. U-Bracket x 1
5. Manual x 1
