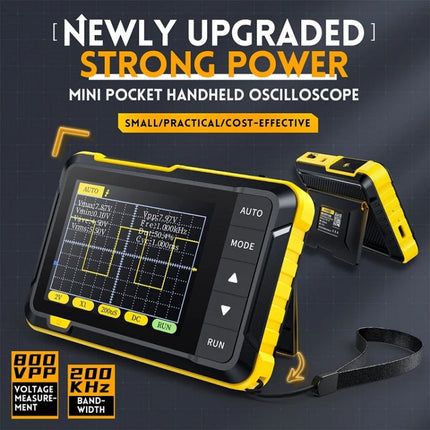

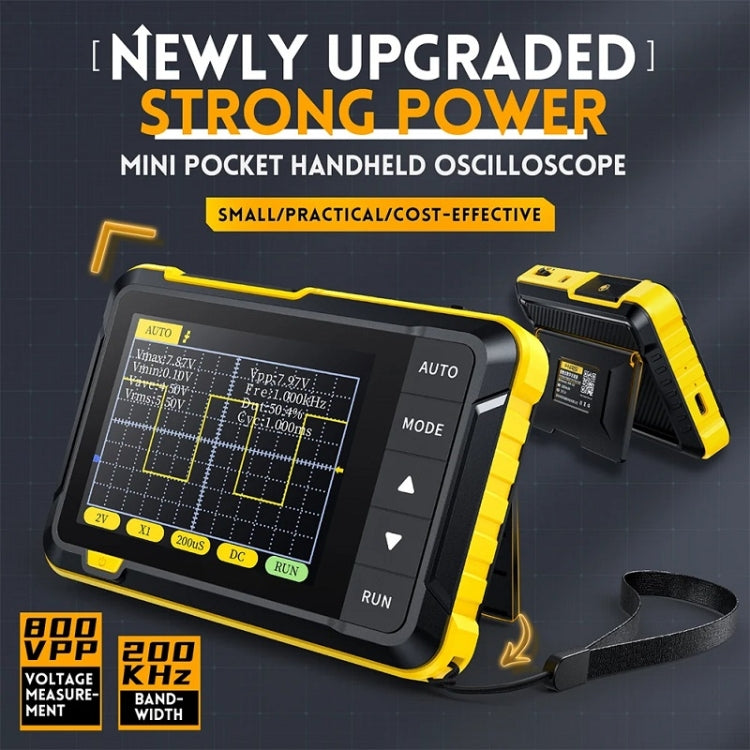

Description
1. Sampling rate: 25Ms/s
2. Bandwidth: 200k
3. Vertical sensitivity: 10mv/div- 20v/dIV (1-2-5 gradual)
4. Time base range: 10μs/Div-50s/Div (1-2-5 increment)
5. Voltage range: X1: 40V (VPP: 80V), X10: 400V (PP: 800V)
6. Triggering method: automatic routine/single shot
7. Coupling method: AC/DC
8. Display: 2.8 inches/PPI: 320*240
9. USB charging: 5V/1A
10. Lithium battery capacity: 1000mAh
11. Calibration square wave: frequency 1K

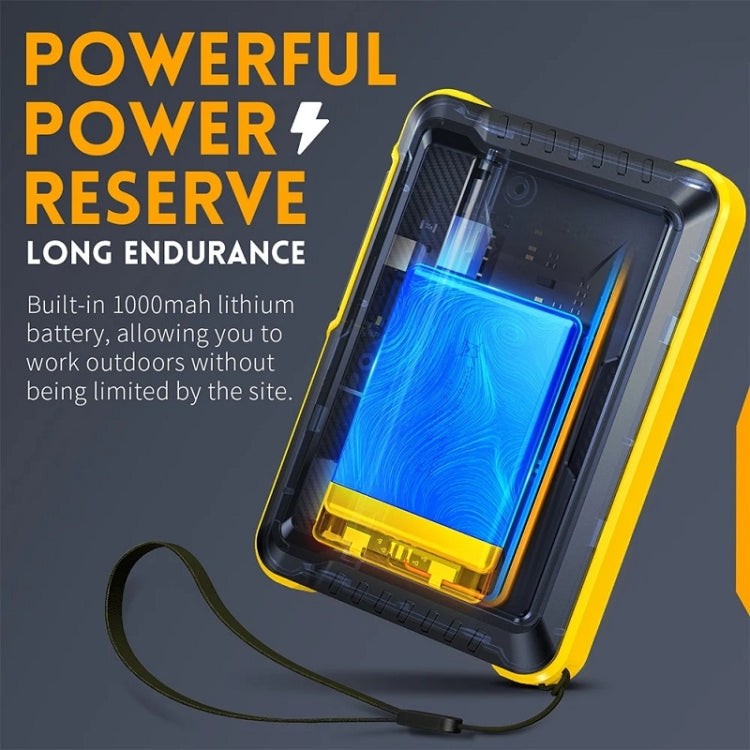

12. Built-in large-capacity lithium battery for power supply, allowing you to work outdoors without site restrictions

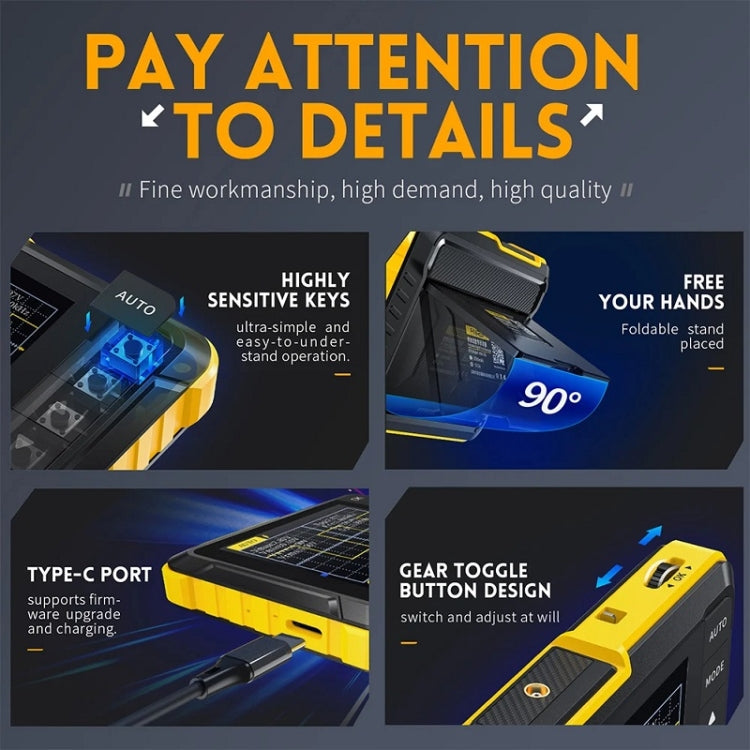

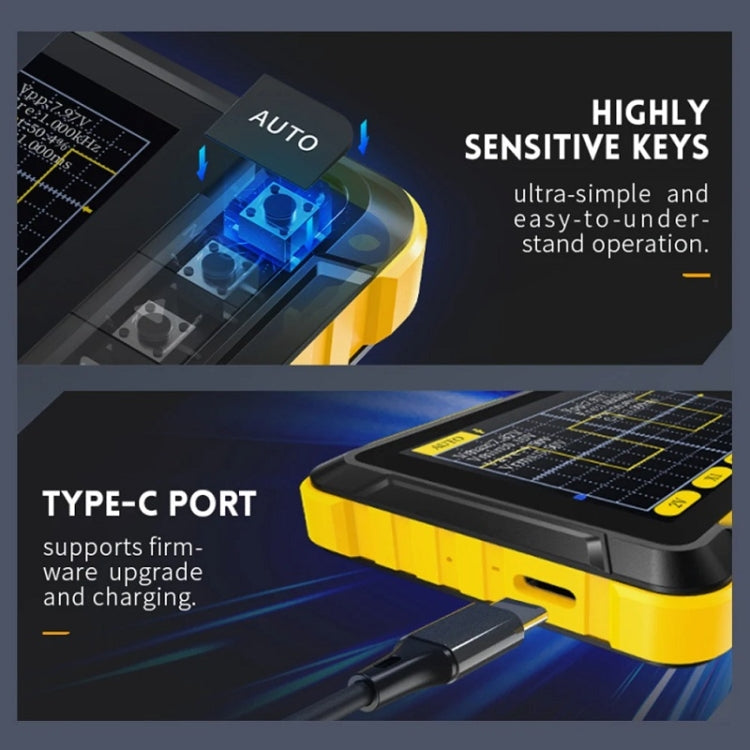

13. Highly sensitive buttons, simple and easy to understand operating experience

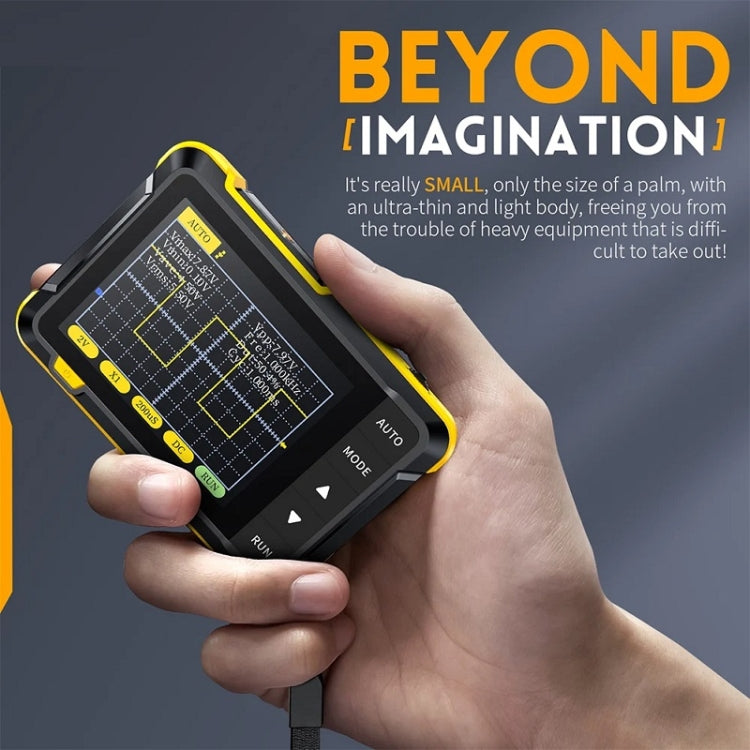

14. Size: 99x68.3x19.5mm
15. Weight: 100g

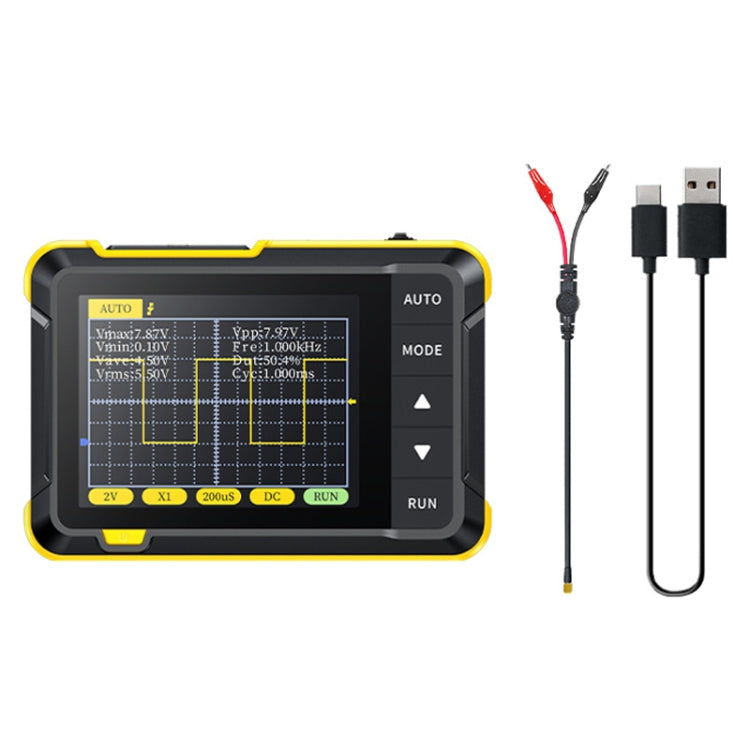

Standard:
-152 Host x 1
- Type-C data cable x 1
- Common probe x 1
- Instructions x 1

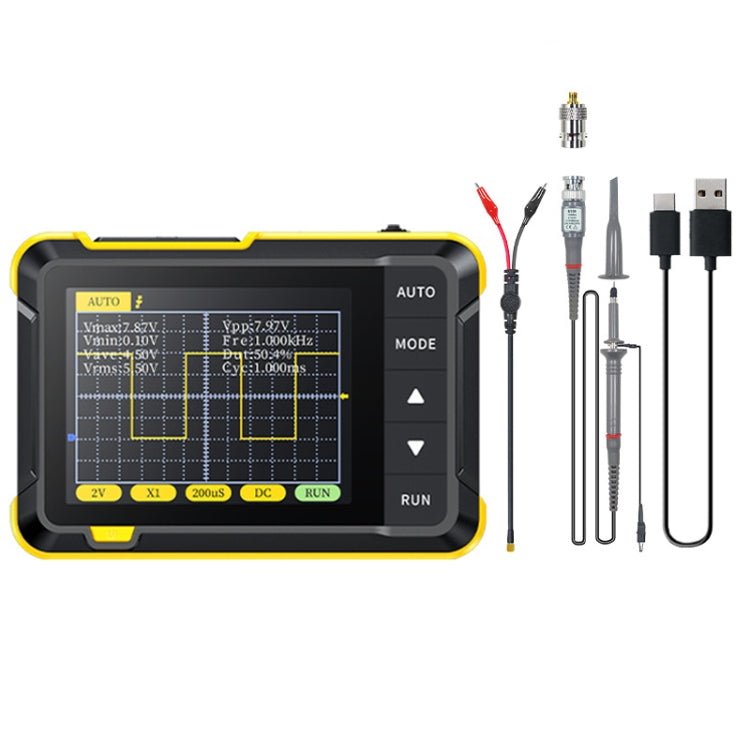

Upgrades:
-152 Host x 1
- Type-C data cable x 1
- Common probe x 1
- P6100 High voltage probe x 1
- Adapter x 1
- Instructions x 1
Specification:
| Package Weight |
| One Package Weight |
0.19kgs / 0.42lb |
| One Package Size |
13cm * 9cm * 4cm / 5.12inch * 3.54inch * 1.57inch |
| Carton Weight |
17.90kgs / 39.46lb |
| Carton Size |
46cm * 43cm * 27cm / 18.11inch * 16.93inch * 10.63inch |
| Loading Container |
20GP: 499 cartons * 100 pcs = 49900 pcs
40HQ: 1159 cartons * 100 pcs = 115900 pcs
|
|
