Description
1. LCD HD large screen, high-precision measurement
2. LED jack indicator light, do not worry about inserting the wrong probe
3. NCV non-contact voltage detection
4. 220V full gear anti burning, safe and convenient operation

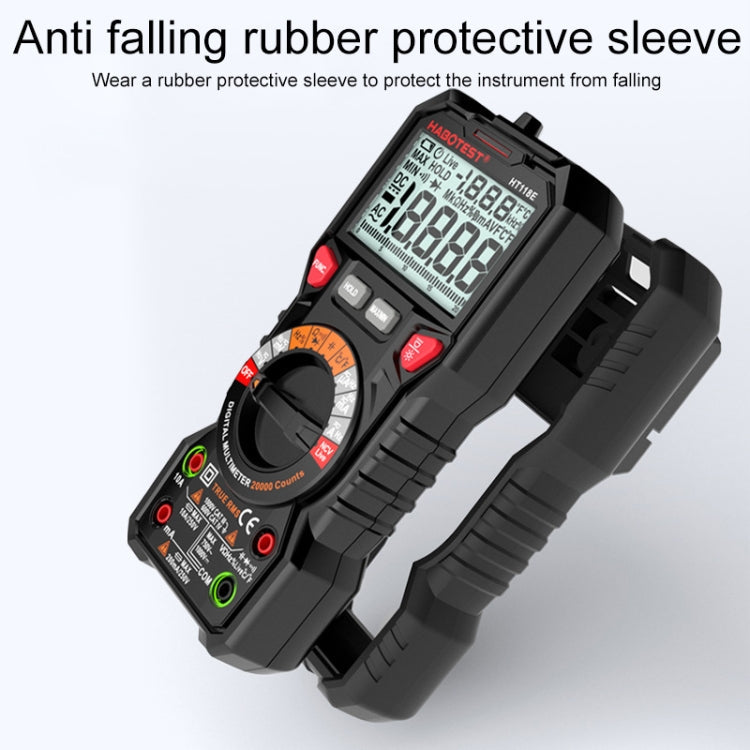

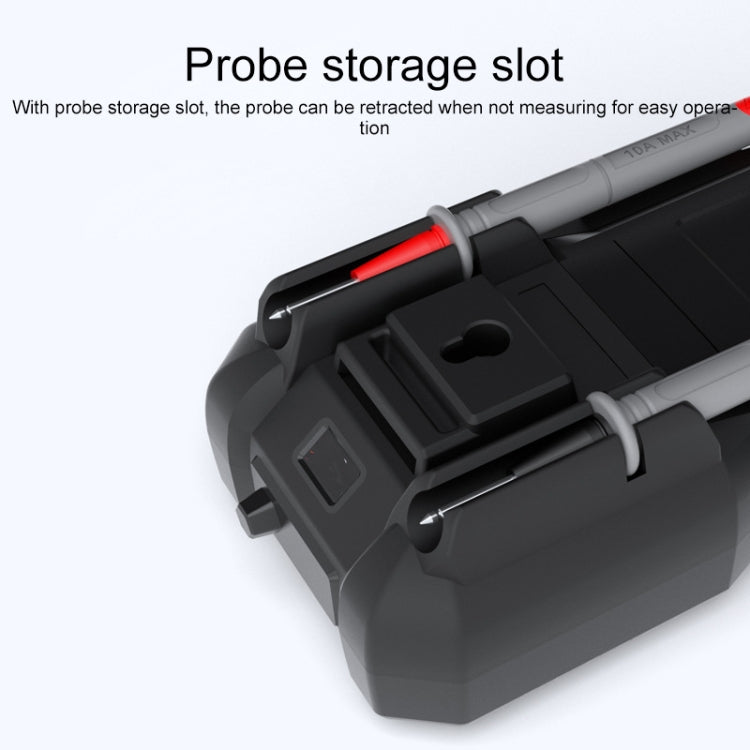

5. Shockproof rubber protective case with probe storage slot

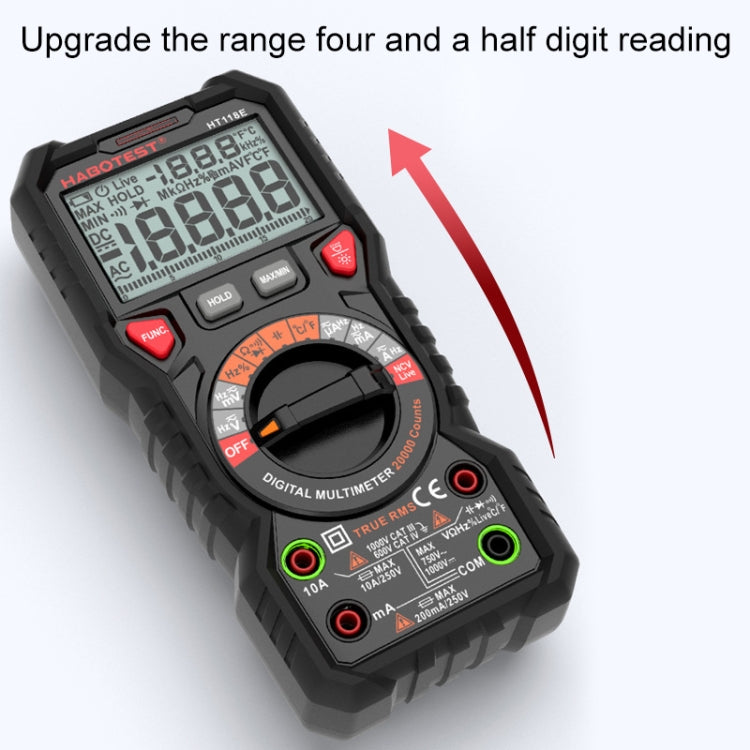

6. Automatic range, four and a half digit reading
Parameter
1. Safety level: CAT III 1000V, CAT IV 600V
2. Measurement function: battery test, resistance, DC current, AC current, AC voltage, DC voltage, temperature, etc
3. Features: automatic range, on-off test, diode test, data retention, automatic shutdown
4. DC voltage range: 200mV/2V/20V/200V/1000V
5. AC voltage range: 200mV/2V/20V/200V/750V
6. DC current range: 200uA/2000uA/20mA/200mA 10A
7. AC current range: 200uA/2000uA/20mA/200mA 10A
8. Resistance: 200 ohm/2K ohm/20K ohm/200K ohm/2M ohm/20M ohm/100M ohm
9. Capacitance range: 20nF/200nF/2uF/20uF/200uF/2mF
10. Frequency: 200Hz/2kHz/20kHz/200kHz/2MHz/10MHz
11. Temperature: - 20~1000 degree Celsius / - 4~1832 degree Fahrenheit
12. Maximum display: 20000
13. Battery type: 2 x AA batteries (not included)
14. Size: 20.2x10.8x6.2cm
15. Gross weight: 574g
Specification:
| Package Weight |
| One Package Weight |
0.55kgs / 1.22lb |
| One Package Size |
20cm * 13cm * 6.5cm / 7.87inch * 5.12inch * 2.56inch |
| Carton Weight |
17.50kgs / 38.58lb |
| Carton Size |
42cm * 40cm * 34cm / 16.54inch * 15.75inch * 13.39inch |
| Loading Container |
20GP: 466 cartons * 30 pcs = 13980 pcs
40HQ: 1083 cartons * 30 pcs = 32490 pcs
|
|
