Description

1. XT30 VCC power supply:
- Matrix Mavic 3E/3T: 12-17.6V 4A
- Matrix M30 Series: 19.2-26.1V 4A
- Matrix M300 RTK: 24V 4A
- Matrice 350 RTK: 24V 4A
- XT30 12 Volt Power Supply: 12V 4A
- XT30 5 volt power supply: 5V 4A
2. The E-Port of the aircraft can be converted into a variety of standard hardware interfaces, including XT30 power output interface, USB 2.0 interface, UART/PPS signal interface, which is convenient for developers to connect hardware devices and SDK development and debugging
3. Adaptable products: DJI Matrice 350 RTK, Matrice M300 RTK, Matrice M30/M30T, Mavic 3E/3T

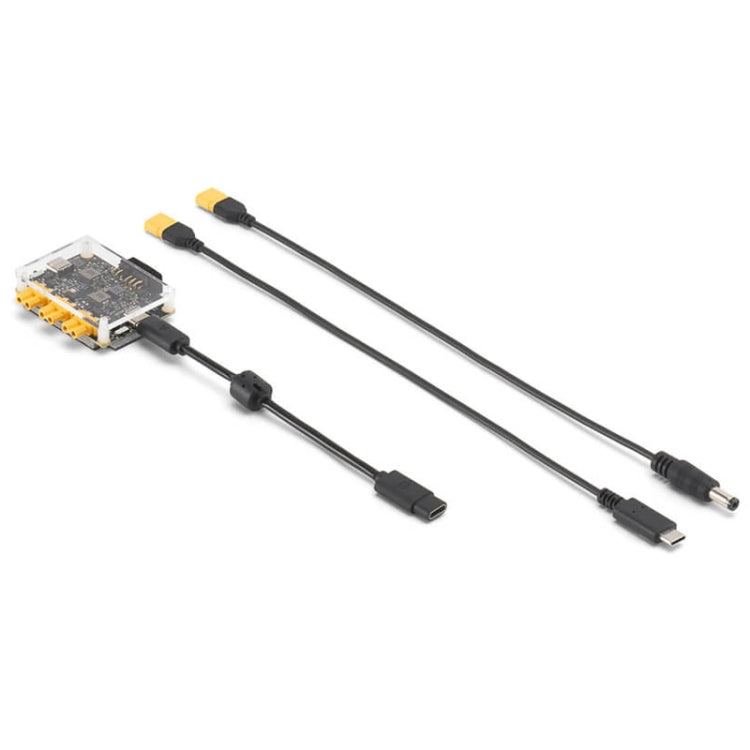

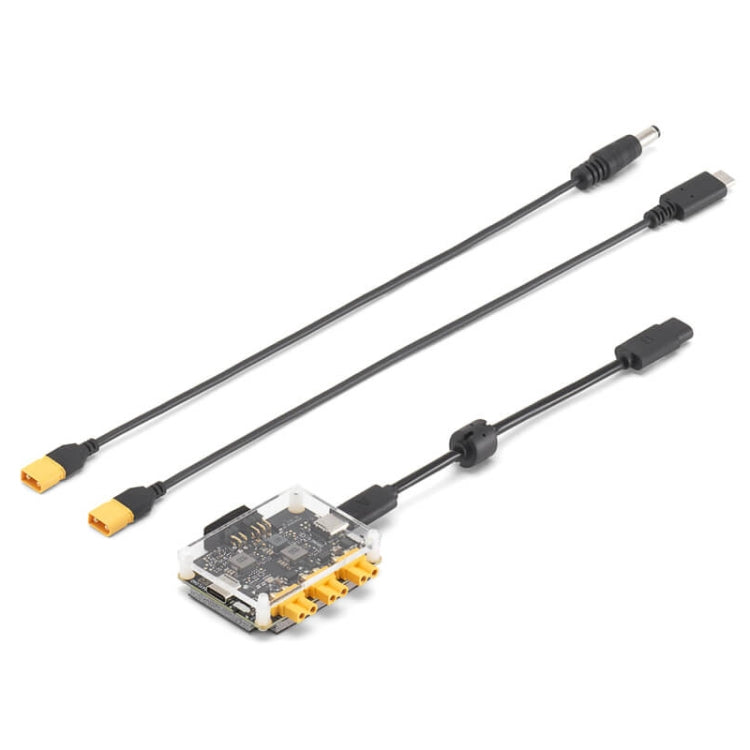

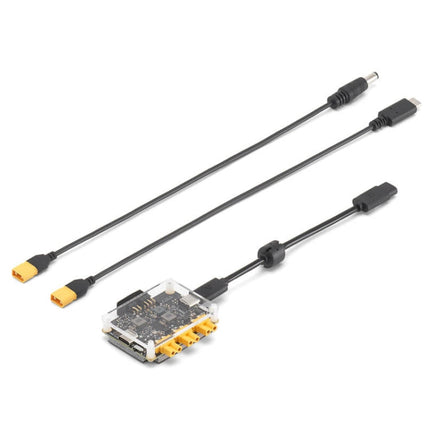

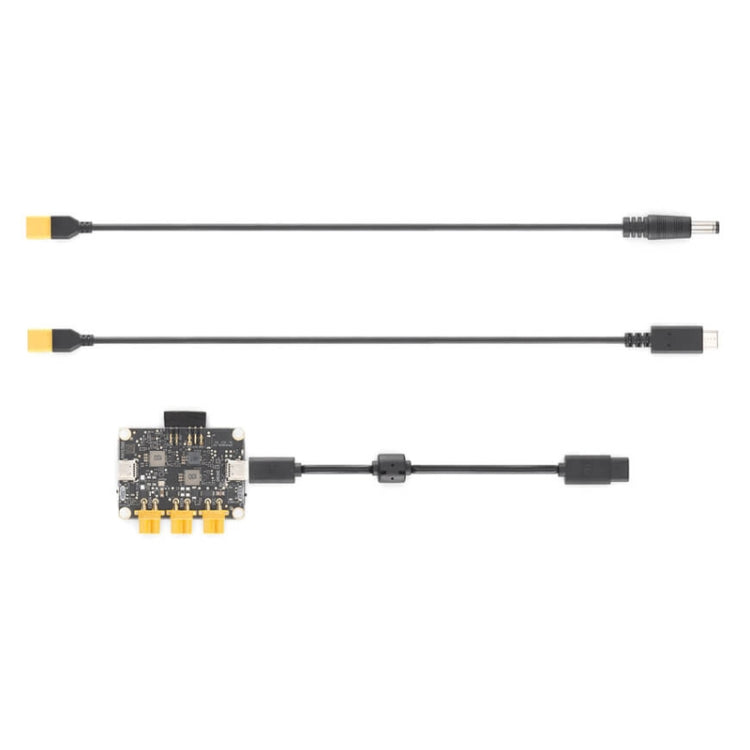

4. Packing list:

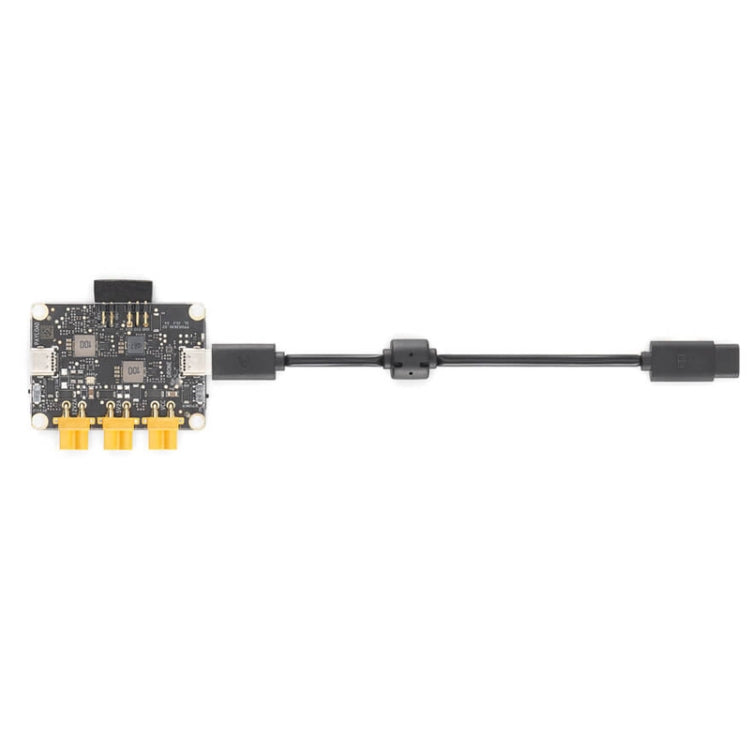

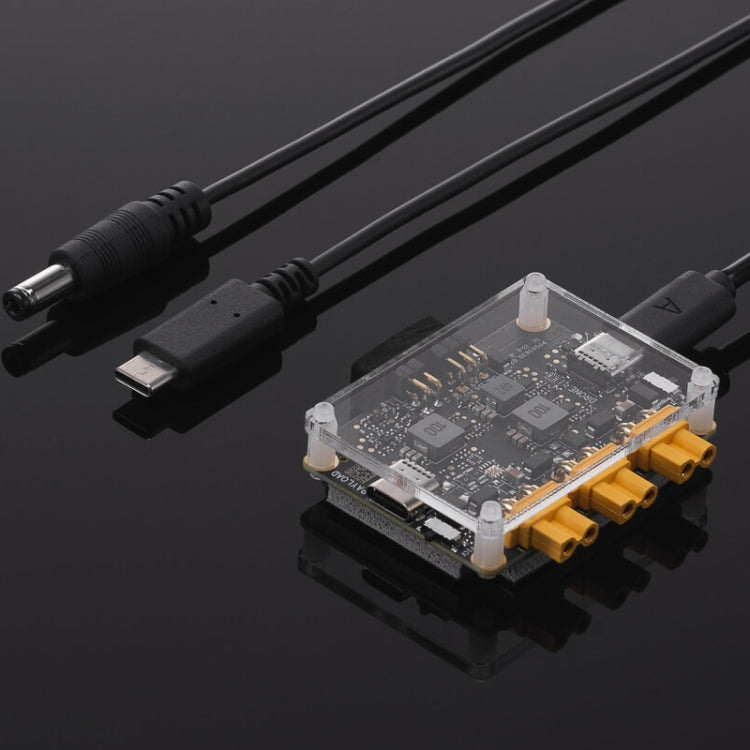

- E-Port adapter board x 1
- Pin protection plug x 1
- E-Port coaxial cable (15cm) x 1
- XT30 to USB-C power cable (30cm) x 1
- XT30 to DC5.5 power cord (30cm) x 1
5. Warm tips:
- When using the adapter board alone for debugging, be sure to place the adapter board in a suitable position to avoid contact between the adapter board and the aircraft arm, or it may cause a short circuit
- If you need to integrate the adapter board into a finished load, be sure to design a heat sink and metal case
- If you find any sparks, smoke, burning odor or other abnormalities after powering up the adapter, please turn off the power immediately
- If all three XT30 power outputs are used at the same time, the total output power should be less than the maximum output power of one channel of the aircraft. Be sure to develop loads within the limits of the output specifications
6. Adapter plate size: 55 x 40 x 9 mm
