Description
1. Using TDMA technology, combined with Tier II, AMBE++ vocoder design, compatible with DMR two-way radios such as mototrbo

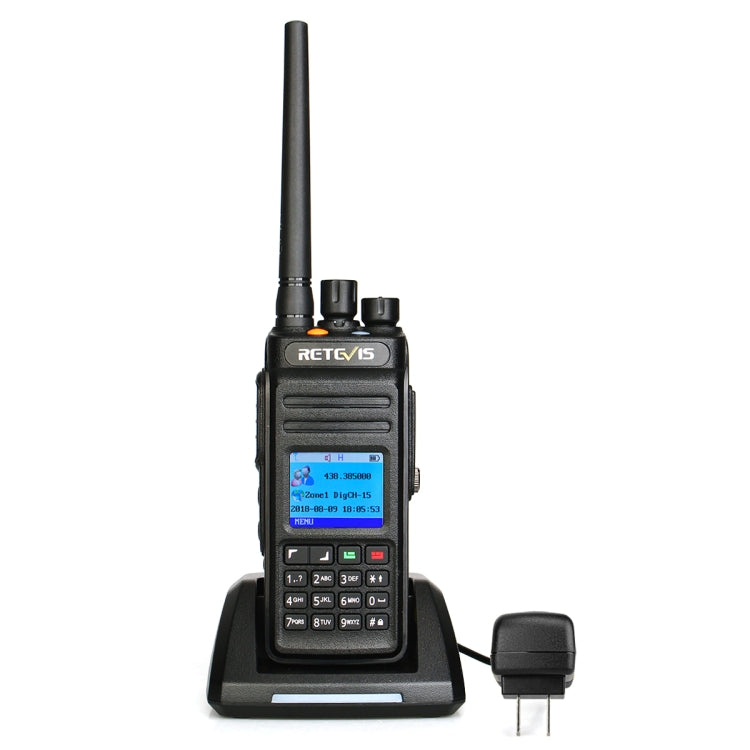

2. The color display allows users to check the operating status at a glance, including battery power and caller identity, etc.
3. IP67 waterproof and dustproof function, so you can use them anywhere without worrying about the surrounding environment
4. Function: GPS, high/low power optional, digital encryption, emergency alert, VOX, scan, message, etc.
5. Frequency range: 400-470MHz
6. Channel capacity: 1024 channels
7. Channel spacing: 12.5KHz
8. Working voltage: 7.4V

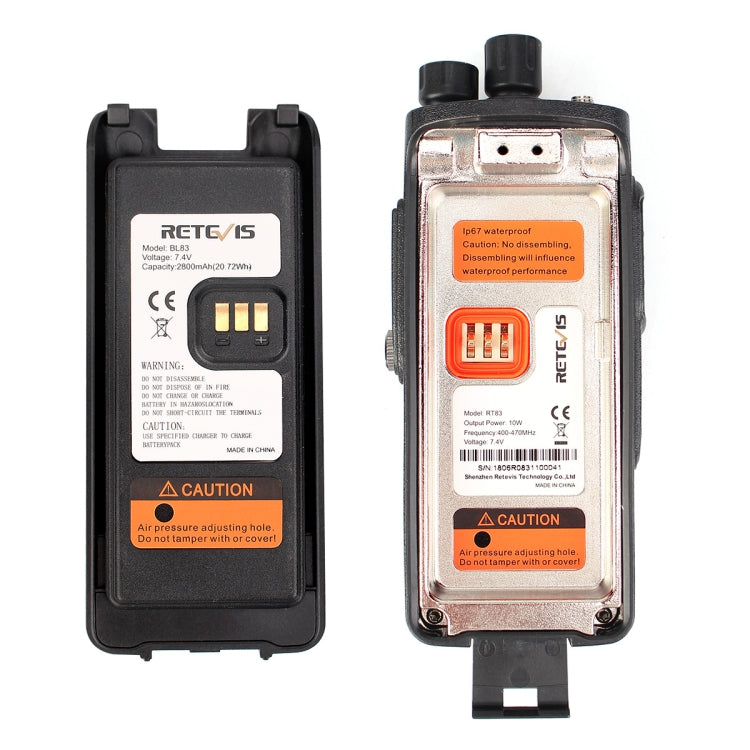

9. Battery capacity: 2800mAh (lithium ion)
10. Antenna impedance: 50 ohms
11. Size: 148x56x39mm
Transmitter:
1. Output power: 10W / 4W
2. Frequency stability: +/-1.0ppm
3. Adjacent channel power: less than or equal to -60dbm
4. Idle time slot power: TDMA: less than or equal to -57dBm
5. FM modulation mode: 12.5KHz: 11K0F3E
6. Modulation deviation: 2.5KHz: @ 12.5KHz
7. Passive time slot power: -57dBm
8. Modulation: BER is less than or equal to 5%
9. Vocoder type: AMBE ++
Receiver:
1. Common channel reflection: greater than or equal to -12dB
2. Adjacent channel selectivity: TIA603C: 65dB, ETSI: 60dB
3. Spurious response: TIA603C: 75dB, ETSI: 70dB
4. Audio power: 1W
5. Audio response: 1db--3db
6. Rated audio distortion: less than or equal to 3%
Specification:
| General |
| Frequency Range |
400MHz-470MHz |
| Antenna Impedance |
50 ohms |
| Audio Distortion |
less than or equal to 3% |
|
| Transmitter Parameters |
| Maximum Deviation |
=<+/-2.5kHz |
|
| Receiver Parameters |
| Adjacent Channel Selectivity |
65dB, 60dB |
|
| Package Weight |
| One Package Weight |
0.89kgs / 1.96lb |
| One Package Size |
21cm * 9cm * 17cm / 8.27inch * 3.54inch * 6.69inch |
| Carton Weight |
10.35kgs / 22.82lb |
| Carton Size |
21cm * 45cm * 34cm / 8.27inch * 17.72inch * 13.39inch |
| Loading Container |
20GP: 829 cartons * 10 pcs = 8290 pcs
40HQ: 1926 cartons * 10 pcs = 19260 pcs
|
|
