Description
Features:
1. Fast response, low power consumption, simple detection circuit, good stability, long life

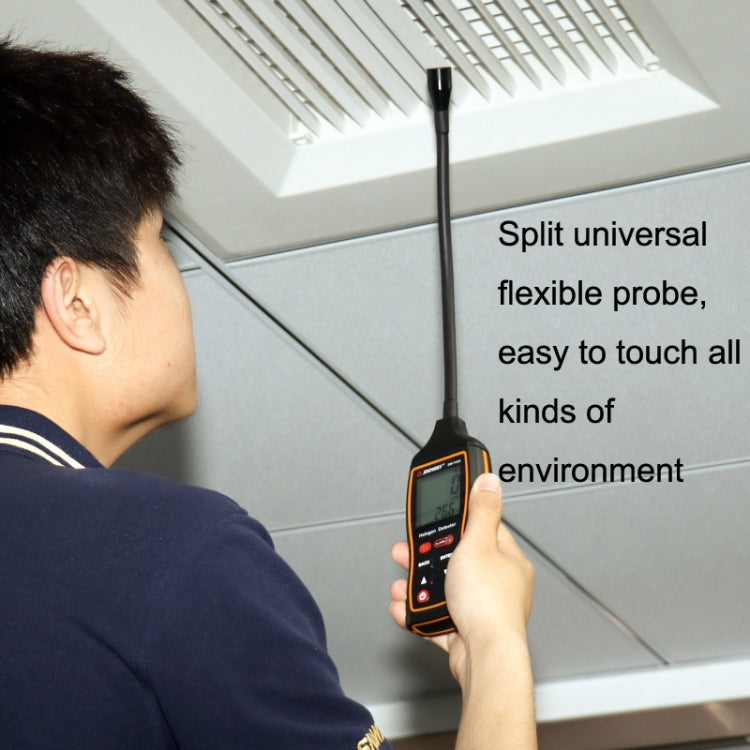

2. Split universal flexible probe, easy to touch all kinds of environment

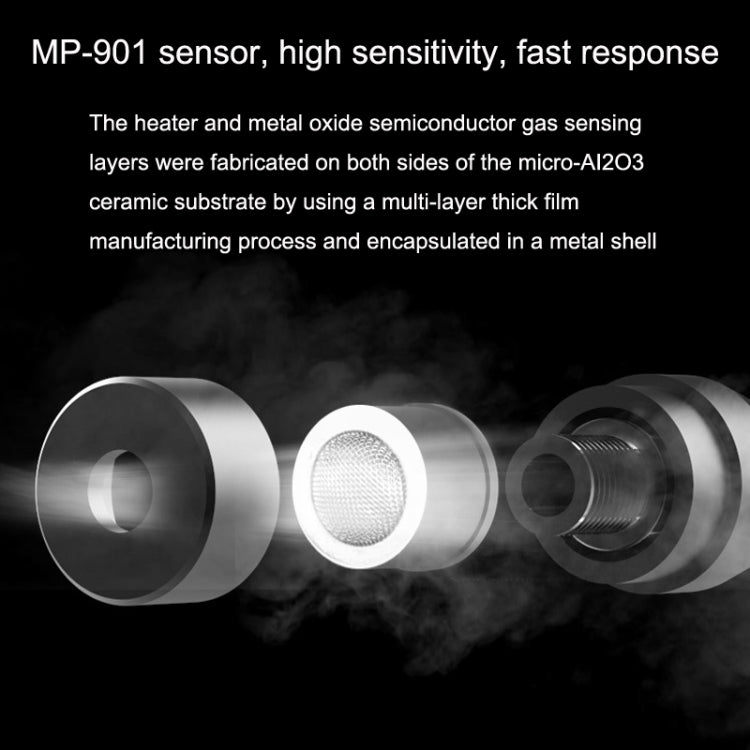

3. MP-901 sensor, high sensitivity, fast response
4. The heater and metal oxide semiconductor gas sensing layers were fabricated on both sides of the micro-AI2O3 ceramic substrate by using a multi-layer thick film manufacturing process and encapsulated in a metal shell

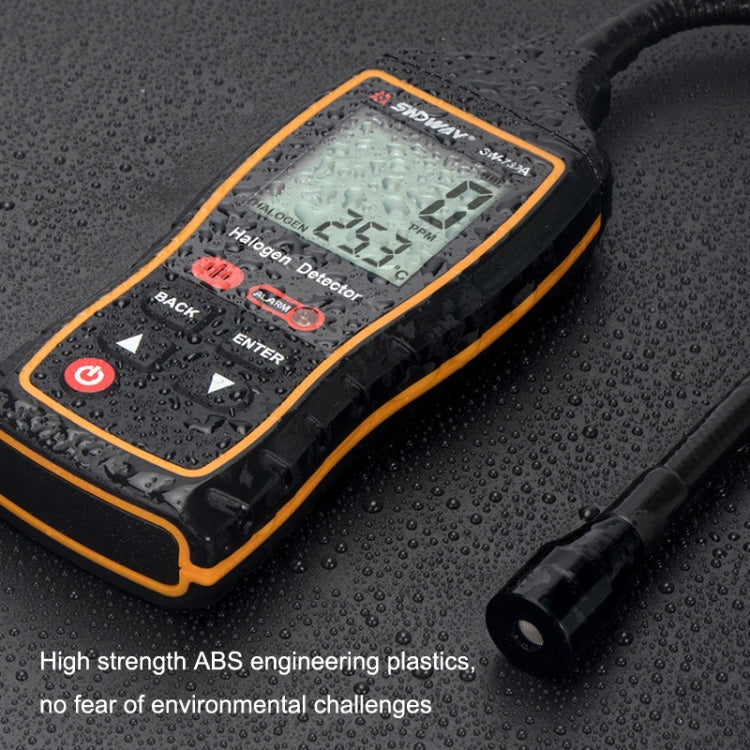

5. High strength ABS engineering plastics, no fear of environmental challenges

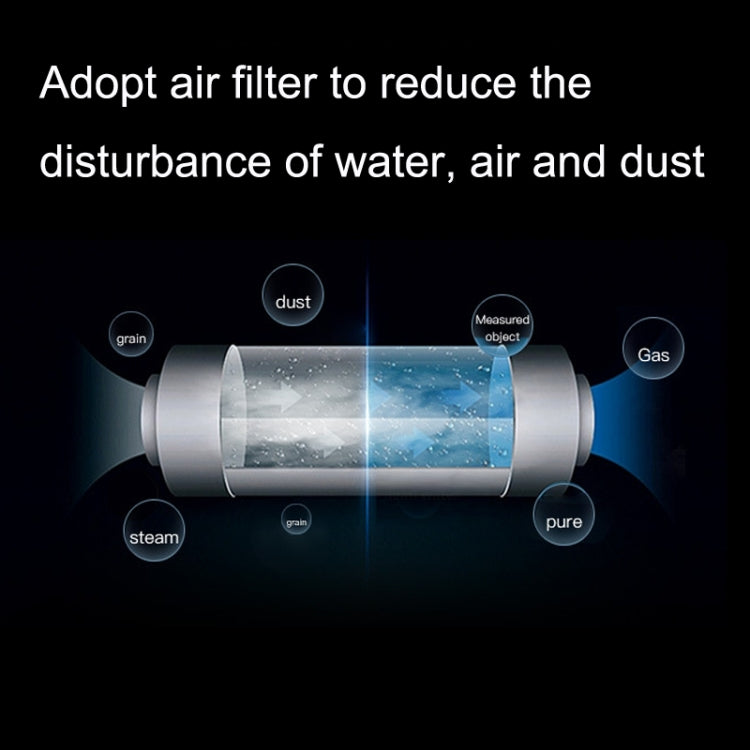

6. Adopt air filter to reduce the disturbance of water, air and dust

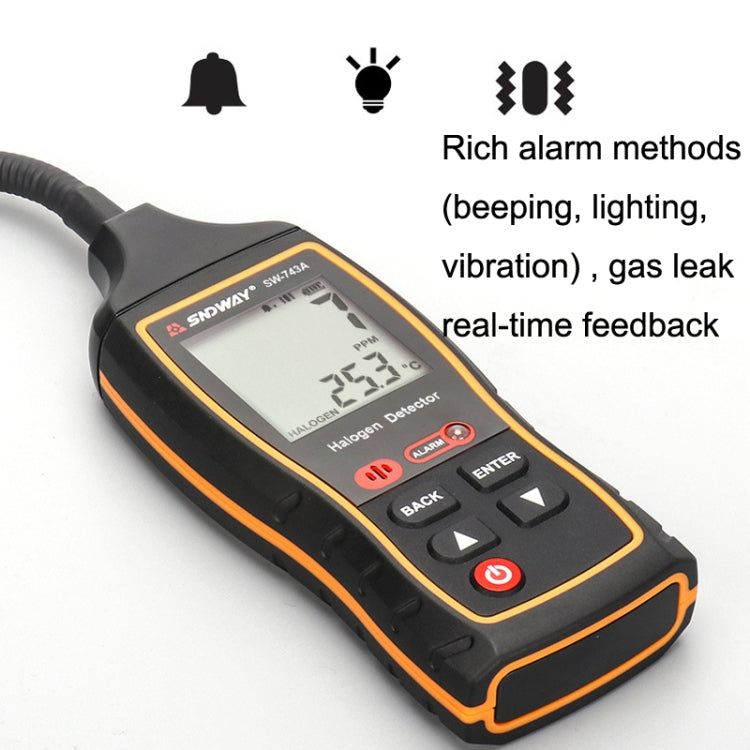

7. Rich alarm methods (beeping, lighting, vibration) , gas leak real-time feedback
Parameters:
1. Detection gases: CFCs: R11, R12, R500, R503, etc; HCFCs: R22, R123, R124, R502, etc; HCFCs: R134a, R404a, R125, etc.
2. Operating voltage: DC4.5 V
3. Power mode: 3 x AAA alkaline dry cells (not included)
4. Run time: more than 6 hours
5. Display: LCD liquid crystal display with automatic backlighting
6. Direct reading: sensor Concentration Reading, battery charge, concentration unit, temperature
7. Alarm settings: low-alarm function, high-alarm function settings
8. Warm-up time: 30 seconds
9. Response time: less than 10 seconds
10. Measurement range: 0-1000 ppm
11. Resolution: 1 ppm
12. Sampling mode: diffusion mode
13. Alarm: sound, light-emitting diode, vibration indication alarm, voltage under-voltage indication
14. Audio tip: the higher the frequency of beeps, the higher the concentration
15. Service temperature range: -10-50 degrees celsius
16. Size: 156 x 64 x 27mm
17. Weight: about 200g
Applicable to the following gases and occasions:
1. Detection of halogen gases (including chlorine and fluorine)
2. Detecting ethylene oxide and ethanol gas for medical use
3. Detect Halon gas in the fire extinguishing system
4. Testing of air-conditioning, refrigeration systems and refrigerant recovery equipment
Specification:
| Package Weight |
| One Package Weight |
0.30kgs / 0.67lb |
| One Package Size |
18cm * 8cm * 4cm / 7.09inch * 3.15inch * 1.57inch |
| Carton Weight |
30.00kgs / 66.14lb |
| Carton Size |
50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch |
| Loading Container |
20GP: 177 cartons * 98 pcs = 17346 pcs
40HQ: 412 cartons * 98 pcs = 40376 pcs
|
|
