Description

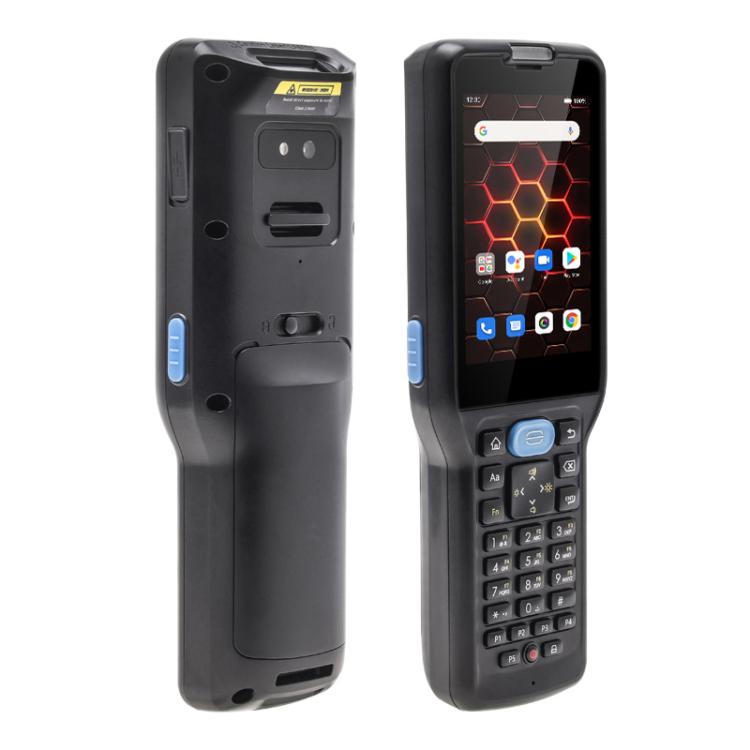

Specification:
1. Operating system: Android 12
2. Body size: 193 x 67 x 26mm
3. Body net weight: 355g
4. Body material: Plastic
5. Language: Support multiple languages
6. Display: 3.5 inch capacitive multi-touch screen, support glove mode, 480 x 320px
7. Processor: MT6761 Cortex-A53 quad core, up to 2.0GHz
8. GPU: PowerVR Rogue GE8300
9. Memory: 4GB RAM + 64GB ROM, support TF card up to 256GB (not included)
10. Cameras: Single rear camera 8MP AF with flashlight
11. Battery: Removable 3.7V/5200mAh Li-ion battery, support 9V/1.67A quick charge & docking charging
12. Sensor: Gravity sensor, Proximity sensor, Light sensor
13. Speaker: 1.5W speaker
14. Buttons: Scan button x 2, customs keys x 5, standard, T9 keyboard
15. Vibrator: Support
16. Indicator light: RGB
17. 2D scanning module: Honeywell 5703 or Zerbra 4101 (Zebra SE5500 optional for 10-12 meters scanning)
18. OTG Function: Support
19. Waterproof: IP65, MIL-STD-810H
20. Dropproof: 1.8m drop
21. Roll testing: 1m 1000 times
Network And Connection:
1. 2G: GSM 850/900/1800/1900MHz
2. 3G: WCDMA 850/900/1900/2100MHz
3. 4G: FDD-LTE B1/B2/B3/B5/B7/B8/B19/B20; TDD-LTE B34/B38/B39/B40/B41
4. WiFi: IEEE 802.11ac/b/g/n, support 2.4GHz/5.0GHz dual-band WiFi
5. BT: V5.0
6. GNSS: Support GPS/A-GPS/BDS/GLONASS
7. NFC: Support, 13.56MHz
Interfaces:

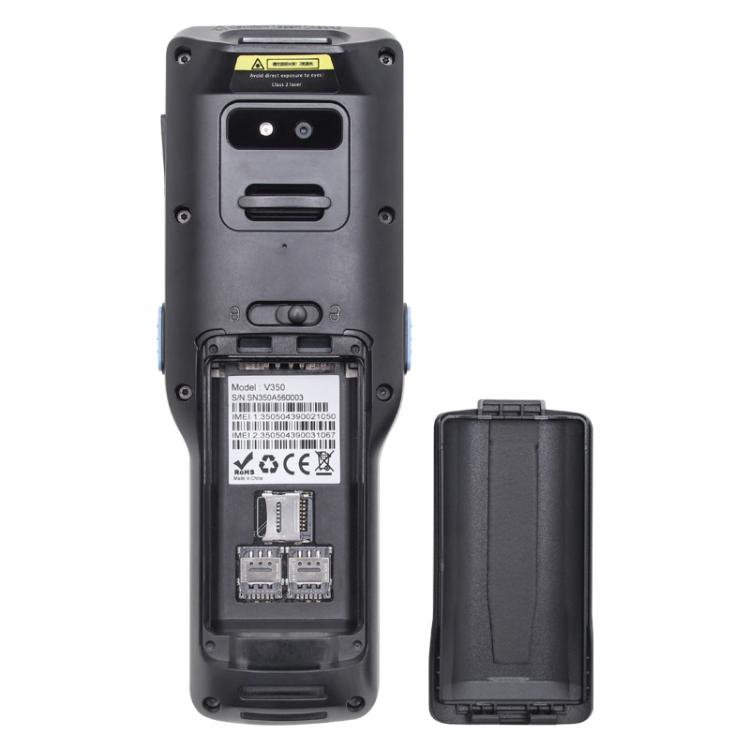

1. SIM card slot: 2 Nano
2. USB Type-C port: 1
3. TF card slot: 1
Stardard Package List:
1. Host x 1
2. Power adapter x 1
3. USB cable x 1
Specification:
| Package Weight |
| One Package Weight |
1.20kgs / 2.65lb |
| One Package Size |
25cm * 15cm * 10cm / 9.84inch * 5.91inch * 3.94inch |
| Carton Weight |
13.00kgs / 28.66lb |
| Carton Size |
52cm * 32cm * 26cm / 20.47inch * 12.6inch * 10.24inch |
| Loading Container |
20GP: 616 cartons * 10 pcs = 6160 pcs
40HQ: 1430 cartons * 10 pcs = 14300 pcs
|
|
