Waveshare 4 Port USB HUB HAT for Raspberry Pi

Waveshare 4 Port USB HUB HAT for Raspberry Pi

Product form

Overview1. This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, whats more,... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 6.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 19, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Overview

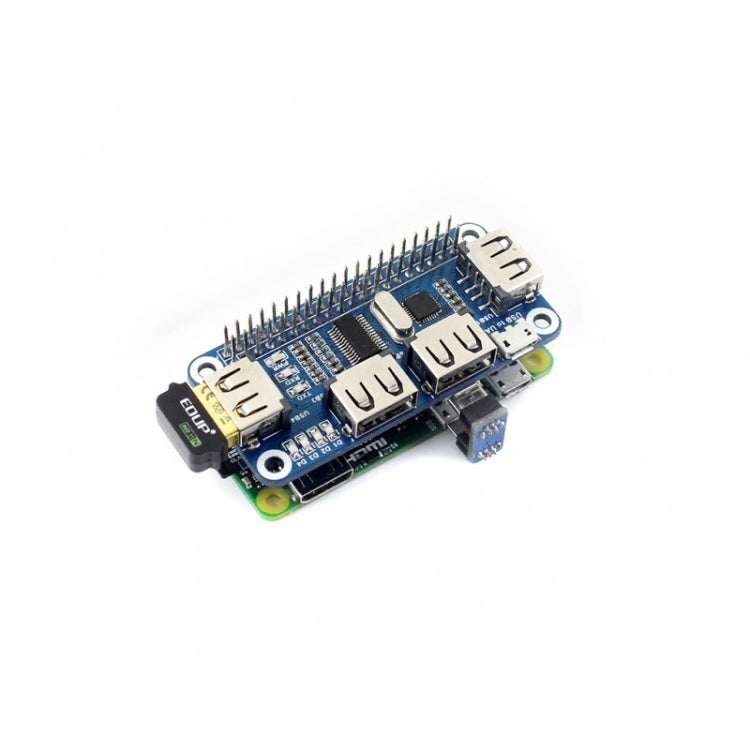

    1. This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, whats more, it features USB to UART converter for easy serial communication.
    2. It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W.

    USB HUB HAT Features
    1. 4 USB Ports, compatible with USB2.0/1.1
    2. Onboard USB to UART, convenient for Raspberry Pi serial debugging
    3. Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

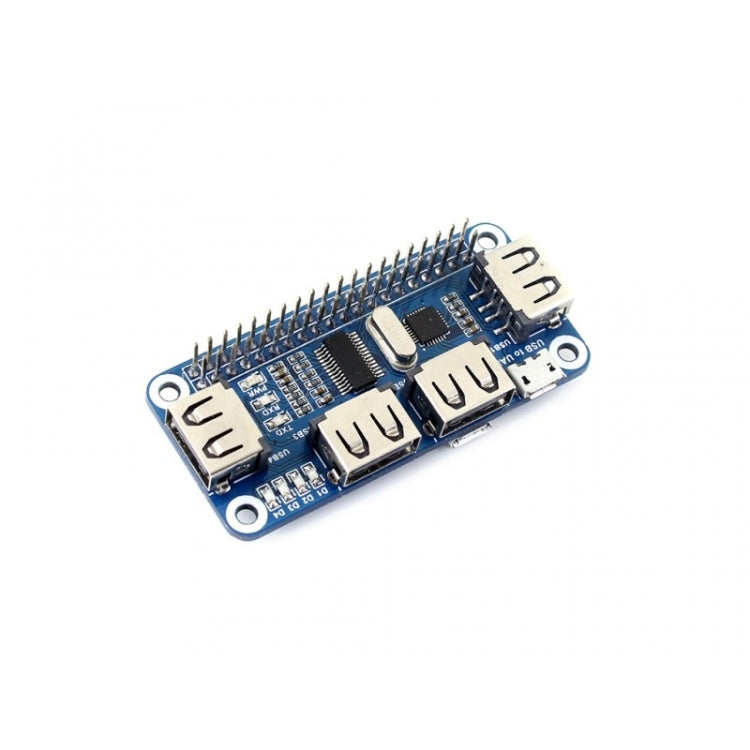

    What is on the USB HUB HAT
    1. Raspberry Pi GPIO interface: For connecting Raspberry Pi
    2. USB to UART: For controlling the Raspberry Pi via serial terminal

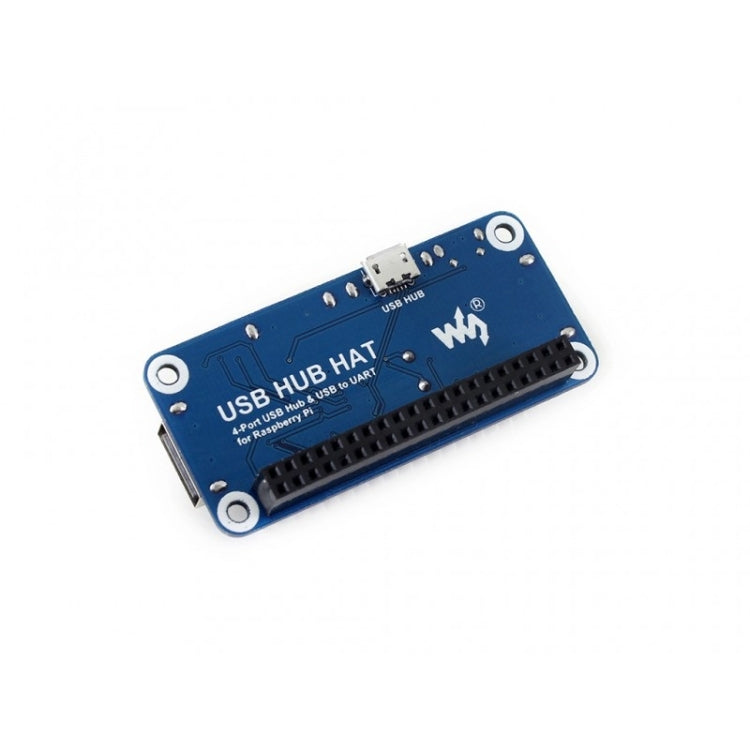

    3. USB HUB interface (bottom): For connecting the HUB to the Raspberry Pi USB port
    - Raspberry Pi Zero / Zero W: Connected via Micro USB connector

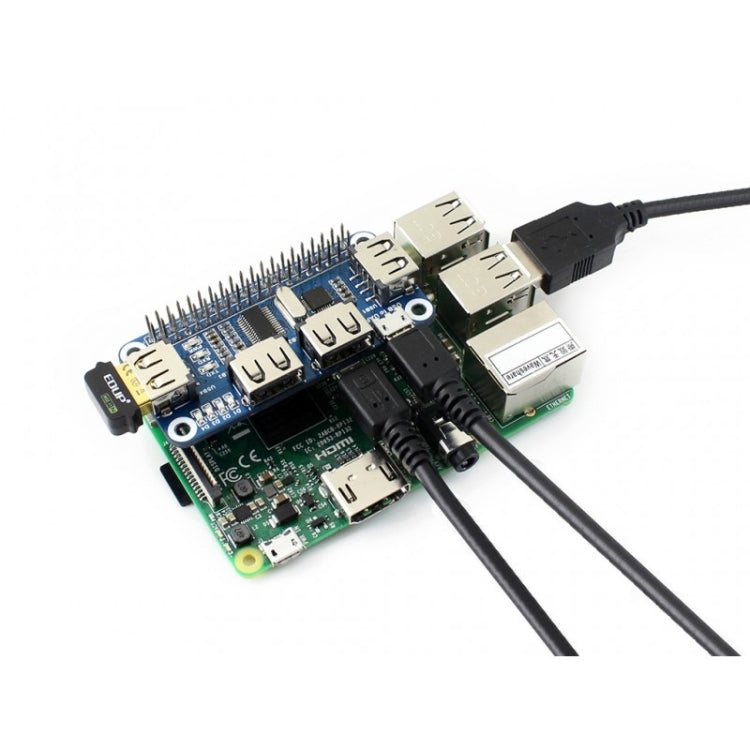

    - Raspberry Pi B+ / 2B / 3B / 3B+: Connected via Micro USB cable
    4. USB extended ports: USB1~USB4
    5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
    6. Power indicator
    7. USB to UART indicator
    8. FE1.1S: USB HUB chip
    9. 12MHz crystal
    10. CP2102: USB to UART converter

    Specifications
    1. Operating voltage: 5V

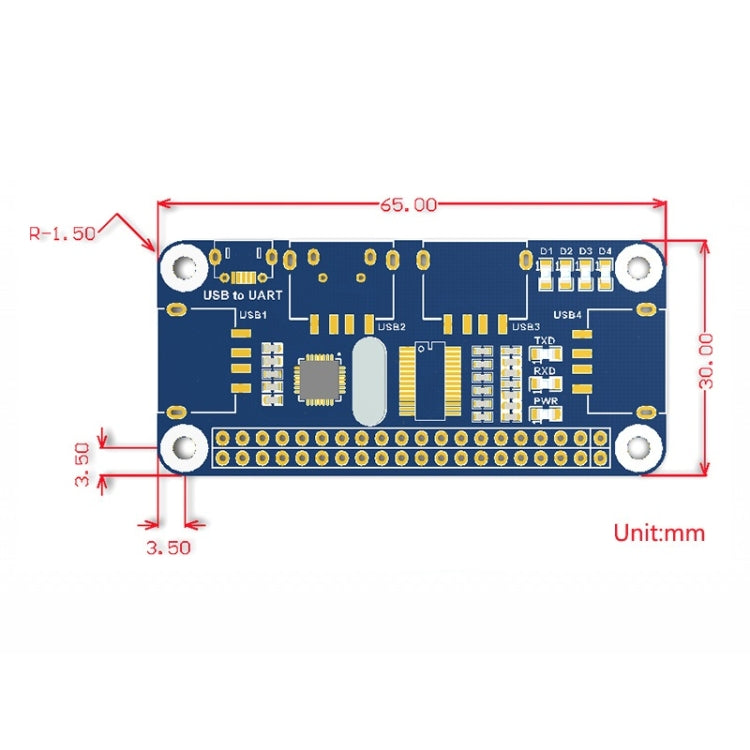

    2. Dimension: 65mm * 30mm
    3. Mounting hole size: 3.0mm
    4. Package contents:
    - USB HUB HAT x1
    - Micro USB connector x1
    - Micro USB cable x1
    - RPi screws pack (2pcs) x1


    Specification:
    Package Weight
    One Package Weight 0.09kgs / 0.19lb
    One Package Size 9cm * 5cm * 3cm / 3.54inch * 1.97inch * 1.18inch
    Qty per Carton 624
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 54cm * 40cm * 39cm / 21.26inch * 15.75inch * 15.35inch
    Loading Container 20GP: 316 cartons * 624 pcs = 197184 pcs
    40HQ: 734 cartons * 624 pcs = 458016 pcs
