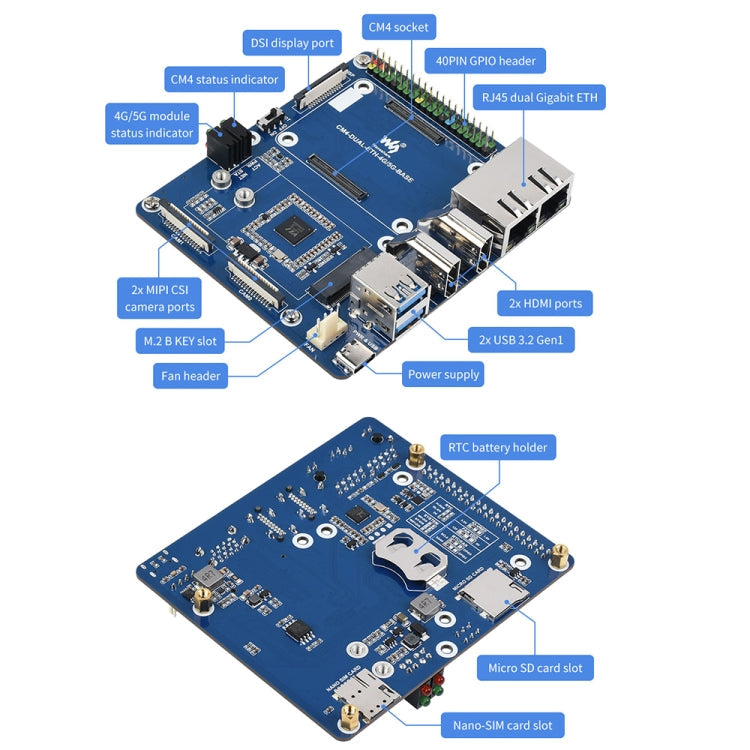

Description

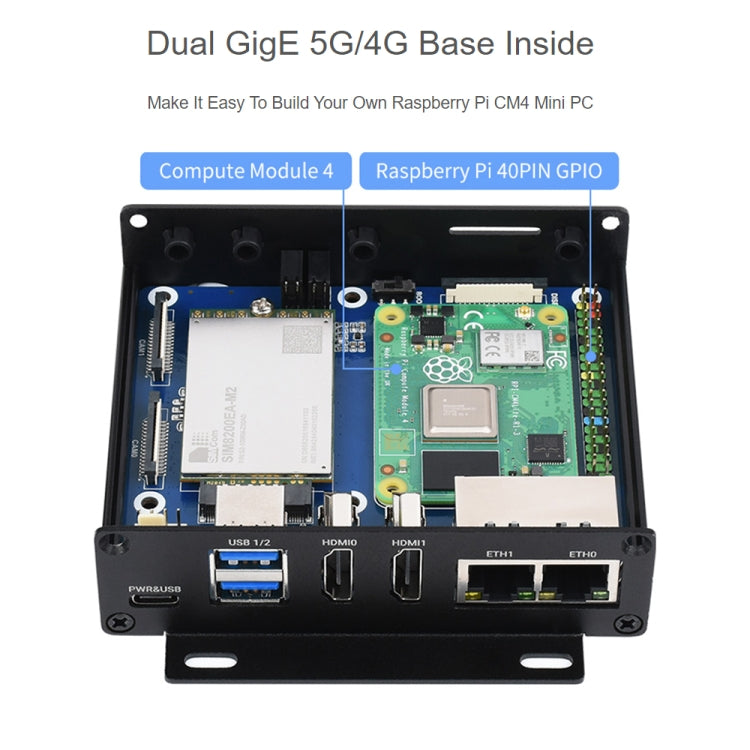

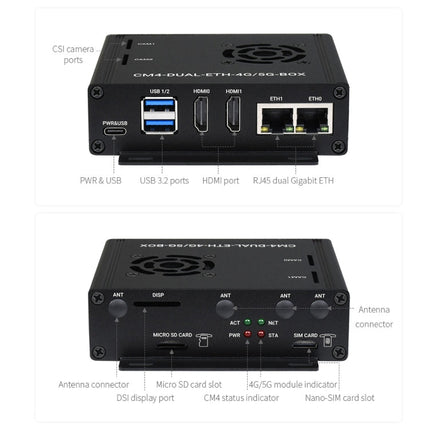

1. CM4 Socket: Suitable for all variants of Compute Module 4

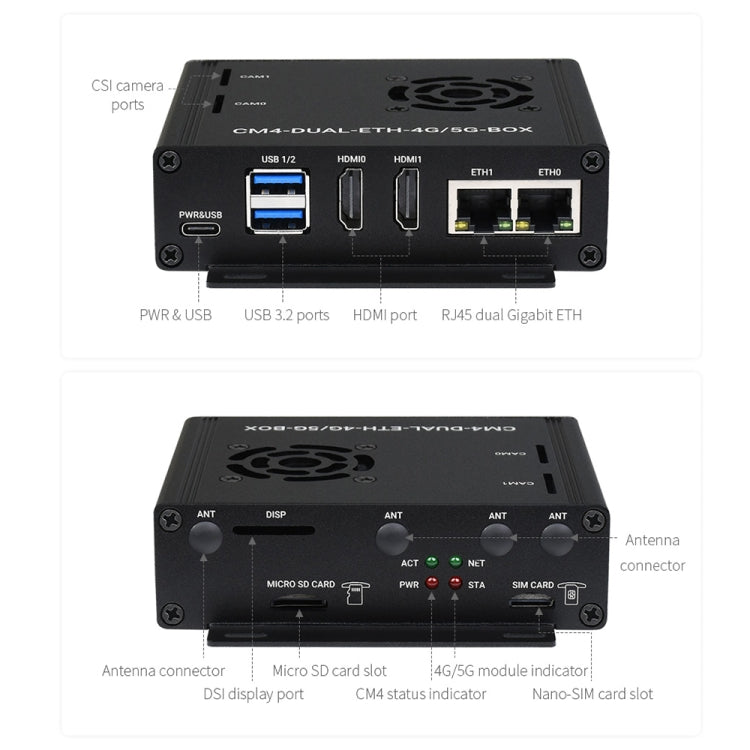

2. Networking:
- Dual Gigabit Ethernet RJ45
- M.2 B KEY, for connecting 5G / 4G module
- Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 3.2 Gen1 x 2
4. PIN header: Raspberry Pi 40PIN GPIO header
5. Display: MIPI DSI port (15pin 1.0mm FPC connector)
6. Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
7. Video: HDMI x 2, supports 4K 30fps output
8. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
9. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

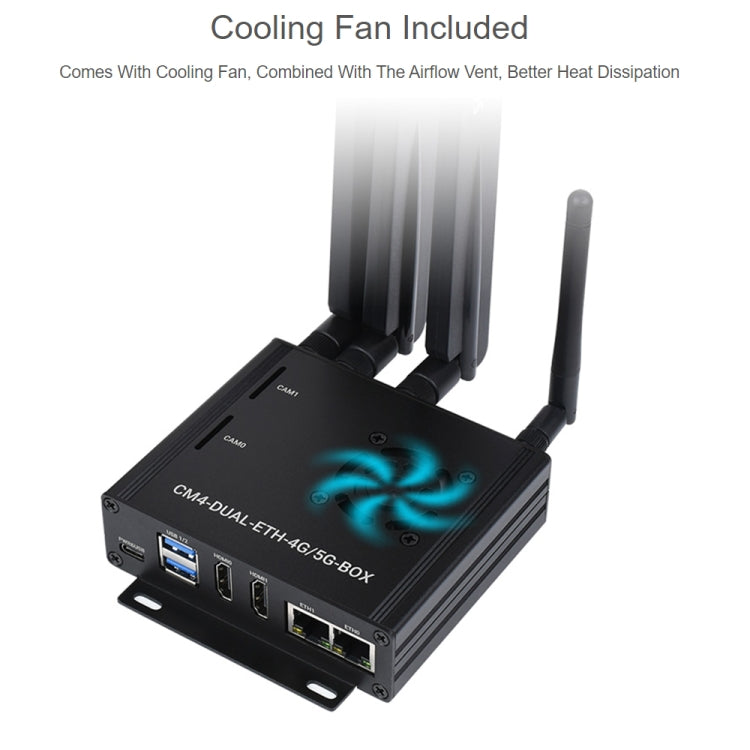

10. FAN HEADER: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V/2.5A

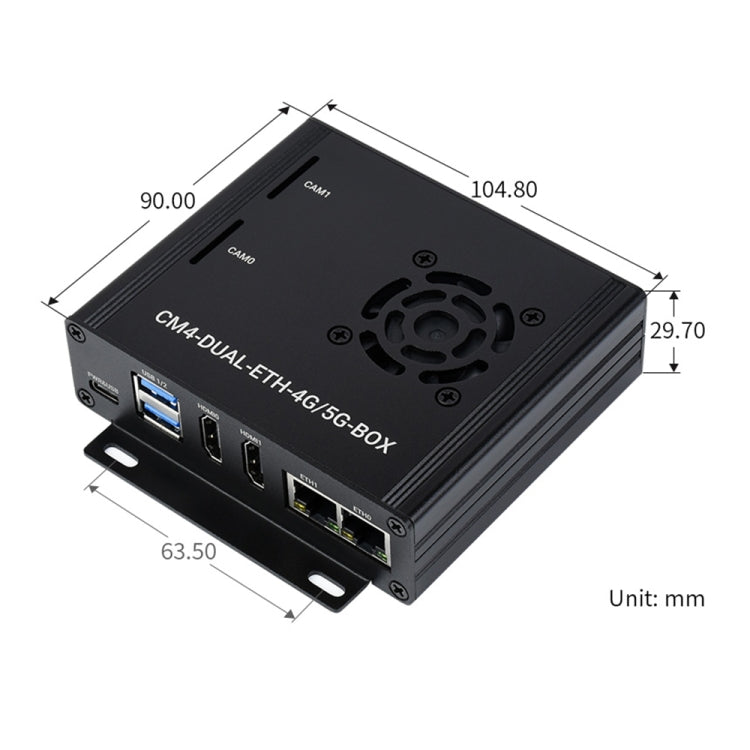

12. Size: 99.6 x 87.0mm
Specification:
| Package Weight |
| One Package Weight |
0.45kgs / 0.98lb |
| One Package Size |
16cm * 12cm * 5cm / 6.3inch * 4.72inch * 1.97inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
50cm * 32cm * 27cm / 19.69inch * 12.6inch * 10.63inch |
| Loading Container |
20GP: 617 cartons * 40 pcs = 24680 pcs
40HQ: 1432 cartons * 40 pcs = 57280 pcs
|
|
