Description

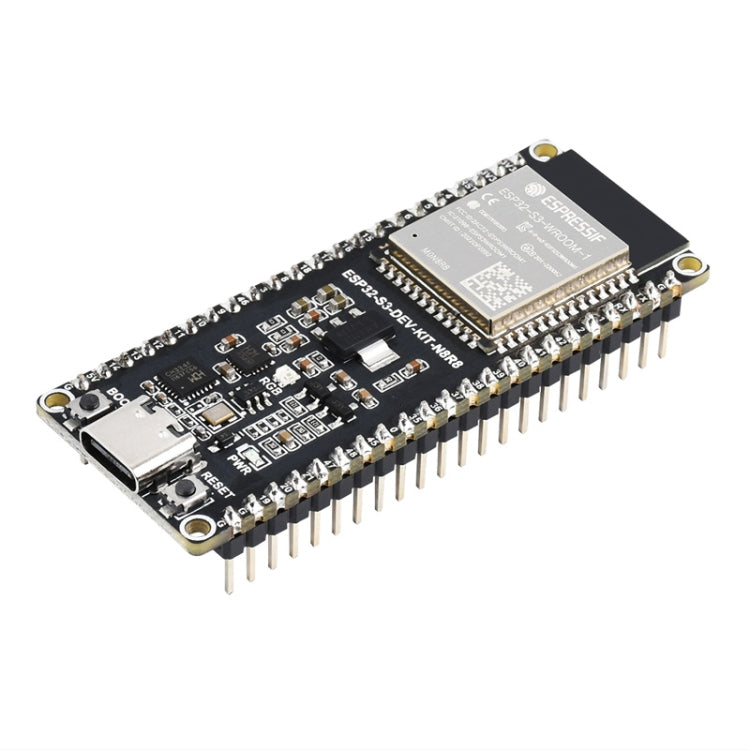

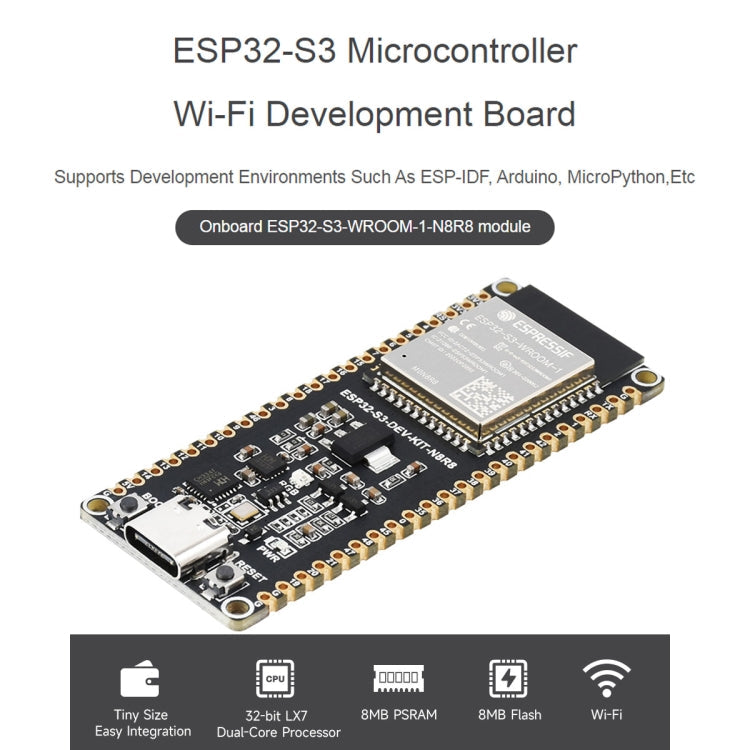

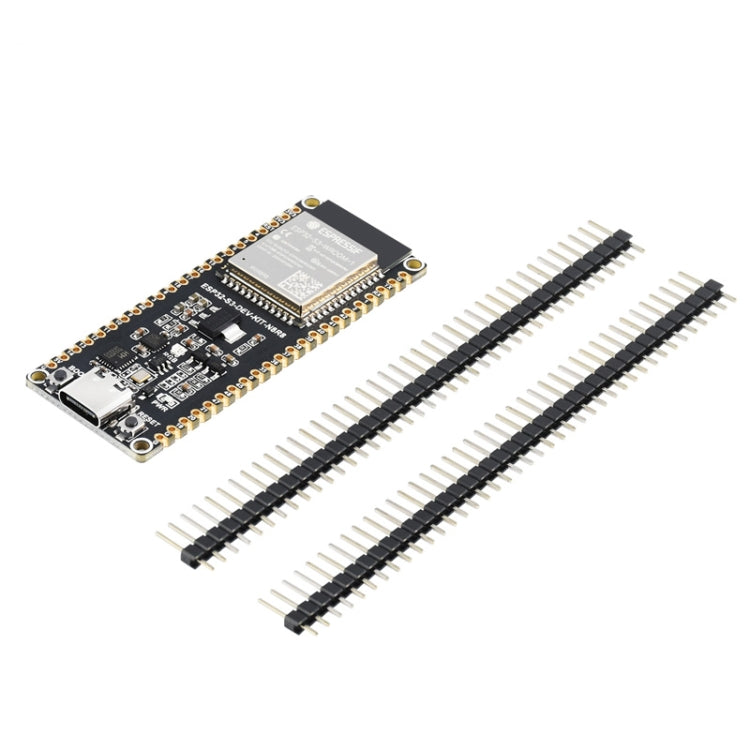

1. ESP32-S3-DEV-KIT-N8R8 is a microcontroller development board with a small size and a variety of digital interfaces.
2. In terms of software, you can choose ESP-IDF, Arduino, MicroPython and other development environments for development, so that you can get started easily and quickly, and apply them to products.
3. Using ESP32-S3-WROOM-1-N8R8 module, equipped with Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
4. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory

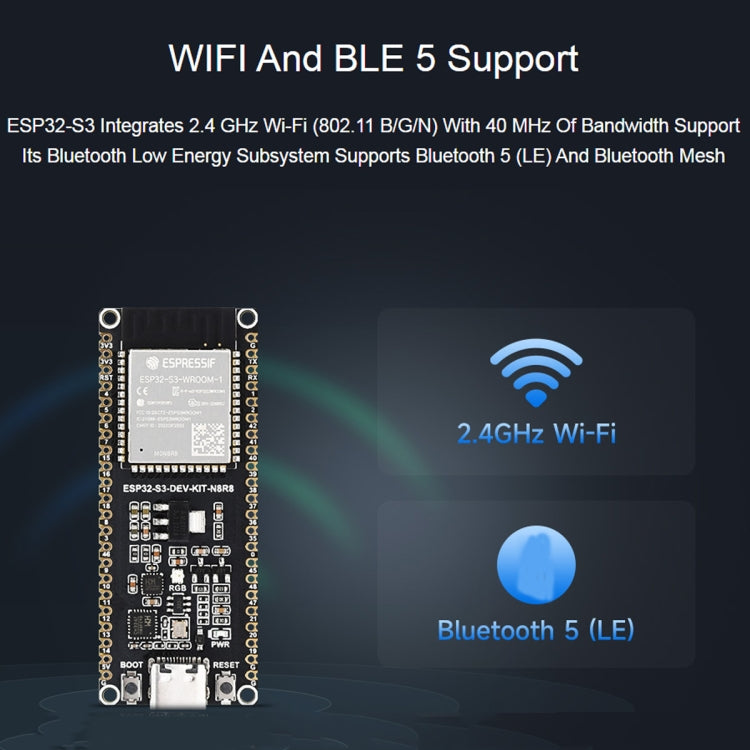

5. Integrated 2.4GHz Wi-Fi and Bluetooth Low Energy (Bluetooth LE) dual-mode wireless communication with superior RF performance
6. Using the USB Type-C interface, no need to tangle with the front and back plugs

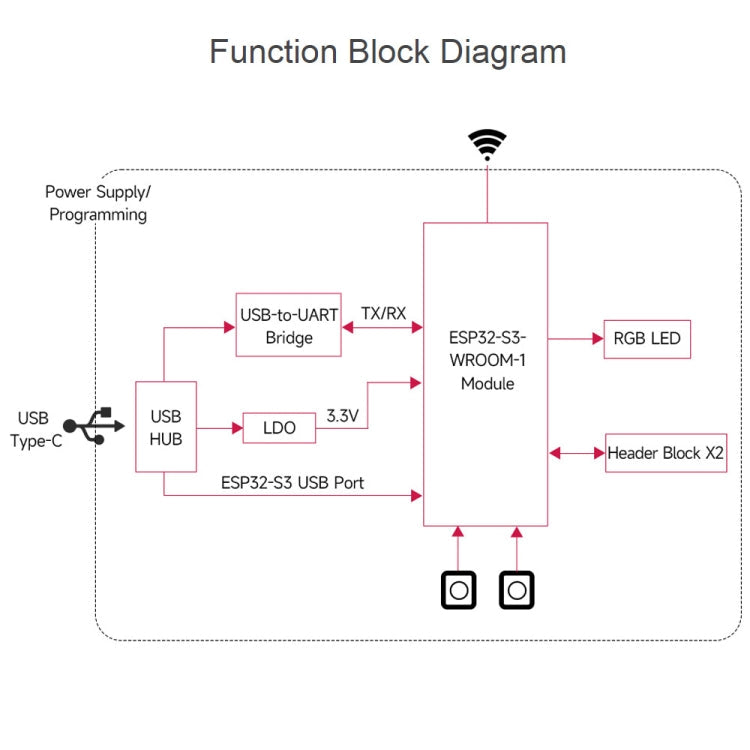

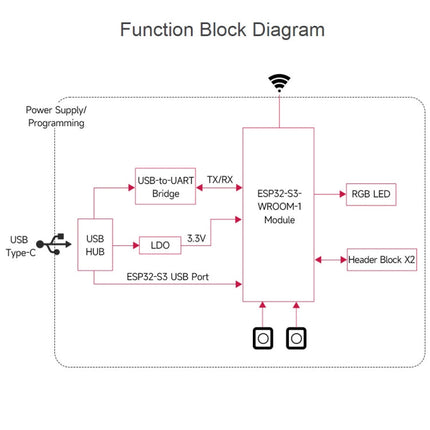

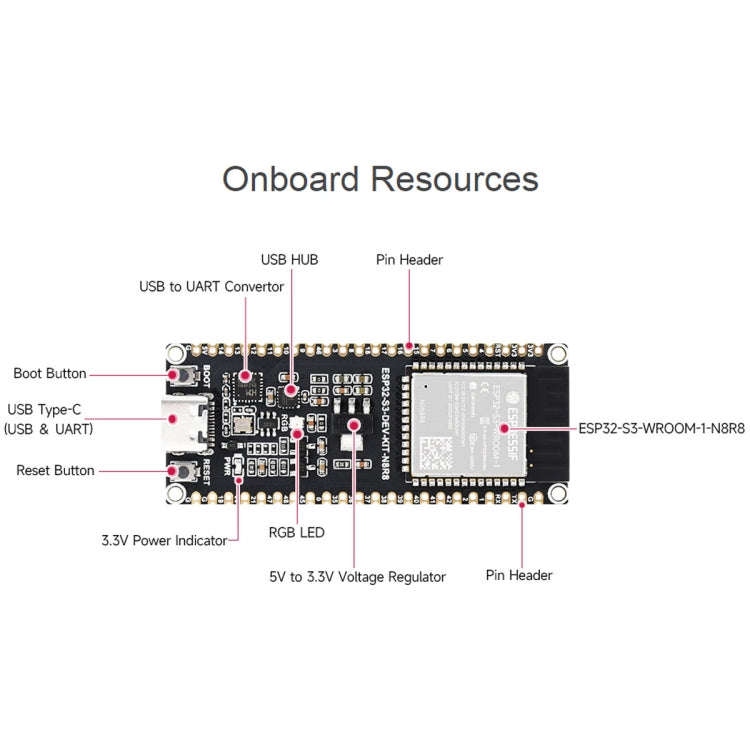

7. The onboard CH343 and CH334 chips can meet the development and use requirements of USB and UART through a Type-C interface

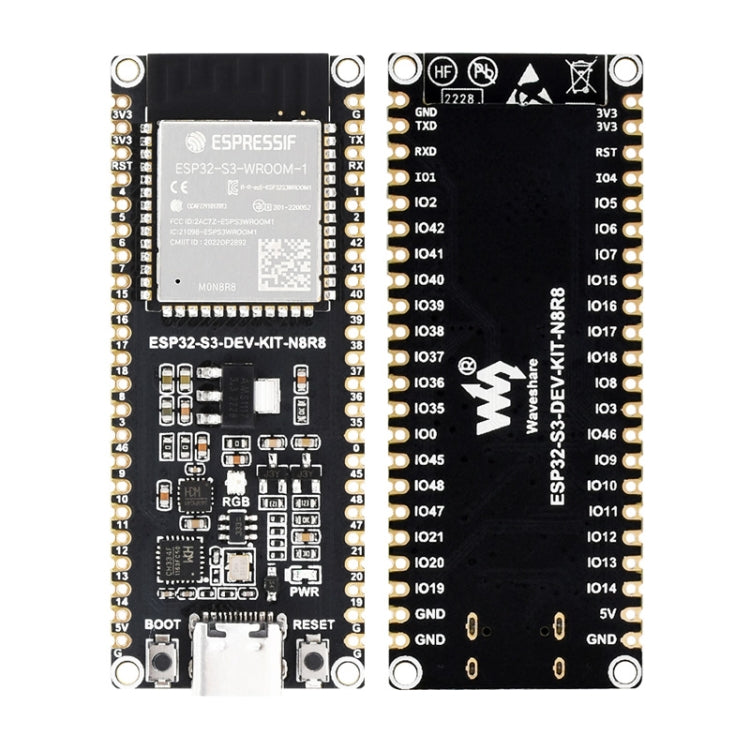

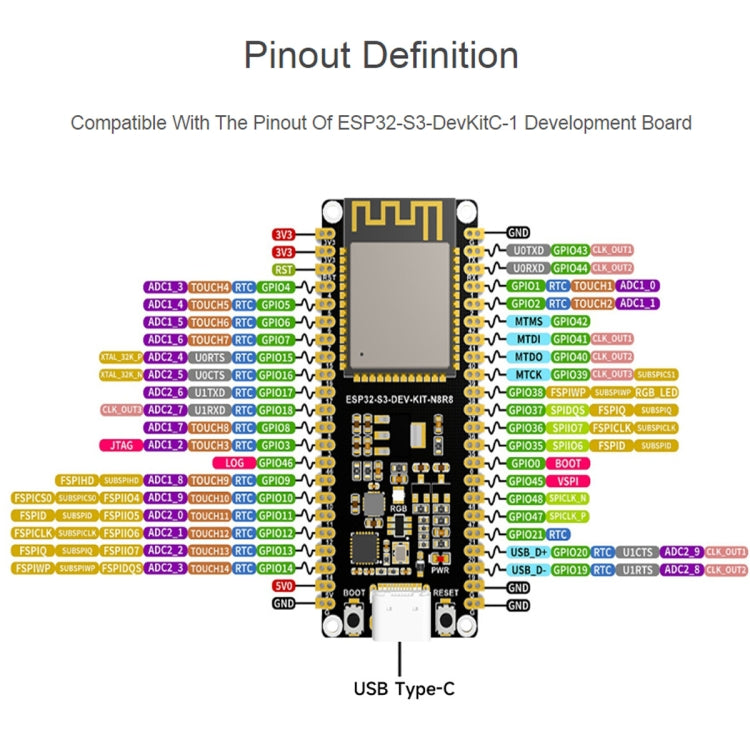

8. Lead out rich peripheral interfaces, pin compatible with ESP32-S3-DevKitC-1 development board, strong compatibility and expandability

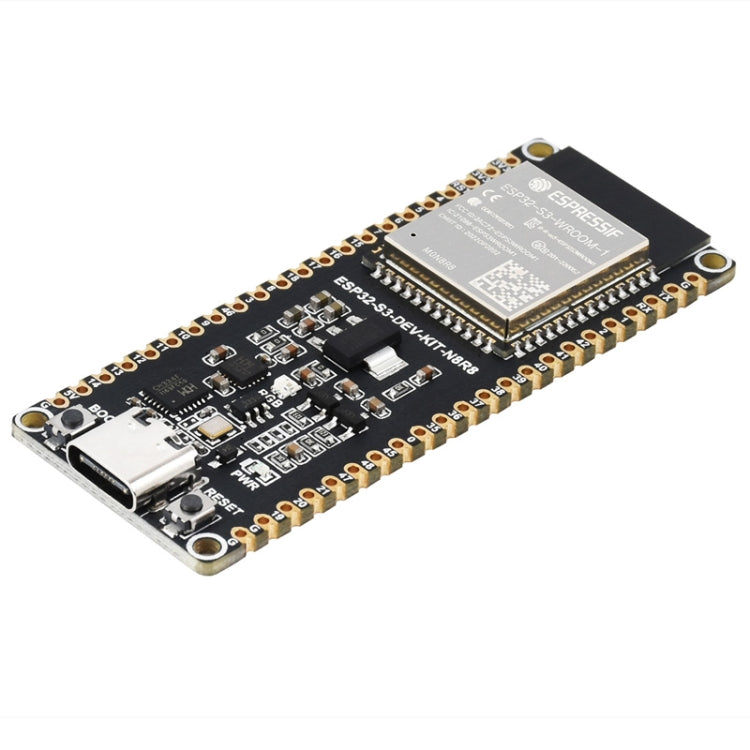

9. Stamp hole design, can be directly welded and integrated into the bottom plate designed by the user
10. Support a variety of low-power working states, adjust the balance between communication distance, data rate and power consumption, and meet the power consumption requirements of various application scenarios
Specification:
| Package Weight |
| One Package Weight |
0.03kgs / 0.06lb |
| One Package Size |
8cm * 5cm * 4cm / 3.15inch * 1.97inch * 1.57inch |
| Carton Weight |
12.00kgs / 26.46lb |
| Carton Size |
30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch |
| Loading Container |
20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
|
|
