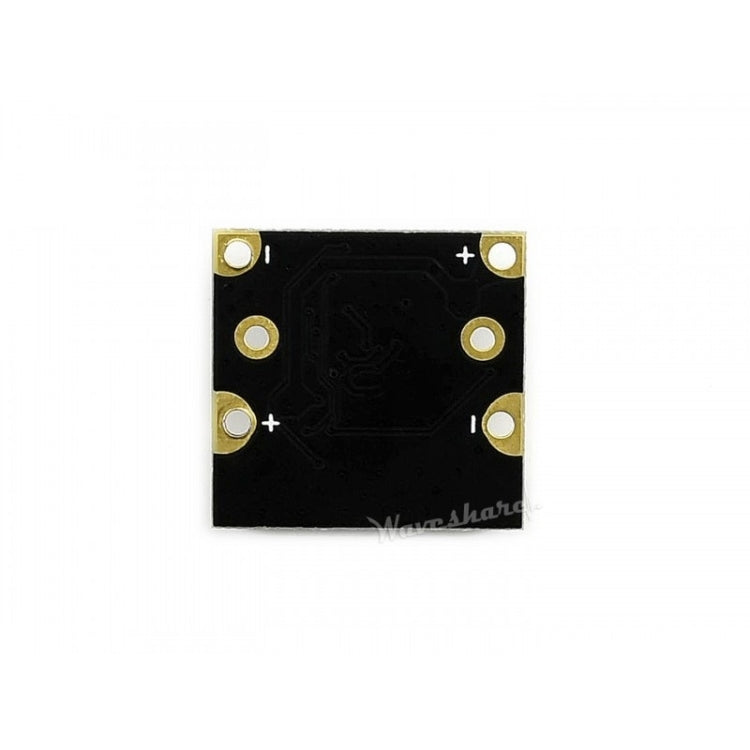

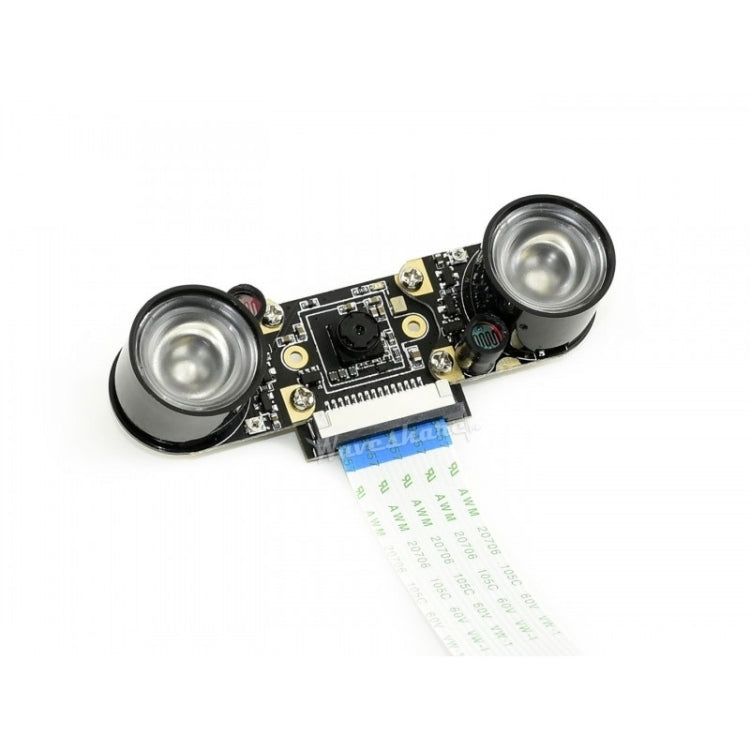

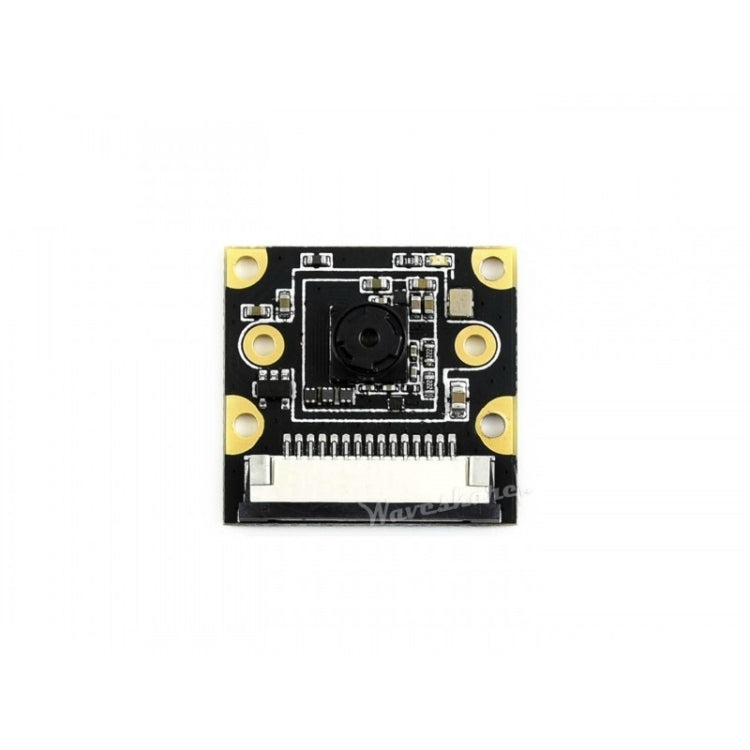

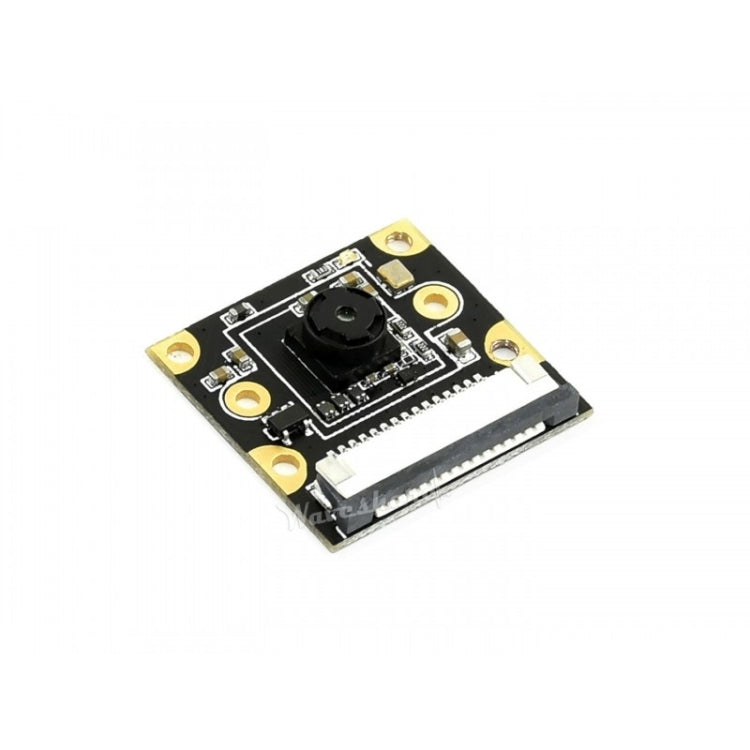

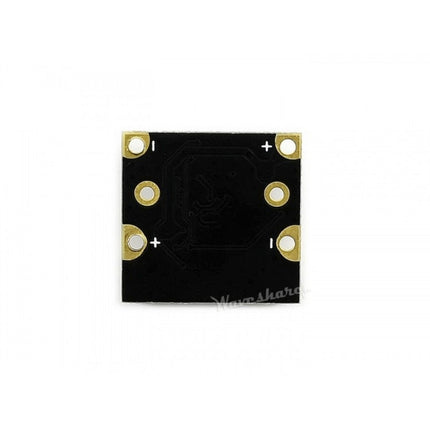

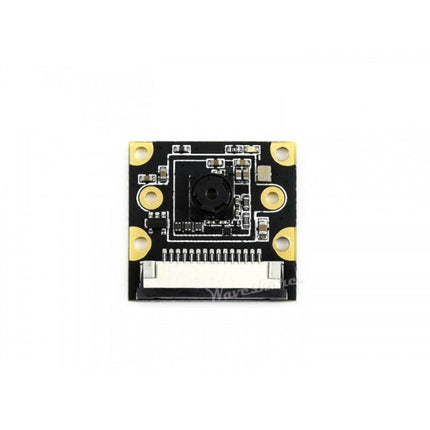

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano

Waveshare IMX219-77IR 8MP 77 Degree FOV Infrared Camera, Applicable for Jetson Nano

Product form

Features1. Supports NVIDIA Jetson Nano Developer Kit2. Supports night vision when works with infrared LEDs3. 8 Megapixels4. Sensor: IMX2195. Resolution:... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 14.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 19, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Features

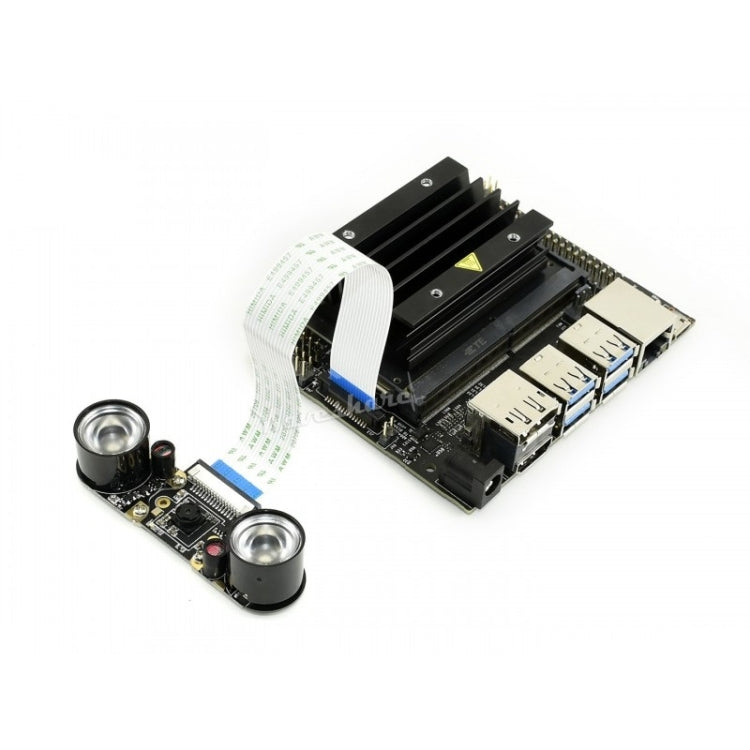

    1. Supports NVIDIA Jetson Nano Developer Kit
    2. Supports night vision when works with infrared LEDs
    3. 8 Megapixels
    4. Sensor: IMX219
    5. Resolution: 3280 × 2464
    6. Lens specifications:
    - CMOS size: 1/4inch
    - Aperture (F): 2.0
    - Focal Length: 2.96mm
    - Angle of View (diagonal): 77 degree
    - Distortion: <1%
    - Lens dimensions: 6.5mm × 6.5mm
    7. 4 screw holes
    8. Used for attachment
    9. Provides 3.3V power output
    10. Supports connecting infrared LED and/or fill flash LED
    11. Dimension: 25mm x 24mm
    12. Weight: 31g

    Packing List
    1. IMX219-77IR Camera x1
    2. Infrared LED Board (B) 2PCS x1
    3. 15-pin FFC (opposite sides contact) x1


    Specification:
    Package Weight
    One Package Weight 0.04kgs / 0.08lb
    One Package Size 10cm * 6cm * 3cm / 3.94inch * 2.36inch * 1.18inch
    Qty per Carton 468
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 60cm * 36cm * 39cm / 23.62inch * 14.17inch * 15.35inch
    Loading Container 20GP: 316 cartons * 468 pcs = 147888 pcs
    40HQ: 734 cartons * 468 pcs = 343512 pcs
