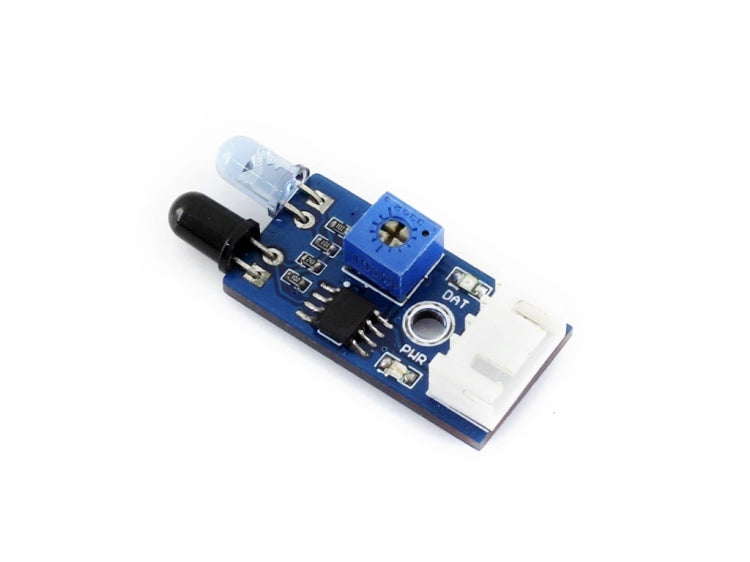

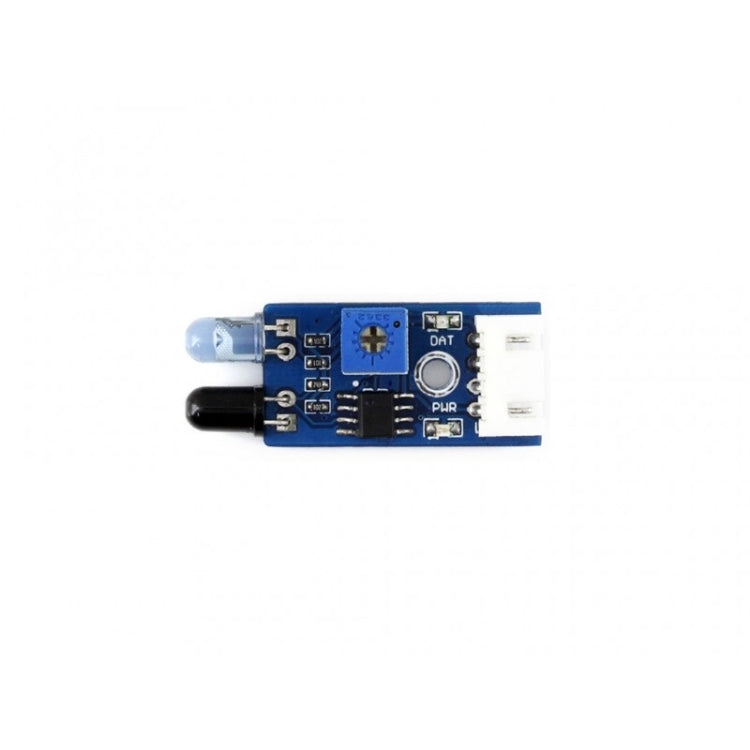

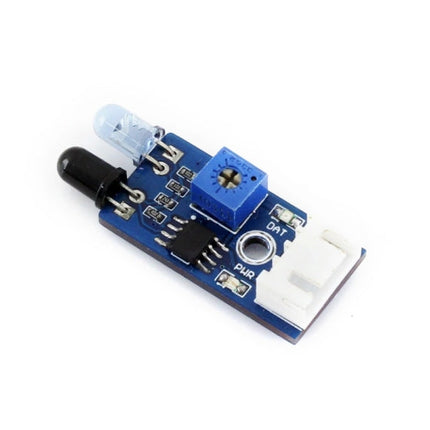

Waveshare Infrared Proximity Sensor, Obstacle-Avoiding

Waveshare Infrared Proximity Sensor, Obstacle-Avoiding

Product form

OverviewEmitting a beam of infrared, and receive the reflected beamFeatures wide range voltage comparator LM393Adjustable sensitivitySignal output indicatorSpecificationsPower: 3.3V ~... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 2.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 19, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Overview
    Emitting a beam of infrared, and receive the reflected beam
    Features wide range voltage comparator LM393
    Adjustable sensitivity
    Signal output indicator
    Specifications
    Power: 3.3V ~ 5V
    Dimension: 39mm × 15.5mm (include the IR LED)
    Mounting holes size: 3mm
    Detection range: 2cm ~ 30cm (depending on the obstacles color, farthest for white)
    Detection angle: 35°
    Recommended environment: in door, to avoid the sunshine effect
    Applications
    Robot path tracking

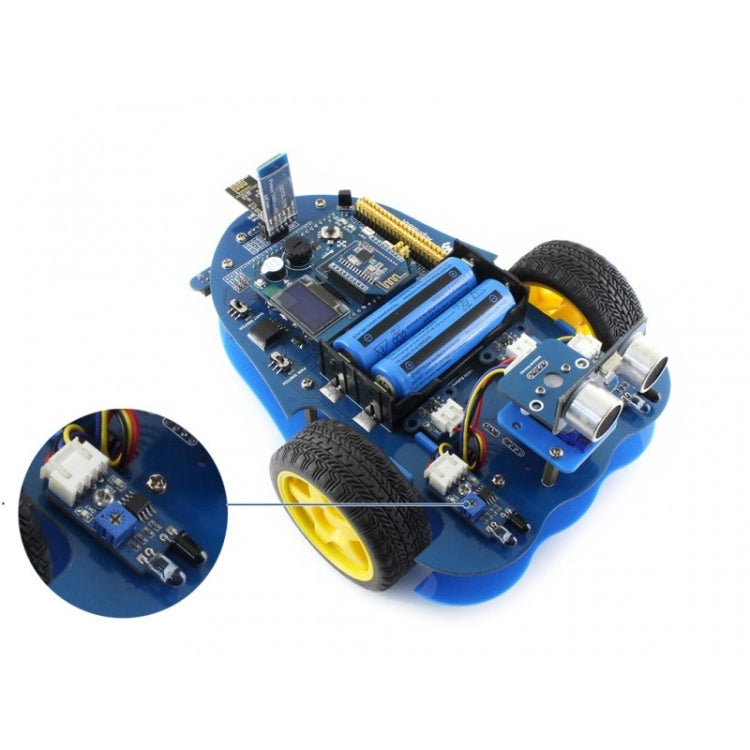

    Obstacle-avoiding car
    Pipeline counter

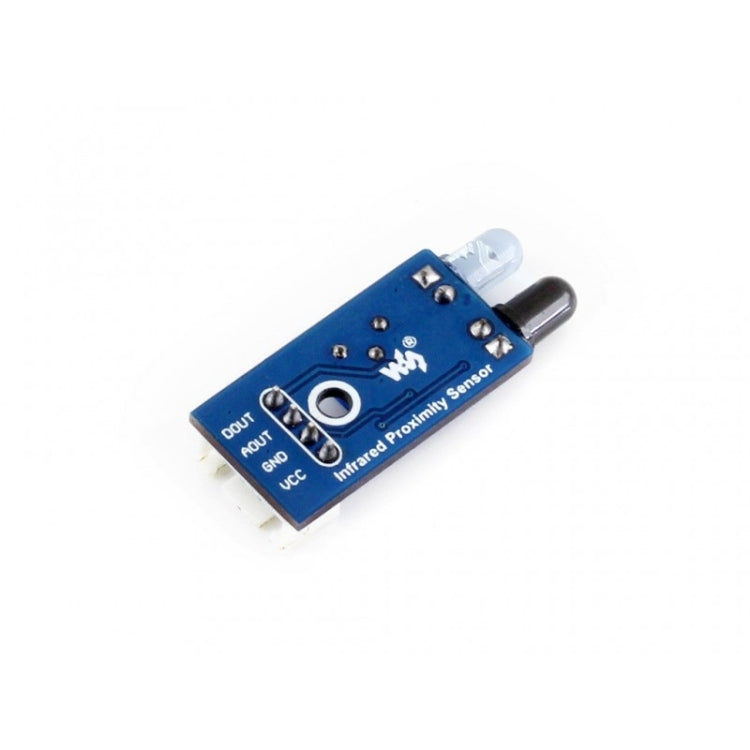

    How to Use
    In the case of working with a MCU:

    VCC ? 3.3V ~ 5V
    GND ? GND
    AOUT ? MCU.IO (analog output)
    DOUT ? MCU.IO (digital output)


    Specification:
    Package Weight
    One Package Weight 0.02kgs / 0.04lb
    One Package Size 8cm * 3cm * 2cm / 3.15inch * 1.18inch * 0.79inch
    Qty per Carton 1820
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 56cm * 39cm * 40cm / 22.05inch * 15.35inch * 15.75inch
    Loading Container 20GP: 305 cartons * 1820 pcs = 555100 pcs
    40HQ: 708 cartons * 1820 pcs = 1288560 pcs

    Specifications

    • Usage: Indoor & outdoor
