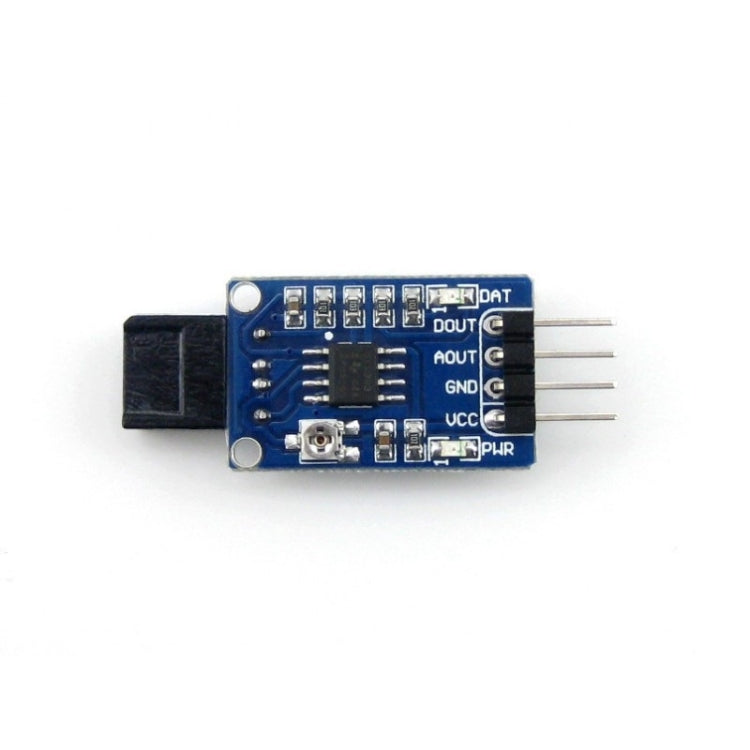

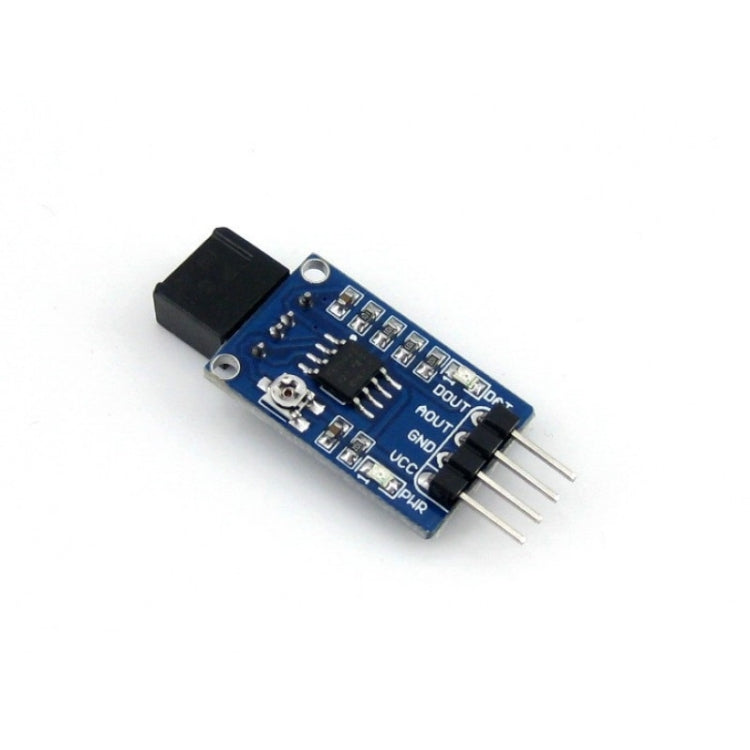

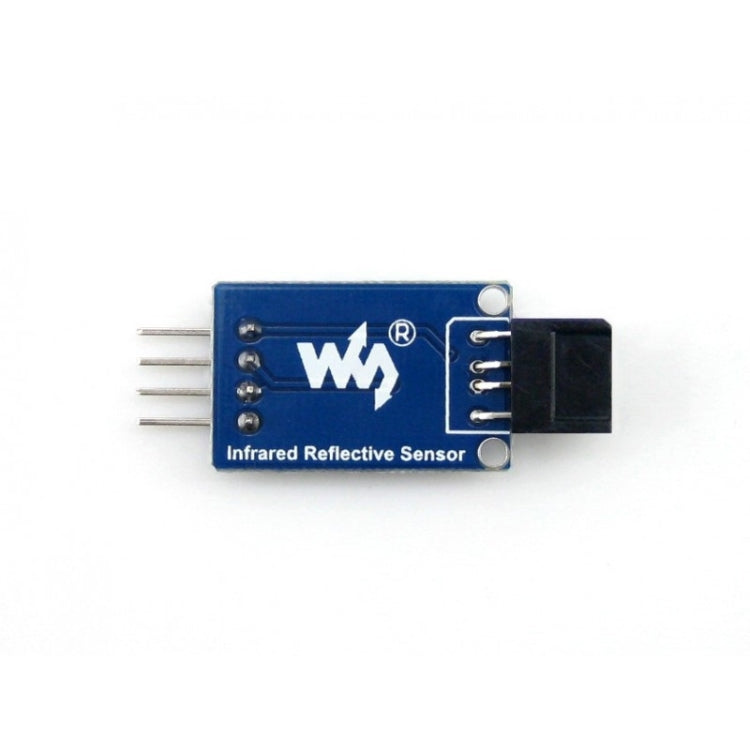

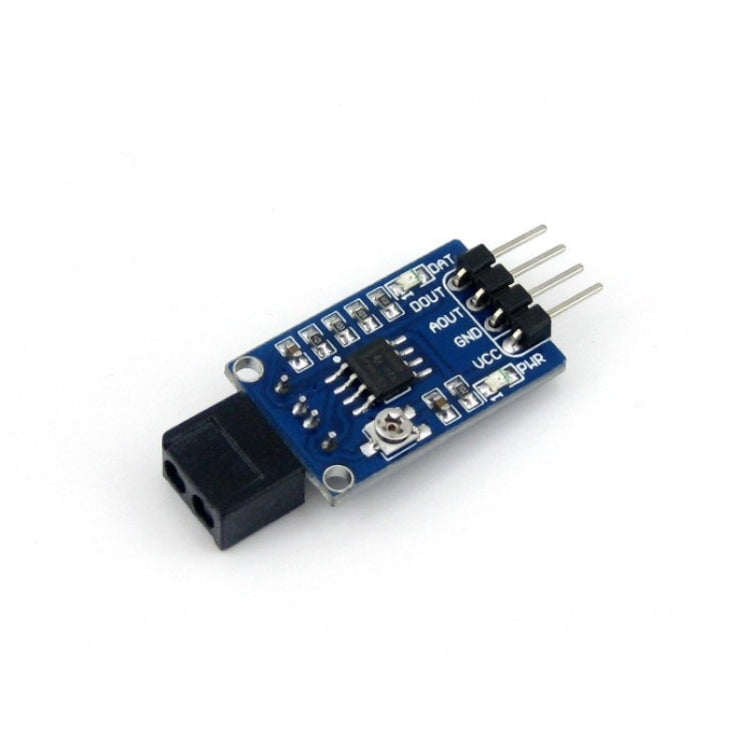

Waveshare Infrared Reflective Sensor, IR

Waveshare Infrared Reflective Sensor, IR

Product form

Overview1. Reflective infrared Transceiver2. Features wide range voltage comparator LM3933. Adjustable sensitivity4. Signal output indicatorSpecifications1. Power: 3.0V ~ 5.3V2. Dimension:... Read more

1 to 2 days Processing Time, Next day delivery

£ 3.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 18, 2025 23:59:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Overview
    1. Reflective infrared Transceiver
    2. Features wide range voltage comparator LM393
    3. Adjustable sensitivity
    4. Signal output indicator

    Specifications
    1. Power: 3.0V ~ 5.3V
    2. Dimension: 25mm * 15.9mm
    3. Mounting holes size: 2.0mm

    Applications
    1. Robot path tracking
    2. Obstacle-avoiding car
    3. Pipeline counter

    How to Use
    In the case of working with a MCU:
    Pinouts
    1. VCC: 3.0V ~ 5.3V
    2. GND: Power supply ground
    3. AOUT: MCU.IO (analog output)
    4. DOUT : MCU.IO (digital output)

    Package Contents
    1. Infrared Reflective Sensor x1
    2. 4-pin custom connector jumper wire x1


    Specification:
    Package Weight
    One Package Weight 0.01kgs / 0.02lb
    One Package Size 5cm * 3cm * 1cm / 1.97inch * 1.18inch * 0.39inch
    Qty per Carton 6240
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 60cm * 39cm * 40cm / 23.62inch * 15.35inch * 15.75inch
    Loading Container 20GP: 284 cartons * 6240 pcs = 1772160 pcs
    40HQ: 661 cartons * 6240 pcs = 4124640 pcs
