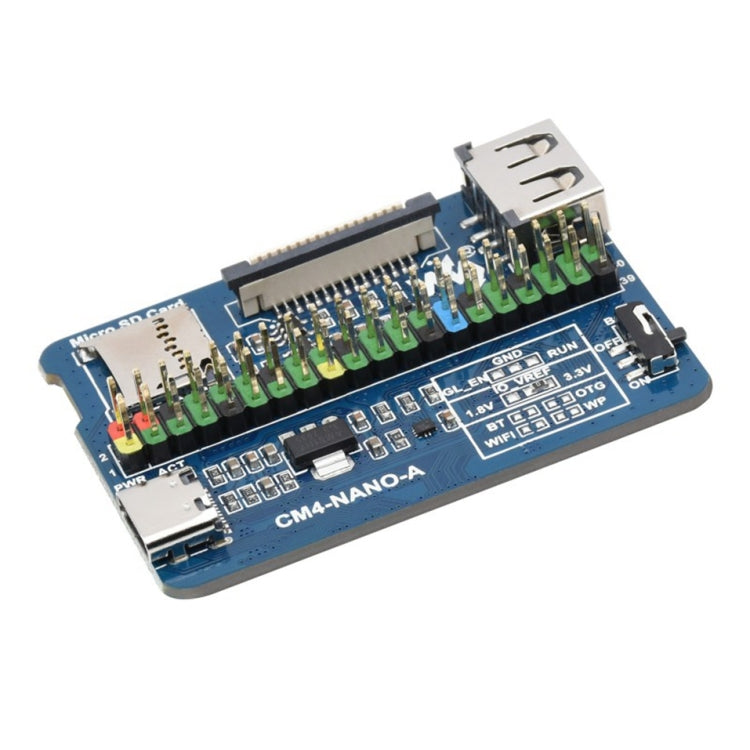

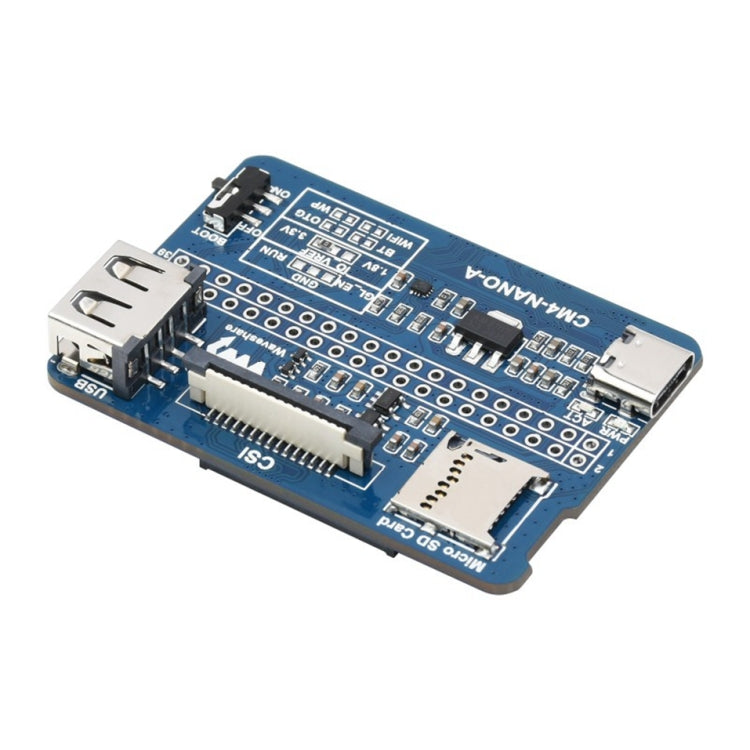

Waveshare Nano Base Board A for Raspberry Pi CM4, Nano Base Board A

Waveshare Nano Base Board A for Raspberry Pi CM4, Nano Base Board A

Product form

1. Base board for Compute Module 4 Lite / eMMC 2. Standard CM4 socket, with multiple peripheral interfaces, suitable for... Read more

1 to 2 days Processing Time, Next day delivery

£ 10.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 18, 2025 23:59:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

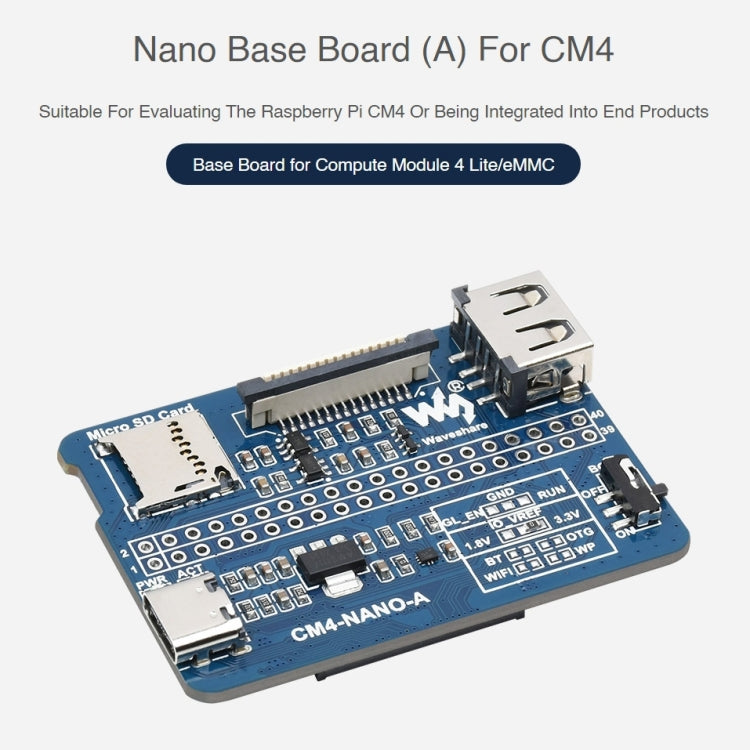

    1. Base board for Compute Module 4 Lite / eMMC

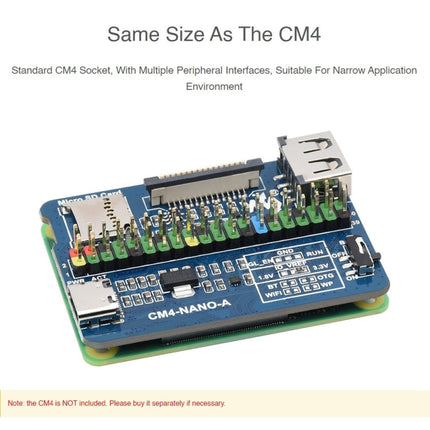

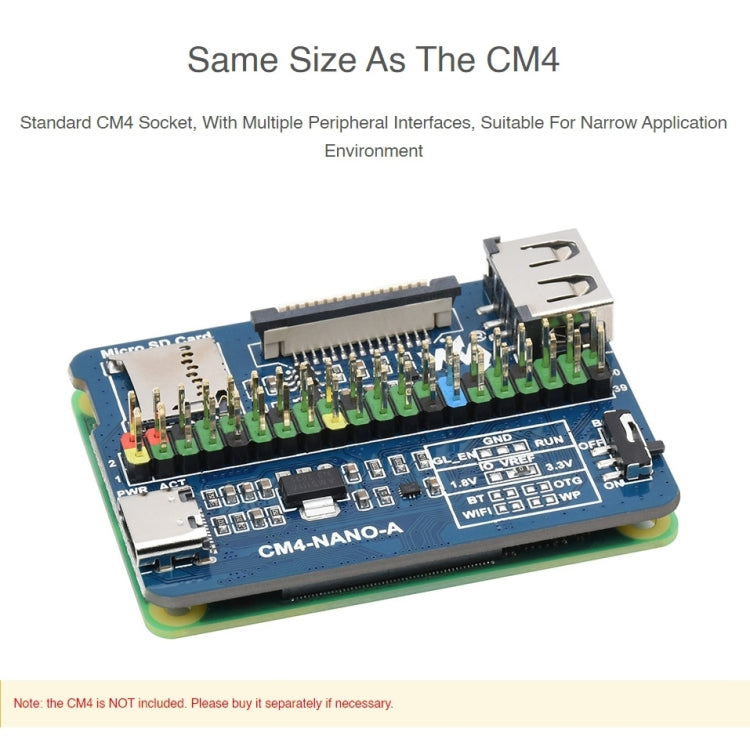

    2. Standard CM4 socket, with multiple peripheral interfaces, suitable for narrow application environment

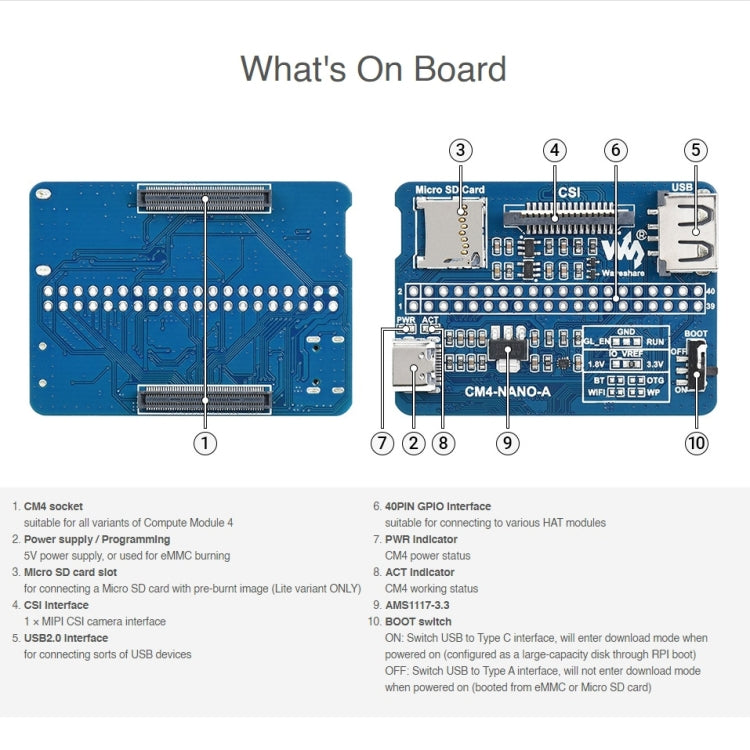

    Specifications:

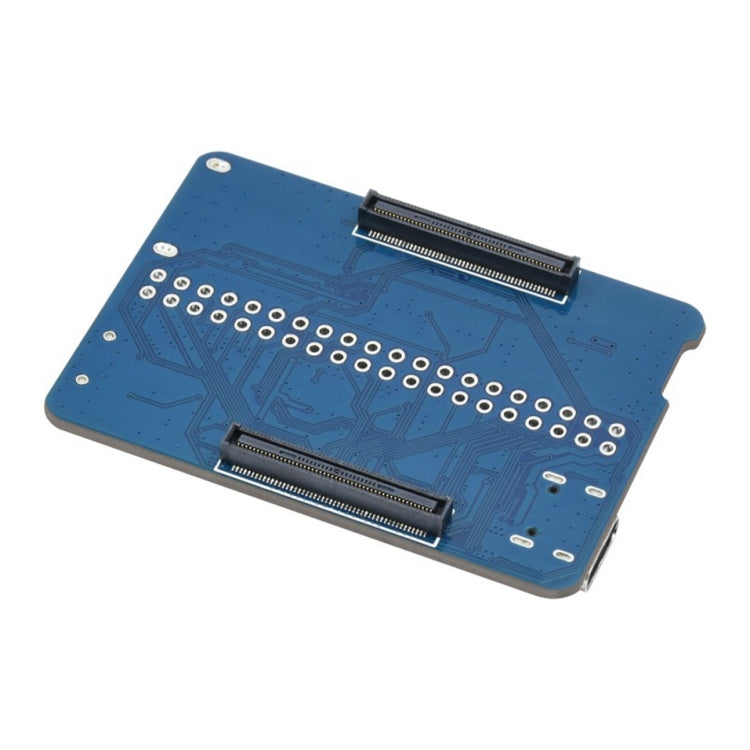

    1. CM4 socket: Suitable for all variants of Compute Module 4
    2. Connector: Raspberry Pi 40PIN GPIO interface x 1
    3. USB: USB 2.0 Type A interface x 1
    4. Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
    5. Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
    6. Power: 5V

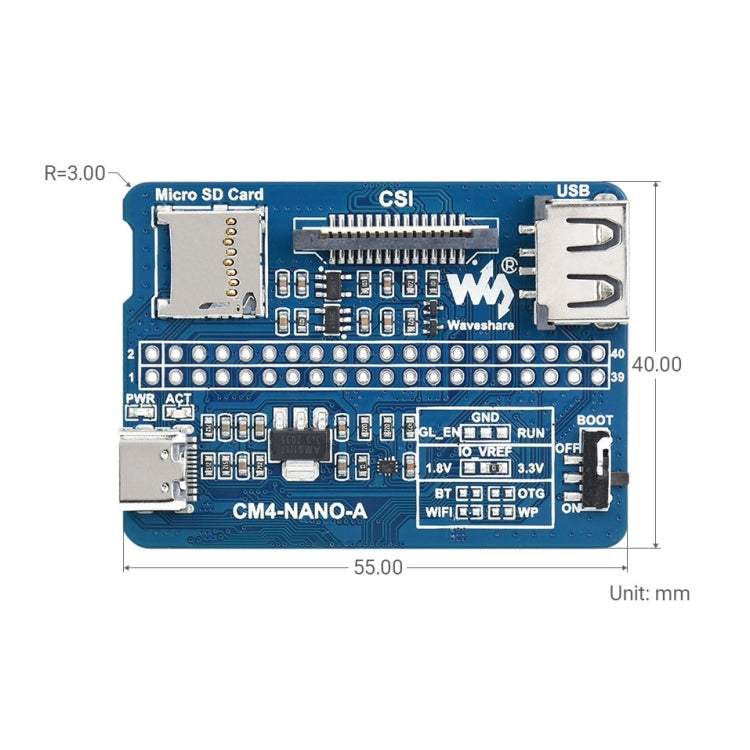

    7. Size: 55 x 40mm

    Package list
    1. CM4-NANO-A x1
    2. 2 x 20PIN color-coded straight pinheader x 2


    Specification:
    Package Weight
    One Package Weight 0.03kgs / 0.07lb
    One Package Size 15cm * 12cm * 1cm / 5.91inch * 4.72inch * 0.39inch
    Qty per Carton 300
    Carton Weight 7.00kgs / 15.43lb
    Carton Size 42cm * 32cm * 32cm / 16.54inch * 12.6inch * 12.6inch
    Loading Container 20GP: 620 cartons * 300 pcs = 186000 pcs
    40HQ: 1439 cartons * 300 pcs = 431700 pcs
