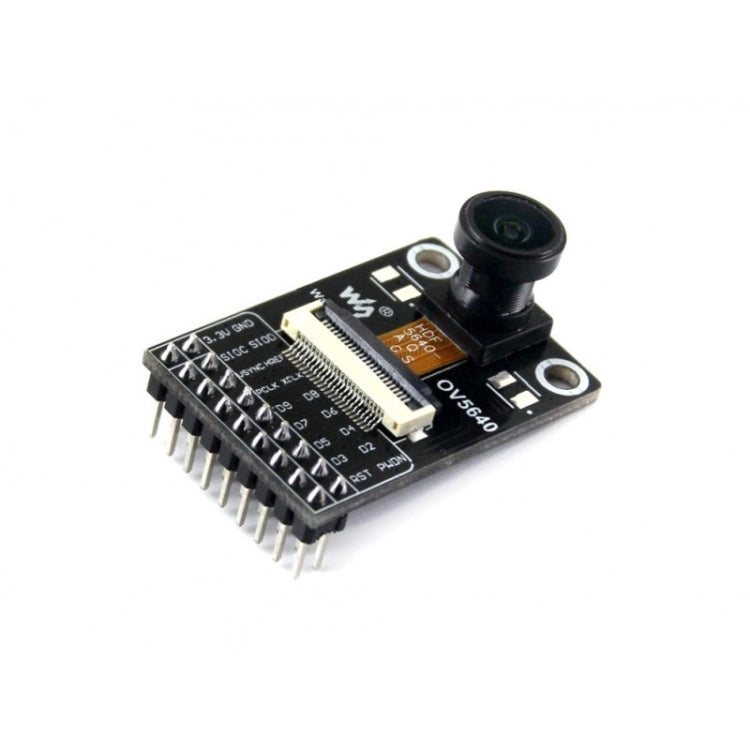

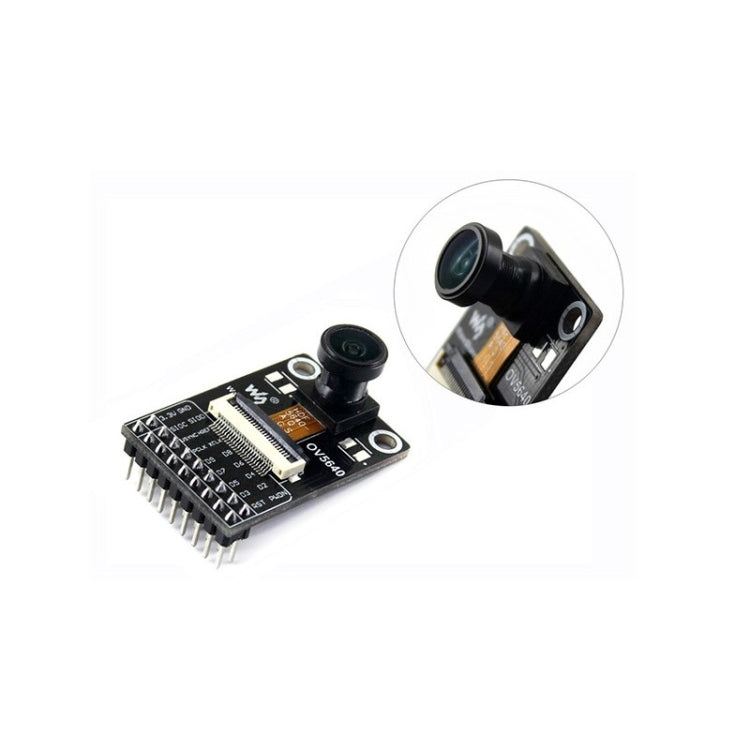

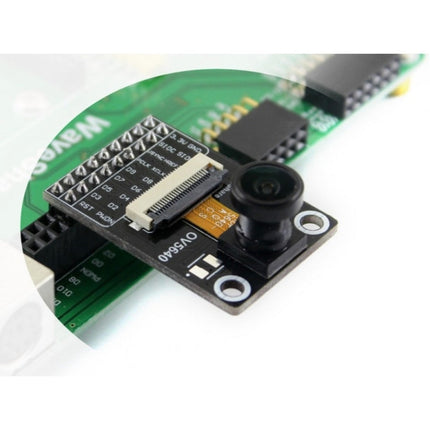

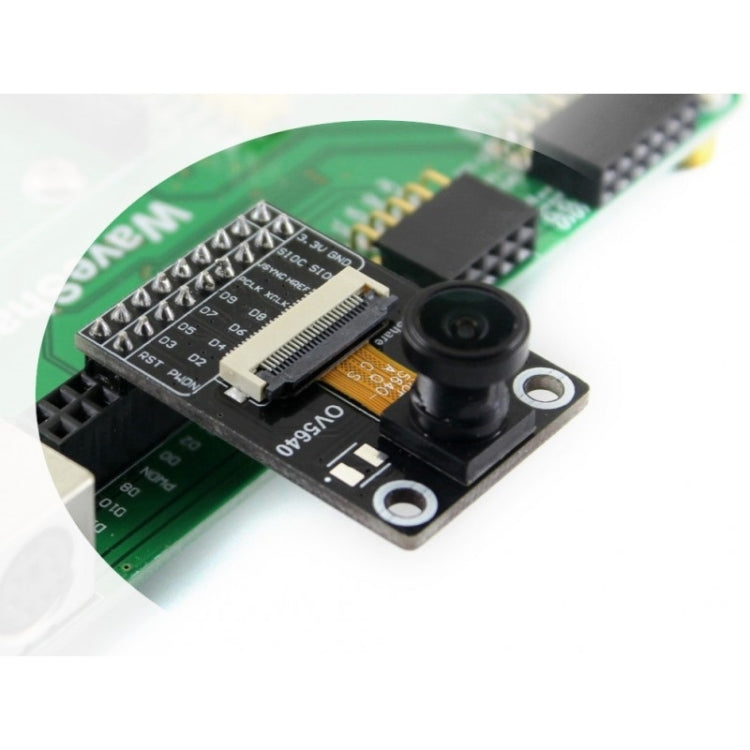

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

Product form

Features1. Pixels: 5 megapixel2. Resolution: 2592x19443. Sensor: OV5640- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 13.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 19, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Features
    1. Pixels: 5 megapixel
    2. Resolution: 2592x1944
    3. Sensor: OV5640
    - 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
    - Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
    - Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
    - Supports image scaling, panning, windowing, etc.
    4. Lens:
    - CCD size: 1/4inch
    - Aperture (F): 2.5
    - Focal Length: 2.0mm
    - Diagonal: 170 degree (fisheye)
    5. Output Formats:
    - YUV(422/420)/YCbCr422
    - RGB565/555/444
    - CCIR656
    - RAW RGB
    - Compressed Data
    6. Operating Voltage: 3.3V
    7. Control Interface: SCCB (I2C compatible)
    8. Data Interface: DVP 8-bit
    9. Dimension: 35.70mm x 23.90mm


    Specification:
    Package Weight
    One Package Weight 0.01kgs / 0.03lb
    One Package Size 6cm * 5cm * 1cm / 2.36inch * 1.97inch * 0.39inch
    Qty per Carton 3200
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
    Loading Container 20GP: 277 cartons * 3200 pcs = 886400 pcs
    40HQ: 644 cartons * 3200 pcs = 2060800 pcs

    Specifications

    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
