Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor

Waveshare OV5640 Camera Module Board (A), 5 Megapixel (2592x1944), Based on OV5640 Image Sensor

Product form

Features1.Pixels: 5 megapixel2.Resolution: 2592x19443.Sensor: OV5640 3.1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise 3.2... Read more

1 to 2 days Processing Time, Next day delivery

£ 13.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 18, 2025 23:59:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description

    Features
    1.Pixels: 5 megapixel
    2.Resolution: 2592x1944
    3.Sensor: OV5640
    3.1 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
    3.2 Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
    3.3 Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
    3.4 Supports image scaling, panning, windowing, etc.
    4.Lens:
    4.1 CCD size: 1/4inch
    4.2 Aperture (F): 2.8
    4.3 Focal Length: 2.8mm
    4.4 Diagonal: 63 degree
    5.Output Formats:
    5.1 YUV(422/420)/YCbCr422
    5.2 RGB565/555/444
    5.3 CCIR656
    5.4 RAW RGB
    5.5 Compressed Data
    6.Operating Voltage: 3.3V
    7.Control Interface: SCCB (I2C compatible)
    8.Data Interface: DVP 8-bit

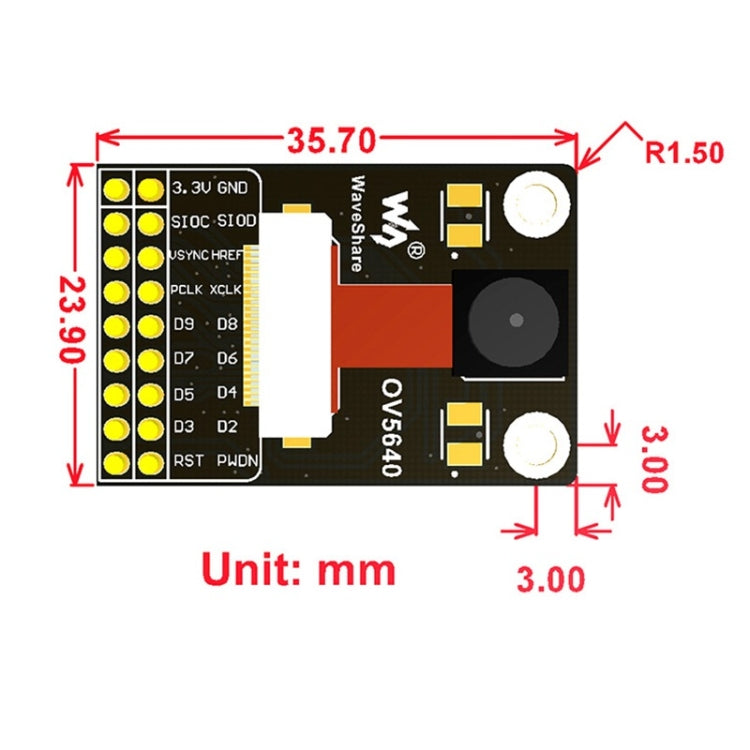

    9.Dimension: 35.70mm × 23.90mm


    Specification:
    Package Weight
    One Package Weight 0.01kgs / 0.03lb
    One Package Size 6cm * 4cm * 1cm / 2.36inch * 1.57inch * 0.39inch
    Qty per Carton 4000
    Carton Weight 15.00kgs / 33.07lb
    Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
    Loading Container 20GP: 277 cartons * 4000 pcs = 1108000 pcs
    40HQ: 644 cartons * 4000 pcs = 2576000 pcs
