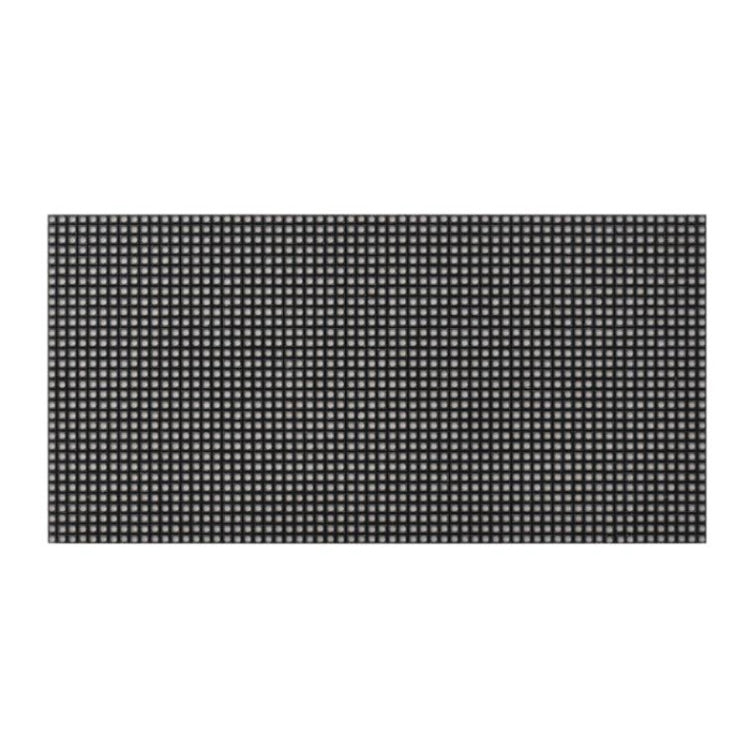

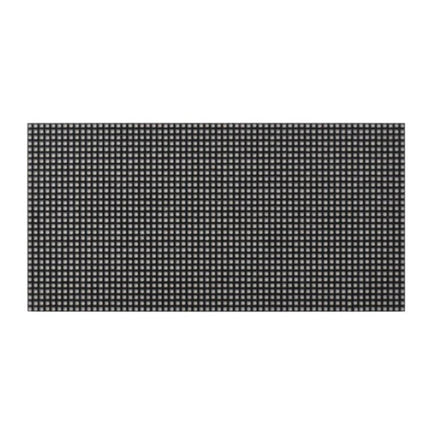

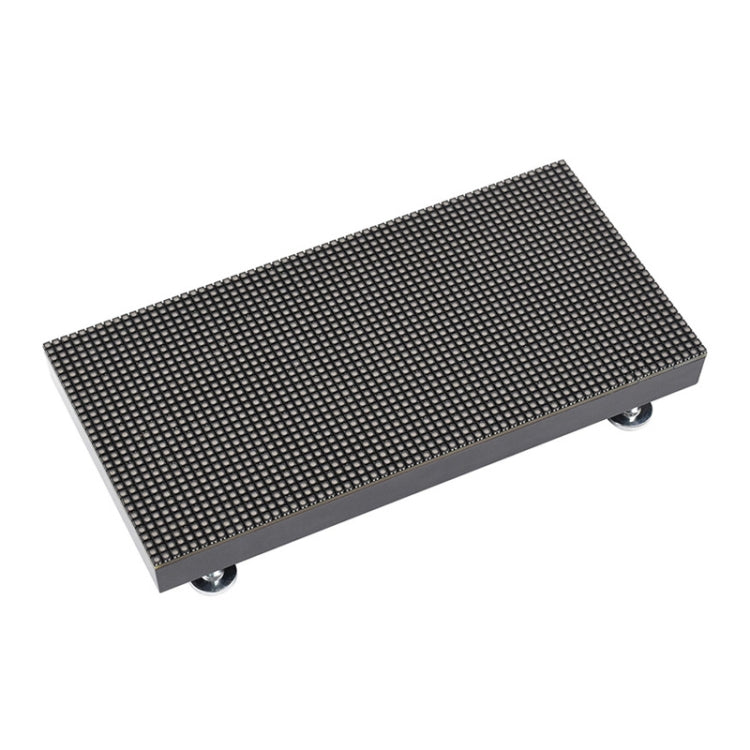

Waveshare RGB Full-color LED Matrix Panel, 2.5mm Pitch, 64x32 Pixels, Adjustable Brightness, 23707, 23707

Waveshare RGB Full-color LED Matrix Panel, 2.5mm Pitch, 64x32 Pixels, Adjustable Brightness, 23707, 23707

Product form

1. Pixel: 64 x 32=2048 dots2. Pitch: 2.5mm3. Pixel format: 1R1G1B4. Viewing angle: greater than 140 degrees5. Control mode: synchronous6.... Read more

Calculated at Checkout  Expedited Delivery Available!

£ 14.99 GBP

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 19, 2025 14:00:00 +0000
    • Shipping calculated at checkout,
    • No hassle returns, 30 days return

    Description


    1. Pixel: 64 x 32=2048 dots
    2. Pitch: 2.5mm
    3. Pixel format: 1R1G1B
    4. Viewing angle: greater than 140 degrees
    5. Control mode: synchronous
    6. Drive: 1/16 scan
    7. Connector: HUB75
    8. Power supply: V / 2.5A (VH4 connector input)
    9. Power: within 12W
    10. Size: 16 x 8cm

    Features:

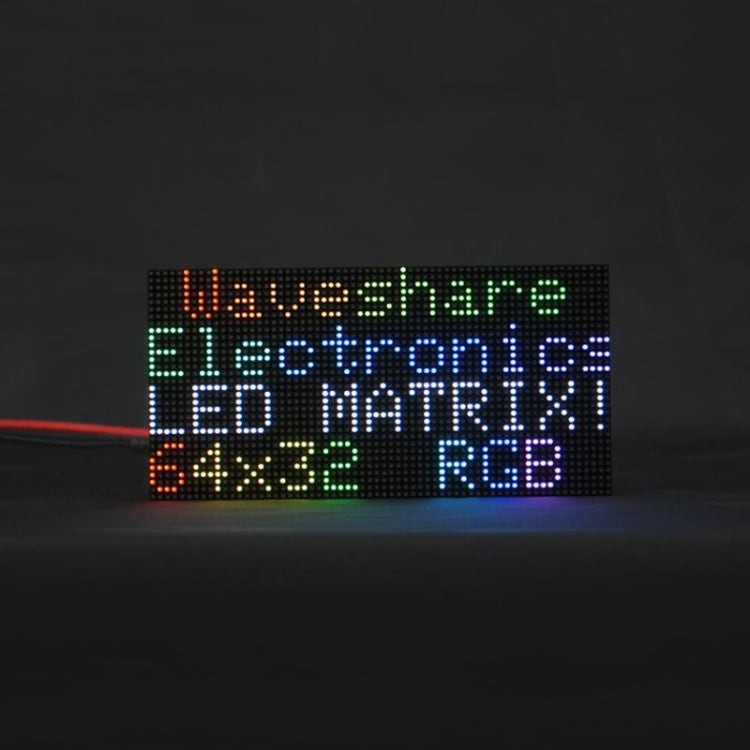

    1. 2048 independent RGB led, full color display, adjustable brightness
    2. 64x32 pixels, 2.5mm pitch, allows displaying text, color images or animations
    3. 160x80mm size, moderate size, suitable for DIY desktop display or wall mount display

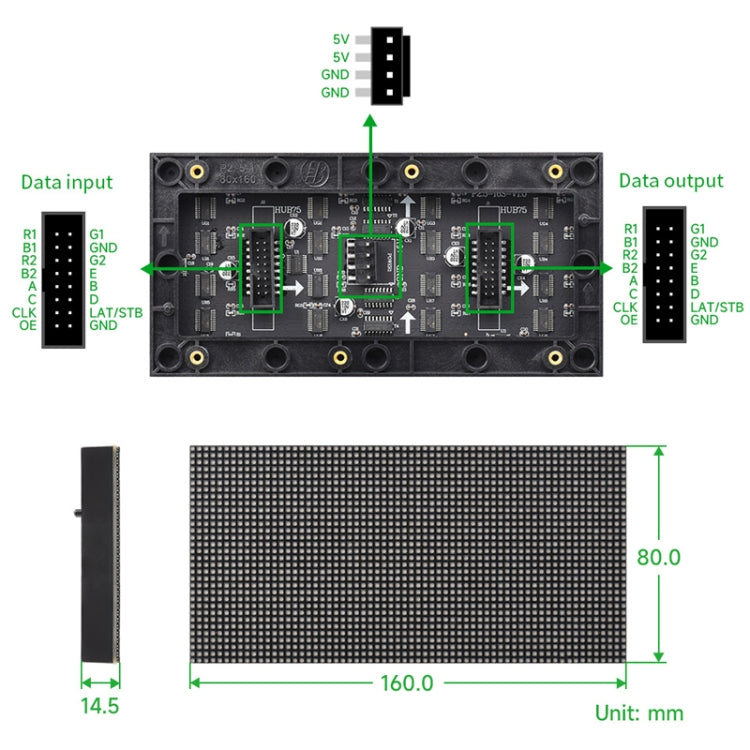

    4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support

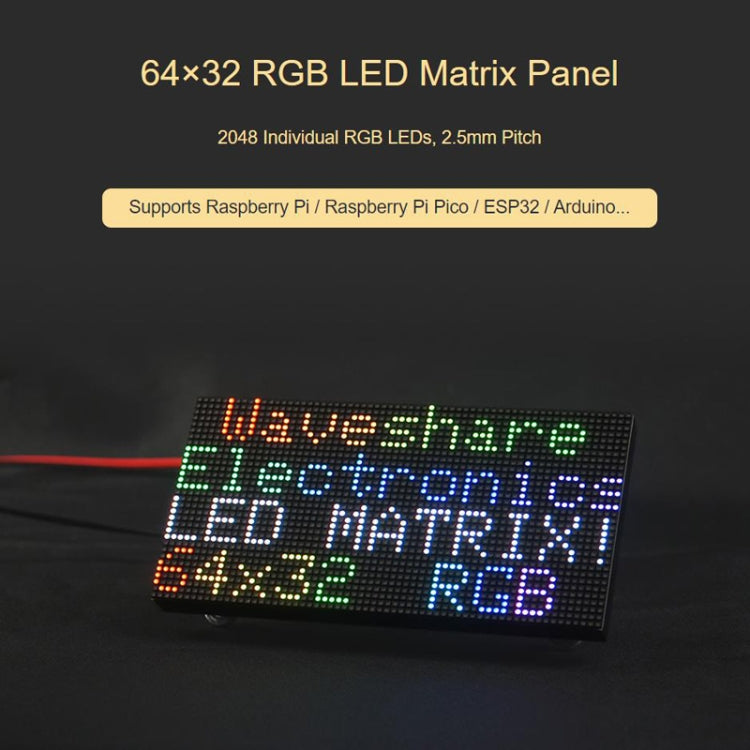

    5. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)


    Specification:
    Package Weight
    One Package Weight 0.40kgs / 0.89lb
    One Package Size 20cm * 10cm * 2cm / 7.87inch * 3.94inch * 0.79inch
    Qty per Carton 74
    Carton Weight 30.00kgs / 66.14lb
    Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
    Loading Container 20GP: 177 cartons * 74 pcs = 13098 pcs
    40HQ: 412 cartons * 74 pcs = 30488 pcs

    Specifications

    • Usage: Indoor & outdoor
