Description

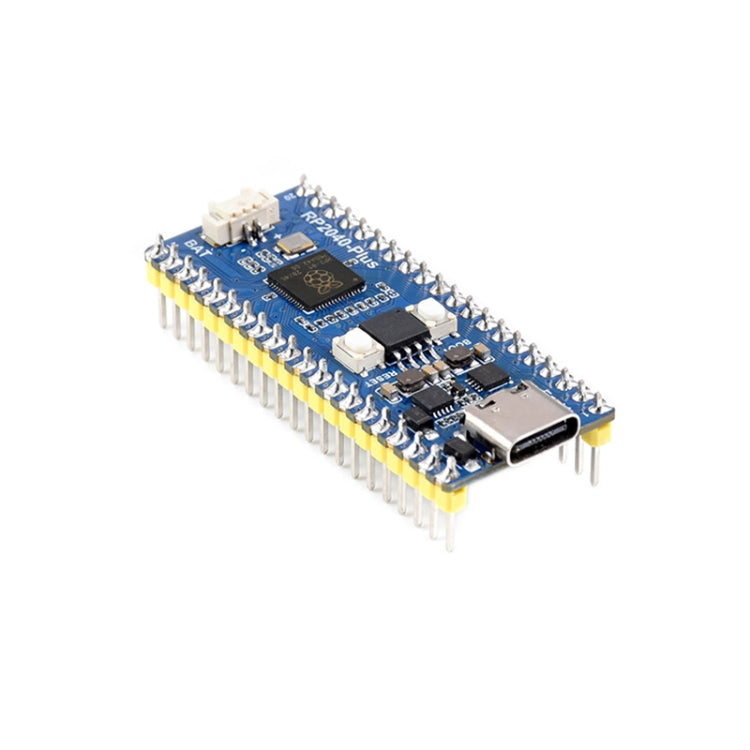

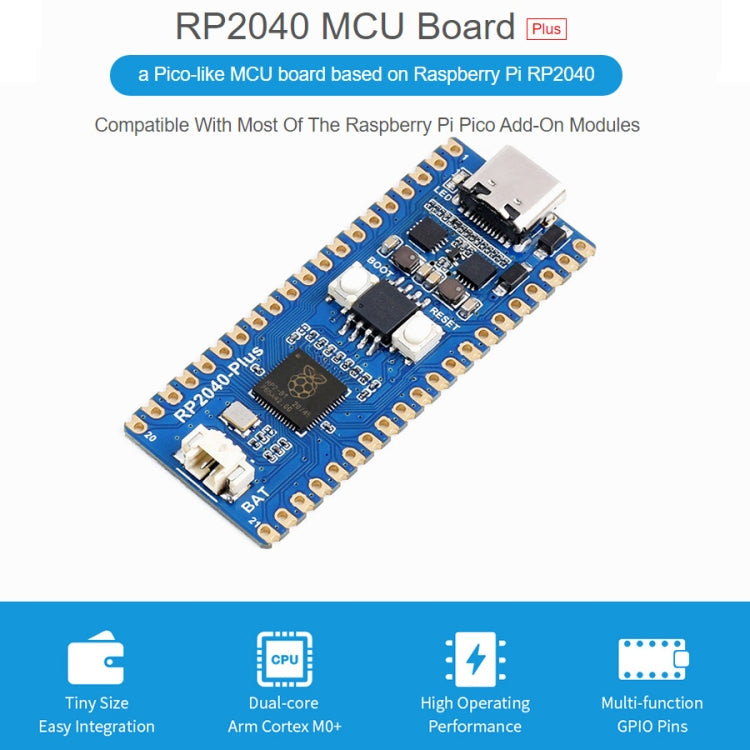

Need more Flash for Raspberry Pi Pico? Dislike the outdated Micro USB connector? All these problems are solved by our RP2040-Plus now.
As same as Raspberry Pi Pico, it incorporates the RP2040 microcontroller, with dual-core Arm Cortex M0+ processor running up to 133 MHz, and 26x multi-function GPIO pins.

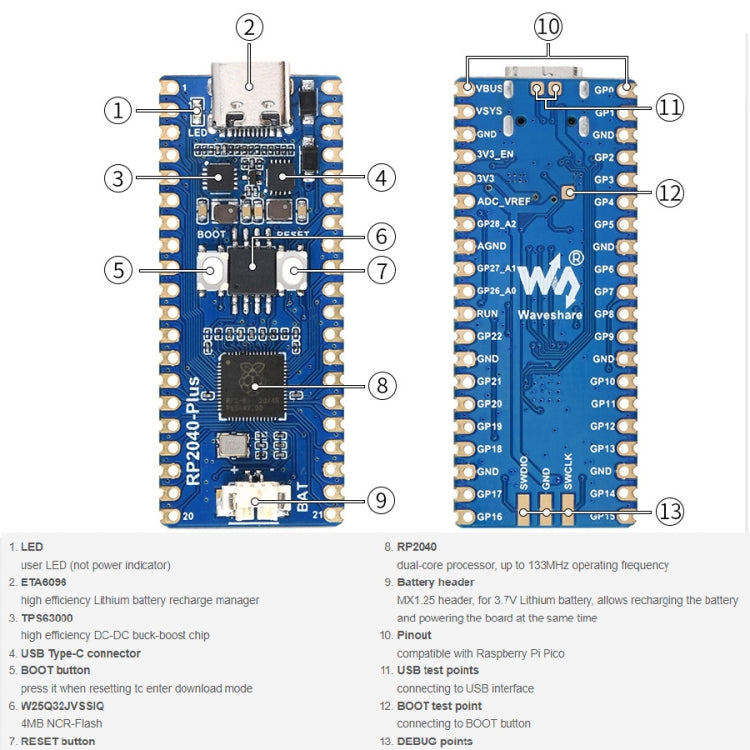

What is different, it features onboard 4MB Flash, USB-C connector, recharge header, and higher current DC-DC chip.
Key features include:
1. RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

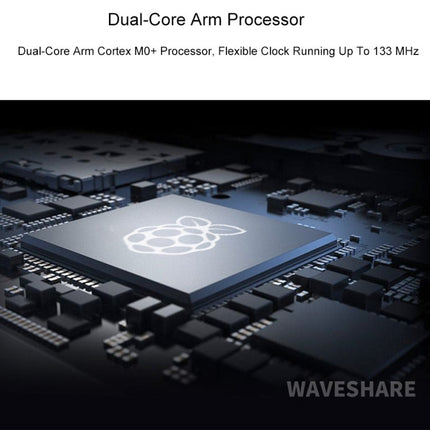

2. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
3. 264KB of SRAM, and 4MB of on-board Flash memory
4. USB-C connector, keeps it up to date, easier to use
5. Lithium battery recharge/discharge header, suitable for mobile devices
6. Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
7. Castellated module allows soldering direct to carrier boards
8. USB 1.1 with device and host support
9. Low-power sleep and dormant modes
10. Drag-and-drop programming using mass storage over USB

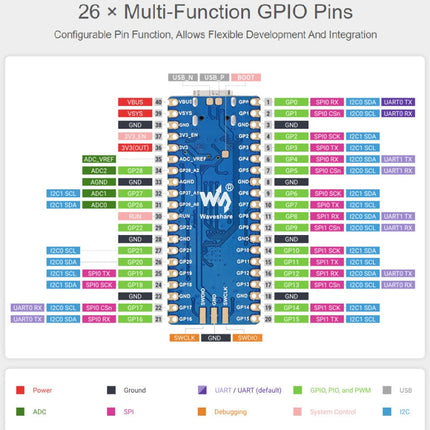

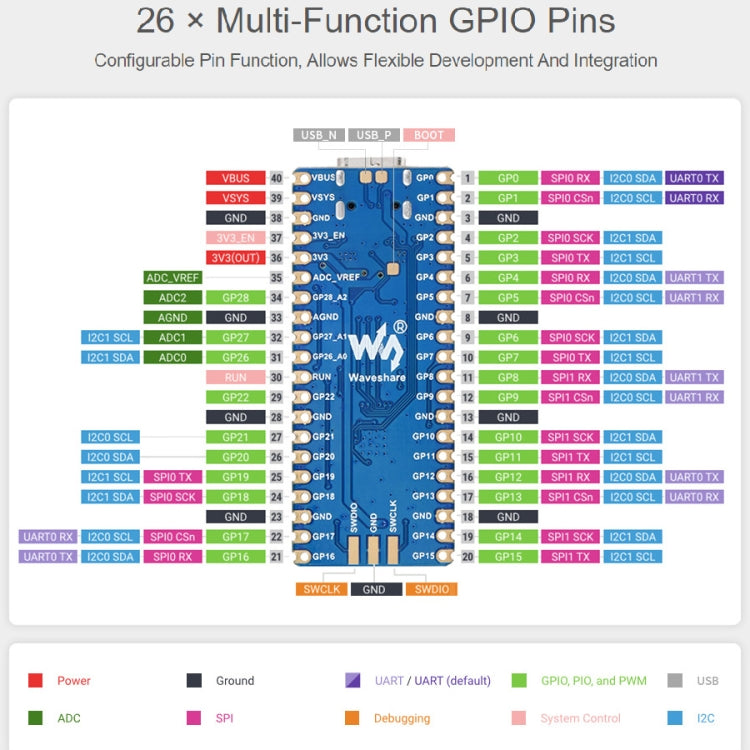

11. 26 x multi-function GPIO pins
12. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
13. Accurate clock and timer on-chip
14. Temperature sensor
15. Accelerated floating-point libraries on-chip
16. 8 x Programmable I/O (PIO) state machines for custom peripheral support
Specification:
| Package Weight |
| One Package Weight |
0.02kgs / 0.05lb |
| One Package Size |
15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch |
| Carton Weight |
8.00kgs / 17.64lb |
| Carton Size |
52cm * 40cm * 39cm / 20.47inch * 15.75inch * 15.35inch |
| Loading Container |
20GP: 328 cartons * 500 pcs = 164000 pcs
40HQ: 763 cartons * 500 pcs = 381500 pcs
|
|
