Description
Features

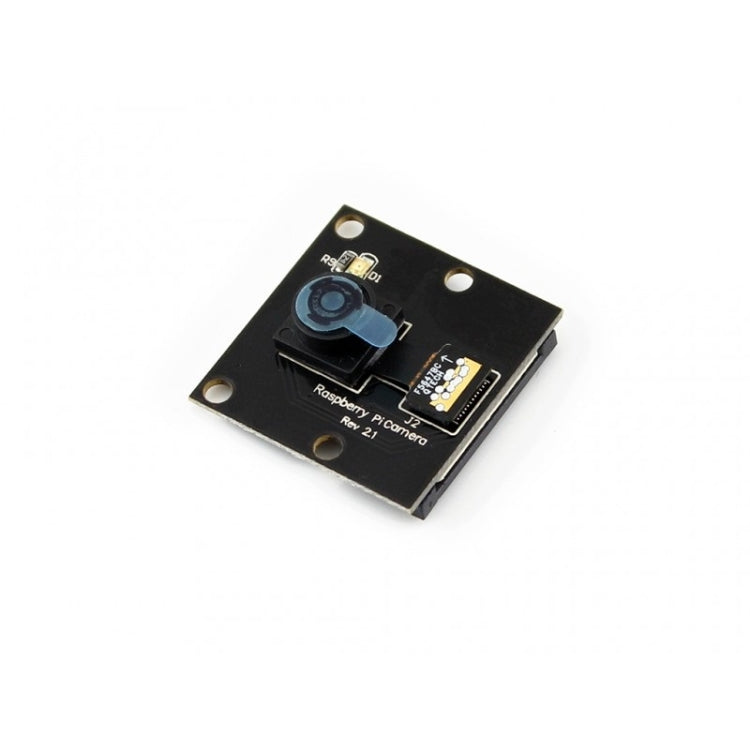

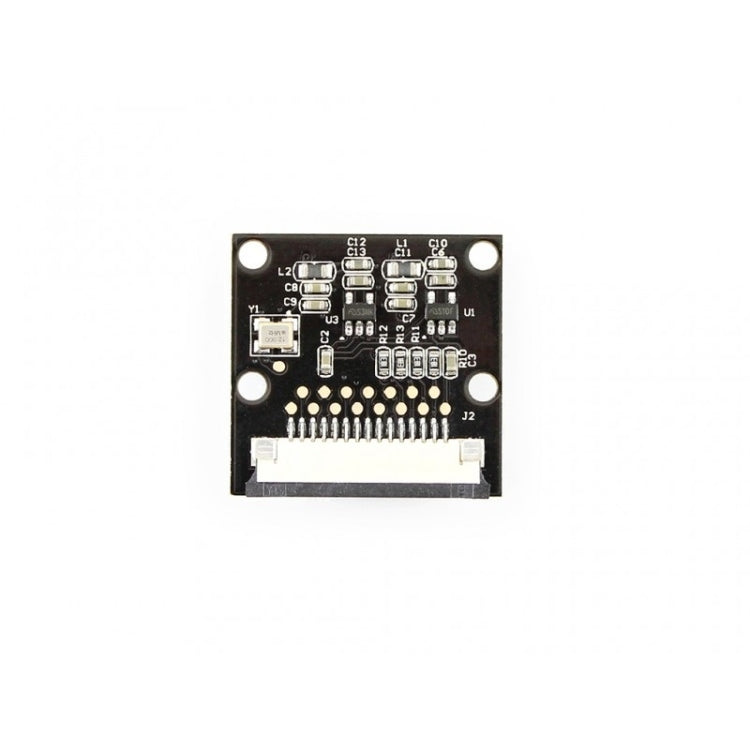

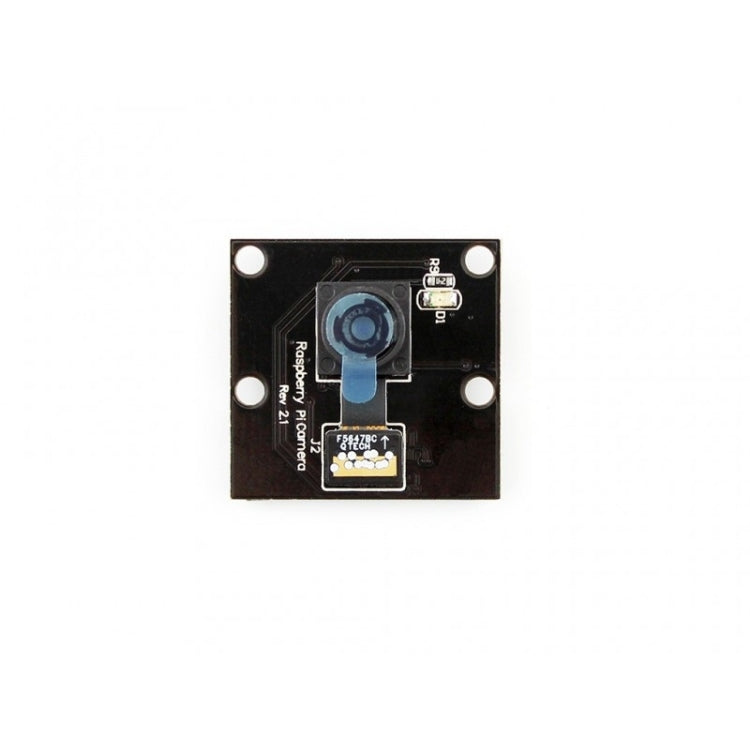

1. Raspberry Pi Camera, compatible with the original one, supports all revisions of the Pi
2. 5 megapixel OV5647 sensor in a fixed-focus module
3. Camera specifications
- CCD size : 1/4 inch
- Aperture (F) : 2.8
- Focal Length : 3.4 mm
- Angle of View (diagonal) : 66 degree
- Sensor best resolution : 1080p
4. 2592 × 1944 still picture resolution
5. Support 1080p 30fps, 720p 60fps and 640x480p 60/90fps video record
6. Dimension: 25mm x 24mm x 9mm
Package Contents
1. RPi Camera (D) x1
2. 15-pin FFC (opposite sides contact) x1

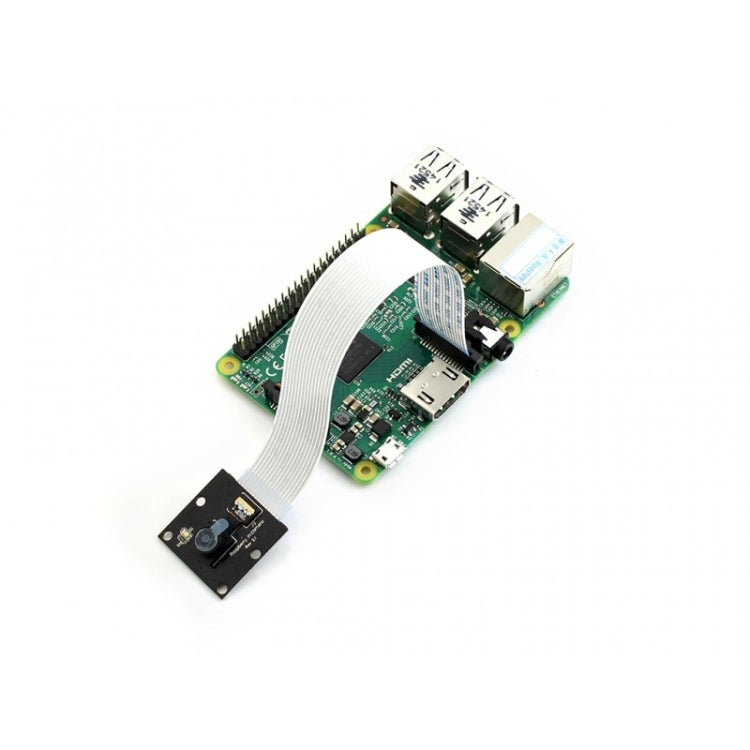

Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Specification:
| Package Weight |
| One Package Weight |
0.01kgs / 0.02lb |
| One Package Size |
5cm * 4cm * 1cm / 1.97inch * 1.57inch * 0.39inch |
| Carton Weight |
15.00kgs / 33.07lb |
| Carton Size |
60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch |
| Loading Container |
20GP: 277 cartons * 4800 pcs = 1329600 pcs 40HQ: 644 cartons * 4800 pcs = 3091200 pcs
|
|
