Description

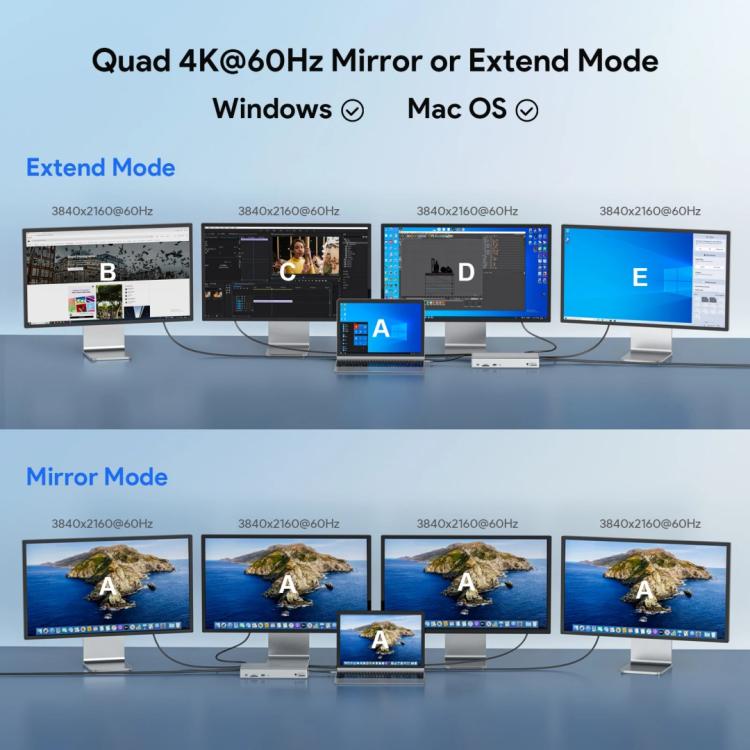

1. DisplayLink Chipset：Universally compatible with almost any operating system, the DL-6910 chipset helps to support mirroring or extending quadruple displays at a time, making it an ideal choice for multitasking or adding more workspace.
2. Perfect for M1/2 Macs：Designed to meet the needs of Macbook users with M1/M2 chips, the dock enables them to connect 4 external monitors with different content—excellent to expand their workspace and increase their productivity.

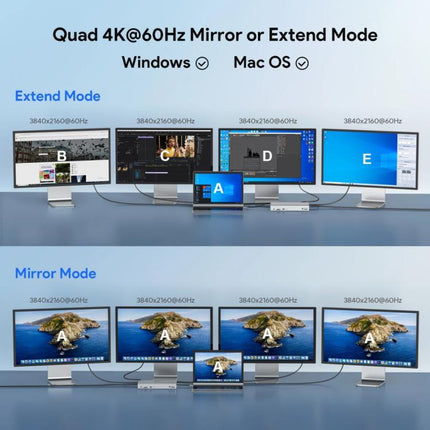

3. Rotation & Clamshell Mode：Quad display capabilities provide crystal-clear visuals to make multitasking a breeze. Our dock also supports both rotation and clamshell modes on Windows, making it versatile enough for any worker's needs.Please note: Mac users will require Mac OS 12.0 or above to support both display rotation and clamshell mode.
4. 2-In-1 Audio & Mic：Connect your microphone, headphones, or mini stereo to the 4-pole earphone jack while accessing audio files or requiring clear audio capture, making listening, talking, or recording more accessible than ever before.
5. Security Lock Hole：Simply connect a Kensington lock (not included) to the lock hole included on your device to keep it secured and prevent it from being moved or stolen. Useful for those who travel with their devices or work in public areas.
6. Optimum Heat Dissipation：Double-sided ventilation holes and anti-dust mesh with a built-in heat sink ensure a stable and efficient performance—worry-free about any overheating or system instability, which further extends the device's service life.
Specifications:
1. Model: WL-UG69PD12

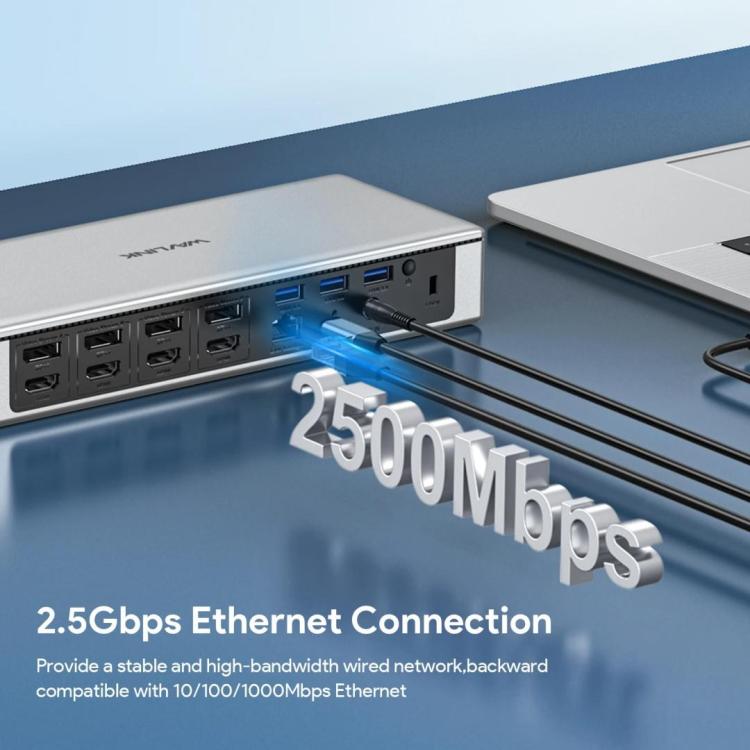

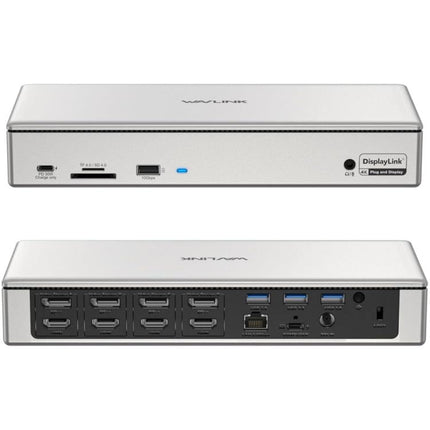

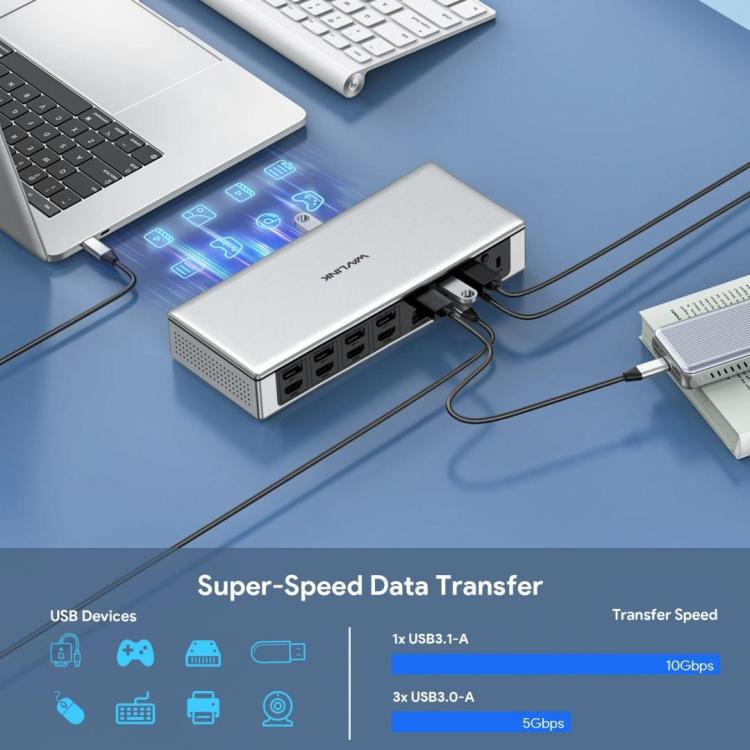

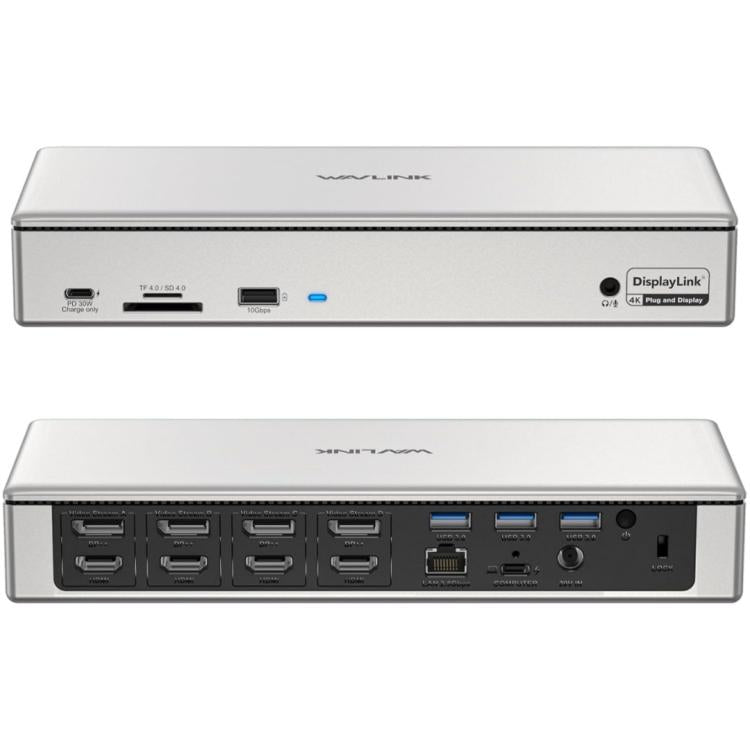

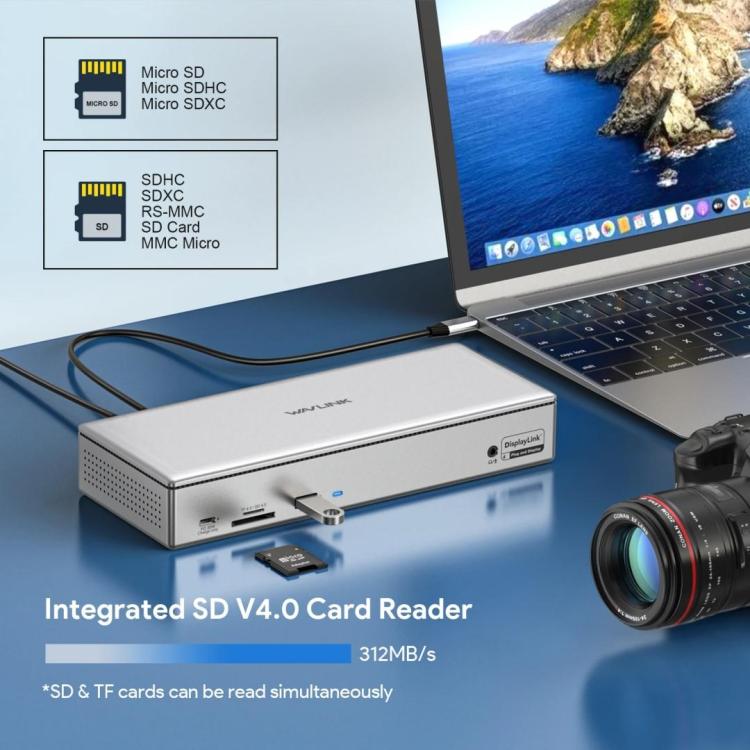

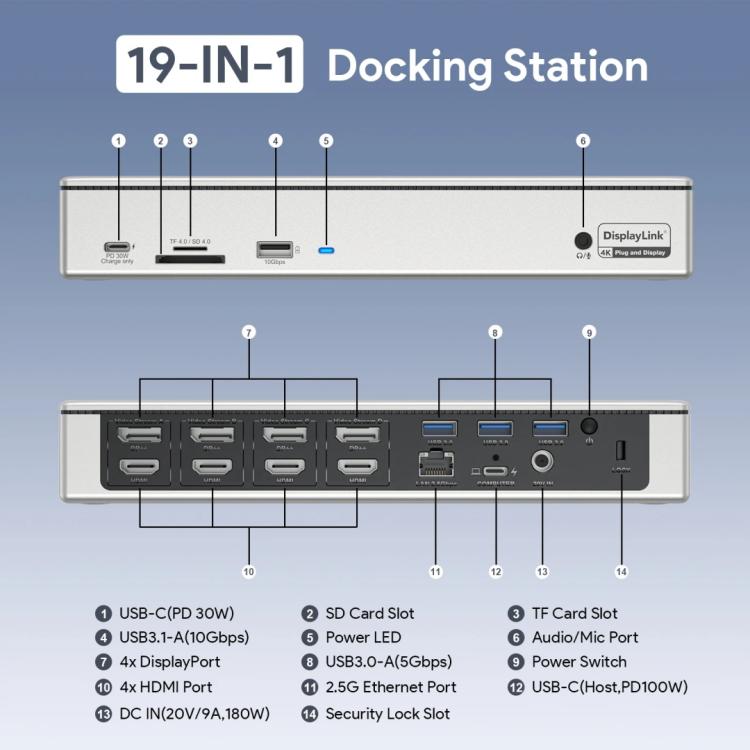

2. Ports(19-in-1): 1x DC IN (20V/9A, 180W), 1x USB-C (Host, PD100W), 1 x USB-C (PD 30W), 4x DisplayPort, 4x HDMI, 1x RJ45(2.5G), 1 x USB3.1-A(10Gbps), 3 x USB3.0-A(5Gbps), 1 x SD 4.0 Card Slot, 1x TF Card Slot, 1 x Audio/Mic Port

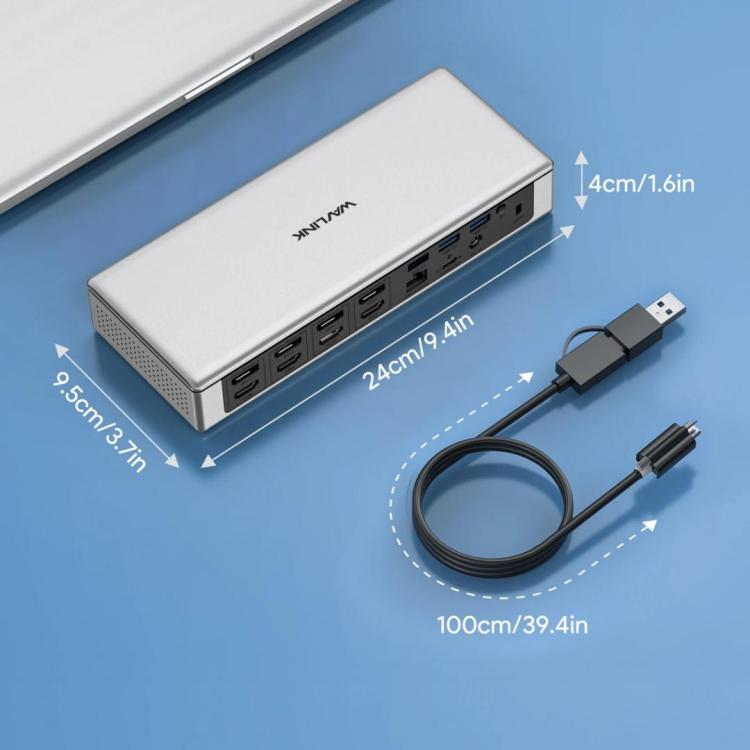

3. Unit Size: 24x9.5x4cm/9.4x3.7x1.6in ( L x W x H )
4. USB-C to C/A Cable Length: 100cm/39.4in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 120cm/47in
5. Unit Weight: 813g/28.7oz
6. Housing Material: ABS Plastic
7. Shell Color: Silver
8. LED Indicator Color: Blue
Compatible Systems
1. Windows 11/10/8.1/8/7/Vista
2. Mac OS 10.14-13.x and latest
3. Android 5.0 or later with USB OTG cable
4. Ubuntu 20.04, 22.04
5. Chrome OS and Harmony OS
Notes:

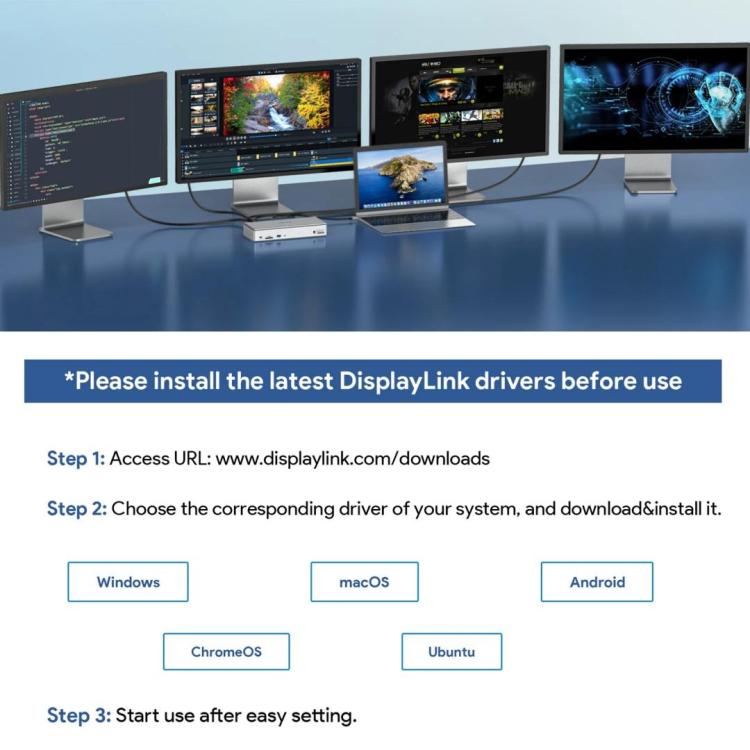

1. Please follow the instructions to download the latest DisplayLink driver from the official website before use.
2. Please keep it connected to the power supply when using this docking station (power adapter included).
3. Only one video port can be used in the same video stream, either a DP++ or a HDMI.
4. Please confirm that the Type-C port of your laptop supports charging(Power Delivery), or the docking station's host charging function may not work.
5. Suggested for use with web and productivity software; not recommended for gaming, video playback, 2D/3D graphic tools.
6. Does not support HDCP (copy-protected) content playback from Blu-ray/Netflix/Prime/iTunes/Hulu, etc.
7. Does not support iPad OS/Linux/Unix systems.
8.On Mac, Display Rotation and Clamshell Mode require Mac OS 12.0 or above to be supported.

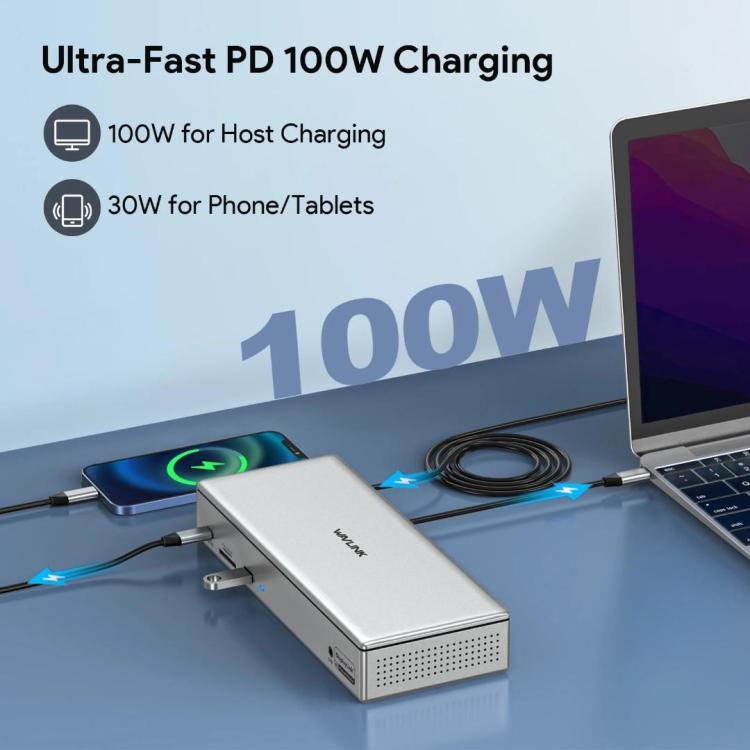

9.The USB-C(PD30W) charging port is for charging ONLY (No Data Transmission).
Specification:
| Package Weight |
| One Package Weight |
0.89kgs / 1.97lb |
| One Package Size |
27.9cm * 13.1cm * 11.2cm / 10.98inch * 5.16inch * 4.41inch |
| Carton Weight |
8.20kgs / 18.08lb |
| Carton Size |
58cm * 28cm * 24cm / 22.83inch * 11.02inch * 9.45inch |
| Loading Container |
20GP: 684 cartons * 8 pcs = 5472 pcs
40HQ: 1588 cartons * 8 pcs = 12704 pcs
|
|
