Description
1. Quad Display Support: Utilizes the latest DisplayLink DL7400 chipset to bypass for Apple triple display limit, supporting up to four 4K 60Hz displays or dual 8K 60Hz displays.

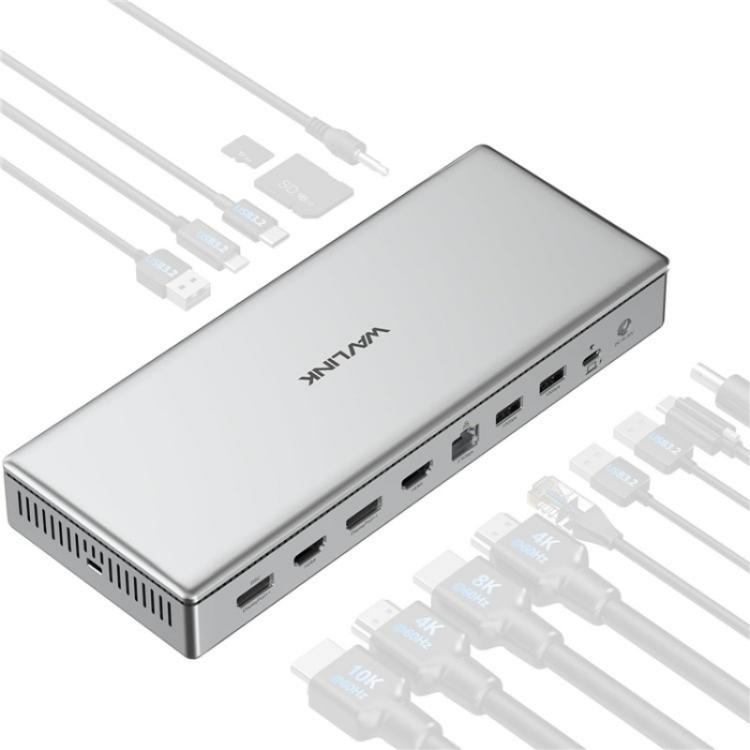

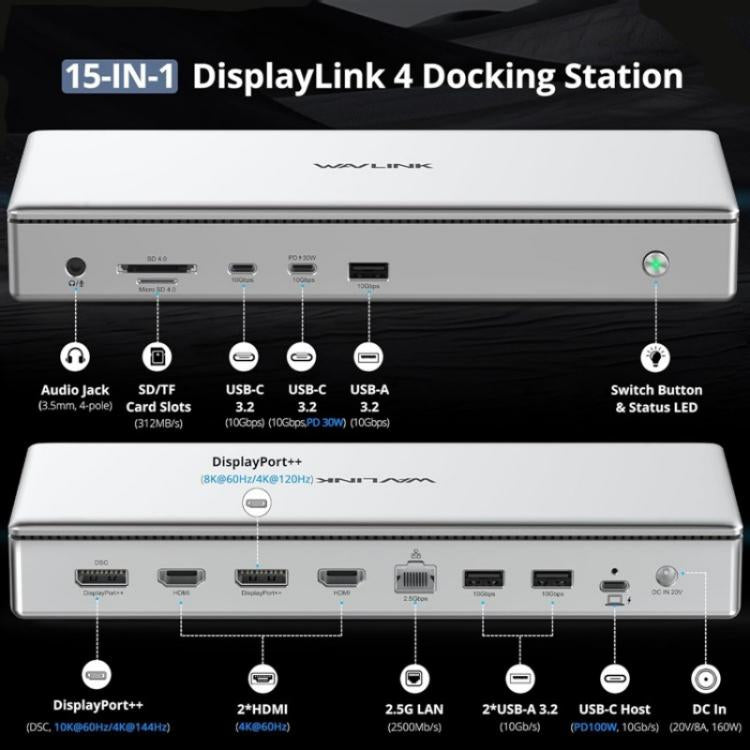

2. 15-in-1 Connectivity: Features 2 DisplayPort++ (1.4), 2 HD (2.0) ports, 2.5G Ethernet, multiple USB-C and USB-A ports, SD card slot, and audio jack for comprehensive connectivity.

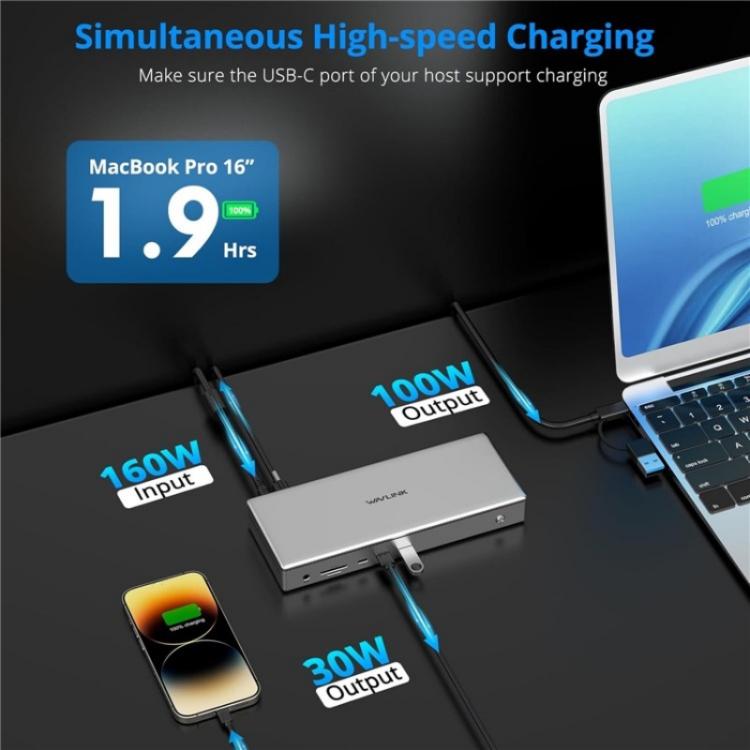

3. High-Power Delivery: Equipped with a 160W power adapter, providing up to 100W charging for laptops and 30W fast charging for mobile devices through USB-C.

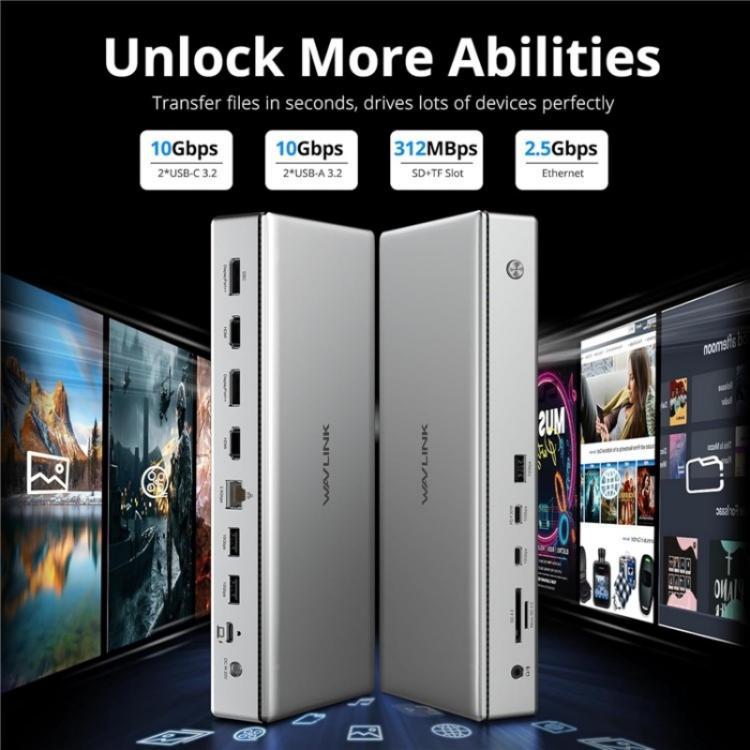

4. Ultra-Fast Data Transfer: 5 USB 3.2 ports offer 10Gbps data transfer speeds, while the SD card slot supports up to 312 MBps for quick file access.
5. Enhanced Networking: 2.5G Ethernet port doubles the performance of traditional Gigabit Ethernet for faster file transfers and smoother video conferencing.
6. Wide Compatibility: Compatible with Windows 10/11 and for macOS 11+, supporting USB4, Thunderbolt 4/3, and USB-C devices, ideal for gamers, creators, and professionals.
Specifications:
1.Model: WL-UG75PD1-DH2
2.Material: ABS
3.Display Support: Up to 10K (10240x2880) 60Hz
4.Ethernet: 2.5 Gbps
5.USB Ports: 3 x USB-A 3.2 (10Gbps), 2 x USB-C 3.2 (10Gbps, one with PD30W)
6.SD Card Slot: SD4.0 (up to 312MBps)
7.Audio: 3.5mm 4-pole audio and microphone jack
8.Power Input: DC input (20V/8A, 160W)
9.Power Delivery: Up to 100W for host device
Note:
1.This dock is self-powered and needs to be connected to a power adapter to work properly.
2.This dock is suitable for Thunderbolt 4/5 laptops, with a maximum data transfer rate of 10Gbps, which cannot reach 40Gbps.
3.Please confirm whether your laptops type-c port supports charging, otherwise the host charging function of the docking station may not work properly.

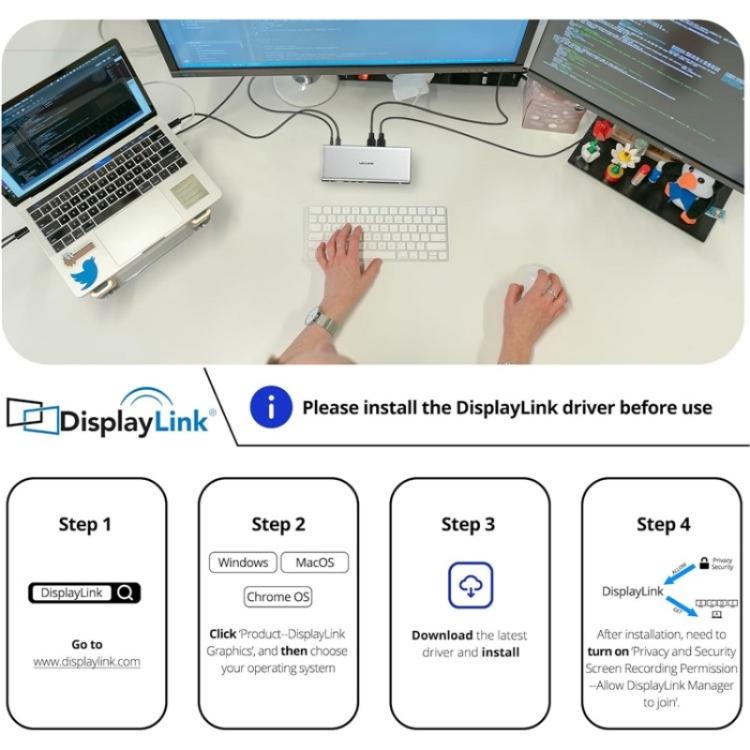

4.This product requires a driver and does not support plug-and-play. Please follow the instructions to download the latest DisplayLink driver from the official website before use.
5.Does not support HDCP and will not play encrypted or copy-protected content from Netflix, Hulu, iTunes, Amazon Prime, etc.
Specification:
| Package Weight |
| One Package Weight |
1.60kgs / 3.54lb |
| One Package Size |
26cm * 15cm * 9cm / 10.24inch * 5.91inch * 3.54inch |
| Carton Weight |
17.00kgs / 37.48lb |
| Carton Size |
37cm * 29cm * 29cm / 14.57inch * 11.42inch * 11.42inch |
| Loading Container |
20GP: 856 cartons * 10 pcs = 8560 pcs
40HQ: 1989 cartons * 10 pcs = 19890 pcs
|
|
