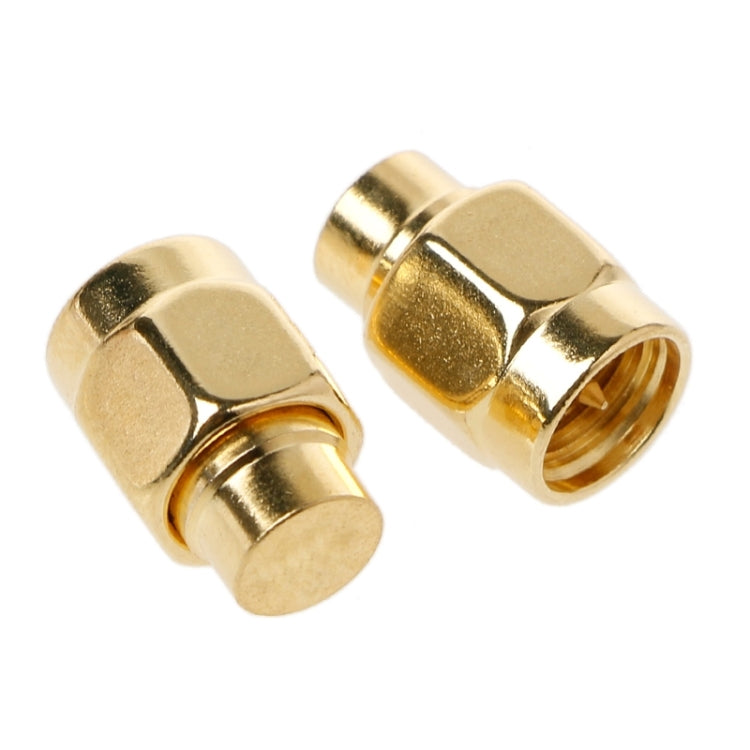

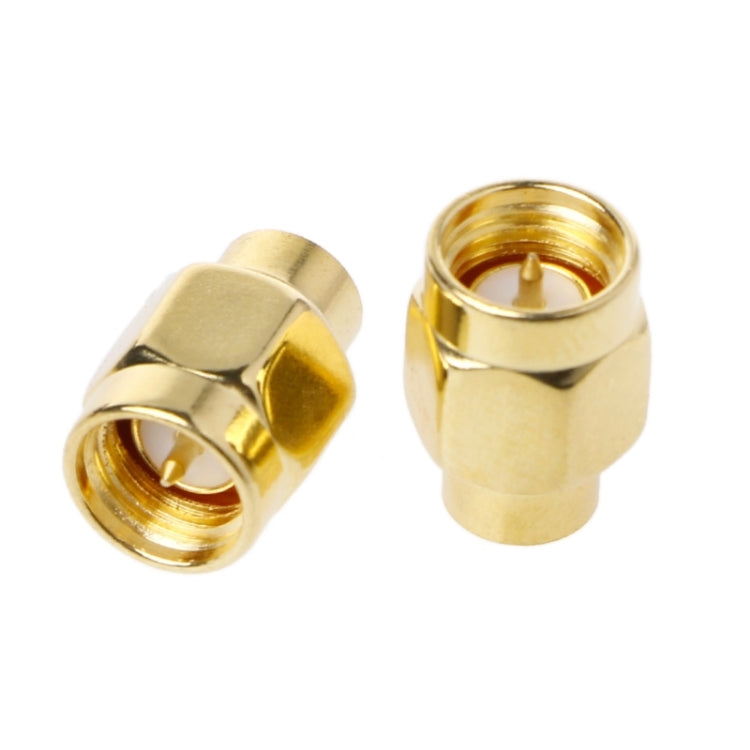

Name: 2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load
Brand: Mira Sales
SKU: PC5636
Price: 0.99 GBP
Availability: InStock

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

2 PCS 50 Ohm SMA Male Termination Load RF Coaxial Connector, SMA Male Load

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius) 2. Vibration: Vibration... Read more

Expedited Delivery Available! Expedited Delivery Available!

£ 2.99 GBP £ 0.99 GBP

Guaranteed secure & safe checkout.

Shipped today? Order within: Nov 21, 2025 14:00:00 +0000

Expedited Delivery Available!

No hassle returns, 30 days return

Description

1. Temperature range: -65 ~ + 165 degrees Celsius (PE Cable -40 ~ + 85 degrees Celsius)
2. Vibration: Vibration MIL-STD-202, Method 213
3. Characteristic Impedance: Impedance 50ohm
4. Frequency range: Frequency Range DC ~ 12.4GHz (half just cable 0 ~ 18GHz)
5. Operating voltage: Working Voltage 335V max (RMS)
6. Pressure: Withstand Voltage 1000V rms (sea level minimum)
7. Contact resistance: Contact resistance
8. Between the inner conductors: Center Contact <= 3M ohm
9. Outside conductor: Outer Contact <= 2M ohm
10. Insulation resistance: Insulation resistance >= 5000M ohm
11. Insertion loss: <=0.15 dB / 6 GHz
12. Voltage Standing Wave Ratio:
- Straight: Straight Soft Cable <=1.10 + 0.002f
Semi-Rigid Cable <=1.05 + 0.001f
- Curved: Right angle soft cable <=1.20 + 0.003f
semi-rigid cable <=1.10 + 0.001f
13. Durability (Dating (mating): >= 500 times (cycles)

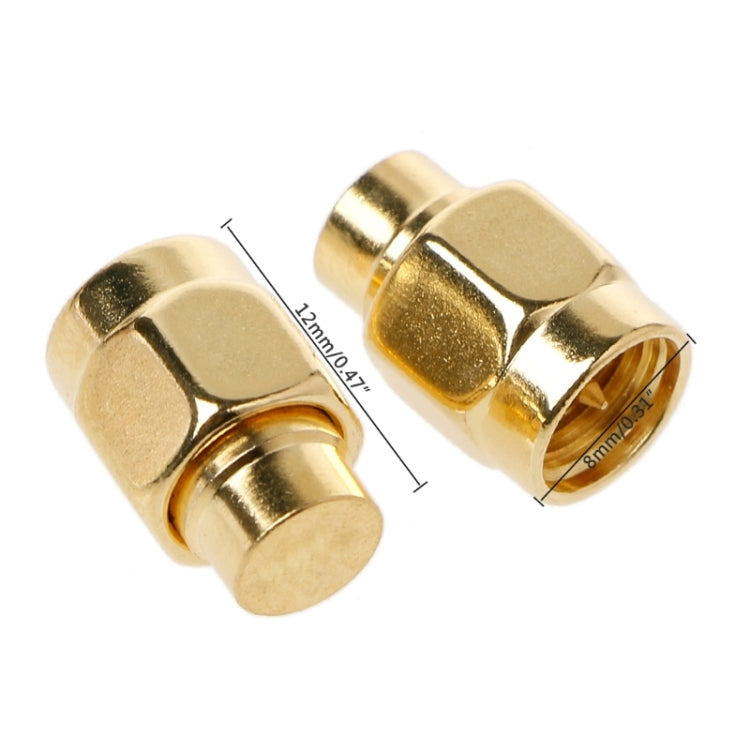

14. Size:12x8mm/0.47x0.31

Specification:

Package Weight

One Package Weight

0.02kgs / 0.05lb

One Package Size

2.5cm * 1cm * 1cm / 0.98inch * 0.39inch * 0.39inch

Qty per Carton

600

Carton Weight

8.40kgs / 18.52lb

Carton Size

15cm * 12cm * 11cm / 5.91inch * 4.72inch * 4.33inch

Loading Container

20GP: 13468 cartons * 600 pcs = 8080800 pcs
40HQ: 31265 cartons * 600 pcs = 18759000 pcs

Specifications

Usage: Indoor & outdoor
