Description

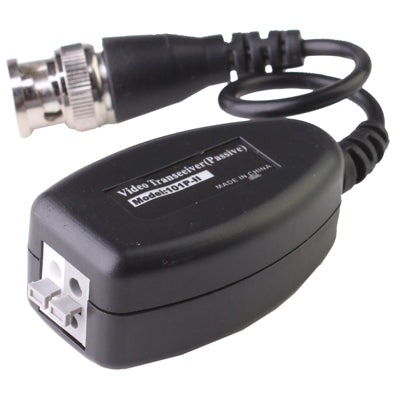

1) The model UTP101P-II Video Transceiver is passive(non-amplified) device that allow the transmission of real-time monochrome or color video via Unshielded Twisted-Pair (UTP) cable.

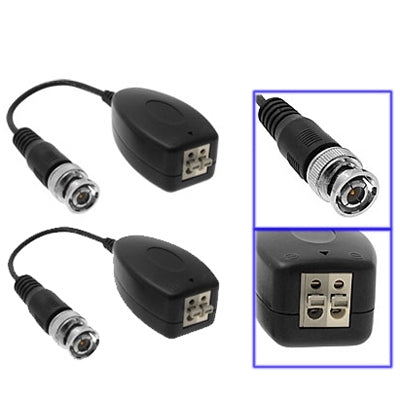

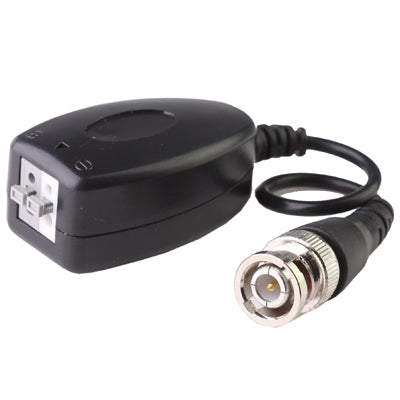

2) With mini-coax pigtail lead the Passive Video Transceiver can be directly equipped to camera in a small space needed by the camera, as well as provides one channel video outputs with automatic terminal block available for easy connection.

3) UTP101P-II can work with one pair of units on each end of a pair of wires,can also work with other passive transceivers (e.g.UTP101P, UTP104P) and active receivers (e.g. UTP101AR, UTP104AR) products with transmission distance up to 300m and 600m rospectively.

Specification & Features:

1) Tiny dimension with 16cm mini-coax pig tail lead and connected to camera directly.

2) Transmission distance of up to 300m working with passive transceivers (e.g. UTP101P, UTP104P)

3) Transmission distance of up to 600m working with active products.

4) Transmitting video signals via UTP cat5/5e cable

5) Real-time transmission

6) No power required

7) CCTV Video Transceiver supports all band base signal including PAL, NTSC, SECAM

Exceptional interference rejection

8) Built-in transient protection

9) Overall length: 20cm (each)

Specifications

• Usage: Indoor & outdoor
