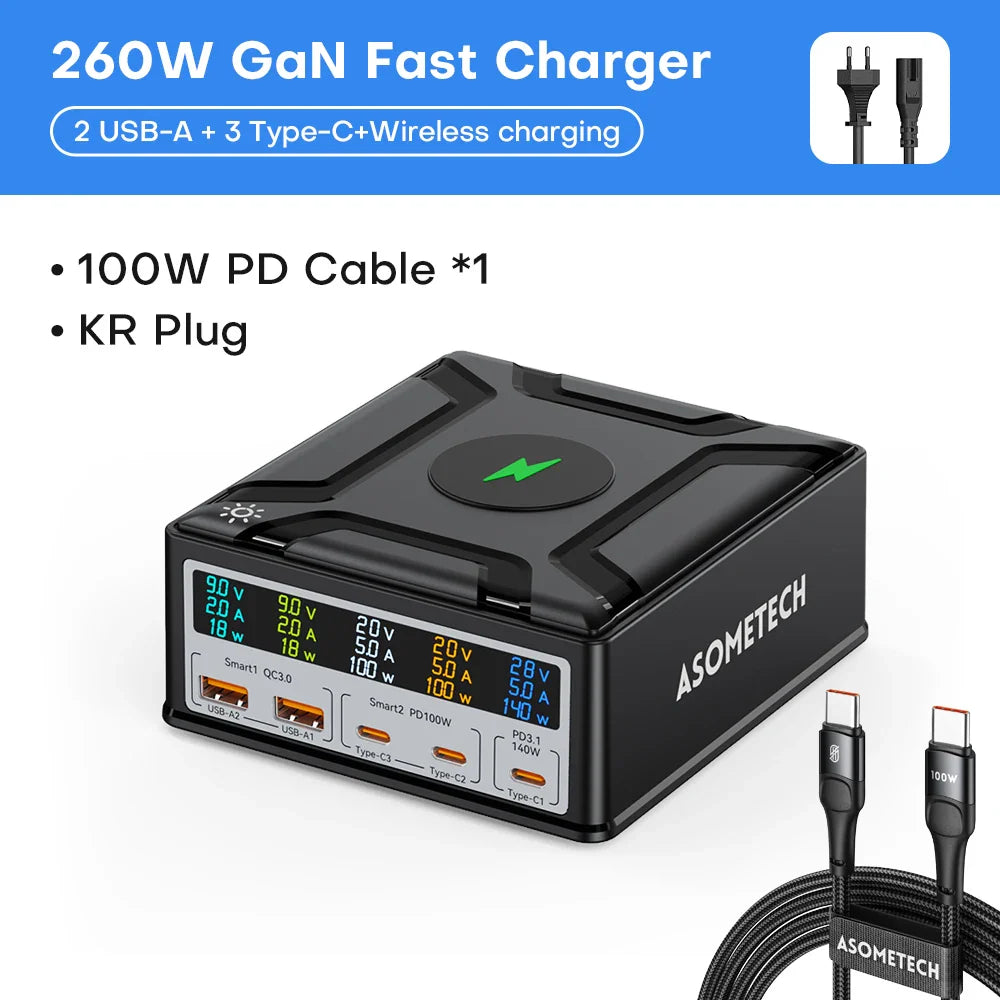

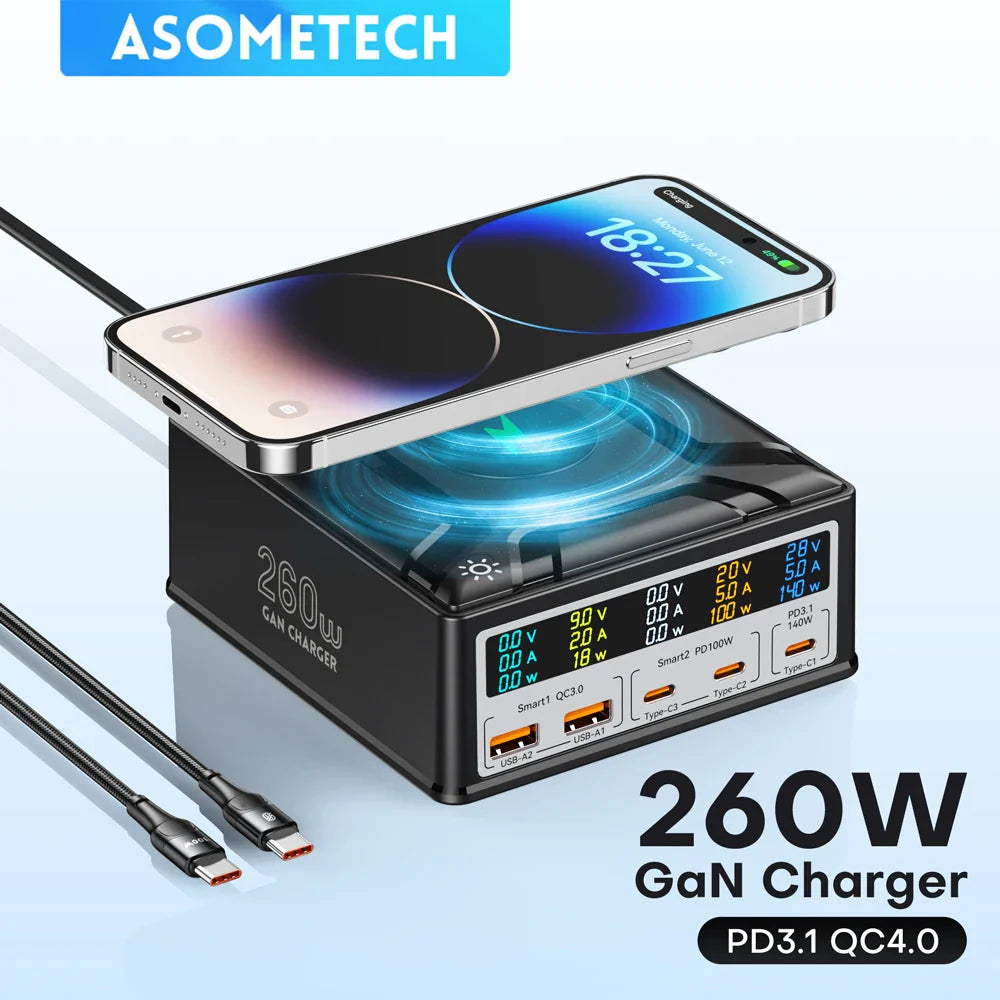

ASOMETECH 260W PD3.1 GaN Charger - Powerful Charging Station

Brand : ASOMETECH

Model No : 868D

Input : AC 100-240V/50-60Hz

Output : 260W Total

USB Ports: 3 X USB-C + 2 X USB A

Wireless Charging output port : 1

PD3.1 Type-C1 : 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A;  PPS :3.3V-28V/5A 140W(Max)

Type-C2 / Type-C3 : PD3.0 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A;  PPS :3.3-21V/5A 100W(Max);

USB-A1/USB-A2: QC3.0  5V/3A, 9V/2A, 12V/1.5A, 4.5V/5A, 5V/4.5A  22.5W(Max);

Wireless output : 15W/10W/7.5W/5W；

Note: C1 port supports PD3.1 fast charging protocol, if your device does not carry the PD3.1 fast charging protocol, it will not be able to use to PD3.1 fast charging, C1 port can only reach the maximum output power of 140W under PD3.1 protocol

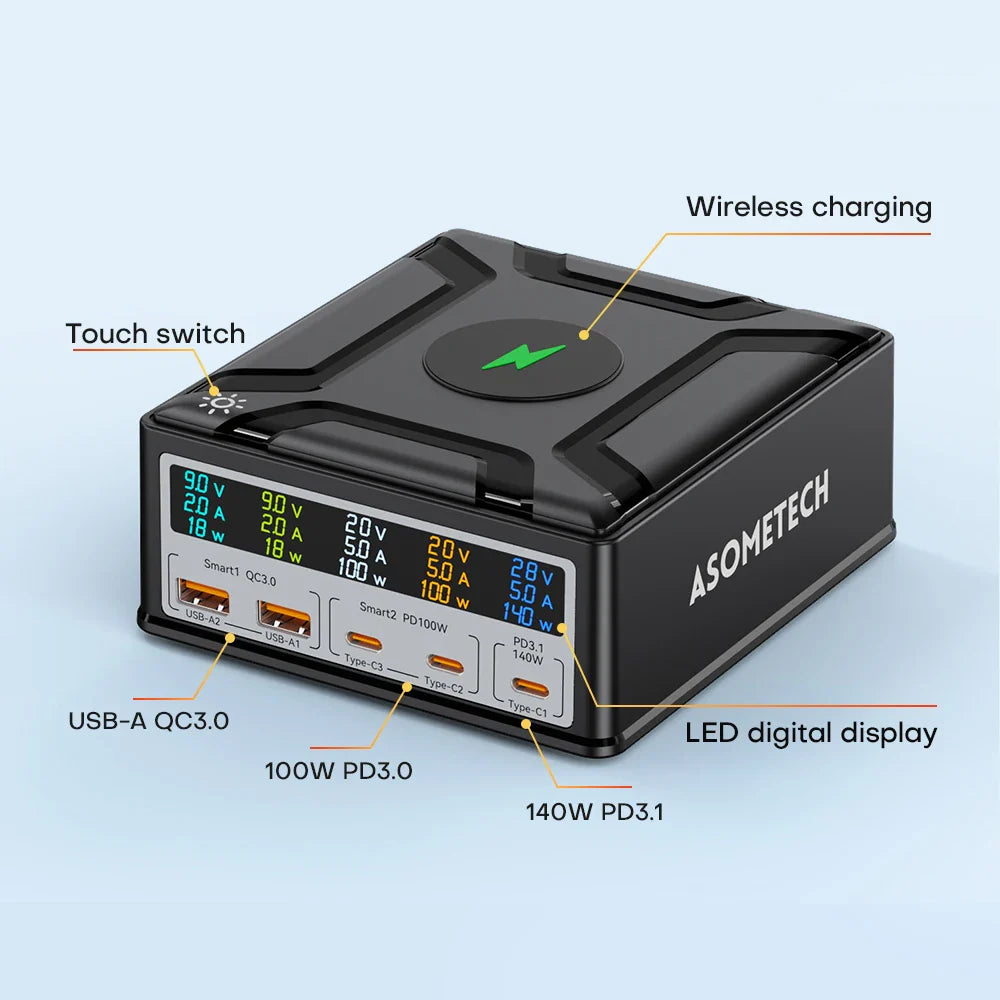

Hight power output + multi-USB port + wireless charging + colorful digital display + display touch witch + total current switch

C1+C2:140W+100W (Max)

C1+C3:140W+100W(Max)

C2+C3 : 45W+45W(Max)

A1+A2 : 12W+12W(Max)

C1+C2+C3:140W+45W+45W(Max)

For other multi-port output parameters, please see our detailed pictures below；

Features :

⚡ Type C1 Support PD3.1 140W Max Fast Charging For MacBook Pro 16 M1 Max and other Laptop；Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and More；

⚡Type C2/C3 Support PD 100W Max Fast Charging For Macbook series and other Laptop；Support Super Fast Charging For Samsung S23 Ultra S22 S21 S20 series / iPhone / iPad series / Huawei Series and More；

⚡ USB-A1 / USB-A2 has QC3.0 FCP SCP Fast charging protocol for multiple brands of devices；

⚡ If only C1+C2+C3 ports are used, then 3 laptops are supported for simultaneous fast charging (C1-140W; C2-45W;C3-45W)；

⚡ Supports simultaneous fast charging of multiple devices, saving device charging time；

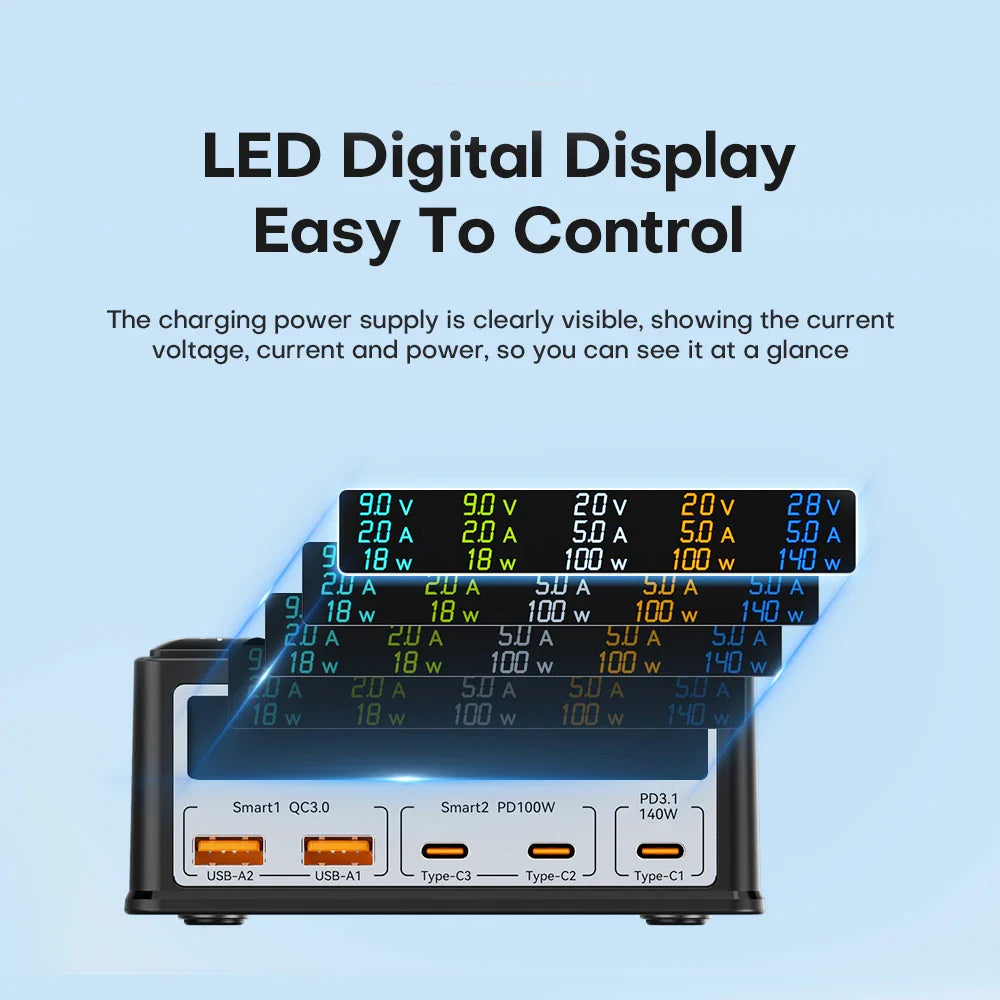

⚡ The display can simultaneously show the output parameters of 5 USB ports；

⚡ This charging cradle has a display touch switch to turn off/on the digital display；

⚡ This charging stand comes with a master switch to turn off the input current for safe use；

⚡7 Safety Protections:quipped with temperature protection, over-Current protection, over-voltage protection, overcharge protection, overload protection, overheat protection and short circuit protection.

FAQ

Q1:Why is the C-port output of the charging cradle labeled 65W, but the power of my device when charging is less than 65W?

A1:This is due to the built-in intelligent chip of the charger. The charger will detect and identify the charging device accessed and automatically match the appropriate fast charging speed according to the maximum input limit of the charging device and the battery capacity, so that the device can get both fast charging and avoid causing overcharging;

If you have any questions, please contact our customer service, we will give you a professional answer within 24 hours, thank you.

ASOMETECH Team
