Description

1. Upgrade your desktop PC to the advanced WiFi 7 standard (IEEE 802.11be) powered by the premium Qualcomm QCA WCN7851 hardware platform. Delivering combined wireless speeds up to 9334 Mbps (688 Mbps on 2.4GHz, 2882 Mbps on 5.8GHz, and 5764 Mbps on the third 6GHz band). (Note: A WiFi 7 compatible router is required to experience full WiFi 7 speeds and advanced features. This card is backward compatible with WiFi 6E, WiFi 6, and WiFi 5 routers under standard configurations.)
2. Access the 320MHz ultra-wide channel bandwidth on the 6GHz band, doubling the data transmission highway compared to previous generations. Built-in Target Wake Time (TWT) and high-order modulation optimize data transmission efficiency to reduce network congestion during high-bandwidth online tasks. (Accessing 320MHz channel bandwidth requires a compatible WiFi 7 router that supports the 320MHz band.)
3. Equipped with a full-coverage red aluminum alloy heatsink designed to dissipate heat from the core components. This protective cooling vest maintains optimal operating temperatures, preventing thermal throttling and ensuring reliable data transfer during intensive gaming sessions or heavy data transfers.
4. Integrated with the Bluetooth 5.4 standard to expand wireless coverage, improve data synchronization, and boost anti-interference capabilities. Connect multiple wireless accessories simultaneously—including game controllers, Bluetooth headphones, keyboards, mice, and speakers—with stable connections and optimized power consumption.

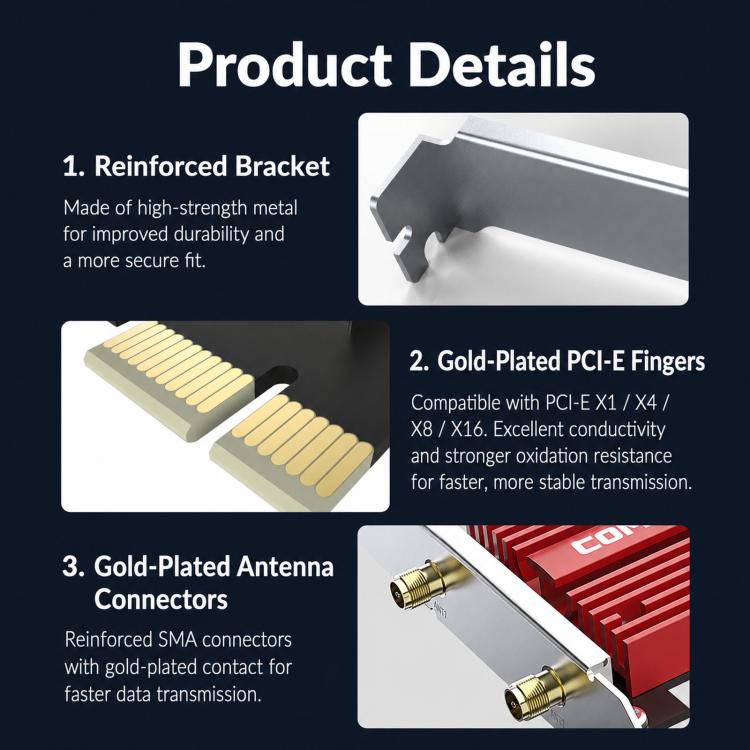

5. Features a standard PCIe interface designed for quick desktop hardware upgrades, fully compatible with PCIe X1, X4, X8, and X16 slots. Supported by the WPA3 encryption protocol, this card provides reliable network protection, safeguarding your data transfer from unauthorized access.

Specifications:
1. Hardware Specs: QCA WCN7851 chipset
2. Wireless Standards: Supports IEEE 802.11a/b/g/n/ac/ax/be
3. Bluetooth Version: Bluetooth 5.4

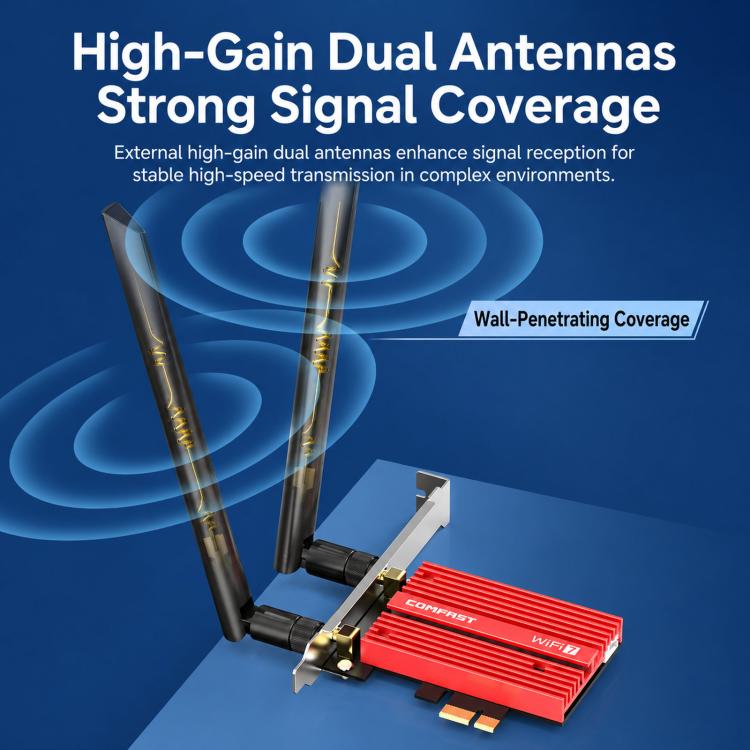

4. Antenna Gain: 2 x 5dBi
5. Compatibility: Desktop computers
6. Interface Support: PCIe x16 / x4 / x8 / x1 slots
7. Wireless Speed:
--2.4GHz: 688Mbps
--5.8GHz: 2882Mbps
--6GHz: 5764Mbps
8. OS Support: Windows 11 (64-bit), Linux
9. Encryption: WPA-PSK/WPA2-PSK, WPA/WPA2/WPA3

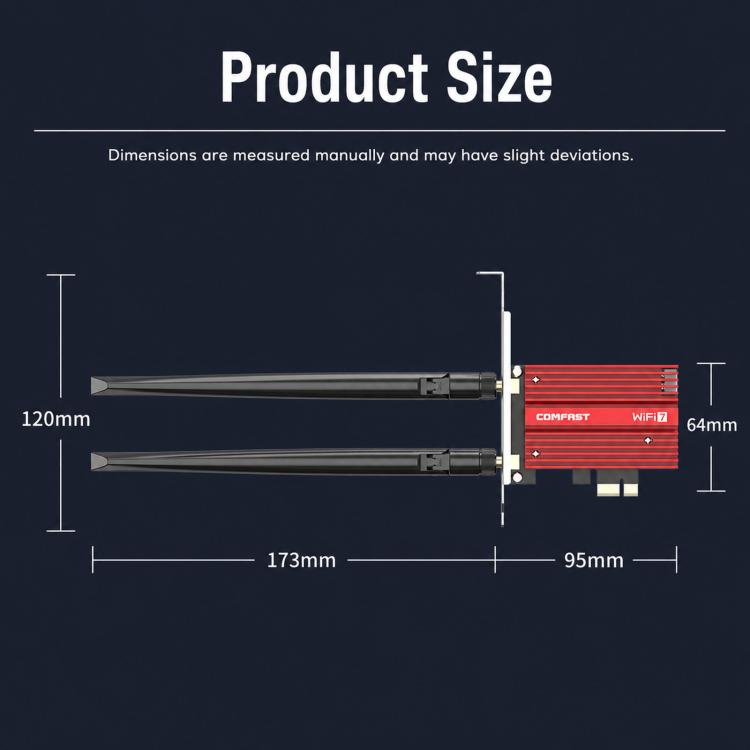

10. Product Dimensions: 95mm x 64mm; Antenna Length: 173mm
11. Operating Environment:
--Operating Temperature: 0 - 40 degrees Celsius
--Storage Temperature: -40 - 70 degrees Celsius
--Operating Humidity: 10% - 90% RH (non-condensing)
--Storage Humidity: 5% - 90% RH (non-condensing)
