Description

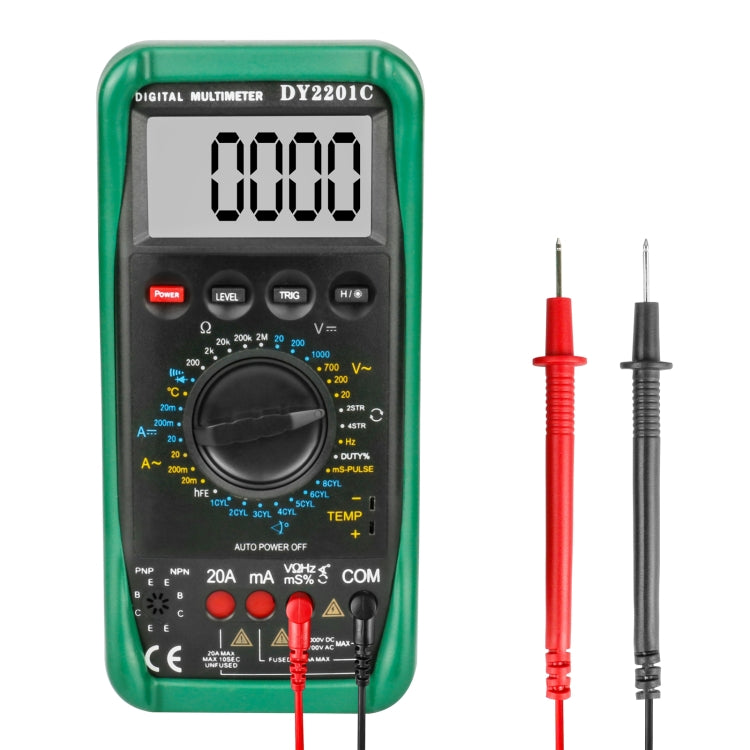

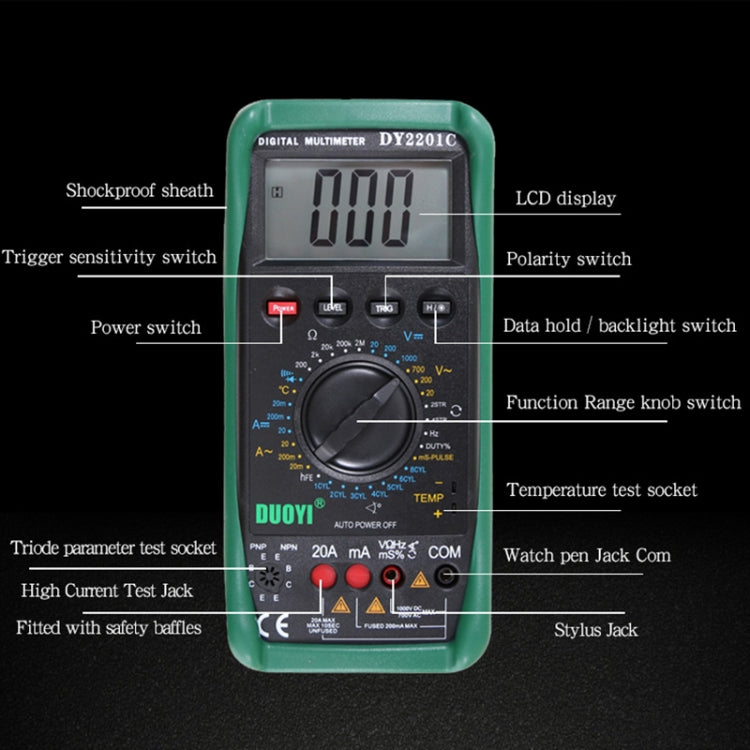

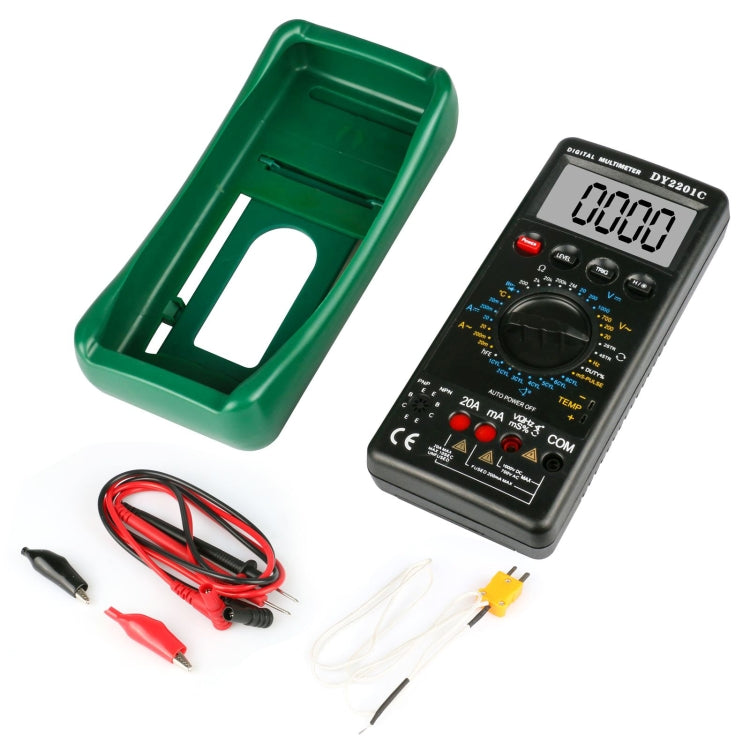

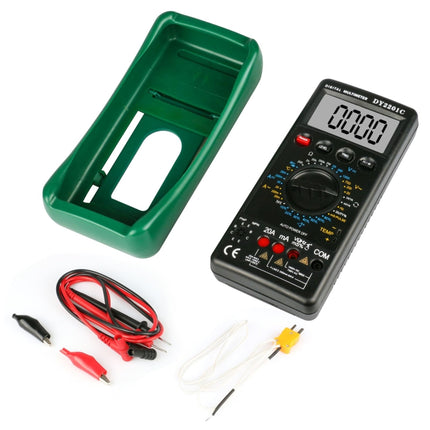

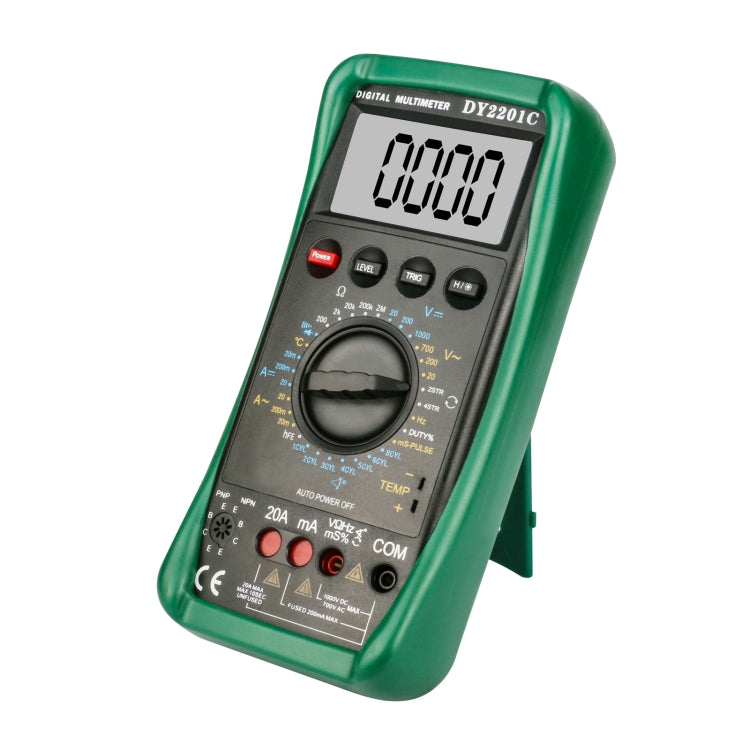

Features1. Multi-functional meter, the sophisticated design, convenient operation, accurate readings, complete functions, the use of new protective sleeve and large screen liquid crystal display, Jack in the input end is connected with the PTC thermistor element to the instrument core components.
2. AC/DC voltage current Resistance test; diode PN junction voltage measurement;Circuit switching,transistor test
3. Large LCD display, size in 70x48mm,high contrast, 28mm character height,clear and pleasing. LCD with white back light, convenient in dark environment operation.
4. Maximum display 1999 for 31/2 digit,AC and DC voltage, current, resistance, 19999 for speed, frequency, pulse duration, dwell
5. The product is suitable for professional auto detection and repair, engineering design, testing, production test.
Specification1. DC voltage 20-1000V accuracy: +/-0.5%
2. DC current 20mA-20A accuracy: +/-1.5%
3. AC voltage 20-700V accuracy: +/-1.0%
4. AC current 20mA-20A accuracy: +/-2.0%
5. Measuring of motor dwell angle: 0.1-360 degree Celsius (1/2/3/4/5/6/8 cylinder)
6. Measuring of motor speed: 300RPM-19999RPM (2 Stroke), 600RPM-19999RPM (4 Stroke)
7. Impulse time measurement: 0.1mS - 1000 mS
8. Measuring temperature: -40-1000 degree Celsius
9. Frequency measurement: 2-20kHz
10. Maximum display: 1999 (31/2 digit,AC and DC voltage, current, resistance)
19999 (Speed, frequency, pulse duration, Dwell)
11. LCD display size: 70x48mm, 28mm character height
12. Power supply: a 9V battery (NEDA1604, 6F22 or equivalent), battery not include
13. Working temperature: 0-40 degree Celsius Relative humidity less than 80%
14. Storage temperature: -10-50 degree Celsius Relative humidity less than 85%
Specification:
| Package Weight |
| One Package Weight |
0.66kgs / 1.46lb |
| One Package Size |
22cm * 15cm * 7cm / 8.66inch * 5.91inch * 2.76inch |
| Carton Weight |
14.60kgs / 32.19lb |
| Carton Size |
42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch |
| Loading Container |
20GP: 522 cartons * 20 pcs = 10440 pcs
40HQ: 1212 cartons * 20 pcs = 24240 pcs
|
|
