Description
Features:

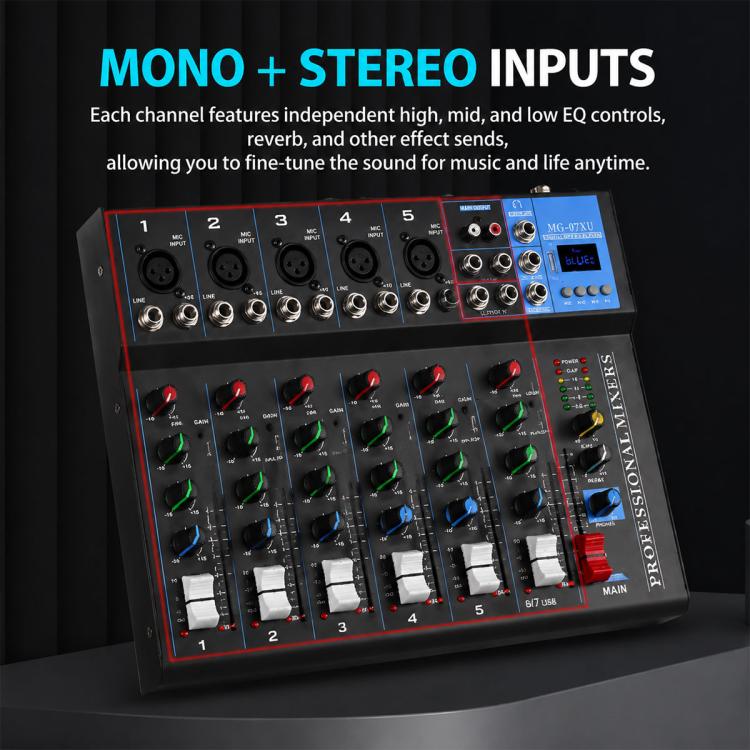

1. 6-channel signal inputs plus 1 stereo signal input
2. 6 sets of main channel outputs (XLR balanced and 6.35mm), plus 1 set of auxiliary outputs and return jacks
3. Independent recording output and monitor port
4. Low-noise, high-precision microphone preamplifier delivering clear, clean sound quality

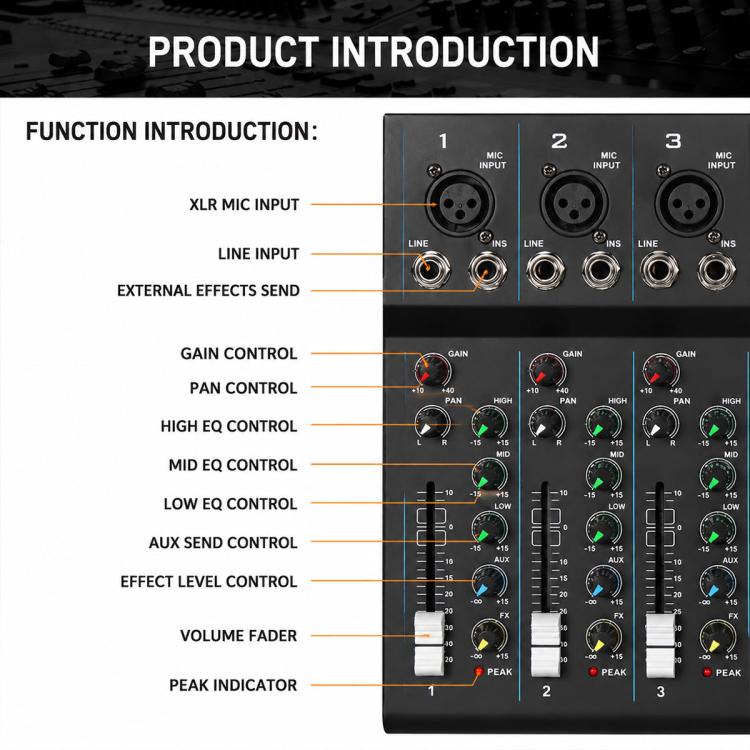

5. Balanced XLR microphone inputs, balanced TRS line inputs, and 3-band channel EQ

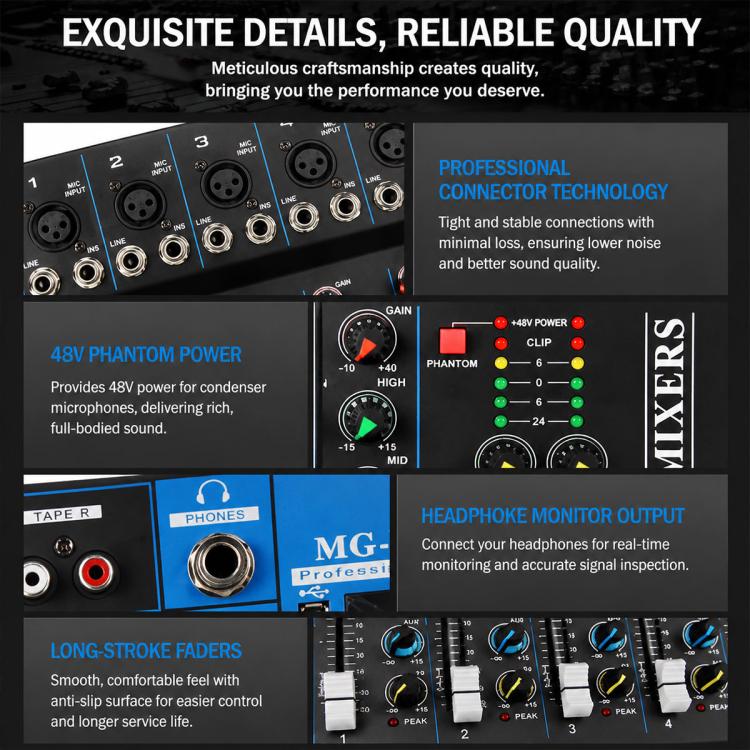

6. 48V phantom power providing polarization voltage for inputs and easy connection of condenser microphones
7. Headphone monitoring jack
8. Quasi-logarithmic dual 10-segment LED level display

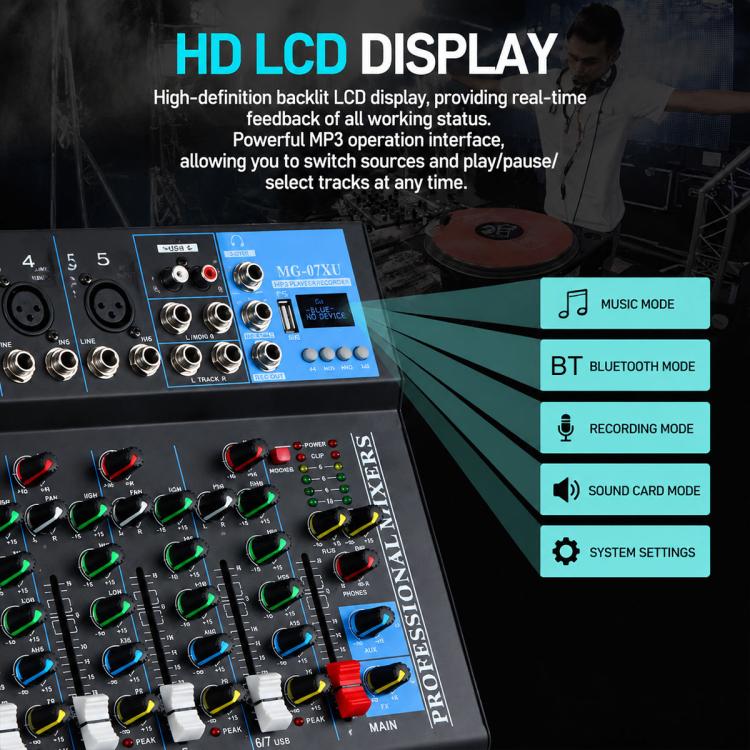

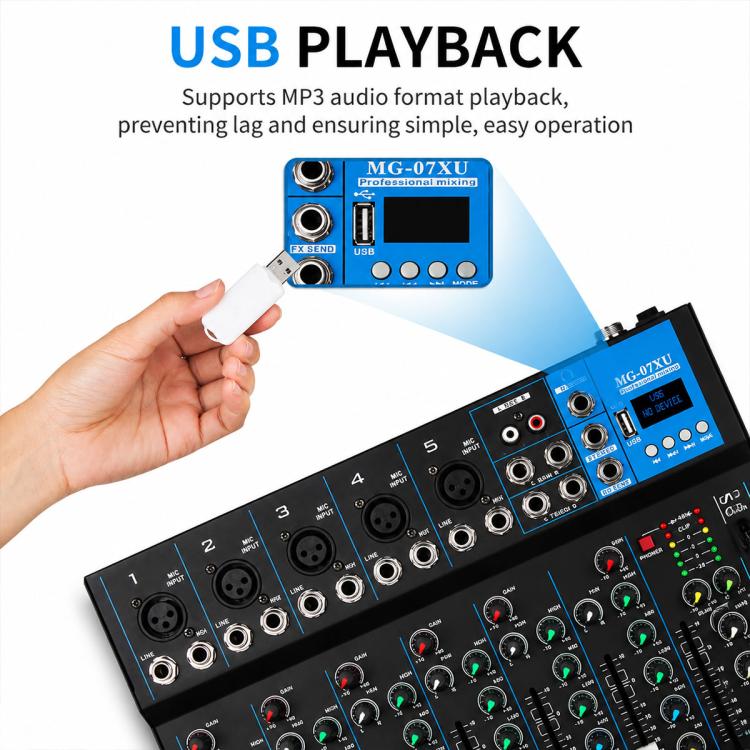

9. MP3 playback module (HD LCD screen, USB interface, and display functions)
10. External switching power supply (AC 100–240V) offering flexible use and low power consumption
11. 16 built-in digital effects selectable via push-buttons

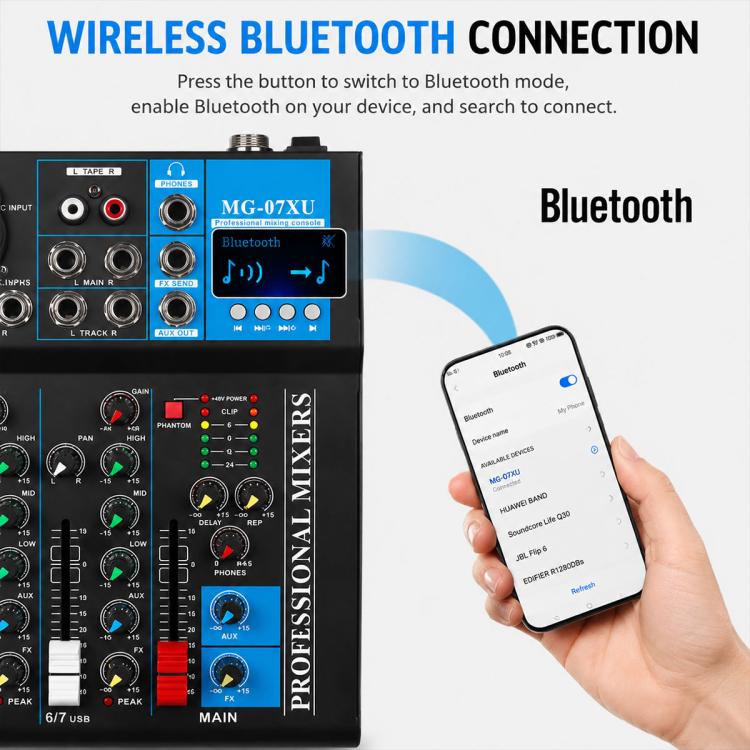

12. Built-in Bluetooth module offering full compatibility with digital devices such as smartphones and tablets; connects directly via wireless Bluetooth without the need for audio cables.
Specifications:
1. Power Input: AC 100V-240V, 0.2A
2. Output Level: +26dBu max
3. Common-Mode Rejection Ratio (CMRR): more than 75dB
4. Line Input Level: +24dBu
5. Frequency Response: 20Hz-20kHz
6. Microphone Input Level: +24dBu
7. Total Harmonic Distortion (THD): less than 0.01%
8. Noise: -80dB
9. Bluetooth Version: 5.0
Specification:
| Package Weight |
| One Package Weight |
2.35kgs / 5.19lb |
| One Package Size |
38cm * 30cm * 8cm / 14.96inch * 11.81inch * 3.15inch |
| Carton Weight |
24.70kgs / 54.45lb |
| Carton Size |
42cm * 39cm * 63cm / 16.54inch * 15.35inch * 24.8inch |
| Loading Container |
20GP: 258 cartons * 10 pcs = 2580 pcs 40HQ: 599 cartons * 10 pcs = 5990 pcs
|
|
