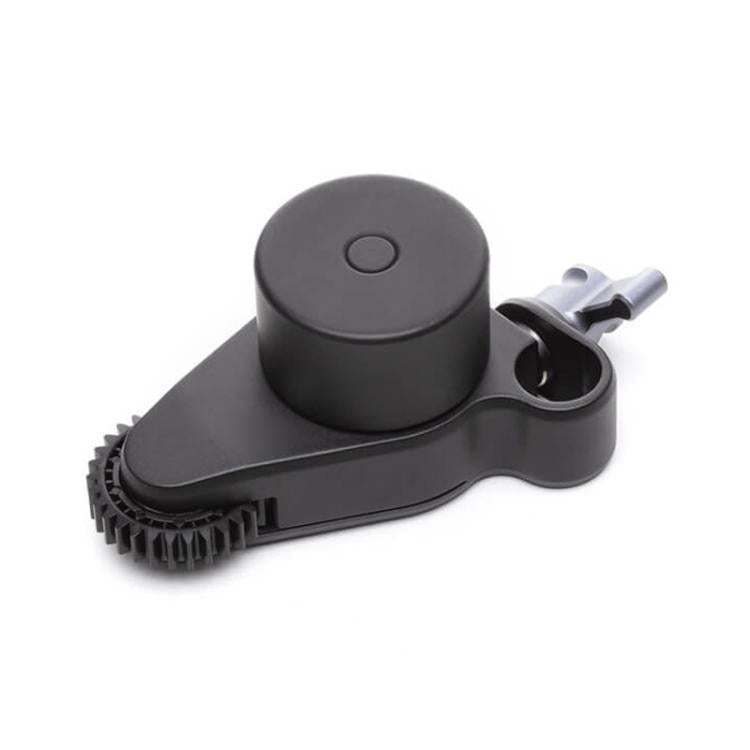

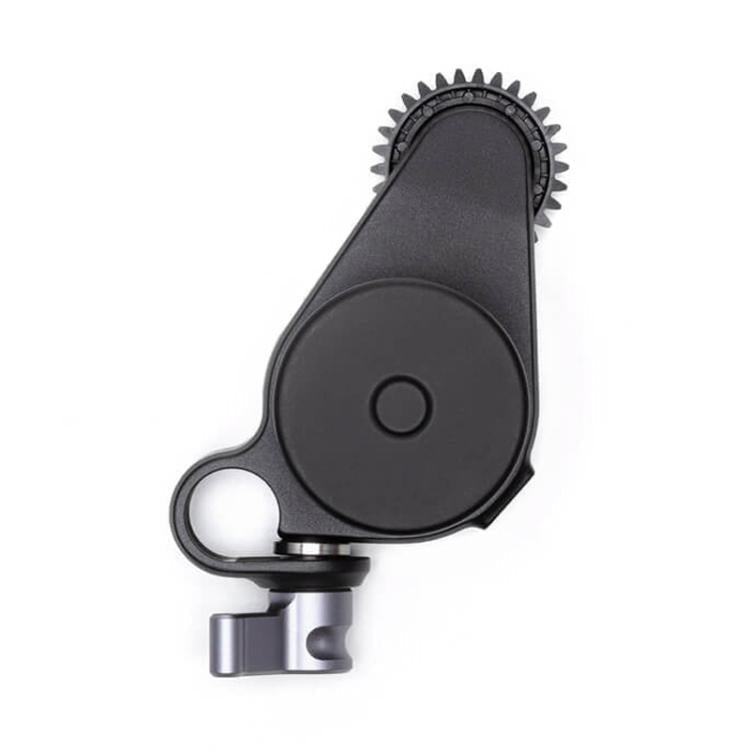

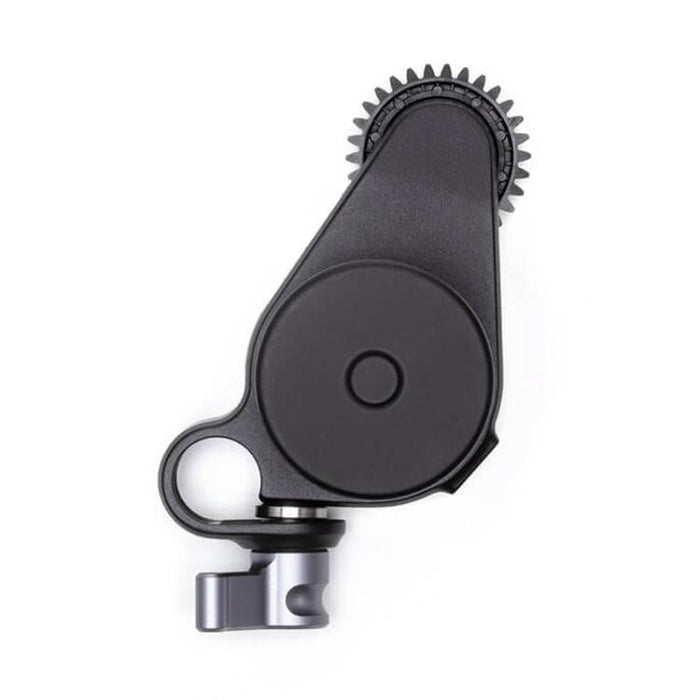

Description
1. The torque is increased by 3 times, and the noise is reduced by 50%.
2. The mounting components adopt a quick release structure, making the focus more efficient and reliable
3.MAX torque: 1.0 N m (8V)
4.MAX speed: 180 rpm (8V)
5. Quiescent current: 50mA (5V)
6. Stall current: 2.8A (8V)
7. Working voltage: 6-17.6V
8. Noise: 45 decibels
9. Number of gear teeth: 30
10. Modulus: 0.8
11. Working environment temperature: minus 20-45 degrees Celsius
12. Mounting conduit: 12 mm
13. Dimensions: 8 x 5 x 3.6 cm
14. Weight: 108 grams
15. Compatible products: For DJI RS 3 Pro, RS3, RS2, RSC 2

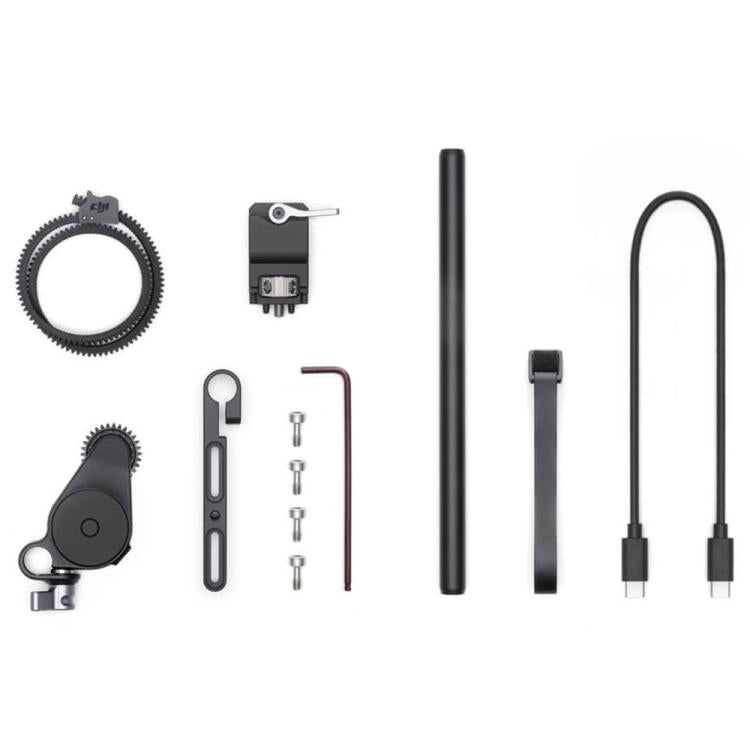

Packing list:
1. Follow focus motor (2022) x 1
2. Installation component set x 1
3. Follow focus rack x 1
4. Camera control cable (USB-C, 30cm) x 1
5. M4 screws (10 mm) x 4
6. Wrench (3 mm) x 1
7. Lens fixing strap x 1
Specification:
| General |
| Compatible with |
DJI: RS 3 Pro, RS 3, RSC 2, RS 2
|
|
| Package Weight |
| One Package Weight |
0.26kgs / 0.57lb |
| One Package Size |
14cm * 10cm * 5cm / 5.51inch * 3.94inch * 1.97inch |
| Carton Weight |
46.28kgs / 102.03lb |
| Carton Size |
60cm * 60cm * 64.3cm / 23.62inch * 23.62inch * 25.31inch |
| Loading Container |
20GP: 115 cartons * 146 pcs = 16790 pcs
40HQ: 267 cartons * 146 pcs = 38982 pcs
|
|
