Description

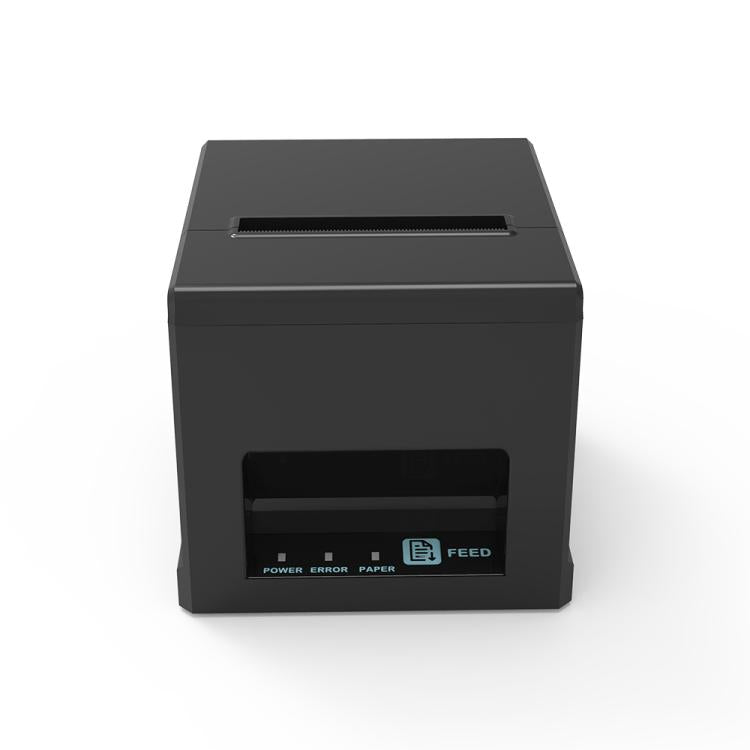

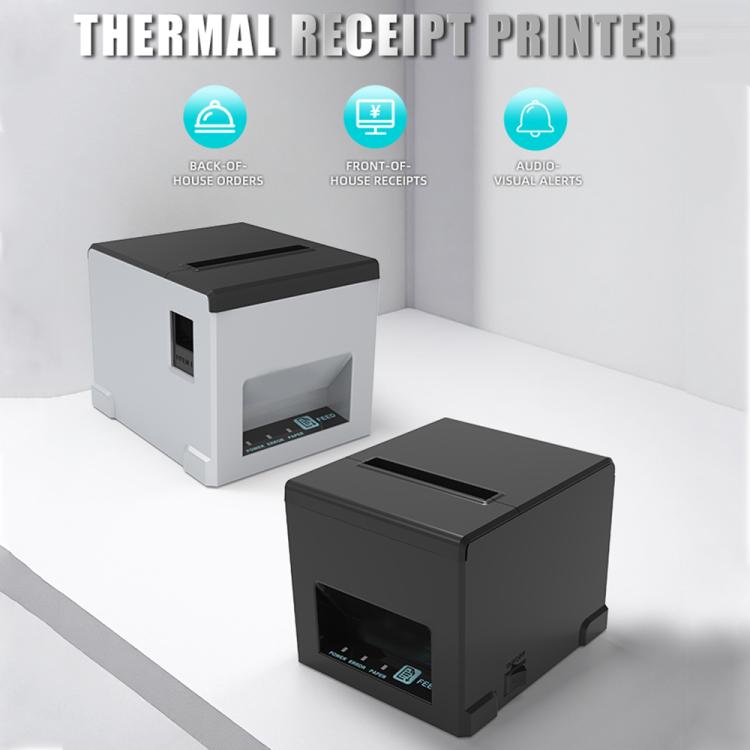

1. 80mm thermal receipt printer works without ribbon or ink cartridge. It prints front counter receipts and kitchen orders, with audio-visual alert for new orders to avoid missing tickets.

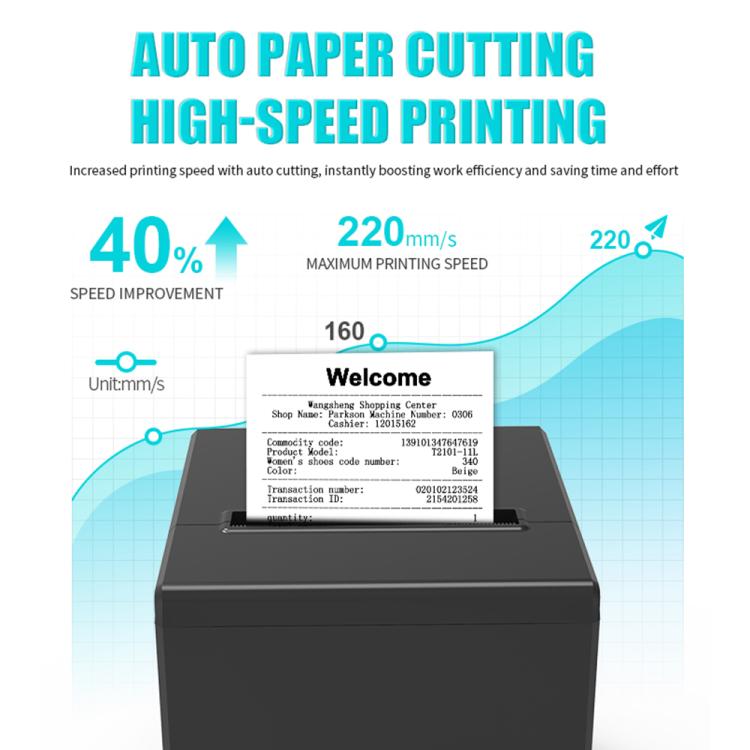

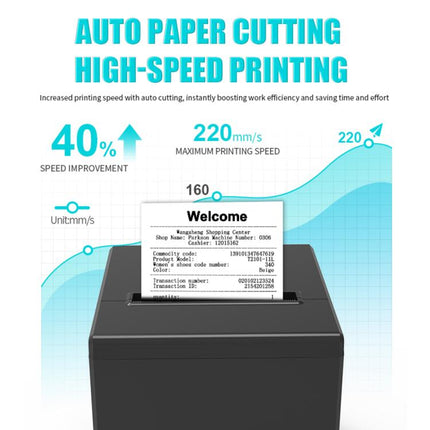

2. Max printing speed up to 220mm/s with 40% efficiency improvement. Built-in auto cutter automatically cuts paper after printing for easy tearing.

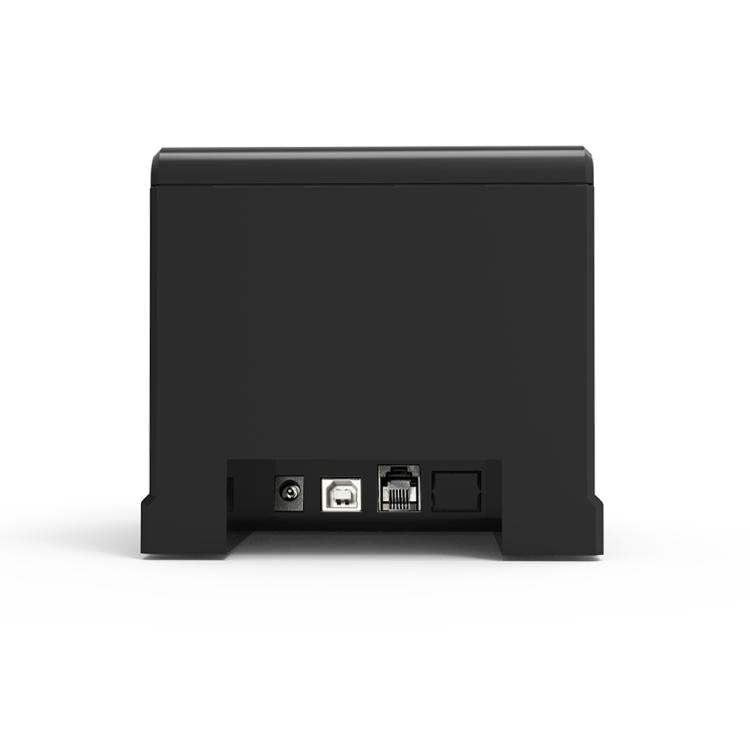

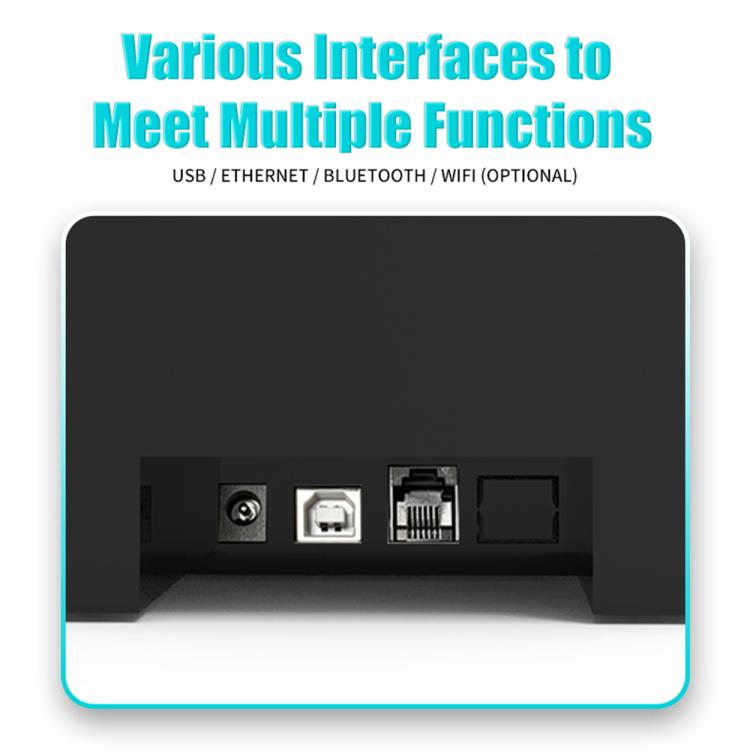

3. Standard USB / Ethernet port / Bluetooth. It supports ESC/POS command set and is compatible with most catering & POS management software.

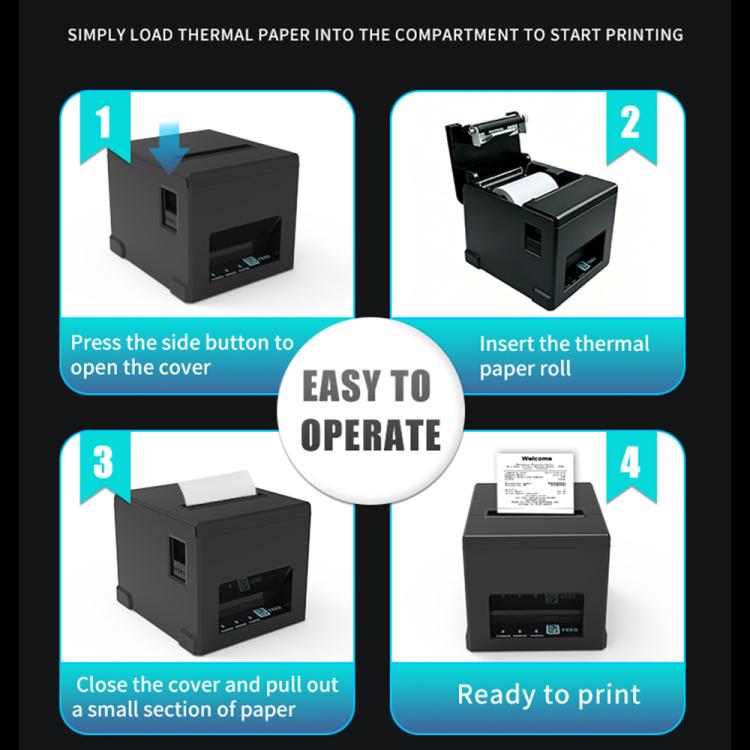

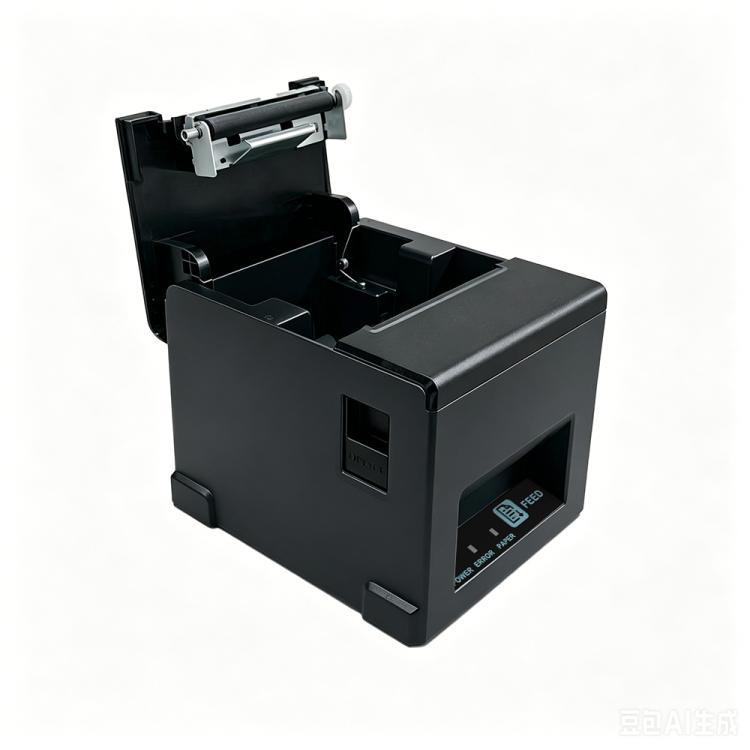

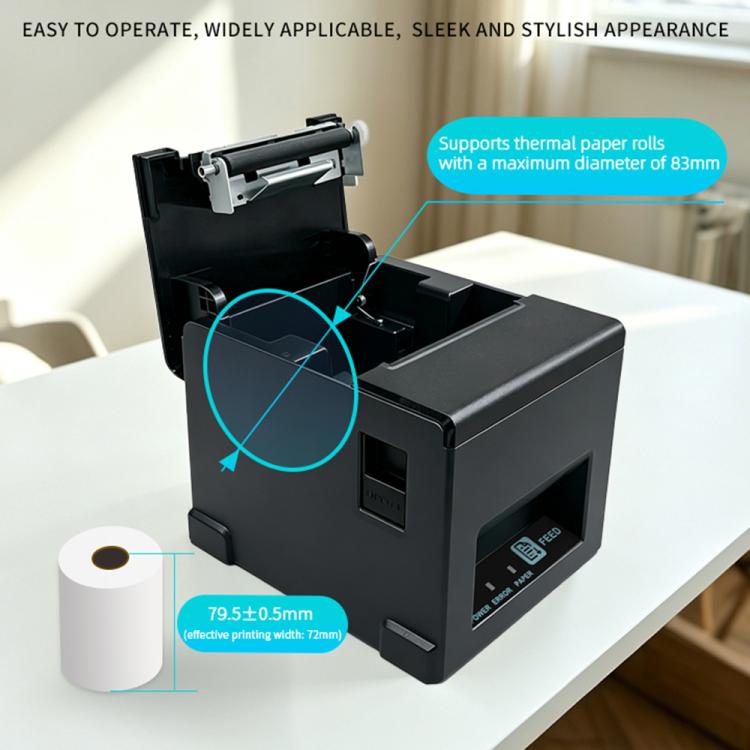

4. The paper roll compartment fits rolls with max 83mm outer diameter, effective print width 72mm. Quick-open lid enables super easy paper loading and replacement.

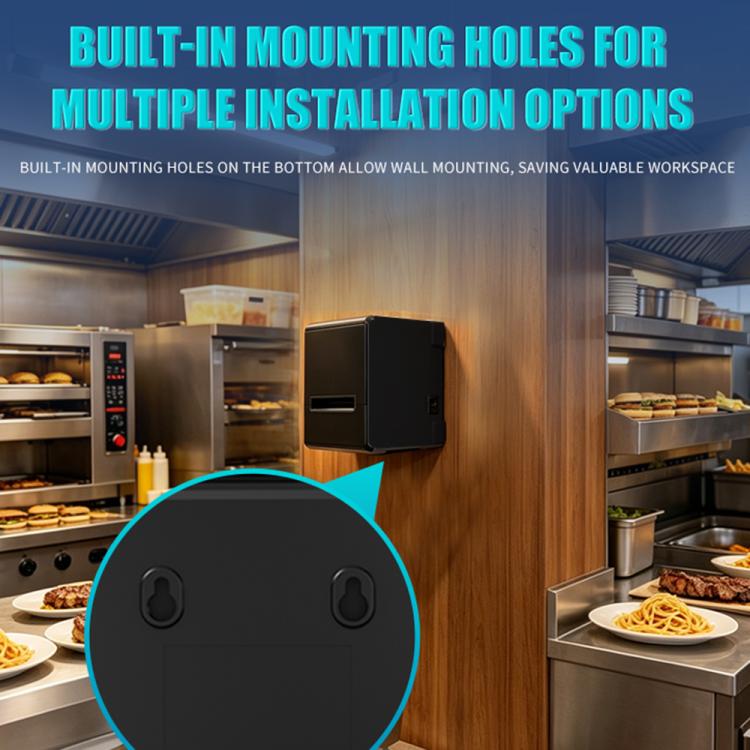

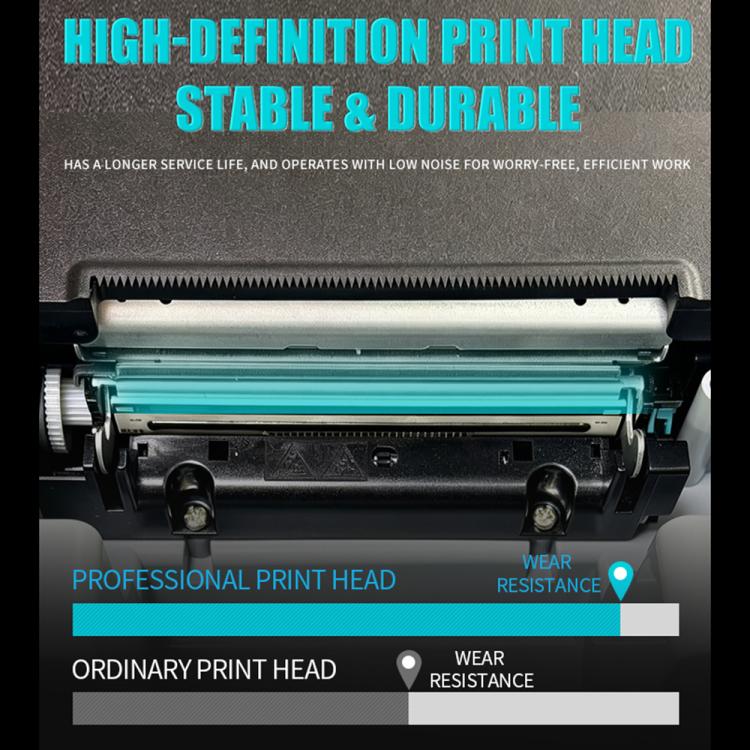

5. Durable high-definition print head supports 100km printing lifespan, wear-resistant and low-noise with clear output. Pre-drilled wall mount holes allow both desktop and wall installation to save counter space.
6. Compatible with Windows, Linux, Mac and OPOS systems. Compact size with 0.72kg net weight, widely applied in restaurant kitchen, supermarket checkout, takeaway orders, government, medical and financial receipt printing.

Basic Printing Parameters
1. Print Method: Direct Line Thermal Printing
2. Supported Interfaces: USB / LAN (Ethernet) / Bluetooth
3. Print Command: Compatible with ESC/POS instruction set
4. Max Printing Speed: 220mm/s
5. Print Resolution: 203DPI (8dot/mm)
6. Thermal Print Head Service Life: 100km printing distance
7. Auto Paper Cutter: Support full cut / partial cut (factory default is partial cut)
8. Cutter Durability: Up to 1.5 million cutting times
9. Logo Function: Support custom logo download and printing
10. Default Line Spacing: 3.75mm, adjustable via printer commands
11. Extended Character Sets: PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858, IranII, Latin, Arabic, Thai, PT151 and other multilingual character libraries
12. Character Size
ANK Font A: 1.5x3.0mm (12x24 dots)
ANK Font B: 1.1x2.1mm (9x17 dots)
Simplified & Traditional Chinese Font: 3.0x3.0mm (24x24 dots)
13. Supported Code:
1D Barcodes: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
2D Barcodes: QR Code, PDF417
14. Input Buffer: 80K bytes
15. NV Flash Storage: 320K bytes
16. Compatible Drivers & Systems: Windows / Linux / Mac OS / OPOS / Android

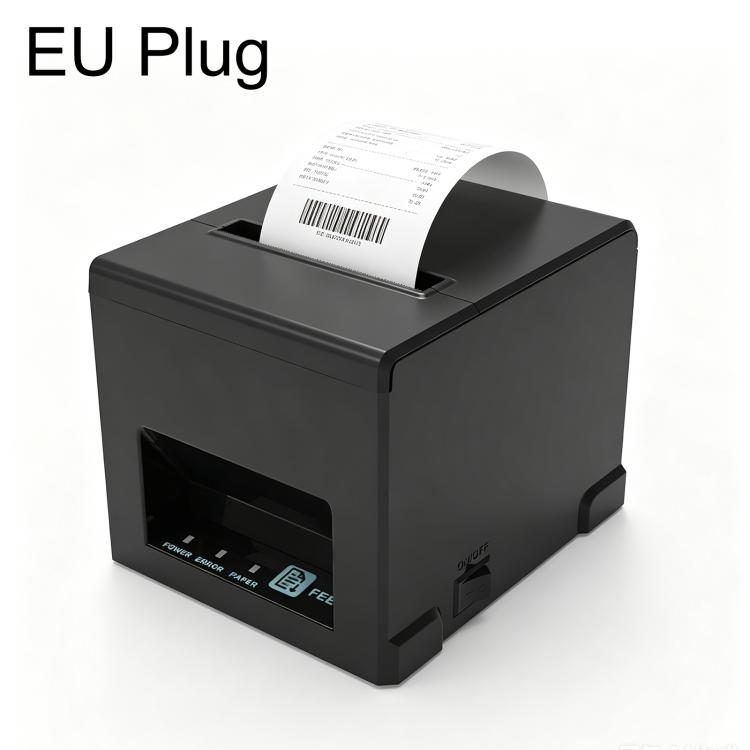

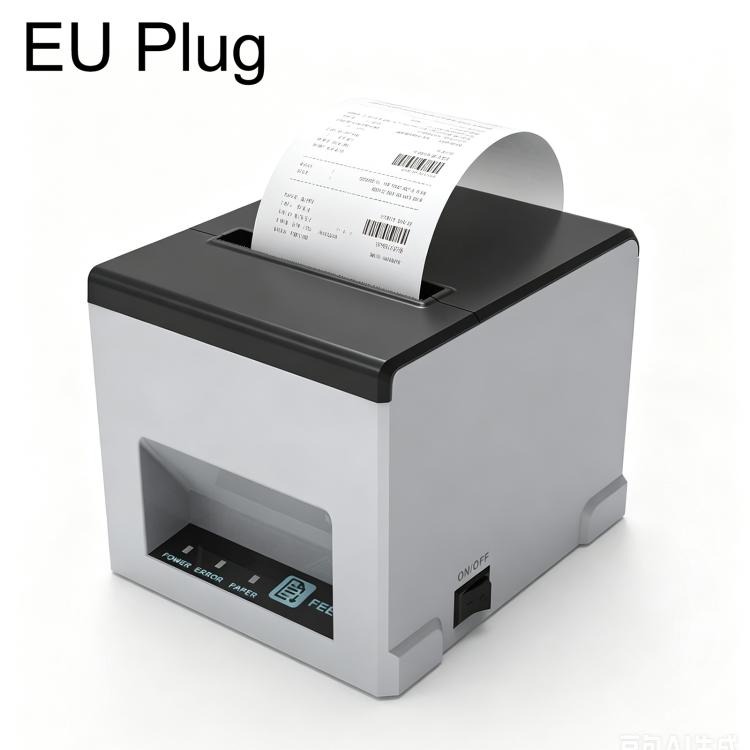

17. Power Adapter: Input AC 100-240V 50-60Hz, Output DC 24V/1.25A
18. Cash Drawer Port: DC 24V/1A
19. Printer Dimension: 16x13.5x12.2cm
20. Net Weight: 0.72 kg

Paper Specifications
1. Applicable Paper: Thermal Roll Paper
2. Paper Width: 79.5mm +/- 0.5mm
3. Max outer diameter of paper roll: 83mm
4. Effective Printing Width: 72mm
5. Paper Thickness: 0.06-0.08mm

Specifications

• Product Assurance: Quality Standards

Pros and cons

• Sustainably produced
• Ideal for everyday use
