Description
Specifications:
1. Model: Q8
2. Net weight: 422g

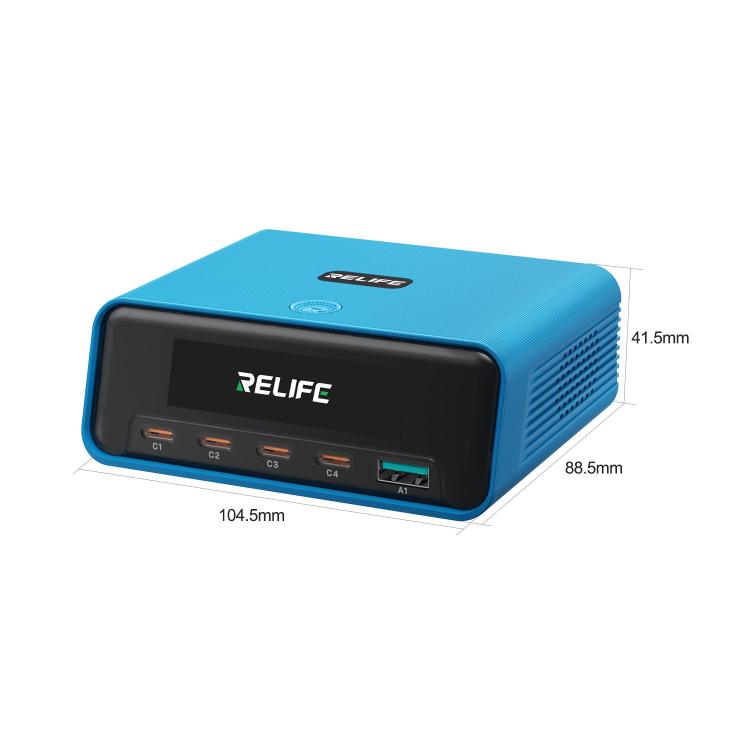

3. Product size: 104.5 x 88.5 x 41.5mm
4. Rated input voltage range: AC 100V-240V
5. Rated input frequency range: 50/60HZ
6. Maximum input current: 2.5A
7. Output:
C1/C2 output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A--Maximum140W, supports AVS/UFCS/PPS/PD3.1/PD3.0/QC5.0/QC4.0+QC4.0/QC3.0/QC2.0/AFC/FCP/SCP, Apple 5V/2.4A, BC1.2, PE+2.0/PE+1.1 fast charging protocols
C3/C4 output: (5-20V), 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A--Maximum 100W, Supports PPS/PD3.0/QC4.0+/QC4.0/QC3.0/QC2.0/AFC/FCP/SCP, Apple 5V/2.4A, BC1.2, PE+2.0/PE+1.1 fast charging protocols
A1 output: (5-20V), 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A--Maximum 60W, Supports PPS/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1, BC1.2, DCP, Apple 5V/2.4A fast charging protocols
C1 independent output: 140W
C2 independent output: 140W
C3 independent output: 100W
C4 independent output: 100W
A1 independent output: 60W
Maximum output of C1+C2: 100W+65W
Maximum output of C1+C2+C3: 65W+65W+30W
Maximum output of C1+C2+C3+C4: 65W+45W+30W+20W
Maximum output of C1+C2+C3+C4+A1: 65W+45W+30W+12W+12W
C4+A1: Shared 5V output when operatir simultaneously (5V/2.4A+5V/2.4A)

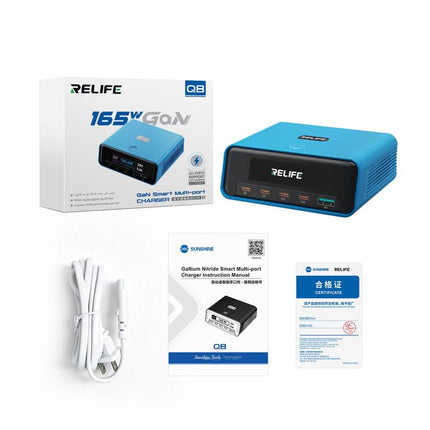

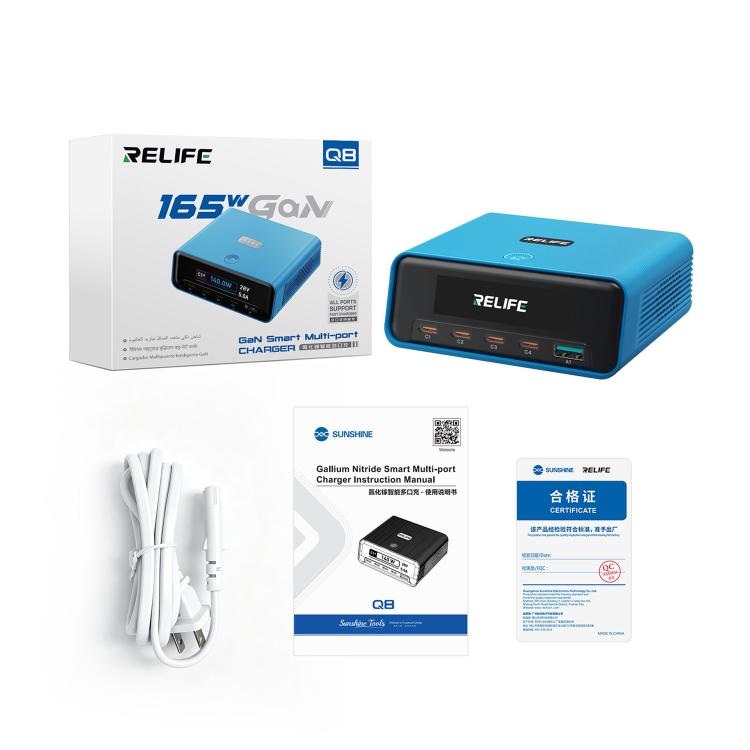

8. Package includes:
1 x Charger
1 x Power Cable
Features:

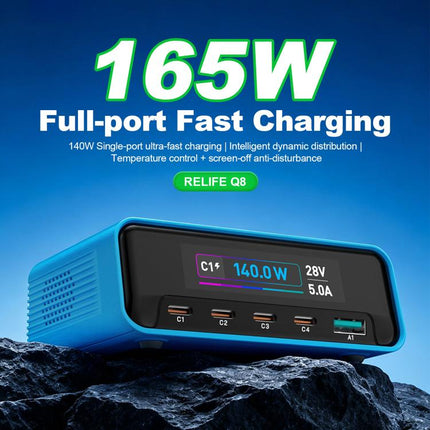

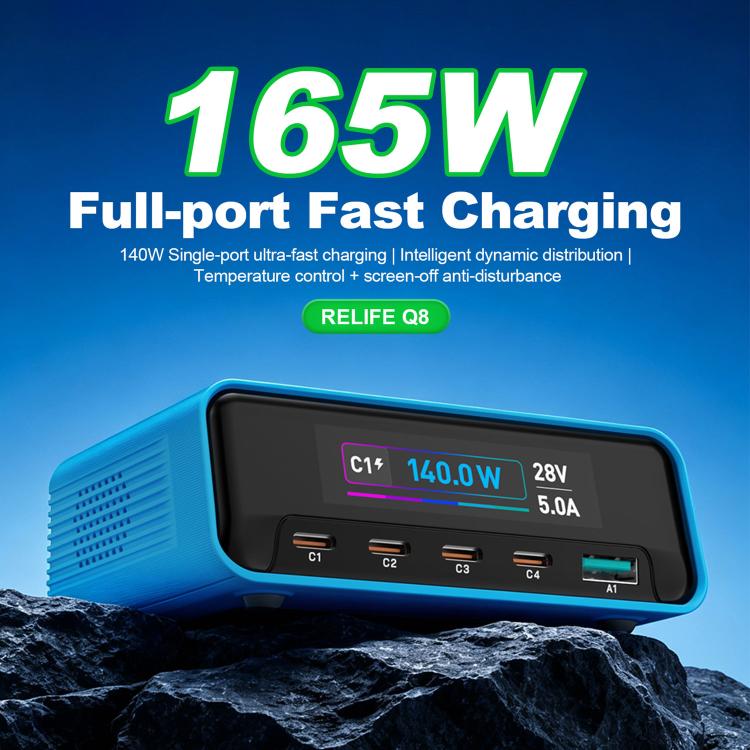

1. Q8 165W full-port fast charging station, 140W single-port ultra-fast charging, intelligent dynamic distribution, temperature control+screen-off anti-disturbance

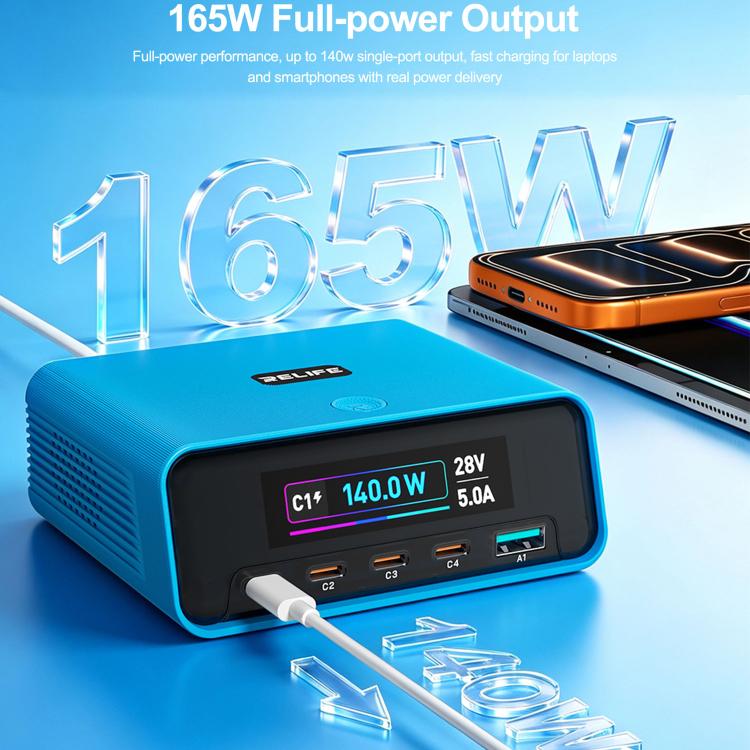

2. 165W Full-power Output: Full-power performance, up to 140W single-port output, fast charging for laptops and smartphones with real power delivery

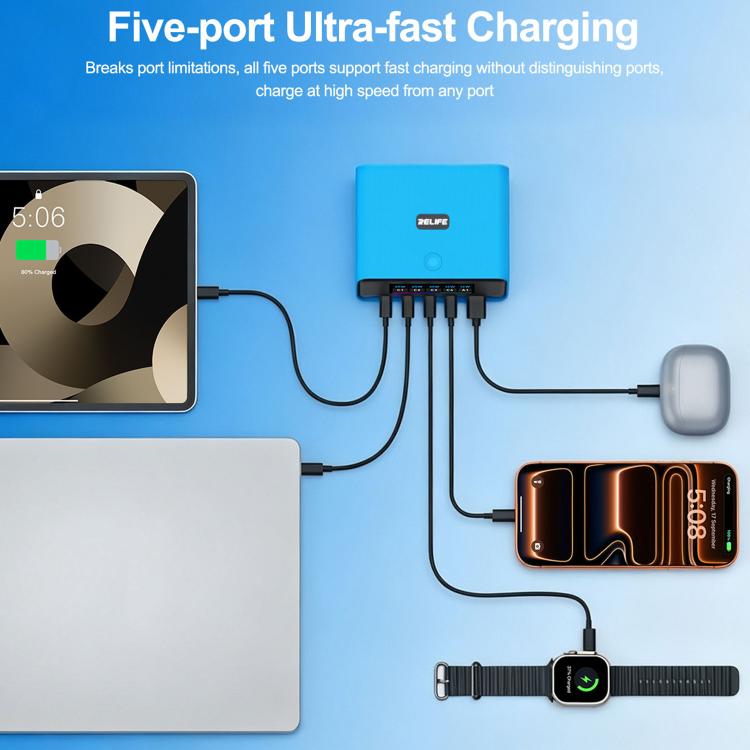

3. Five-port Ultra-fast Charging: Breaks port limitations; all five ports support fast charging without distinguishing which ports charge at high speed from any port

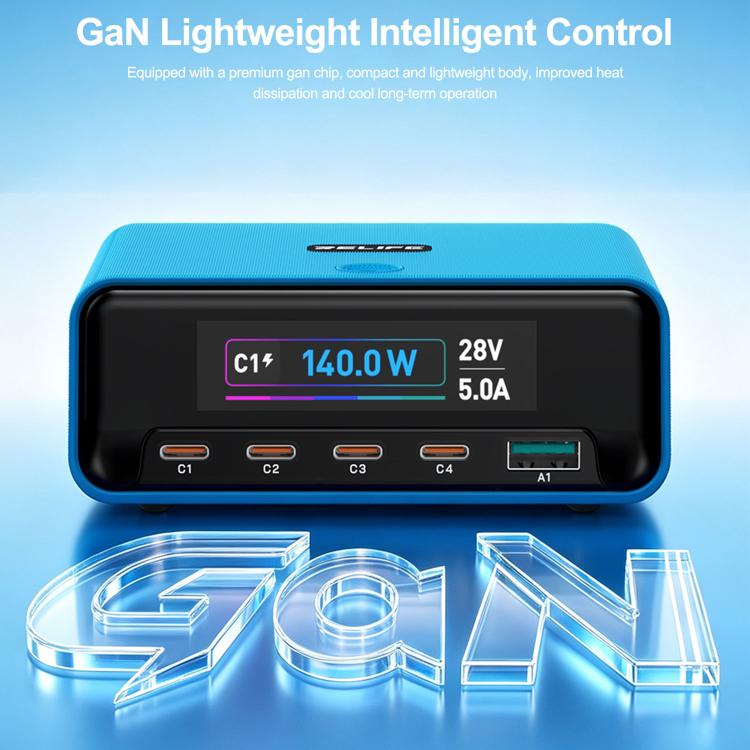

4. GaN Lightweight Intelligent Control: Equipped with a premium GaN chip, compact and lightweight body, improved heat dissipation and cool long-term operation

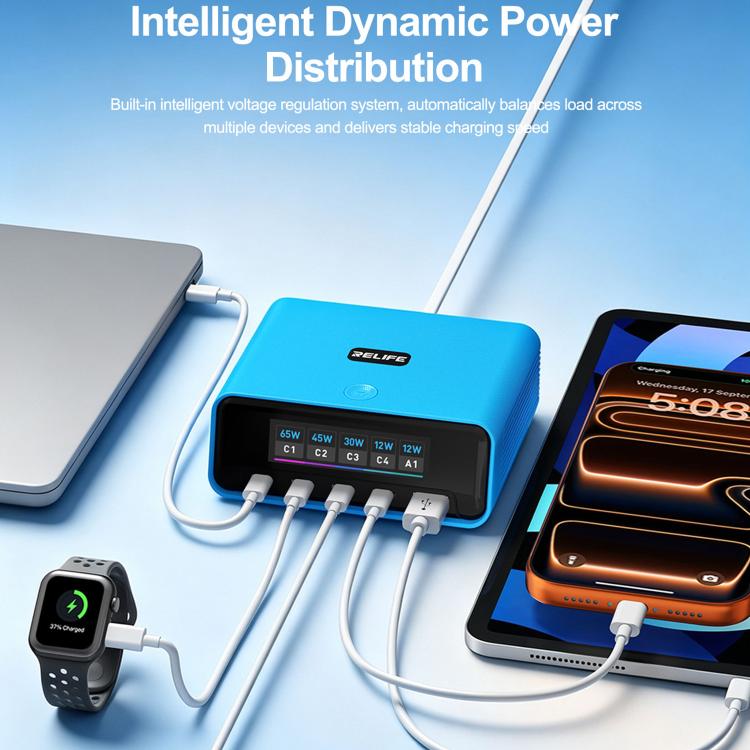

5. Intelligent Dynamic Power Distribution: Built-in intelligent voltage regulation system, automatically balances load across multiple devices and delivers stable charging speed

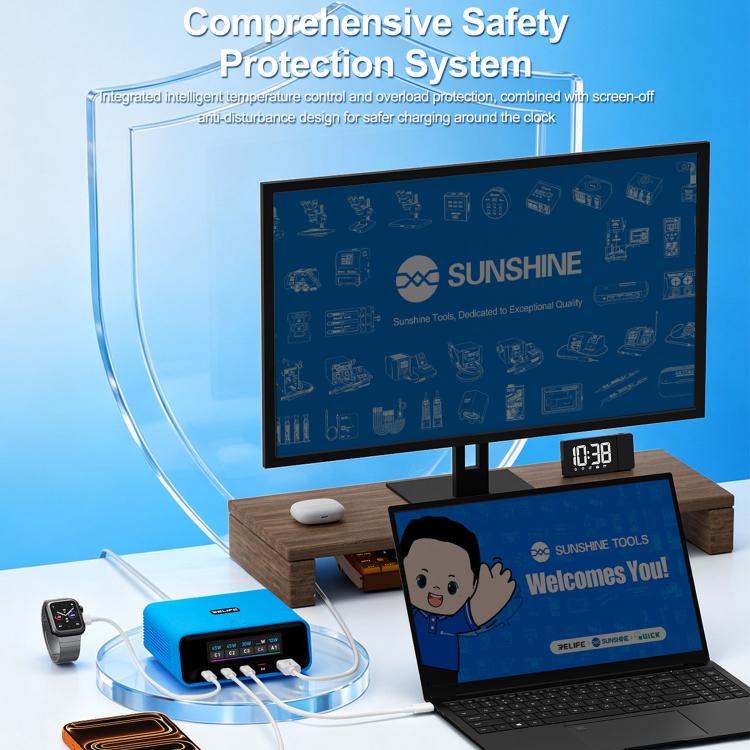

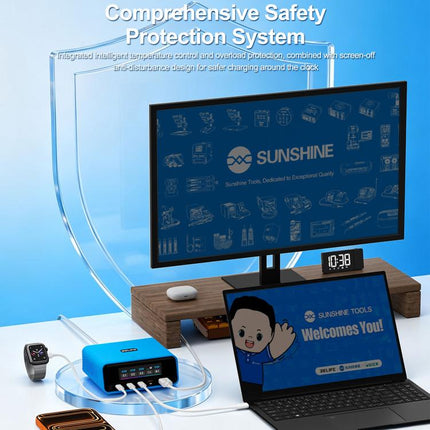

6. Comprehensive Safety Protection System: Integrated intelligent temperature control and overload protection combined with screen-off anti-disturbance design for safer charging around the clock
Specification:
| Package Weight |
| One Package Weight |
0.80kgs / 1.77lb |
| One Package Size |
15cm * 14cm * 6cm / 5.91inch * 5.51inch * 2.36inch |
| Carton Weight |
17.00kgs / 37.48lb |
| Carton Size |
32cm * 32cm * 28cm / 12.6inch * 12.6inch * 11.02inch |
| Loading Container |
20GP: 930 cartons * 20 pcs = 18600 pcs 40HQ: 2159 cartons * 20 pcs = 43180 pcs
|
|
