Description
Specifications:

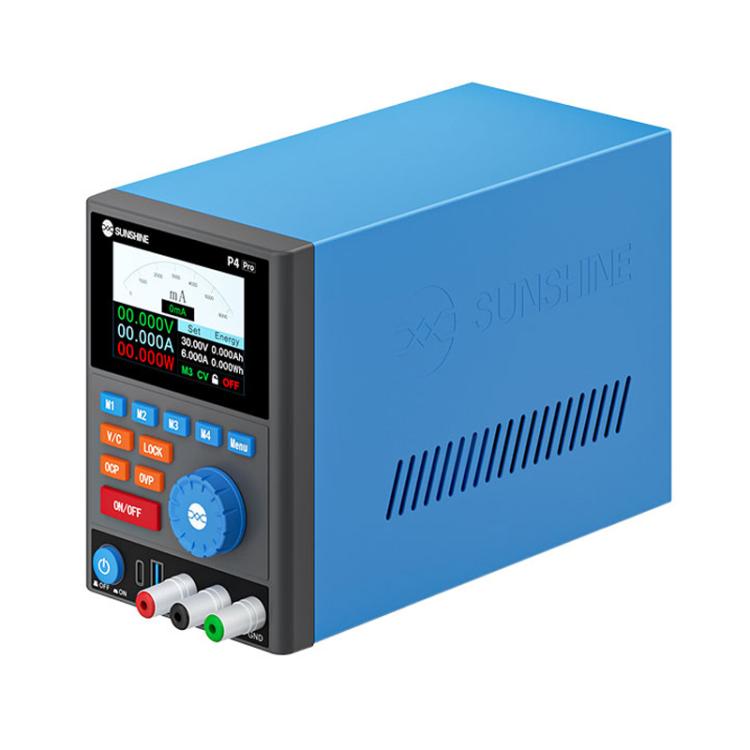

1. Model: P4 Pro

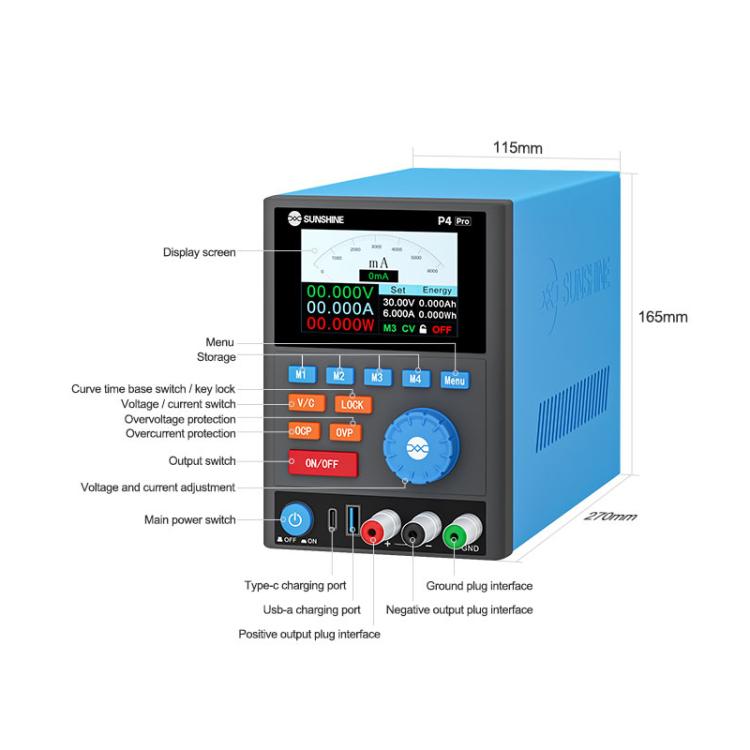

2. Product size: 11.5 x 27 x 16.5cm
3. Net weight: about 3.8kg
4. Voltage range: 0-30V
5. Current range: 0-6A
6. Load effect: <=0.01%+2mV/<=0.02%+10mA
7. Power effect: <=0.01%+3mV/<=0.1%+3mA
8. Output resolution: 10mV/1mA
9. Setting accuracy: <=0.5%+20mV/<=0.5%+5mA
10. Ripple (20-20m): <=2mVrms/<=3mArms
11. Output temperature coefficient: 150ppm
12. Readback resolution: 1mV/1mA
13. Readback temperature coefficient: <=100ppm+10mV/<=100ppm+5mA
14. Response time(10%rated load): <=100ms
15. USB-C: PD3.0/PPS/QC2.0/QC3.0/QC3+/IP 5V@2.4A/AFC/FCP/SCP/HSCP
16. USB-A: QC2.0/QC3.0/IP 5V@2.4A/AFC/FCP/SCP/HSCP

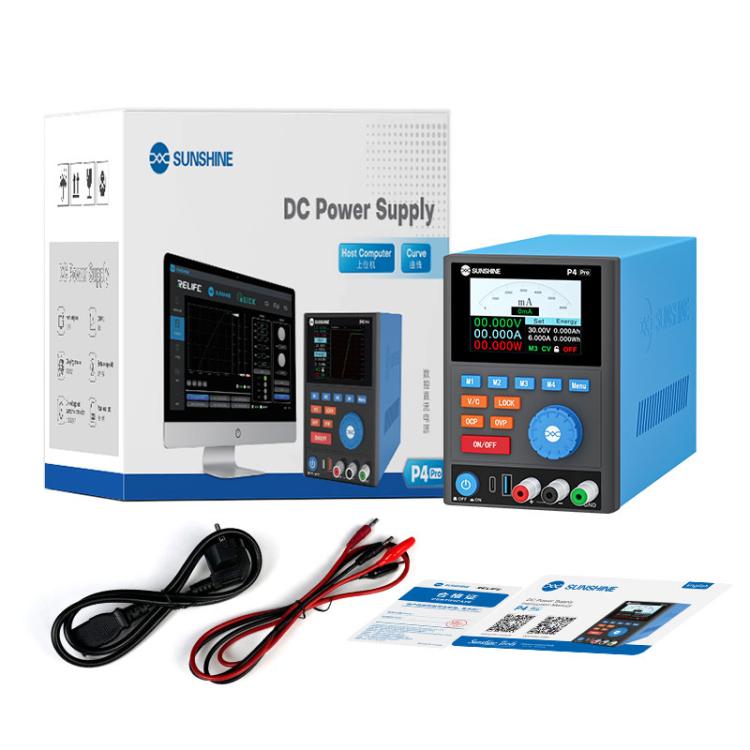

17. Package includes:
1 x Power Supply
1 x Test Cable
1 x Power Cable
Features:

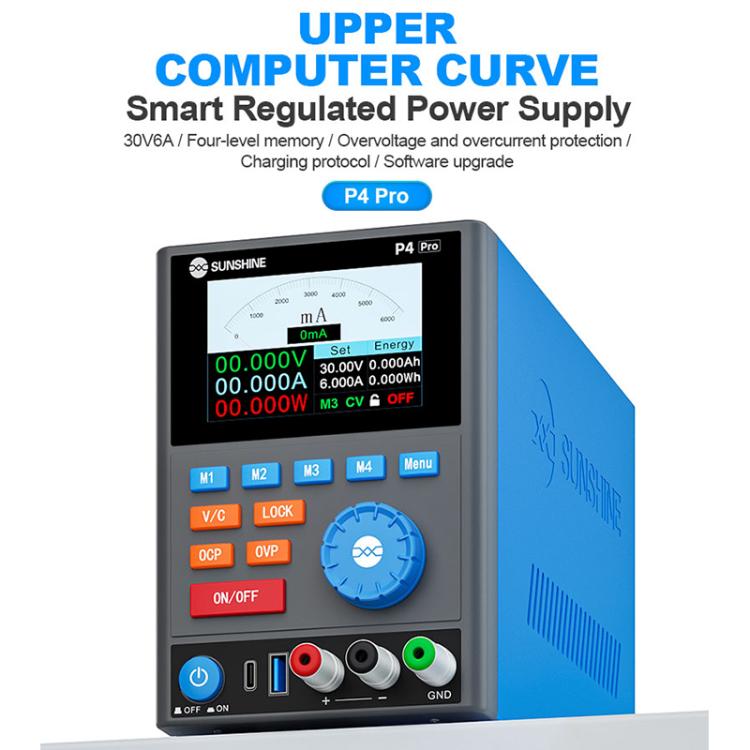

1. P4 Pro upper computer curve smart regulated power supply, 30V/6A, four-level memory, over-voltage and over-current protection, charging protocol, software upgrade

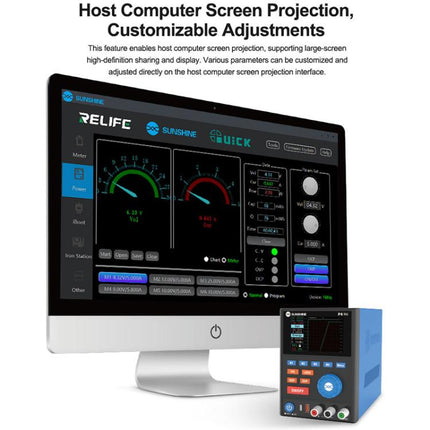

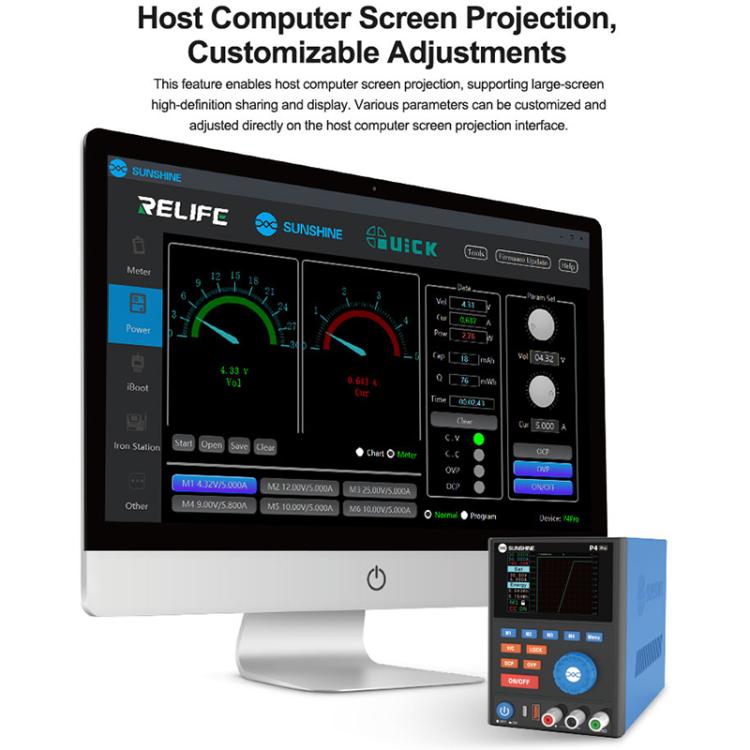

2. Host Computer Screen Projection, Customizable Adjustments: This feature enables host computer screen projection, supporting large-screen high-definition sharing and display. Various parameters can be customized and adjusted directly on the host computer screen projection interface

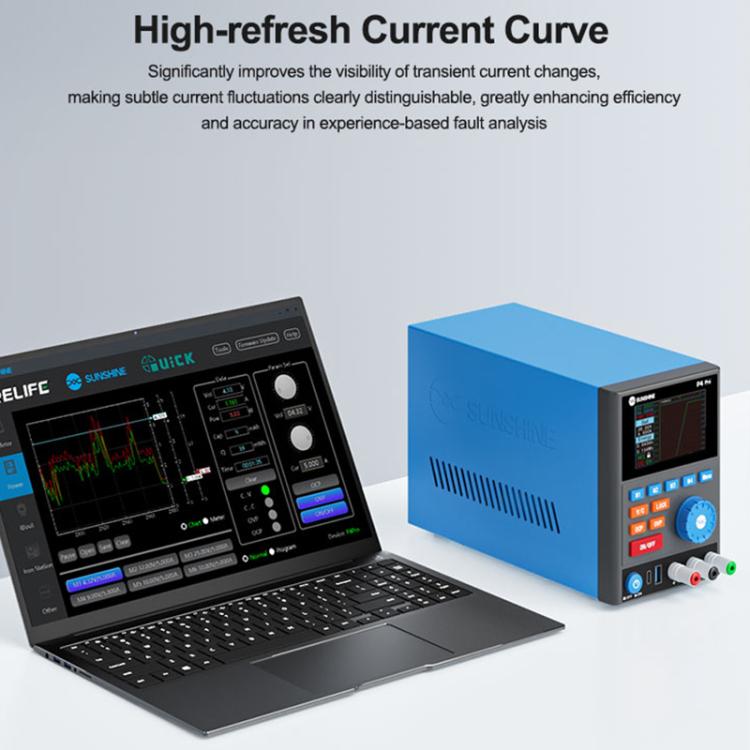

3. High-Refresh Current Curve: Significantly improves the visibility of transient current changes, making subtle current fluctuations clearly distinguishable, greatly enhancing efficiency and accuracy in experience-based fault analysis

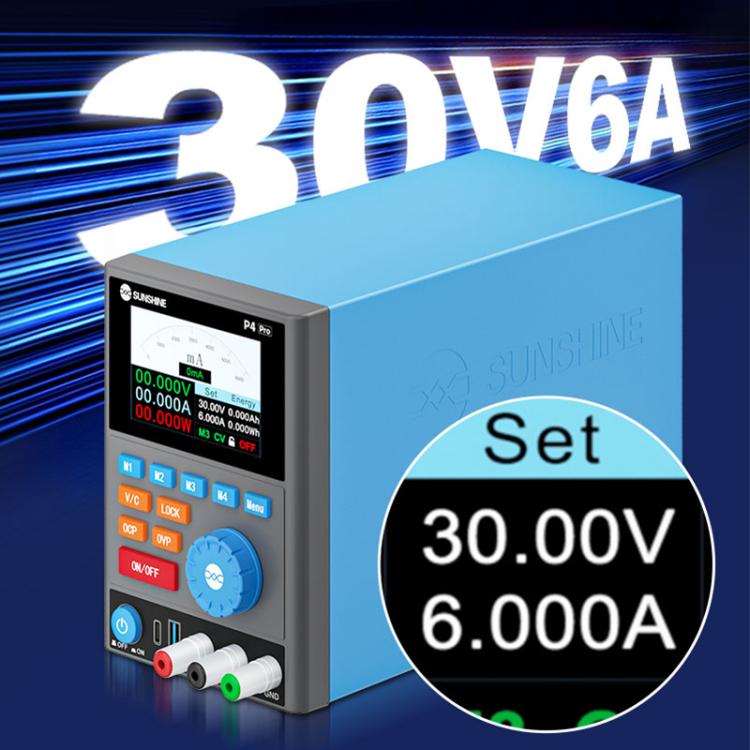

4. 30V/6A High-frequency Output: Accurate values, adjustable DC regulated power supply

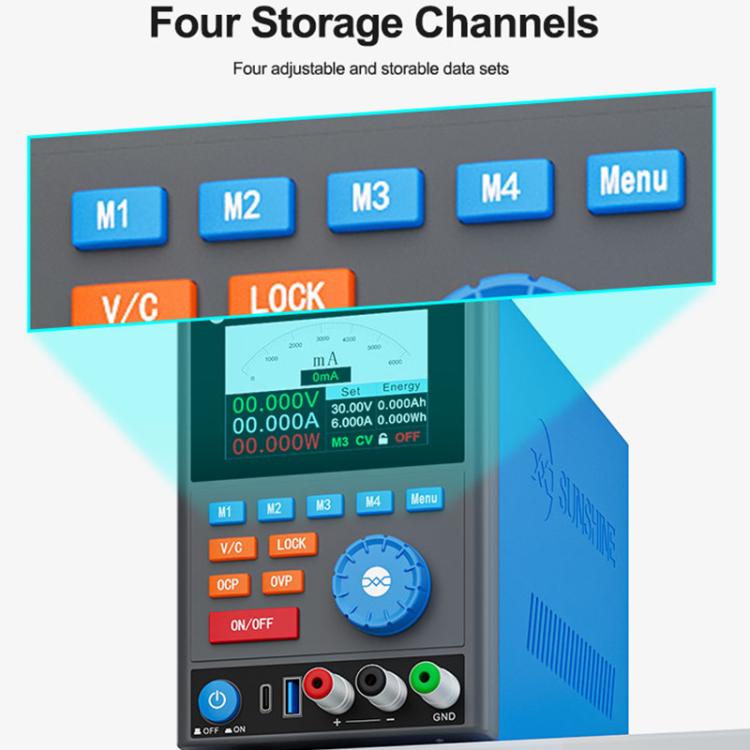

5. Four Storage Channels: Four adjustable and storable data sets

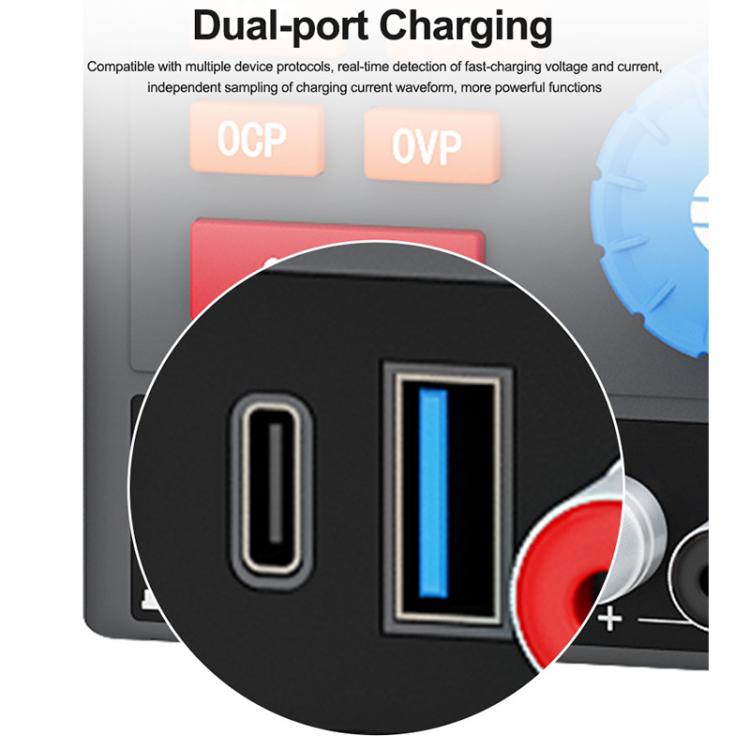

6. Dual-port Charging: Compatible with multiple device protocols, real-time detection of fast-charging voltage and current, independent sampling of charging current waveform, and more powerful functions

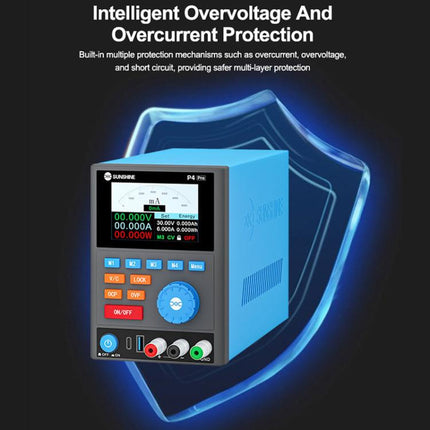

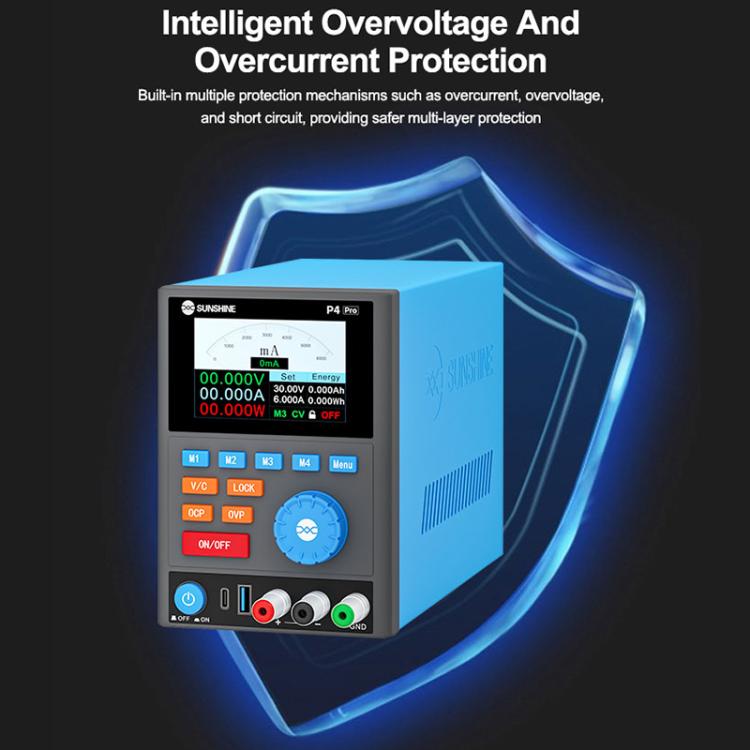

7. Intelligent Overvoltage and Overcurrent Protection: Built-in multiple protection mechanisms such as overcurrent, overvoltage, and short circuit, providing safer multi-layer protection

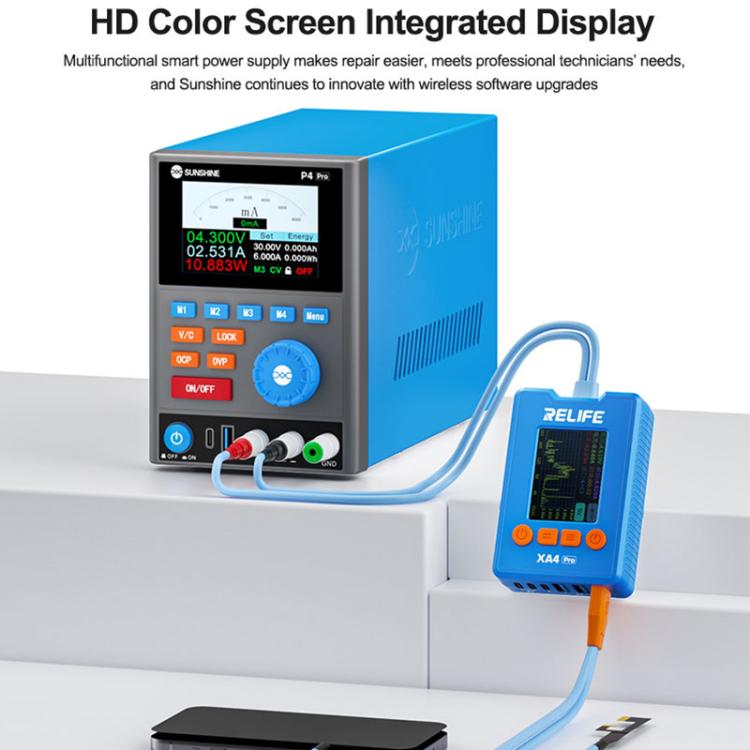

8. HD Color Screen Integrated Display: Multifunctional smart power supply makes repair easier, meets professional technicians' needs, and Sunshine continues to innovate with wireless software upgrades
Specification:
| Package Weight |
| One Package Weight |
5.00kgs / 11.03lb |
| One Package Size |
36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch |
| Carton Weight |
5.00kgs / 11.02lb |
| Carton Size |
36cm * 23cm * 28cm / 14.17inch * 9.06inch * 11.02inch |
| Loading Container |
20GP: 1150 cartons * 1 pcs = 1150 pcs
40HQ: 2670 cartons * 1 pcs = 2670 pcs
|
|
