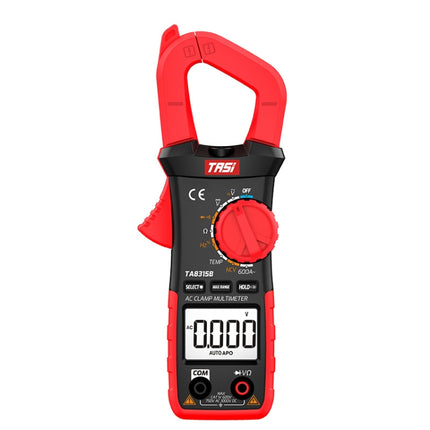

Description
1. DC voltage: 1mV-1000V
2. AC voltage: 1mV-750V
3. AC current: 0.01-600A
4. Resistance: 0.1 ohm-40 megohm
5. Frequency: 10Hz-10MHz

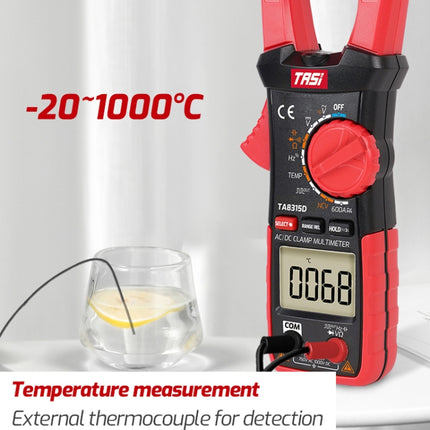

6. Temperature measurement: -20 - 1000 degrees Celsius
7. Display: 5999 (3 5/6) digits
8. Measurement method: double integral type A/D conversion
9. Automatic shutdown: after about 15 minutes
10. Sampling frequency: about 3 times / second

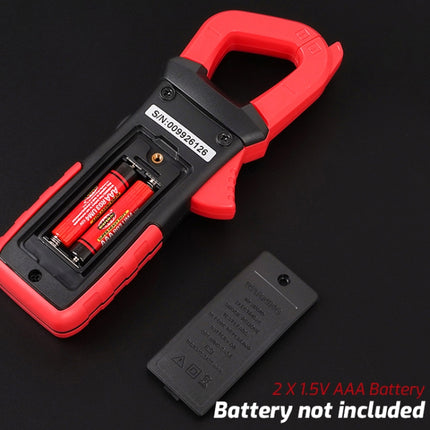

11. Power supply: two No. 7 batteries (not included)
12. Functions: flashlight illumination, NCV measurement, true RMS value, backlight display, on/off alarm, diode measurement, value lock, low voltage display
13. Jaw opening size: about 27mm

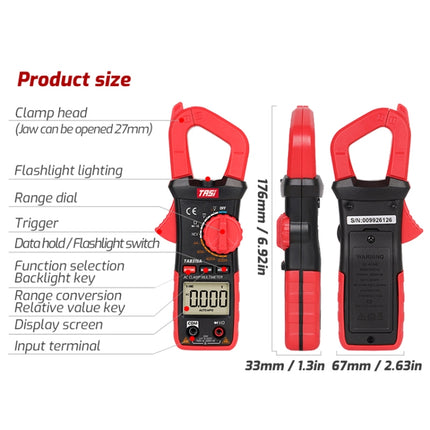

14. Overall size: about 17.6 x 6.7 x 3.3cm
15. Weight: about 300g
16. Note: the actual model of the product is subject to the title, the picture model is for reference only
Features:

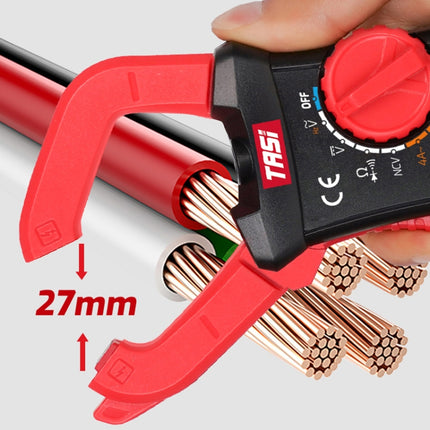

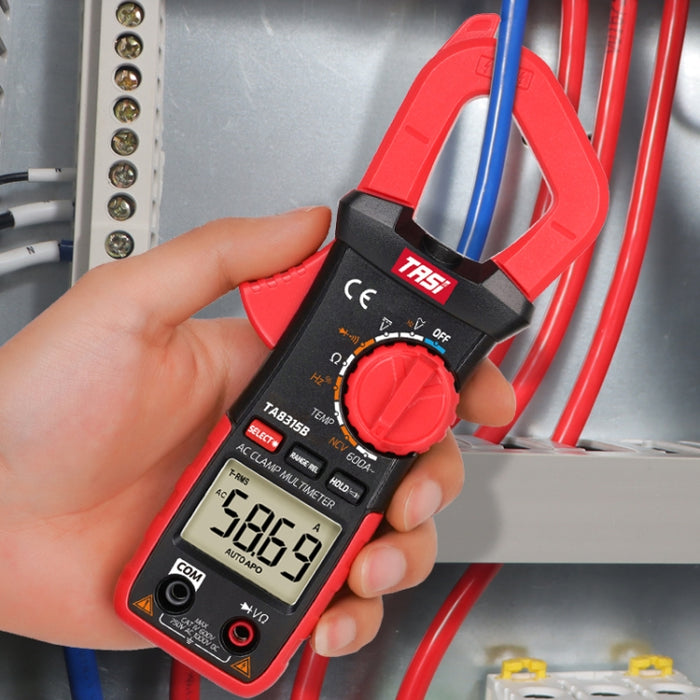

1. Large jaw design, can open the size of about 27mm, suitable for a variety of wire measurement

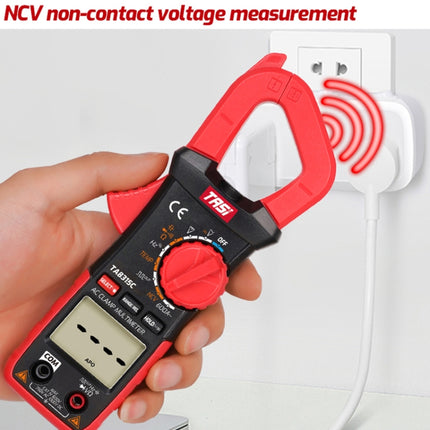

2. NCV measurement, gear to NCV, the non-contact voltage sensing area close to the circuit to detect the AC voltage, the clamp meter will be based on the size of the detected voltage strength, the display and different frequencies of the beeping alarm sound

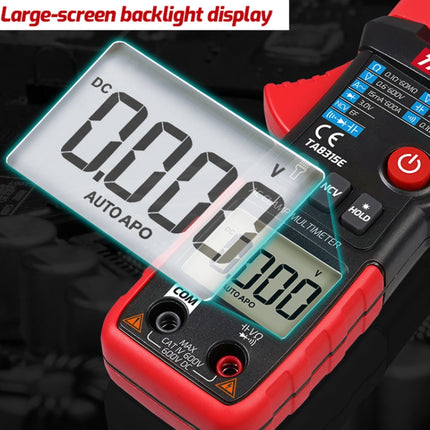

3. Large screen display, intelligent chip LCD display, clear handwriting, with backlight function, in the dark environment can also be easily read

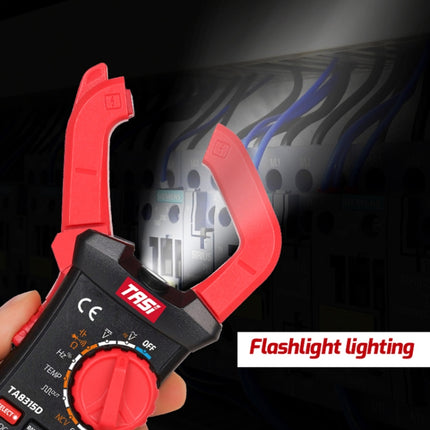

4. With flashlight illumination, when used in the dark or dark environment can open the flashlight function, convenient for measurement
5. Neat and tidy panel, function parameters are clear at a glance
6. Lightweight and portable, easy to operate

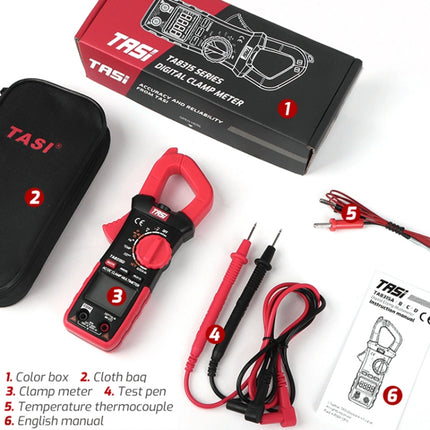

Packing list:
- Host x 1
- Meter pen x 2
- Thermocouple x 2
- Cloth bag x 1
- Instruction manual x 1
Specification:
|
Package Weight
|
| One Package Weight |
0.40kgs / 0.89lb
|
| One Package Size |
21cm * 12cm * 5cm / 8.27inch * 4.72inch * 1.97inch
|
| Carton Weight |
16.30kgs / 35.93lb
|
| Carton Size |
45cm * 42cm * 25cm / 17.72inch * 16.54inch * 9.84inch
|
| Loading Container |
20GP: 564 cartons * 40 pcs = 22560 pcs
40HQ: 1310 cartons * 40 pcs = 52400 pcs
|
|
