Description

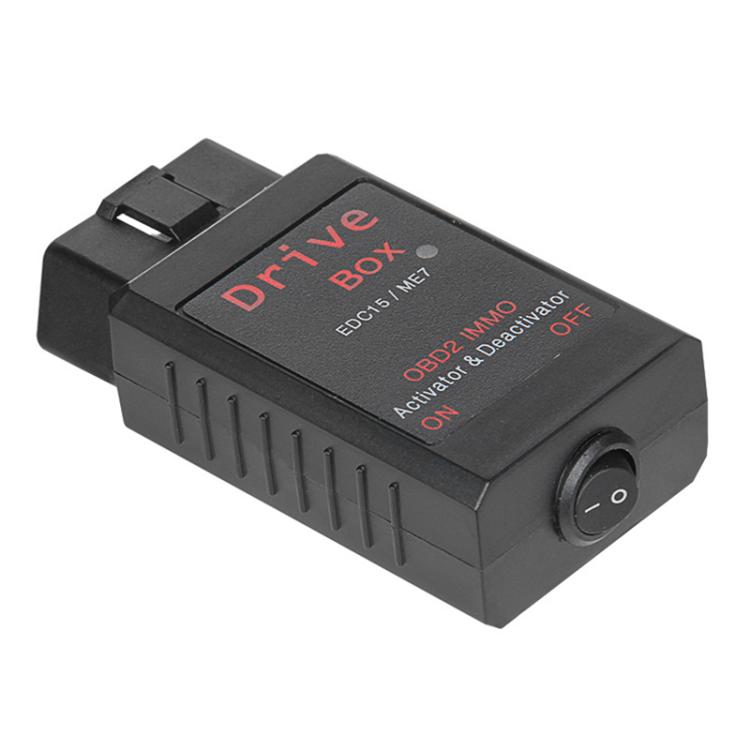

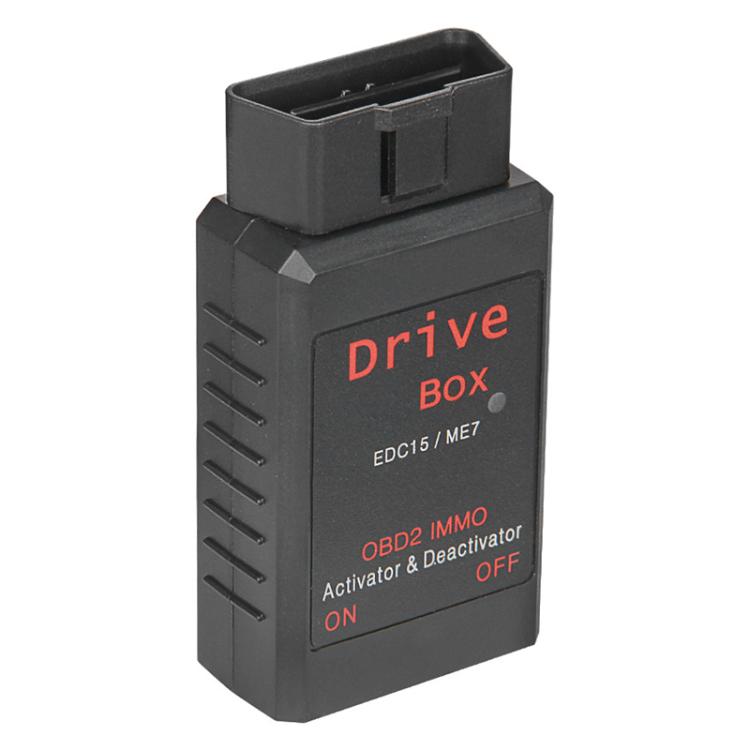

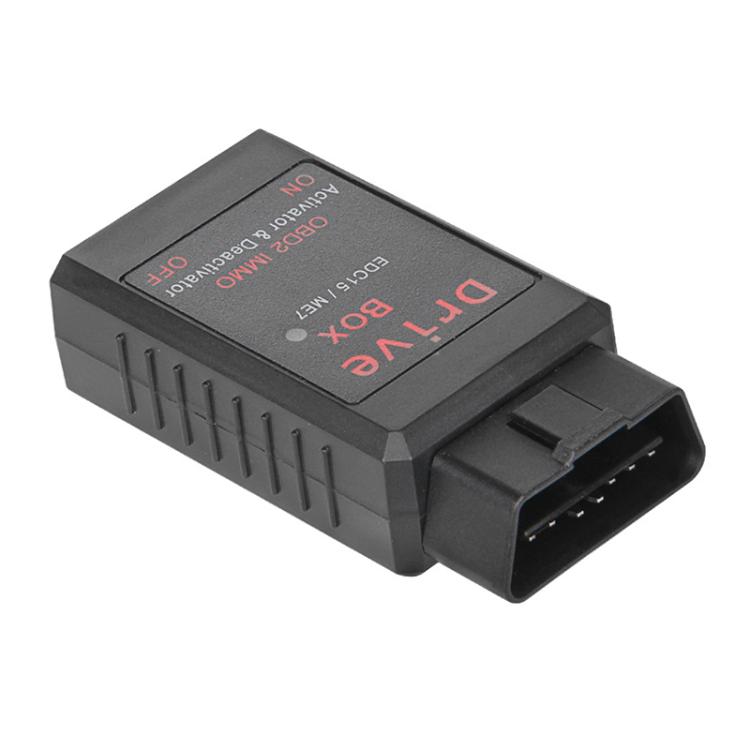

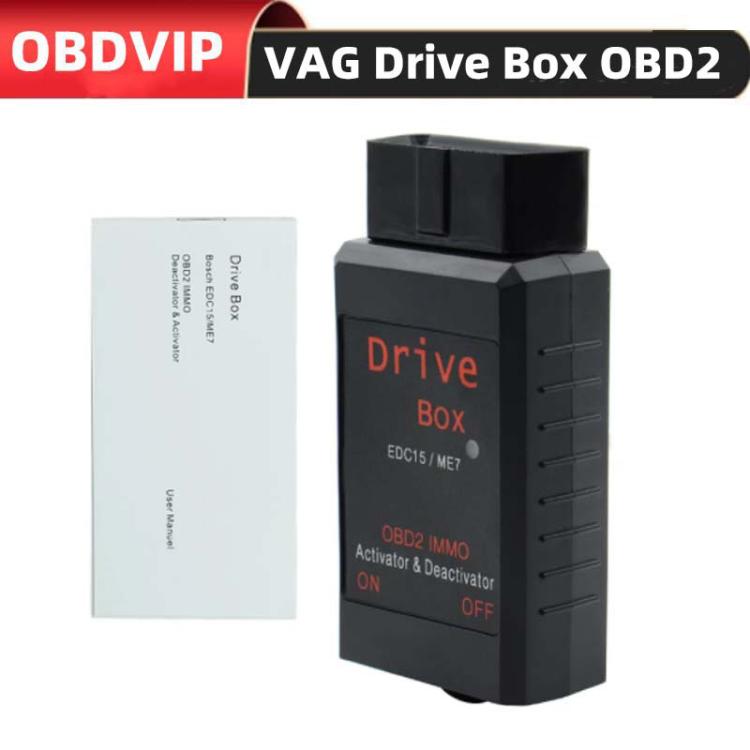

For vag drive box edc15/me7 obd2 immo deactivator corresponds to control unis types EDC15 (Diesel) and ME7 (Patrol). The EDC15 control for diesel engines is installed in the models of brands for VW, for AUDI,for SEAT and for SKODA from 1999 onwards.
??
This box corresponds to the control unis types EDC15 (Diesel) and ME7 (Patrol).
The EDC15 control for diesel engines is installed in the models of brands for ??VW, for AUDI, for SEAT/ for SKODA from 1999 onwards.
The ME7 control for Patrol engines up from 1.6 I is also installed
in the models of brands for VW/for AUDI/for SEAT/ for SKODA.
Also backed up are control unit types ME7.5, ME7.5.1, ME7.1, ME7.1.1
??
Use guide:
Simply plug the Drive Box EDC15/ME7 into the vehicle diagnostic socket (OBD2)
Then put the OBD2 and switch to "OFF" on Drive box .
After only 20 to 30 seconds the immobilizer DEACTIVATED (IMMO OFF)
NO NEED TO COMPUTER!!!
The led on the tool will start to flash slowly, after some seconds the led flashes fast, that mean the immo function is disabled
The car will work without Trasponder key!
Recovery ; switch to "ON" on Drive box .
After only 20 to 30 seconds the immobilizer ACTIVATED (IMMO ON)
Adapted for following models,
With in motronic trypes EDC15(Diesel) or ME7 (Patrol)
For AUDI A2/A3/A4/A6
For SEAT Cordoba/Ibiza/Toledo/Toledo
For SKODA Octavia
For SKODA Octavia II
For SKODA Scout
For SKODA Roomstar
For SKODA Fabia
For SKODA SuperB (up to 2008)
For PORSCHE Cayenne (patrol,old model)
For VW Golf IV / Bora (from 2000 onwards)
For VW Polo (from 2000 onwards)
For VW Caddy (from 2000 onwards)
For VW Eos / Tiguan
For VW Passat 3BG (up 2004 - except 2.5 V6)
For VW T4 (from 2000 onwards)
For VW Beetle
??
Basically applies: not for 1,8T and 2,0TFSI models + 1.4 + 1.6 patrol engines.
The Tool on this page are sold exclusively to autohoritis and tradespersons with special legatimation for the automobile industry!
Specification:
| Package Weight |
| One Package Weight |
0.08kgs / 0.19lb |
| One Package Size |
13cm * 8.3cm * 4.2cm / 5.12inch * 3.27inch * 1.65inch |
| Carton Weight |
8.80kgs / 19.40lb |
| Carton Size |
44cm * 43cm * 28cm / 17.32inch * 16.93inch * 11.02inch |
| Loading Container |
20GP: 503 cartons * 100 pcs = 50300 pcs
40HQ: 1168 cartons * 100 pcs = 116800 pcs
|
|
