Description

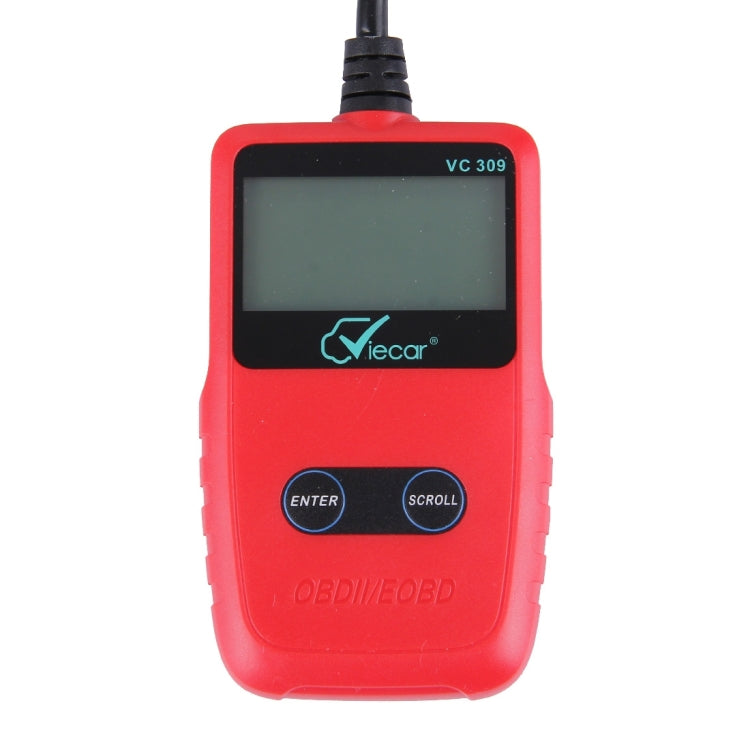

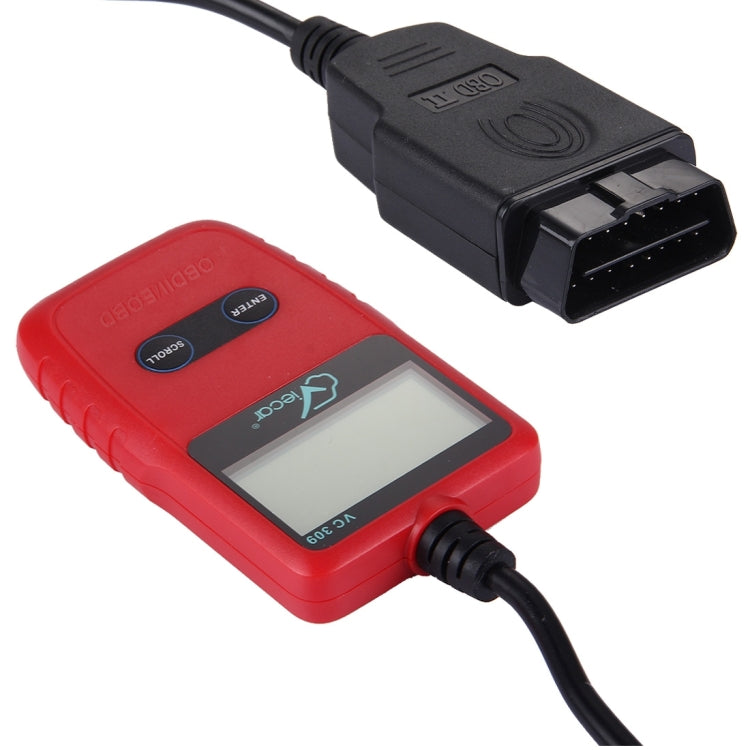

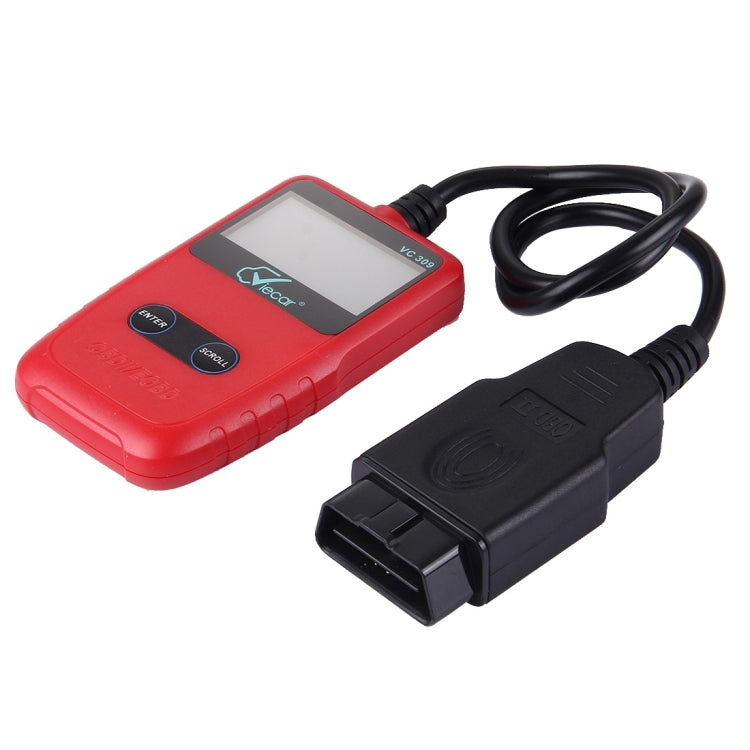

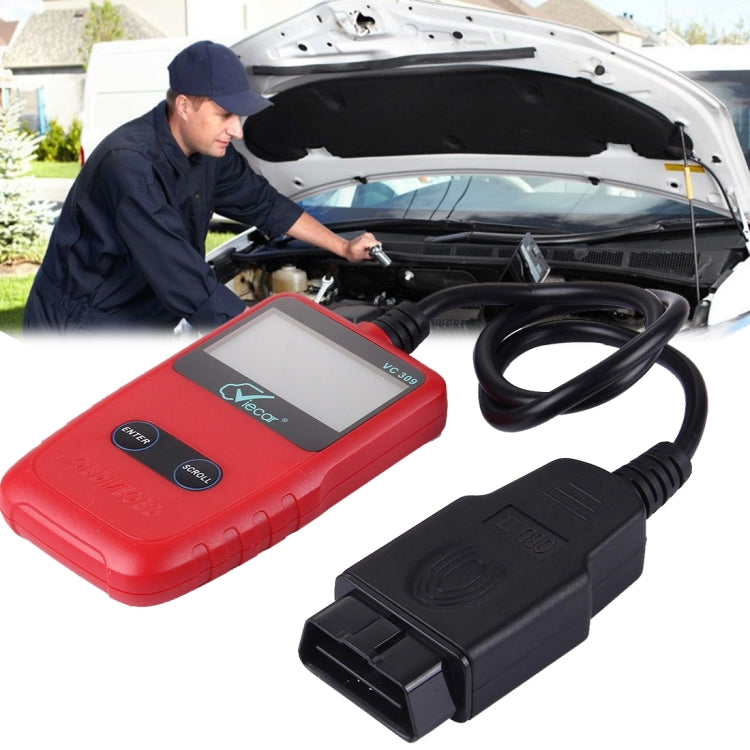

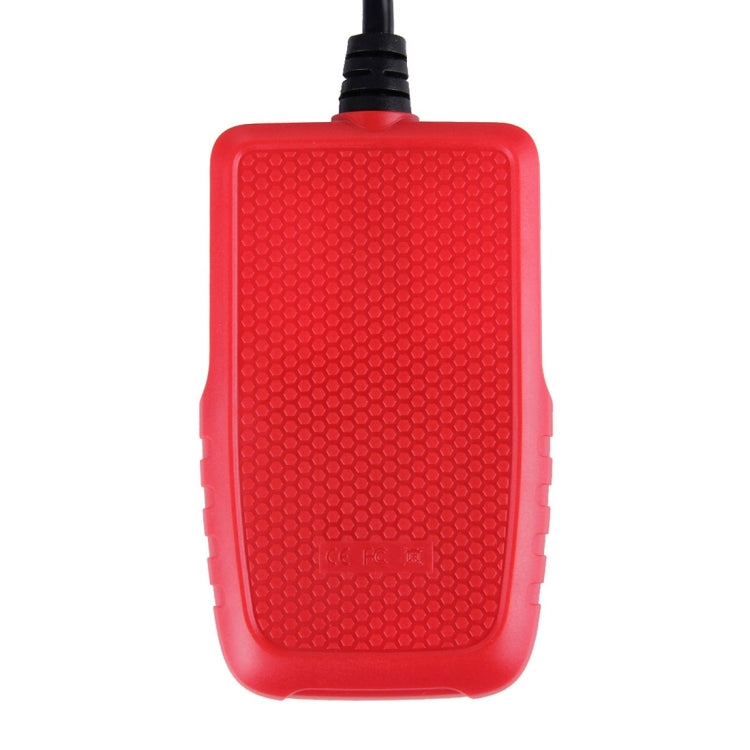

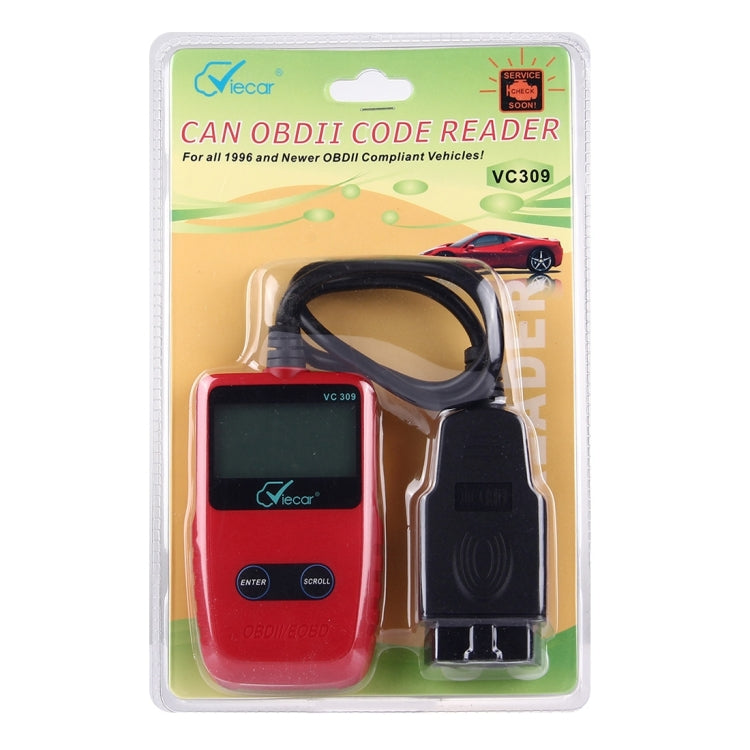

About The Product1. The Viecar VC309 OBDII/EOBD Code Reader is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.
2. A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
3. For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Features1. Work with all 1996 and newer vehicles that are OBD II compliant (including CAN)
2. Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light
3. Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
4. Review the emission readiness status of OBD monitors
5. Determine the malfunction indicator lamp (MIL) status
6. Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
7. Easy to use with one plug-in
8. Free CD software with over 7000 DTC definitions
9. No batteries needed-powered via detachable OBD II cable
10. Display: Backlit, 128 x 64 pixel display
11. Power: 8 to 18 Volts provided via vehicle battery
Specification:
| General |
| Operating Temperature |
0 to 60 Degree C |
| Storage Temperature |
-20 to 70C |
|
| Package Include |
| Package Contents |
1 x Diagnostic Scan Tool
1 x Manual |
|
| Package Weight |
| One Package Weight |
0.25kgs / 0.56lb |
| One Package Size |
24cm * 17.5cm * 4cm / 9.45inch * 6.89inch * 1.57inch |
| Carton Weight |
7.80kgs / 17.20lb |
| Carton Size |
50cm * 37cm * 42cm / 19.69inch * 14.57inch * 16.54inch |
| Loading Container |
20GP: 343 cartons * 40 pcs = 13720 pcs
40HQ: 796 cartons * 40 pcs = 31840 pcs
|
|
