Light & Sound Meter (Consumer Electronics »Test Equipment)

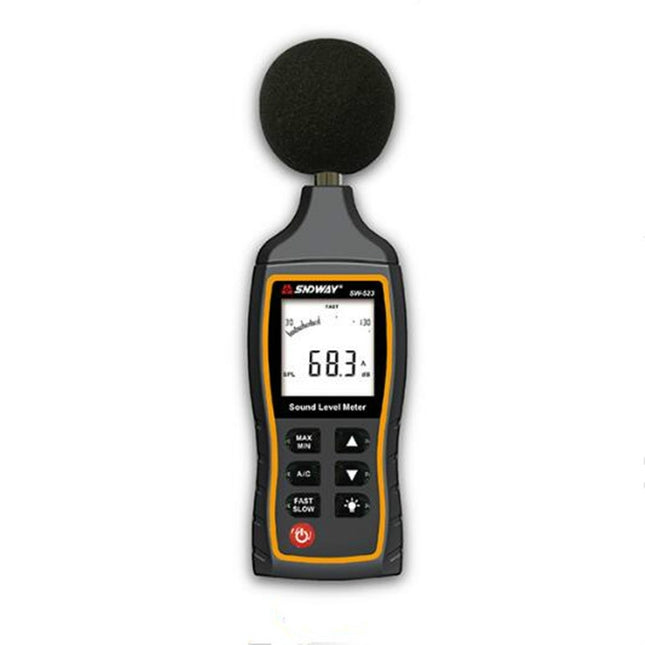

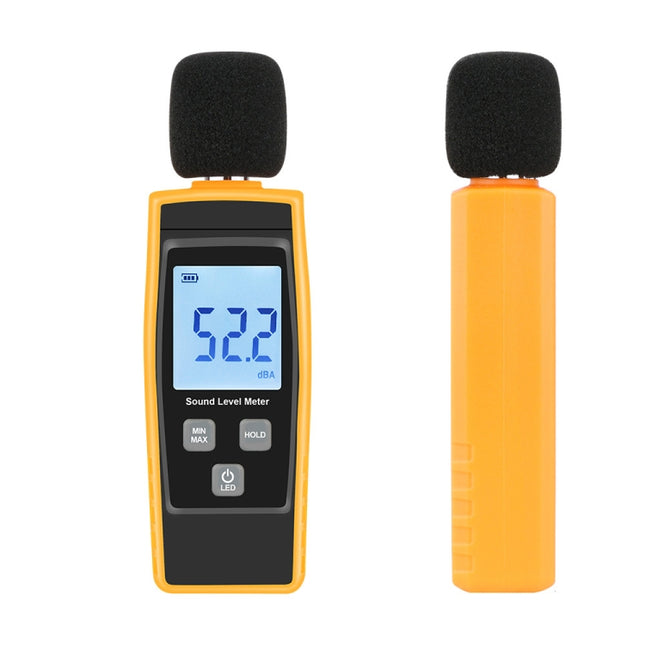

This is an easy to use and handy Mini Sound Level Meter. Designed for sound quality control that measures sound level from 30dBA up ~ 130dBA. It has auto range, wide measuring and frequency range (31.5Hz ~ 8KHz), maximum hold, Frequency Weighting A and Auto Backlight. Just press one button readings are instantly displayed. A practical little tool great for noise pollution monitoring, home theater setup, health and safety compliance, vehicle noise testing, etc.Auto backlight has a light sensor on top of LCD that detects environment lighting condition. Lighting display intensifies as the environment lighting condition gets darker. The darker the enronment the brighter the illumination. Also, it it reads in dBA and provides windscreen to filter-out unwanted signals.

Read more less

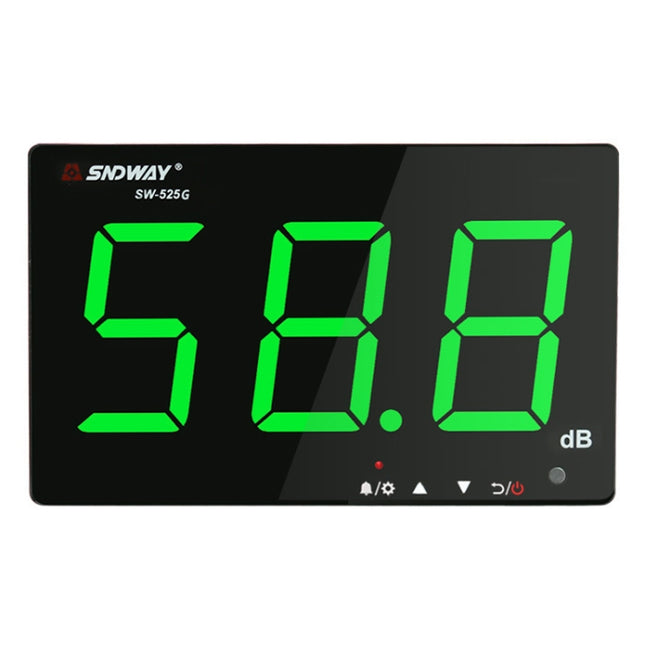

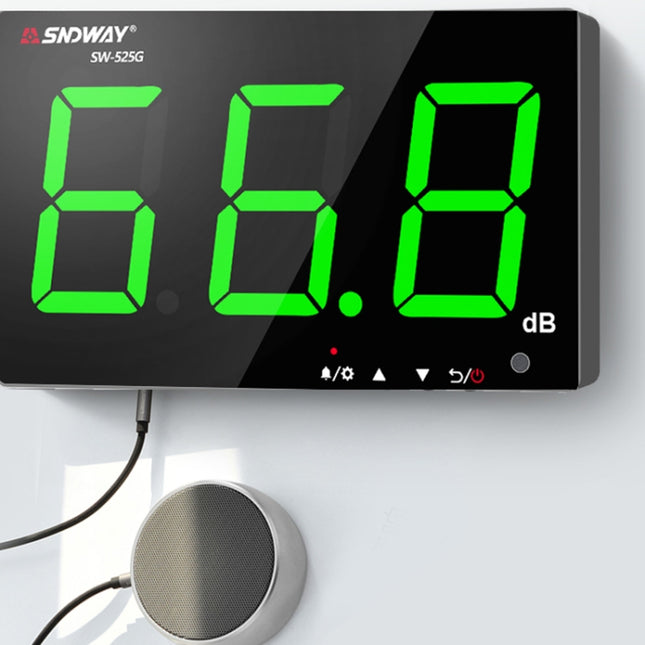

Item: SW525A(red light)/SW525B(red light)/SW525G(green light)/SW526A(red light)1. Screen size: 9.6 inch (SW526A 18 inch)2. Measurement range: 30-130dB3. Accuracy: +/-105dB4. Frequency response: 31.5Hz~8.5Hz5. Microphone: 6 mm condenser microphone6. Digital display: 3 digits7. Power supply mode: DC 5V 1A Micro USB interface8. Working temperature and humidity: 0 ~ 40 degrees, 10% ~ 80% RH9. Storage temperature and humidity: -10 to 60 degrees, 10% to 70% RH10. Size: 21 × 13 × 2.8 cm(SW526A: 40×23×3.5cm)11. Net weight: 453 grams(SW526A:1531g)Item: SW535A1. Screen size: 18 inch2. Measurement range: 30-130dB3. Accuracy: +/-1.5dB4. Frequency response: 31.5Hz~8.5Hz5. Microphone: 6 mm condenser microphone6. Digital display: 3 digits7. Power supply mode: DC 5V 2A power supply8. Working temperature and humidity: -20 ~ 60 degrees, 0% ~ 100% RH9. Storage temperature and humidity: -10 ~ 60 degrees, 20% ~ 70% RH10: Alarm prompt: sound + display alarm11. Alarm output: output 5V voltage12. Size: 40 x 23 x 3.5 cm13. Net weight: 1531 grams

Read more less

1. Accuracy: +-1.5dB(based on the standard sound source 94dB@1KHz)2. Frequency response range: 31.5Hz～8.5KHz3. Dynamic state range: 50dB 4. Measuring range: 30~130dBA，35~130dBC5. Frequency weighting character : A weight and C weight 6. Numerical digit display: 4 digits,resolution 0.1dB, sampling frequency 2 times/second7. Dynamic scale display: 1 scale equals 2dB or 1dB, sampling frequency 2 times/second8. Dynamic scale shift: 30~130dB, 30~80dB, 50~100dB, 80~130dB 9. Overload display: "OVER"and"UNDER in display screen 10. AC signal output: 0.65Vrms for each shift and full scale, the output of impedance around 600ohm 11. DC signal output: 10mV/dB, the output of impendance around 100ohm 12. Dynamic character: Two choices of reaction rate "FAST" and "SLOW" 13. Microphone: 6mm capacitor microphone 14. Max locking: MAX 15. Battery: 3×1.5V AAA (not included) 16. Working temperature and humidity : 0 C~40C，10%～80% RH 17. Storage temperature and humidity: -10C~60C, 10%~70%RH

Read more less
