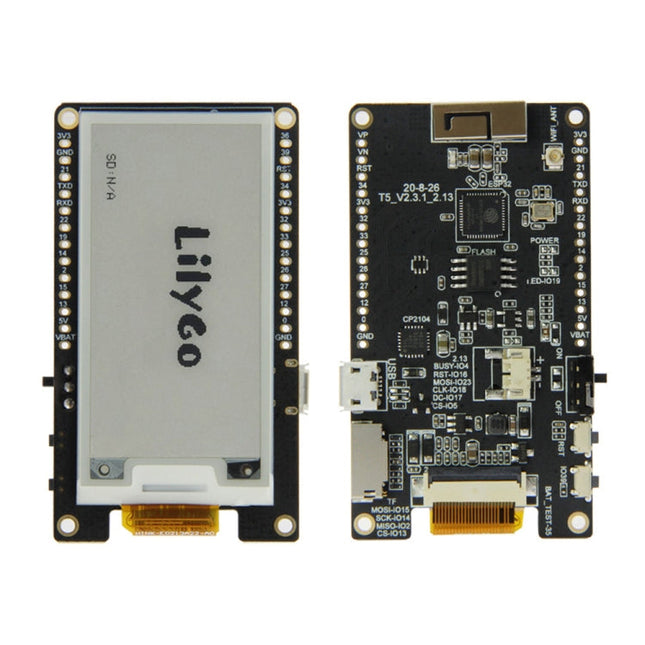

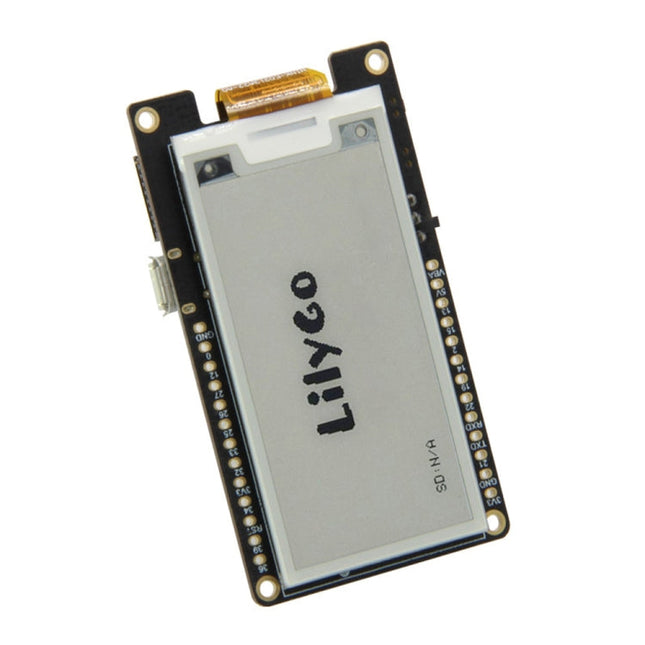

Overview Due to the advantages of ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels and industrial instruments. Features 1. Without backlight, the last content can be displayed for a long time even if it is turned off 2. Ultra-low power consumption, basically only need to refresh the power supply 3. Attached with development resources and manuals (example of Arduin-esp32) Product specifications 1. Working voltage: 3.3V 2. Interface: 3-wire SPI, 4-wire SPI 3. Display color: black, white 4. Grayscale: 2 5. Full refresh time: 8s 6. Refresh power: 26.4mW (typical value) 7. Driver chip: DEPG0213BN ESP32 features: 1. Immersion Gold Craft 2. High cost performance 3. Small size, easy to embed other products 4. Powerful function supports LWIP protocol, Freertos 5. WiFi supports three modes: AP, STA and AP + STA 6. Support Windows system (cygwin and msys32) and Linux system 7. Support Arduino-ide, ESP-IDF, Micropython multiple development environments 8. Support Lua program, easy developmentSpecification: Package Weight One Package Weight 0.05kgs / 0.12lb One Package Size 10cm * 6cm * 1cm / 3.94inch * 2.36inch * 0.39inch Qty per Carton 300 Carton Weight 9.00kgs / 19.84lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 300 pcs = 281700 pcs40HQ: 2180 cartons * 300 pcs = 654000 pcs

Read more less

1. Working voltage: 1.8~13.7V 2. Acceptable current: 10~114mA 3. Emission current: - 120mA at + 20dBm - 90 mA lies at +17dBm - 29mA at +13dBm 4. Working frequency: 915MHz 5. Transmitting power: + 20dBm 6. Receiving sensitivity: - 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps - 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps - 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps - 123dBm lies at FSK & 5Khz & 1.2Kbps 7. Frequency error: +/- 15KHz 8. FIFO space: 64Byte 9. Data rate: -1.2K~1300Kbps at FSK -0.018K~37.5Kbps at LoRa 10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK 11. Interface form: SPI 12. Sleep current: - 0.2uA SLEEP - 1.5uA IDLE 13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius 14. Digital RSSI function 15. Automatic frequency correction 16. Automatic gain control 17. RF wake-up function 18. Low voltage detection and temperature sensor 19. Fast wake-up and frequency hopping 20. Highly configurable packet handler 21. SMA antenna IP5306 This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)Specification: Package Weight One Package Weight 0.08kgs / 0.17lb One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch Qty per Carton 100 Carton Weight 7.00kgs / 15.43lb Carton Size 36cm * 26cm * 26cm / 14.17inch * 10.24inch * 10.24inch Loading Container 20GP: 1095 cartons * 100 pcs = 109500 pcs40HQ: 2543 cartons * 100 pcs = 254300 pcs

Read more less

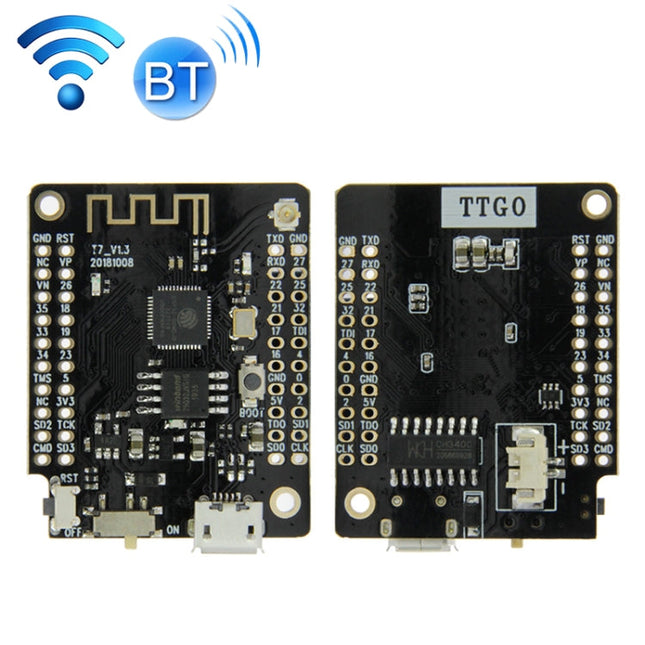

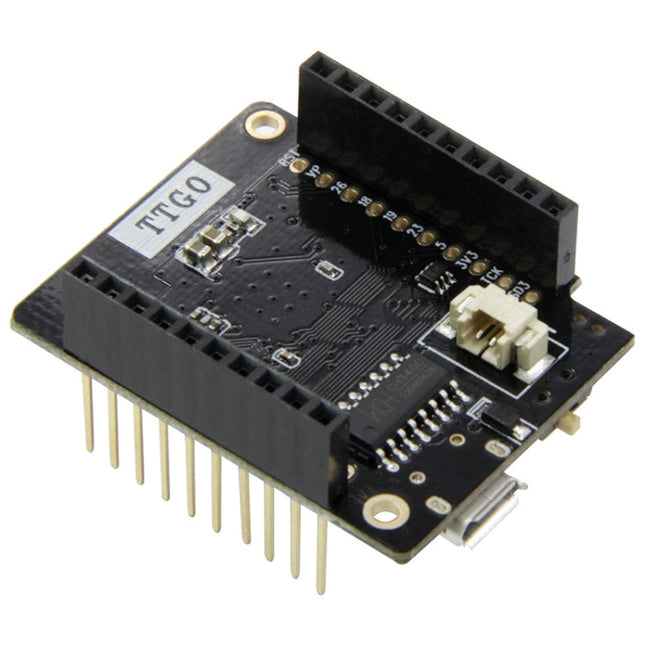

1. Model Number: MINI 32 V2.0 2. Main chip: ESP 32 3. Flash Memory Chip: 25Q32 4. Charging IC Chip: TP4054 5. USB to Serial Port Chip: CH340C 6. Package Includes: 1 x TTGO MINI 32 V2.0 ESP32 WiFi Bluetooth Module 2 x Long Female Pins 2 x Normal Pins 4 x Short Female PinsSpecification: Package Weight One Package Weight 0.07kgs / 0.15lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 7.50kgs / 16.53lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

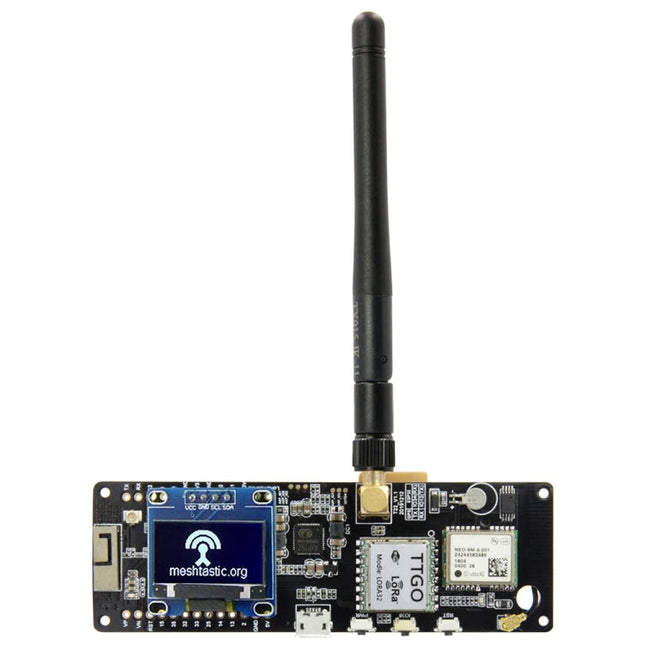

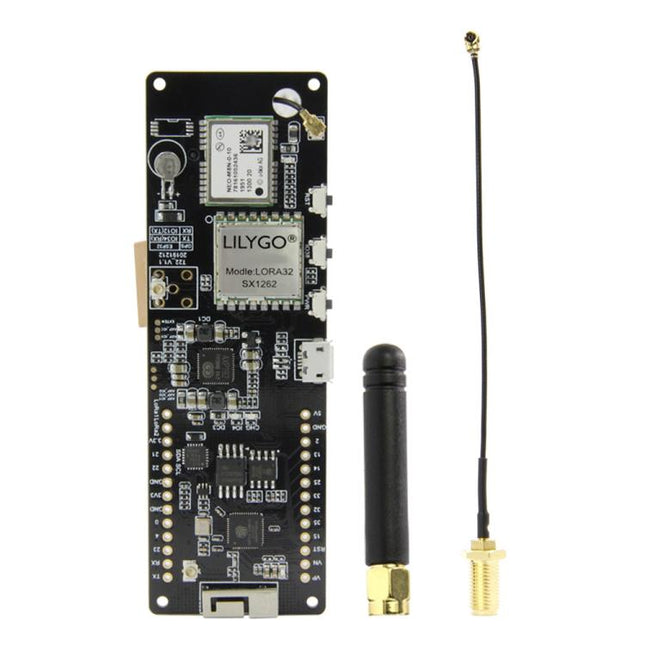

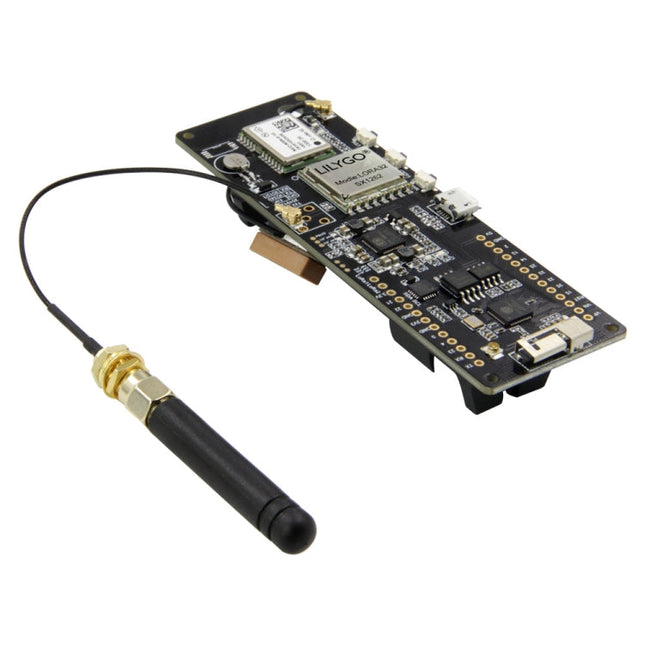

Product demonstration (Note: OLED is not soldered to T-beam) Features: 1. ESP 32 version: Rev1 2. WiFi 3. Bluetooth 4. 4MB pSRAM 5. 4MB flash memory 6. Three-dimensional antenna product description: 1. Working voltage: 1.8~3.7V 2. Acceptable current: 10~14 mA 3. Transmitting current: 120 mA@+20 dBm 4. 90 mA@+17 dBm 5. 29 mA@+13 dBm 6. Working frequency: 433/470 MHz (433 HMz version) SX1278 /868m/915 m (868 MHz version) SX1276 7. Transmitting power: +20 dBm 8. Receiving sensitivity: -139 dBm@Lora&62.5Khz&SF=12&146 bps -136 dBm@Lora&125 Khz&SF=12&293 bps -118 dBm@Lora&125 Khz&SF=6&9380 bps -123 dBm@FSK&5 Khz&1.2Kbps 9. Frequency error: +/-15 kHz 10. FIFO space: 64 bytes 11. Data rate: 1.2k~300 Kbps@FSK 0.018K~37.5Kbps@Lora 12. Modulation method: FSK, GFSK, MSK, GMSK, Lora TM, OOK 13. Interface form: SPI 14. Sleep current: 0.2uA 15. 1.5uA@Idle 16. Working temperature: -40 degrees Celsius-+85 degrees Celsius 17. Digital RSSI function 18. Automatic frequency correction 19. Automatic gain control 20. Low pressure detection 21. Fast wake-up and frequency hopping 22. Highly configurable packet handler Global Positioning System: 1. GPS module neo-6m, 3V-5V power supply universal 2. The predetermined module with ceramic antenna, super signal 3. Save configuration parameter data EEPROM 4. With data backup battery 5. With LED signal indicator 6. The default baud rate: 9600 power: 1. TP 5400 2. 1A battery management 3. LED indicator: there are 4 LEDs to display the battery status in real time 4. USB 5. CP 2104-GMR 6. Pre-Flash firmware OLED description: 1. Size: 0.96 inches 2. High resolution: 128x64 3. Color: white 4. Viewing angle: >160 degrees 5.Driver IC: SSD 1306 6. Working temperature: -30~80 degrees Celsius 7. Module size (generous): 27.0mm x 27.0mm x 4.1mm 8. Support a variety of control chips: fully compatible with Arduino, 51 series, MSP 430 series, STM 32/2, CSR chips, etc. (a lot of examples are available for reference) 9. Wide voltage support: directly support 3.3V~5V DC power supply without any modification 10. Ultra-low power consumption: 0.04W in normal operation 11. IO port occupies the smallest display: IIC communication, as long as two IO ports Specification: Package Weight One Package Weight 0.07kgs / 0.15lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 7.50kgs / 16.53lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

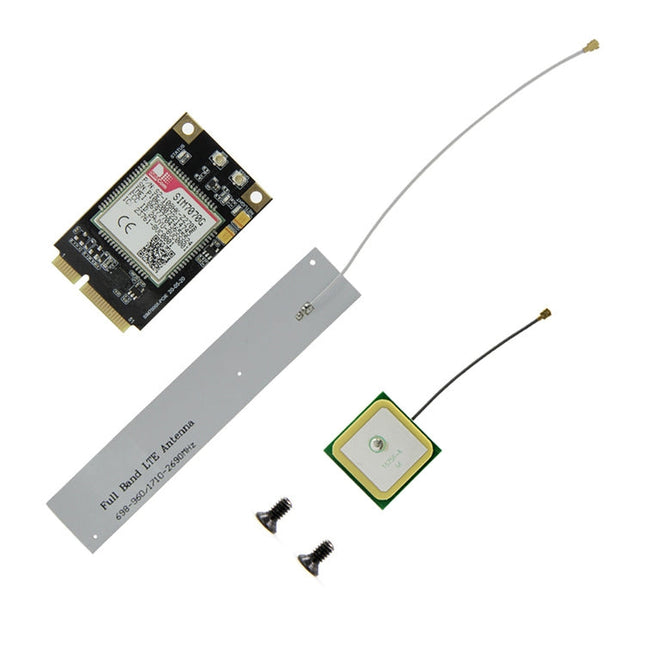

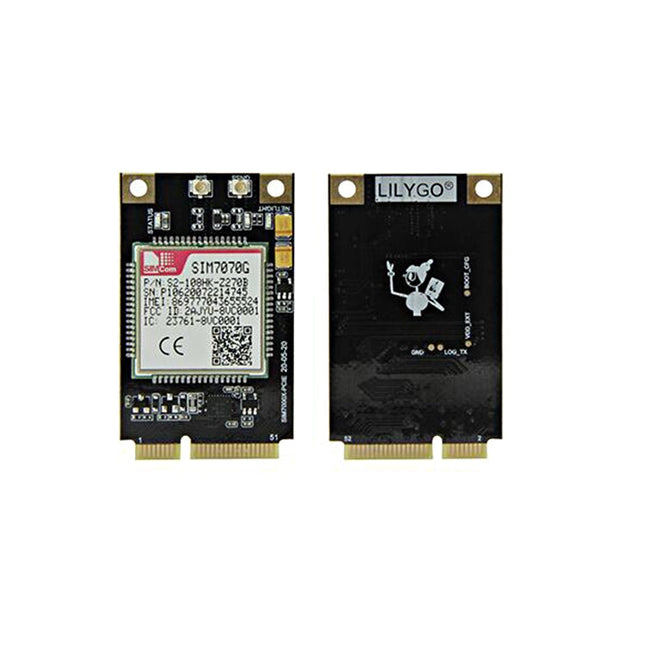

About The ProductHardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 4MB /16MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS Packing list 1. PCIE-SIM7070G module x 1 2. LTE antenna x 1 3. GPS antenna x 1 4. Screw x 2SIM7070GSIM7070G suitable global: 1. NB-IOT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85 2. CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85 3. GSM/GPRS/EDGE: 850/900/1800/1900MHz 4. GNSS: C/A CODE - GPS L1:1575.42+/-1.023MHz - GLONASS L1: 1598.0625~1605.375MHz - BDS B1: 1559.052~1591.788MHz - GALILEO L1:1575.42+/-1.023MHzSpecification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 300 Carton Weight 7.00kgs / 15.43lb Carton Size 36cm * 22cm * 22cm / 14.17inch * 8.66inch * 8.66inch Loading Container 20GP: 1530 cartons * 300 pcs = 459000 pcs40HQ: 3552 cartons * 300 pcs = 1065600 pcs

Read more less

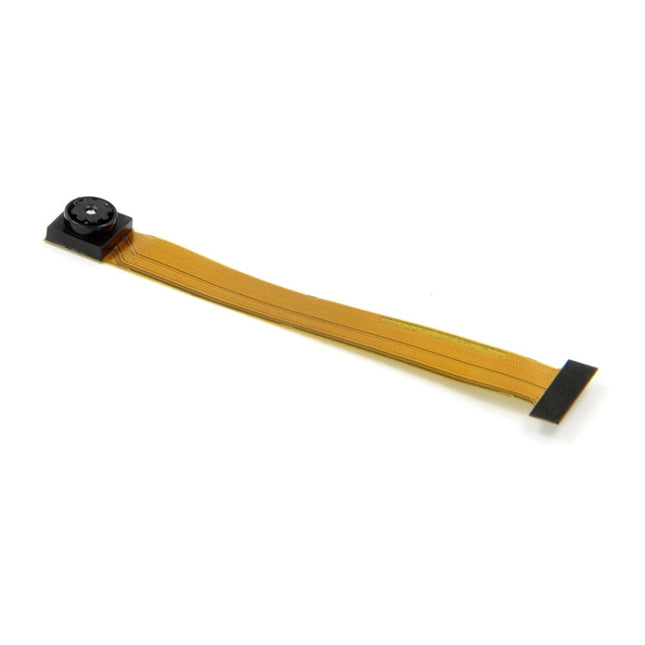

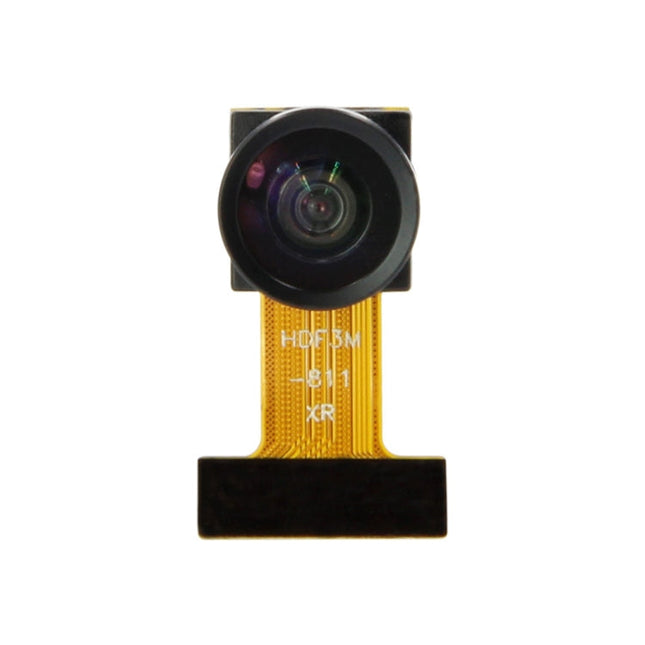

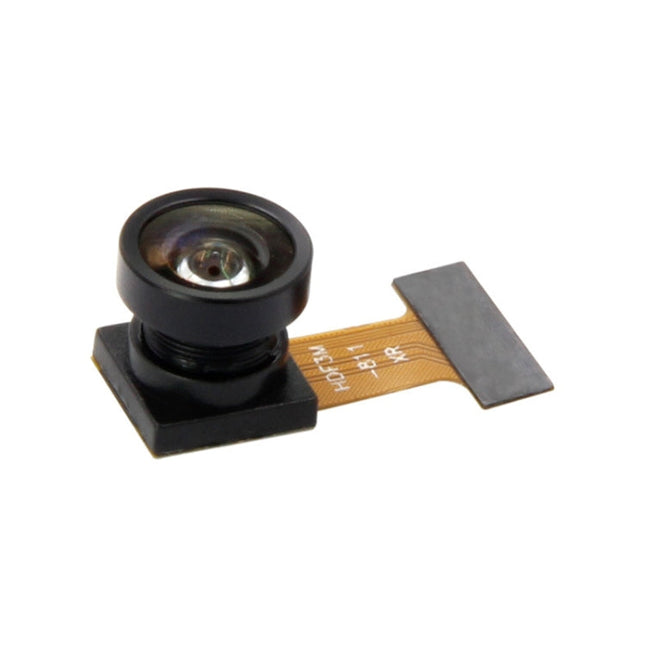

1. Product series: camera module 2. Model: OV2640 3. Purpose: video recorder 4. Power: 3.3W 5. Adapt to T-Camera Plus ESP32-DOWDQ6 8MB SPRAMSpecification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 4.00kgs / 8.82lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

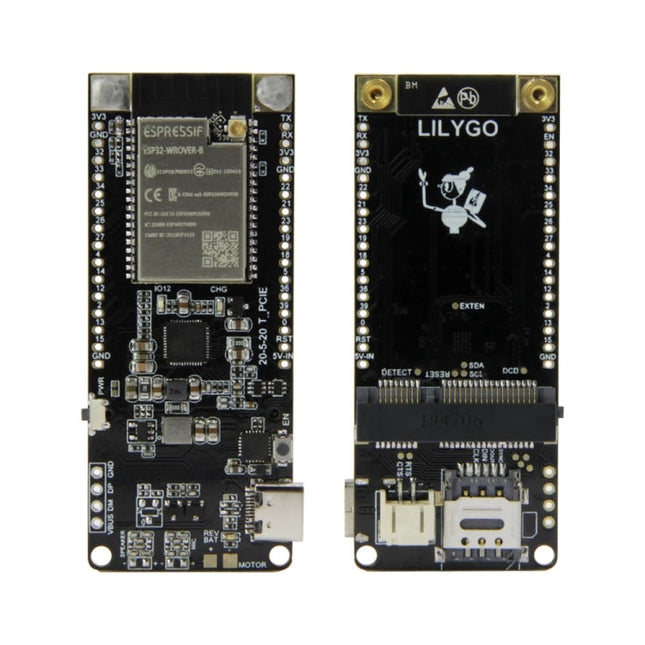

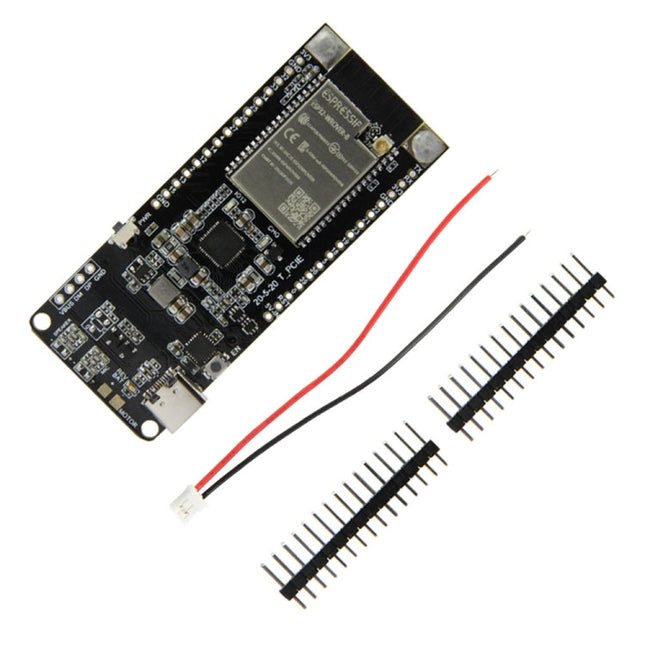

Hardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 4MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS Packing list 1. T-PCIE 4MB x 1 2. Charging cable x 1 3. Needle Pin x 2Specification: Package Weight One Package Weight 0.05kgs / 0.11lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 300 Carton Weight 13.00kgs / 28.66lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 300 pcs = 169800 pcs40HQ: 1314 cartons * 300 pcs = 394200 pcs

Read more less

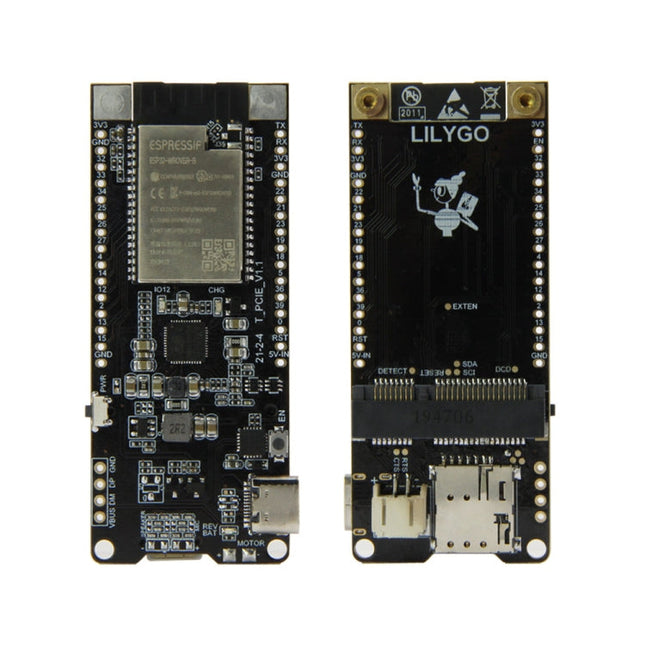

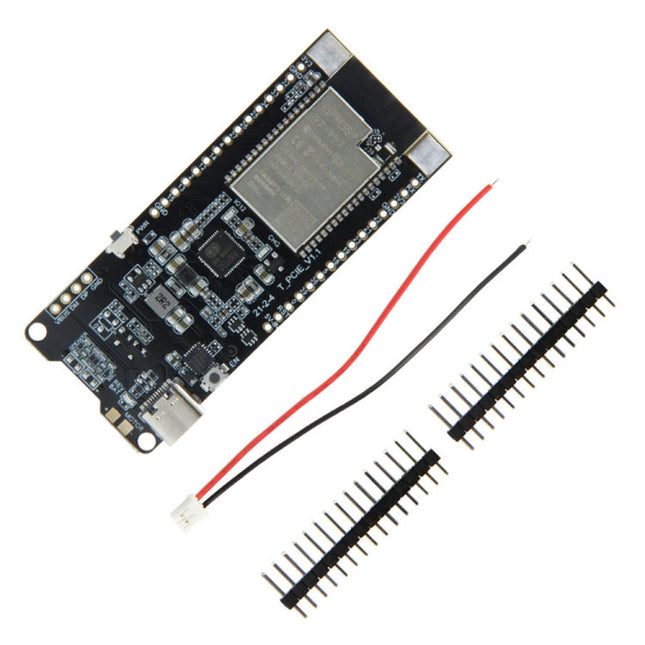

Hardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 16MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS Packing list 1. T-PCIE 16MB x 1 2. Charging cable x 1 3. Needle Pin x 2Specification: Package Weight One Package Weight 0.05kgs / 0.11lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 300 Carton Weight 13.00kgs / 28.66lb Carton Size 46cm * 32cm * 32cm / 18.11inch * 12.6inch * 12.6inch Loading Container 20GP: 566 cartons * 300 pcs = 169800 pcs40HQ: 1314 cartons * 300 pcs = 394200 pcs

Read more less

Hardware Specifications 1. Chipset: ESPRESSIF-ESP32-WROOM, LAN8720A Ethernet chip, SI 3404 power management chip 2. Flash: 4MB 3. PSRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: robot, rest 6. External device: TF card slot, C-type interface, PA2369NL 1825-S transformer, HR861153C Ethernet-POE interface 7. USB to TTL: CP 2104 8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC 9. Satellite clock: 32.768 MHz crystal oscillator 10. Operating temperature range: -40 degrees Celsius to +85 degrees Celsius 11. Size: 70x52.3x17mm 12. Weight: 26.85g Power Specifications 1. Power input: -C type USB 5V 2. HR861153C Ethernet-POE interface: 50V 3. Working voltage: 2.7V-3.6V 4. Output current: about 1.2A 5. Charging current: 500 mA 6. USB: Type C USB Wi-Fi 1. Standard: FCC/CE-Red/IC/TELEC/KCC/SRRC/NCC (ESP 32 chip) 2. Protocol: 802.11 b/g/n (802.11n, acceleration 150 Mbps) A-MPDU and A-MSDU aggregation, support 0.4??S guard interval 3. Frequency range: 2.4GHz~2.5GHz (2400 m~2483.5M) 4. Transmit power: 22 dBm 5. Communication distance: 300 meters Bluetooth 1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE standards 2. Radio frequency: -97 dBm sensitivity nzif receiver class-1 class-2 class-3 emitter AFH 3. Audio: CVSD&SBC audio Software Specification 1. Wi-Fi mode: workstation/SoftAP/SoftAP+Station/P2P 2. Security mechanism: WPA/WPA 2/WPA 2-Enterprise/WPS 3. Encryption type: AES/RSA/ECC/SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development/sdk for user firmware development 6. Network protocol: IPv 4, IPv 6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User configuration: +instruction set, cloud server, Android/iOSapp 8. OS: FreeRTOSSpecification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 15cm * 10cm * 1cm / 5.91inch * 3.94inch * 0.39inch Qty per Carton 300 Carton Weight 11.50kgs / 25.35lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 300 pcs = 281700 pcs40HQ: 2180 cartons * 300 pcs = 654000 pcs

Read more less

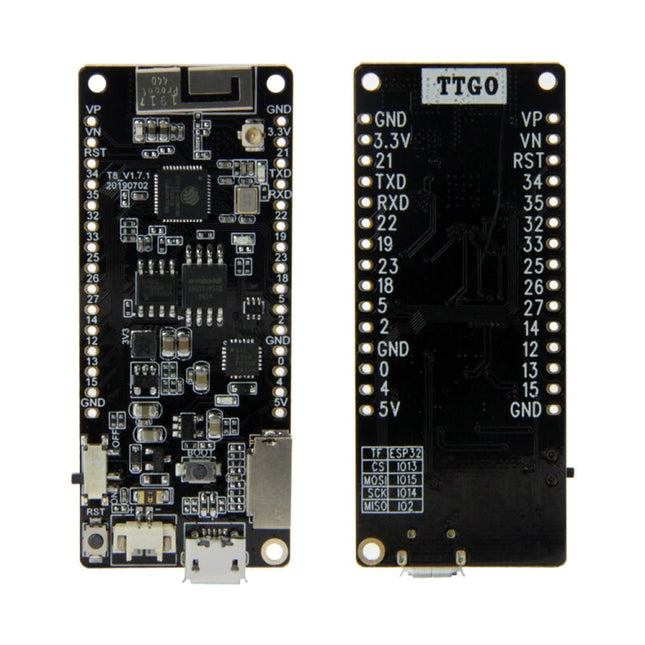

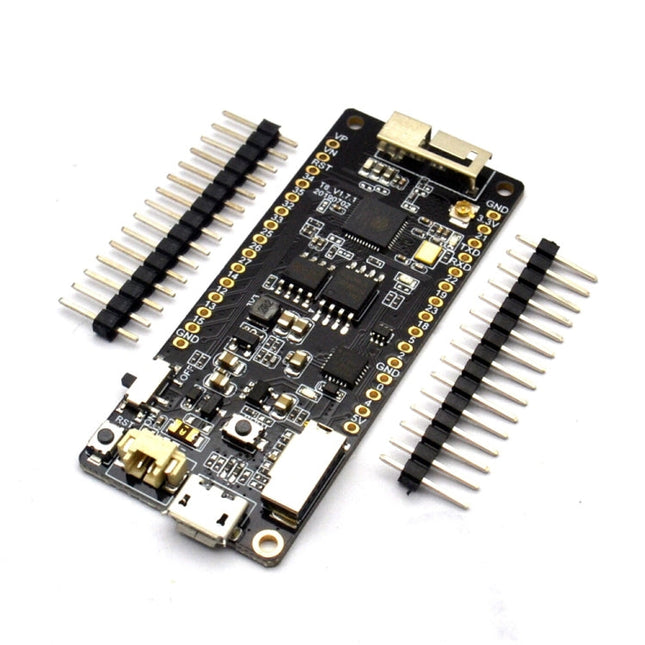

1. Espressif official ESP32-WROVER module 2. New ESP32 version: REV1 3. Wireless Internet 4. Bluetooth 5. 4MB flash memory 6. 8MB PSRAM 7. Lithium battery interface, 500mA maximum charging current 8. Support TF memory card 9. With 3D wiresSpecification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 10cm * 6cm * 1cm / 3.94inch * 2.36inch * 0.39inch Qty per Carton 400 Carton Weight 9.00kgs / 19.84lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 400 pcs = 375600 pcs40HQ: 2180 cartons * 400 pcs = 872000 pcs

Read more less

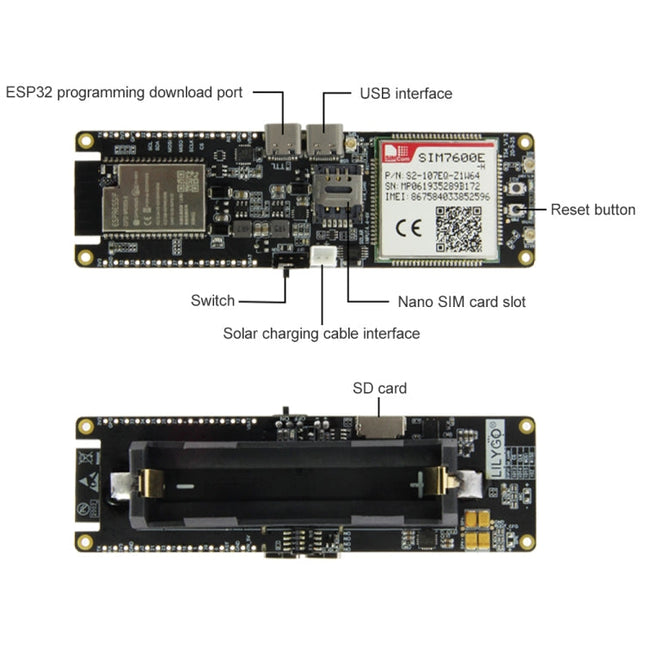

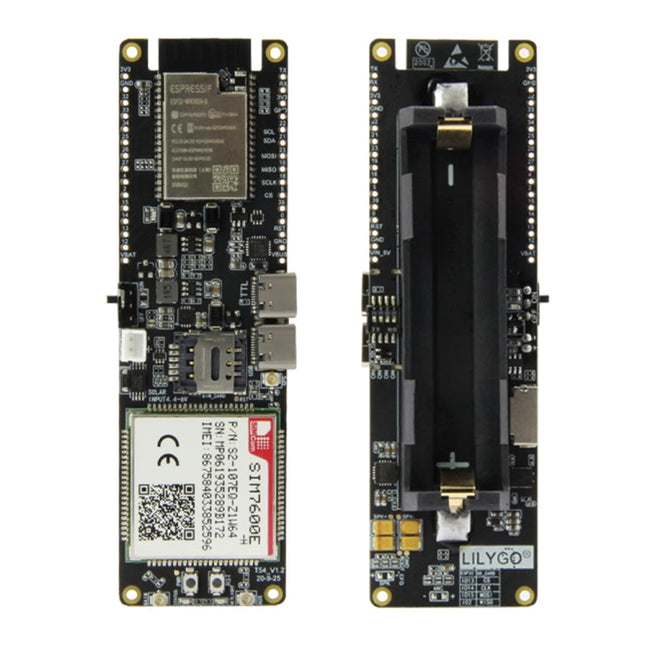

Product Description Hardware Specifications: 1. Main chip: ESP32 2. Module: ESP32-WROVER-B,SIM7600E-H 3. Interface:USB,SD Card,Solar Input interface 4. Flash Memory: 4M Flash / 8M PSRAM 5. Button: Reset,Power switch 6. USB to TTL: CP2104 7. Car Clock: 40MHz 8. SIM Card Size: Nano SIM Card 9. SIM Antenna 10. GPS Antenna 11. Operating Temperature Range: -40-85 degrees 12. Product Size: 111mm x 37mm x 20mm 13. Product Weight: 50g Power Specifications: 1. Working Voltage: 5V input 2. Solar input voltage range???4.4-6V 3. Working Curent: About 200mA 4. Charging Current: 780mA 5. Battery Model: 18650 6. Battery Holder Model: 18650 battery holder 7. JST Connector: 2pin 2mm 8. USB: TYPE-C 3.0 Wi-Fi: 1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC 2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval 3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M) 4. Transmit Power: 22dBm 5. Communication distance: 300m Bluetooth: 1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard 2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH 3. Audio Frequency : CVSD&SBC audio frequency Software Specification: 1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P 2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS 3. Encryption Type : AES/RSA/ECC/SHA 4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware??? 5. Software Development : Support cloud server development /SDK for user firmware development 6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP 8. OS : FreeRTOS Version update function: 1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection 2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping 3. Replacement of ordinary charging IC with solar charging ICSpecification: Package Weight One Package Weight 0.09kgs / 0.20lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 8.20kgs / 18.08lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

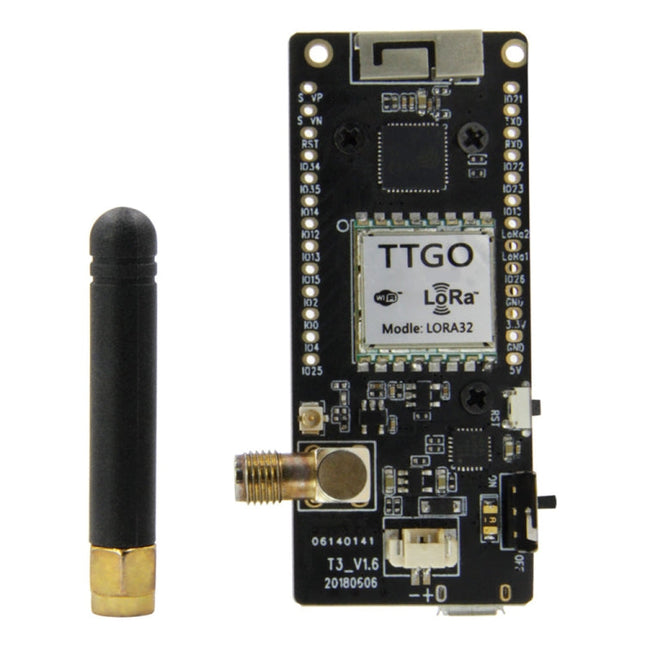

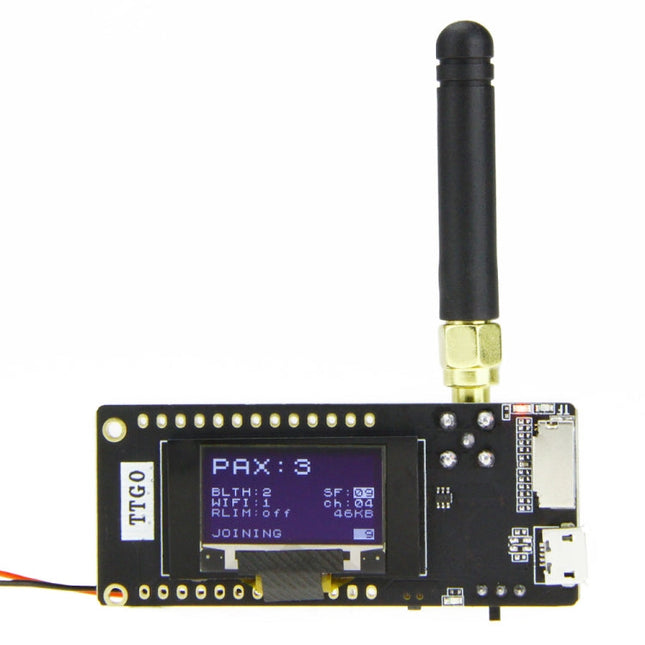

1. Working voltage: 1.8~13.7V 2. Acceptable current: 10~114mA 3. Emission current: - 120mA at + 20dBm - 90 mA lies at +17dBm - 29mA at +13dBm 4. Working frequency: 433MHz 5. Transmitting power: + 20dBm 6. Receiving sensitivity: - 139dBm lies at LoRa & 62.5Khz & SF = 12 & 146bps - 136dBm lies at LoRa & 125Khz & SF = 12 & 293bps - 118dBm lies at LoRa & 125Khz & SF = 6 & 9380bps - 123dBm lies at FSK & 5Khz & 1.2Kbps 7. Frequency error: +/- 15KHz 8. FIFO space: 64Byte 9. Data rate: -1.2K~1300Kbps at FSK -0.018K~37.5Kbps at LoRa 10. Modulation mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK 11. Interface form: SPI 12. Sleep current: - 0.2uA SLEEP - 1.5uA IDLE 13. Working temperature: -40 degrees Celsius-+ 85 degrees Celsius 14. Digital RSSI function 15. Automatic frequency correction 16. Automatic gain control 17. RF wake-up function 18. Low voltage detection and temperature sensor 19. Fast wake-up and frequency hopping 20. Highly configurable packet handler 21. SMA antenna IP5306 This product is based on LoRa radio frequency, 868MHz (common in North America), 915MHz (common in Europe) and 433MHz (common in Asia Pacific)Specification: Package Weight One Package Weight 0.08kgs / 0.17lb One Package Size 15cm * 12cm * 3cm / 5.91inch * 4.72inch * 1.18inch Qty per Carton 100 Carton Weight 7.00kgs / 15.43lb Carton Size 36cm * 26cm * 26cm / 14.17inch * 10.24inch * 10.24inch Loading Container 20GP: 1095 cartons * 100 pcs = 109500 pcs40HQ: 2543 cartons * 100 pcs = 254300 pcs

Read more less

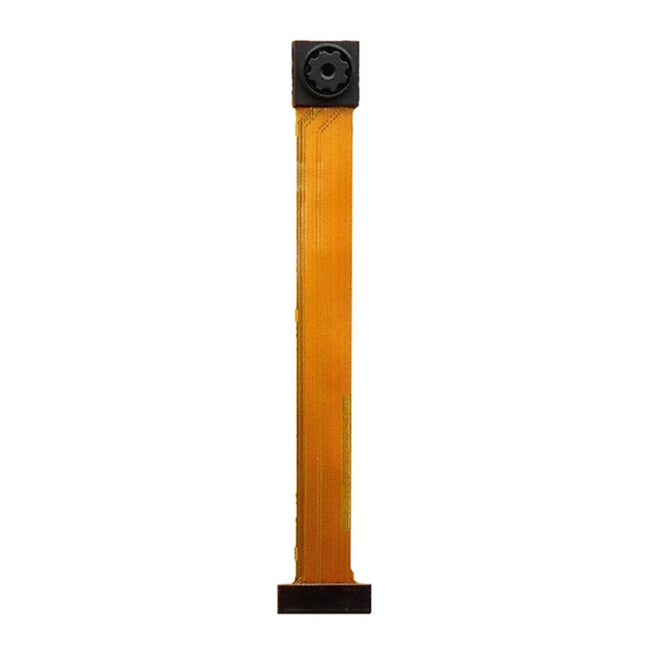

1. Product series: camera module 2. Model: OV2640 3. Purpose: video recorder 4. Power: 3.3W 5. Adapt to T-Camera Plus ESP32-DOWDQ6 8MB SPRAMSpecification: Package Weight One Package Weight 0.04kgs / 0.10lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 4.00kgs / 8.82lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

Hardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 4MB /16MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS SIM7600E suitable for EMEA/Kor/Thailand: 1. LTE-TDD: B38/B40/B41 2. LTE-FDD: B1/B3/B5/B7/B8/B20 3. UMTS/HSPA+: B1/B5/B8 4. GSM/GPRS/EDGE:B3/B8 Packing list 1. SIM7600E-PCIE module x 1 2. LTE antenna x 1 3. GPS antenna x 1 4. Screw x 2Specification: Package Weight One Package Weight 0.03kgs / 0.06lb One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch Qty per Carton 300 Carton Weight 7.00kgs / 15.43lb Carton Size 36cm * 22cm * 22cm / 14.17inch * 8.66inch * 8.66inch Loading Container 20GP: 1530 cartons * 300 pcs = 459000 pcs40HQ: 3552 cartons * 300 pcs = 1065600 pcs

Read more less

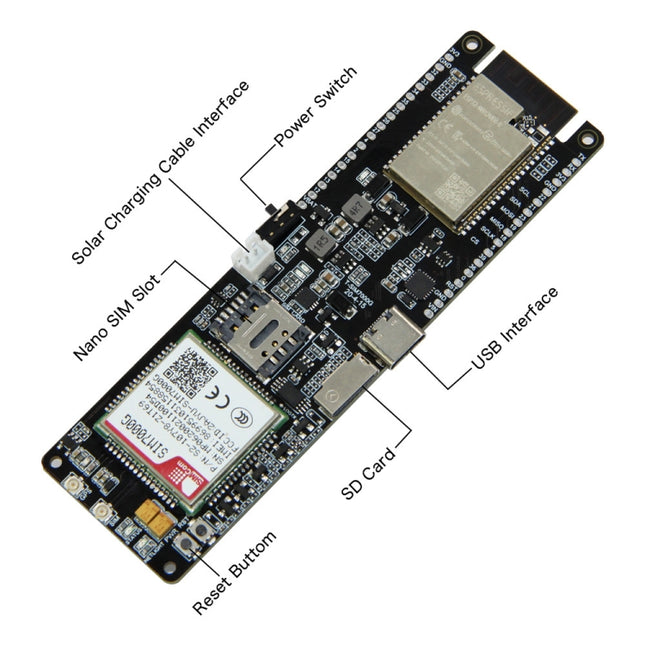

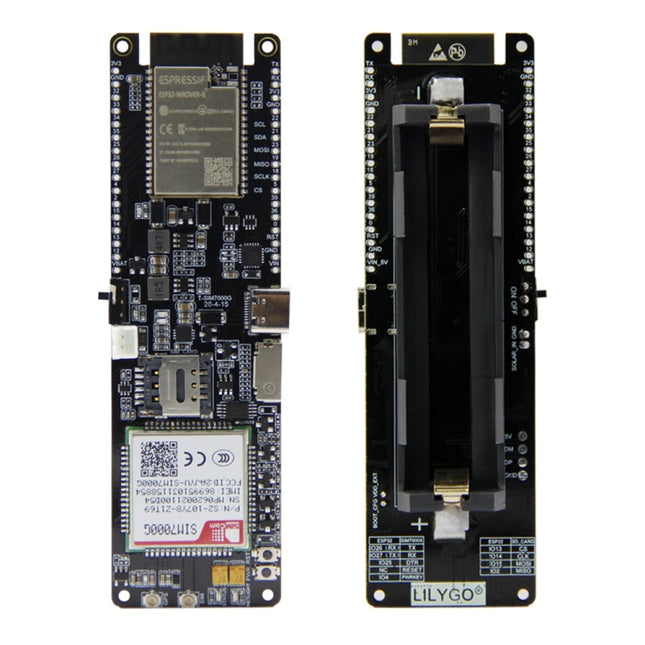

Product Description Hardware Specifications: 1. Main chip: ESP32 2. Module: ESP32-WROVER-B,SIM7000G 3. Interface:USB,SD Card,Solar Input interface 4. Flash Memory: 4M Flash / 8M PSRAM 5. Button: Reset,Power switch 6. USB to TTL: CP2104 7. Car Clock: 40MHz 8. SIM Card Size: Nano SIM Card 9. SIM Antenna 10. GPS Antenna 11. Operating Temperature Range: -40-85 degrees 12. Product Size: 111mm x 37mm x 20mm 13. Product Weight: 50g Power Specifications: 1. Working Voltage: 5V input 2. Solar input voltage range???4.4-6V 3. Working Curent: About 200mA 4. Charging Current: 780mA 5. Battery Model: 18650 6. Battery Holder Model: 18650 battery holder 7. JST Connector: 2pin 2mm 8. USB: TYPE-C 3.0 Wi-Fi: 1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC 2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval 3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M) 4. Transmit Power: 22dBm 5. Communication distance: 300m Bluetooth: 1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard 2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH 3. Audio Frequency : CVSD&SBC audio frequency Software Specification: 1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P 2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS 3. Encryption Type : AES/RSA/ECC/SHA 4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware??? 5. Software Development : Support cloud server development /SDK for user firmware development 6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP 8. OS : FreeRTOS Version update function: 1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection 2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping 3. Replacement of ordinary charging IC with solar charging ICSpecification: Package Weight One Package Weight 0.08kgs / 0.17lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 7.50kgs / 16.53lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs

Read more less

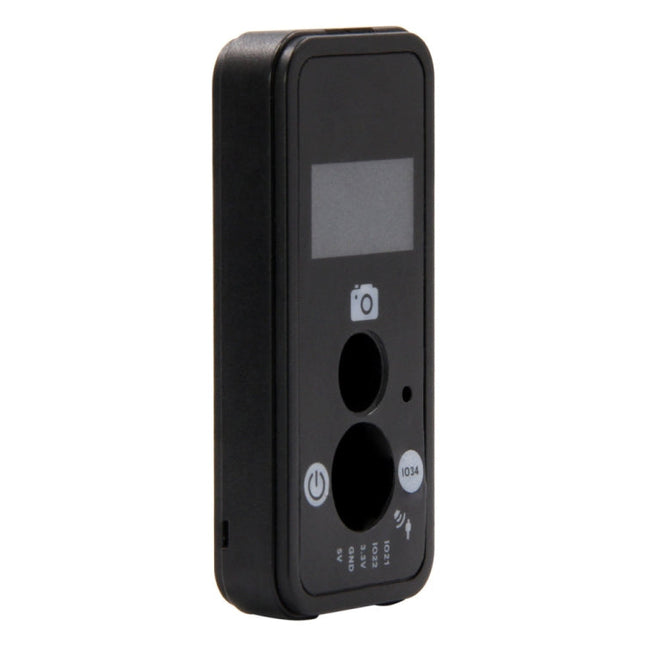

1. Compact, lightweight, and durable PVC material can effectively protect your camera module. 2. Provides powerful protection against dust, scratches and damage to the camera module. 3. The back of the case is also equipped with a small rope hole for easy carrying. 4. At the same time, a microphone wiring port is reserved on the protective case. 5. Package list: - Black PVC Case x 1 - Screw x 4Specification: Package Weight One Package Weight 0.04kgs / 0.09lb One Package Size 15cm * 10cm * 1cm / 5.91inch * 3.94inch * 0.39inch Qty per Carton 300 Carton Weight 10.00kgs / 22.05lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 300 pcs = 281700 pcs40HQ: 2180 cartons * 300 pcs = 654000 pcs

Read more less

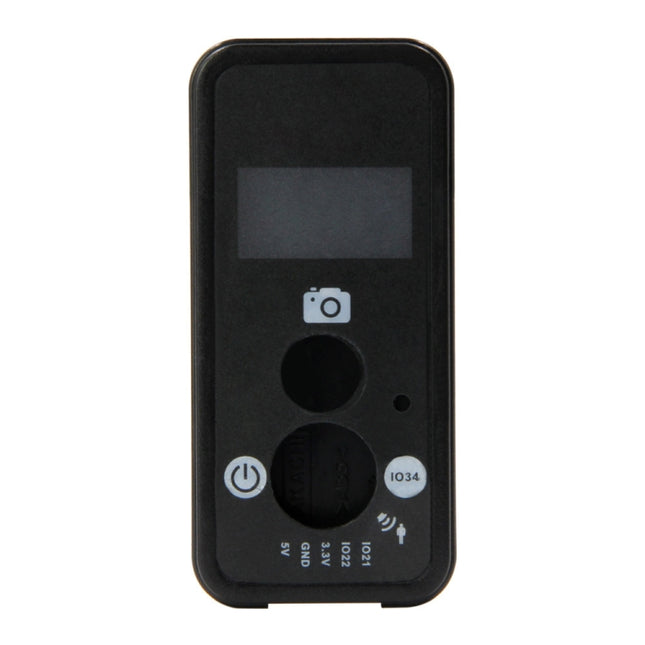

1. Compact, lightweight, and durable PVC material can effectively protect your camera module. 2. Provides powerful protection against dust, scratches and damage to the camera module. 3. The back of the case is also equipped with a small rope hole for easy carrying. 4. At the same time, a microphone wiring port is reserved on the protective case. 5. Package list: - Black PVC Case x 1 - Screw x 4Specification: Package Weight One Package Weight 0.04kgs / 0.09lb One Package Size 15cm * 10cm * 1cm / 5.91inch * 3.94inch * 0.39inch Qty per Carton 300 Carton Weight 10.00kgs / 22.05lb Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch Loading Container 20GP: 939 cartons * 300 pcs = 281700 pcs40HQ: 2180 cartons * 300 pcs = 654000 pcs

Read more less

Product Description Hardware Specifications: 1. Main chip: ESP32 2. Module: ESP32-WROVER-B,SIM7000G 3. Interface:USB,SD Card,Solar Input interface 4. Flash Memory: 4M Flash / 8M PSRAM 5. Button: Reset,Power switch 6. USB to TTL: CP2104 7. Car Clock: 40MHz 8. SIM Card Size: Nano SIM Card 9. SIM Antenna 10. GPS Antenna 11. Operating Temperature Range: -40-85 degrees 12. Product Size: 111mm x 37mm x 20mm 13. Product Weight: 50g Power Specifications: 1. Working Voltage: 5V input 2. Solar input voltage range???4.4-6V 3. Working Curent: About 200mA 4. Charging Current: 780mA 5. Battery Model: 18650 6. Battery Holder Model: 18650 battery holder 7. JST Connector: 2pin 2mm 8. USB: TYPE-C 3.0 Wi-Fi: 1. Standard: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC 2. Protocol: 802.11 b/g/n(802.11n???speed up to150Mbps)A-MPDU and A-MSDU polymerization???support 0.4??S Protection interval 3. Frequency: range 2.4GHz~2.5GHz(2400M~2483.5M) 4. Transmit Power: 22dBm 5. Communication distance: 300m Bluetooth: 1. Protocol meet Bluetooth : v4.2BR/EDR and BLE standard 2. Radio Frequency : with -97dBm sensitivity NZIF receiver Class-1, Class-2&Class-3 emitter AFH 3. Audio Frequency : CVSD&SBC audio frequency Software Specification: 1. Wi-Fi Mode : Station/SoftAP/SoftAP+Station/P2P 2. Security Mechanism : WPA/WPA2/WPA2-Enterprise/WPS 3. Encryption Type : AES/RSA/ECC/SHA 4. Firmware Upgrade :UART download/OTA???Through network/host to download and write firmware??? 5. Software Development : Support cloud server development /SDK for user firmware development 6. Networking Protocol : IPV4, IPV6, SSL, TCP/UDP/HTTP/FTP/MQTT 7. User Configuration : AT + Instruction set, cloud server, Android/iOS APP 8. OS : FreeRTOS Version update function: 1. The batterys positive and negative poles are connected to the wrong protection, overcharge and over discharge protection 2. GPS power control, reduce power consumption, the lowest reaches 300uA when sleeping 3. Replacement of ordinary charging IC with solar charging ICSpecification: Package Weight One Package Weight 0.08kgs / 0.17lb One Package Size 11cm * 11cm * 3cm / 4.33inch * 4.33inch * 1.18inch Qty per Carton 100 Carton Weight 7.50kgs / 16.53lb Carton Size 57cm * 32cm * 24cm / 22.44inch * 12.6inch * 9.45inch Loading Container 20GP: 609 cartons * 100 pcs = 60900 pcs40HQ: 1414 cartons * 100 pcs = 141400 pcs
