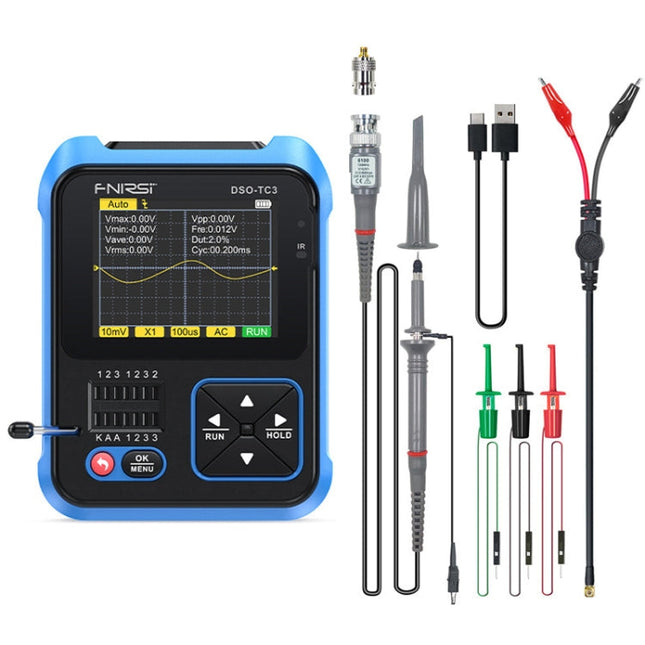

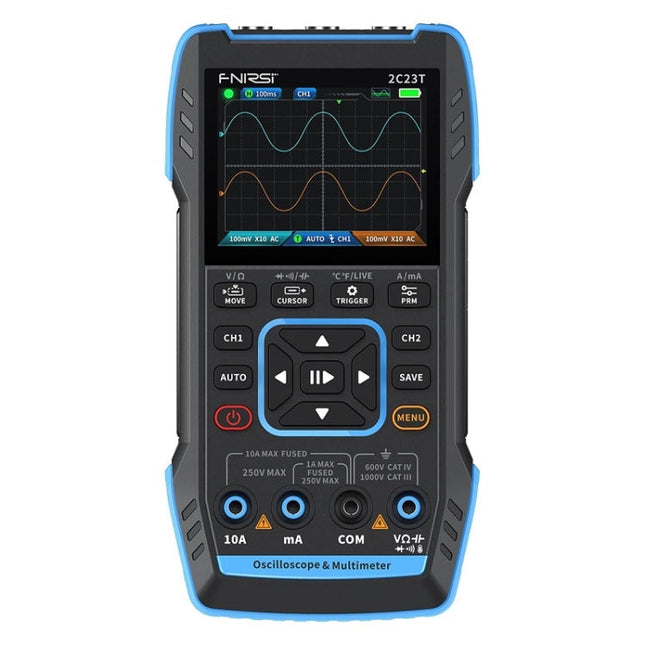

Oscilloscope function introduction:1. Dual channel 2X10MHz bandwidth, 50MS/s real-time sampling rate2. Measuring voltage: 400V (MAX)3. FPGA+ADC+MCU high-performance hardware architecture, waveform details are captured without loss4. With complete trigger functions (automatic, single, regular)5. Equipped with efficient one-button automatic adjustment, the measured waveform can be displayed without cumbersome adjustments.6. Save waveform screenshots and support exporting pictures to the computer to facilitate secondary waveform analysis.Multimeter function introduction:1. Four-digit integer 9999 count true effective value measurement2. Voltage, current, capacitance, resistance, diode, continuity, zero line identification, temperature3. Measuring voltage: AC750V, DC1000V (MAX)4. Automatic range, intelligent anti-burning5. Data retention, color screen digital displayIntroduction to signal generator functions1. 7 signal waveforms: sine wave, square wave, triangle wave, full wave, half wave, noise wave, DC2. Output frequency: 1Hz-2MHz3. Output amplitude: 0.1-3.3V4. Output duty cycle: 0-1001. Screen: 2.8-inch true color screen2. Resolution: 320 x 2403. Charging: TYPE-C (5V/1A)4. Battery: 3000mAh lithium battery5. Supported functions: oscilloscope, signal generator, digital multimeter6. Standby time: 8 hours7. Language: English, Russian, Portuguese, Japanese, German8. Size: 141.7x93.5x38mm9. Weight: 300g10. The hardware architecture adopts the same ARM + FPGA + high-speed ADC solution as that of desktop computers. It has high cost and is an unusual CPU direct acquisition solution. The trigger system is powerful and has super waveform capture capabilities without losing the waveform details.11. It has complete trigger modes: automatic, single, and normal; equipped with efficient one-button automatic adjustment, which can display the measured signal waveform without cumbersome adjustments.12. Save waveform screenshots with one click. The saved pictures can be viewed on an oscilloscope or exported to a computer to facilitate secondary analysis of the collected signals.13. Intelligent anti-burning has overload protection, and built-in double fuses prevent meter burning and are safer14. 3000mah large-capacity lithium battery, TYPE-C port can be recharged worry-free and labor-saving, and has a long battery life of 8 hours15. The extendable stand can be used and placed for easy reading.16. ABS material + silicone jacket, sturdy and anti-fall, comfortable to the touchEnglish standard:1. 2C23T x 12. 10x probe x 13. Red and black alligator clip probe x 14. Multimeter lead x 15. Charging cable x 16. Packing box x 17. Instructions x 1English upgrade:1. 2C23T x 12. Instructions x 13. Red and black alligator clip probe x 14. Multimeter lead x 15. Charging cable x 16. Packing box x 17. 10x probe x 2Specification:
Package Weight
One Package Weight
0.70kgs / 1.54lb
One Package Size
26cm * 13cm * 9cm / 10.24inch * 5.12inch * 3.54inch
Qty per Carton
20
Carton Weight
13.50kgs / 29.76lb
Carton Size
54cm * 29cm * 45cm / 21.26inch * 11.42inch * 17.72inch
Loading Container
20GP: 378 cartons * 20 pcs = 7560 pcs40HQ: 878 cartons * 20 pcs = 17560 pcs
