Description

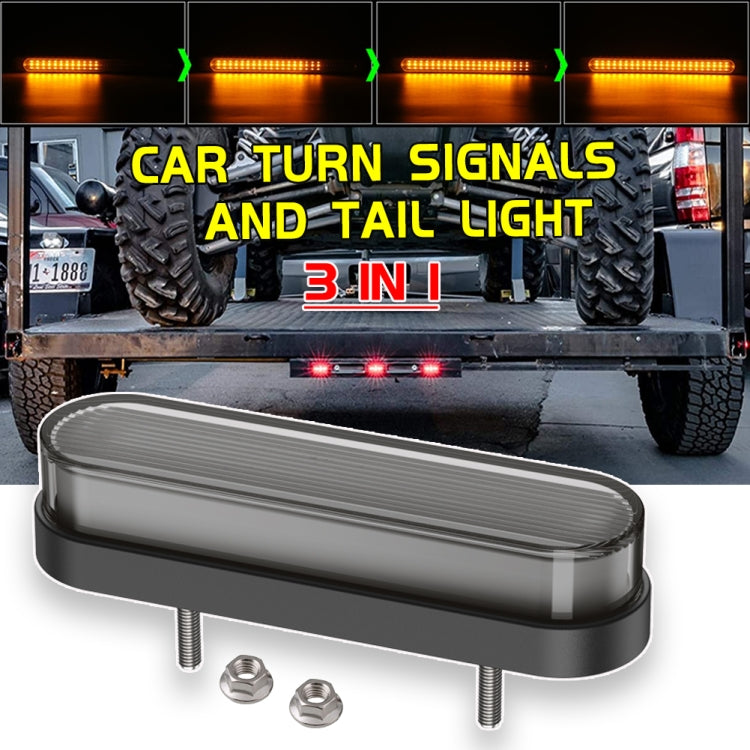

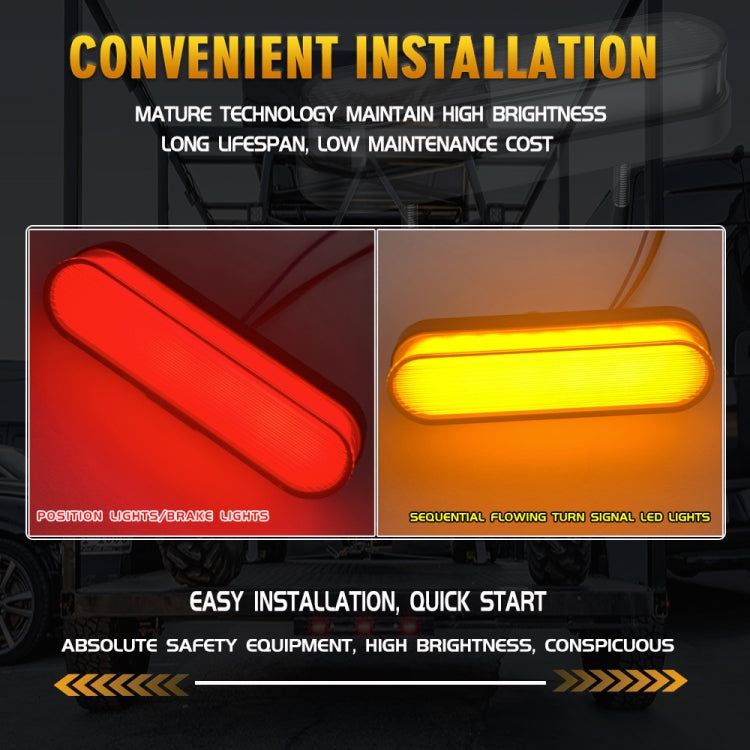

1. 3 in 1 neon Halo ring design(tail & brake light+sequential flowing turn signal light)

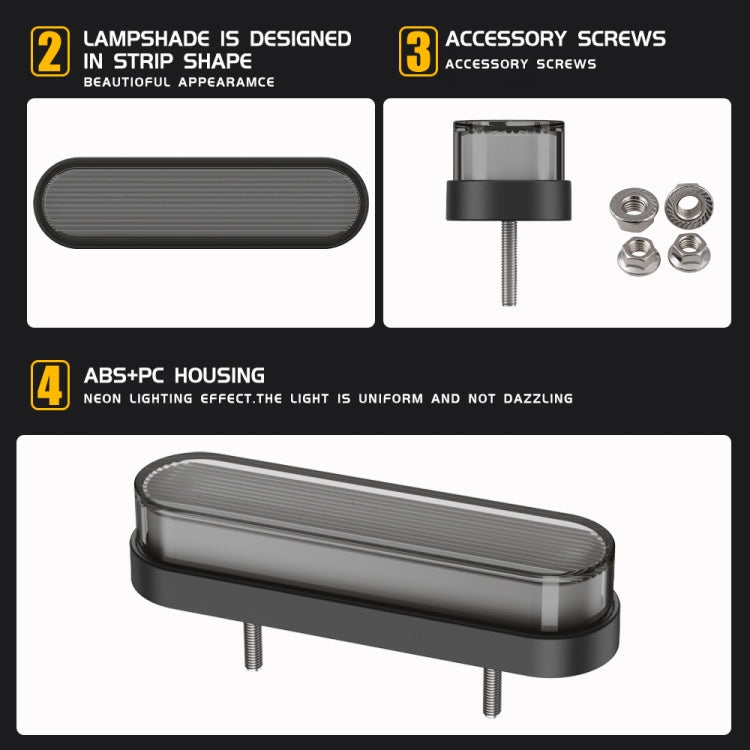

2. Shell material: PC+ABS. Using the principle of optical refraction, the lampshade adopts a line design to improve the visual aesthetics of the lighting.

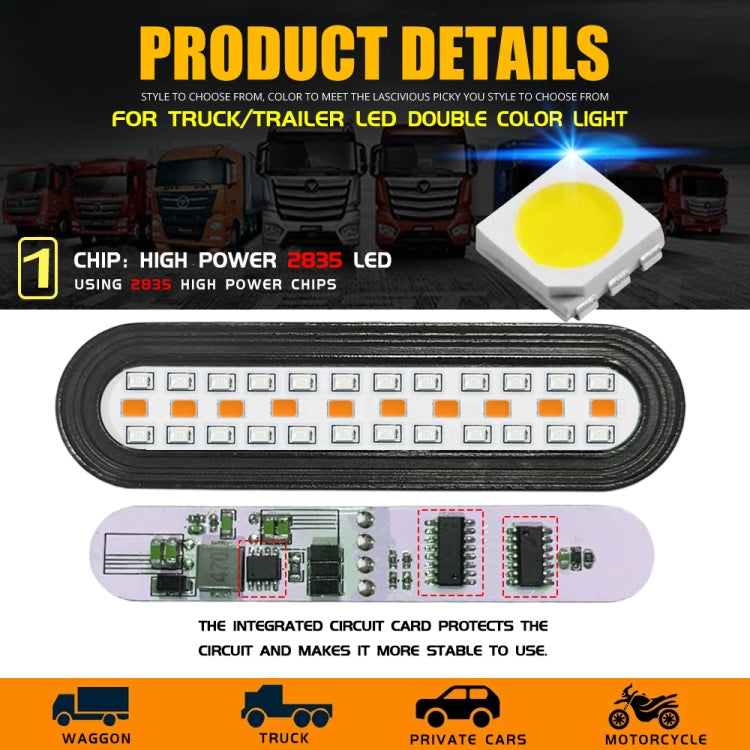

3. LED type: 2835 SMD; LED lamp number: 24 red light + 10 yellow light, a total of 34 lamp beads
4. Wide range of applications: heavy trucks, semi-trailers, cargo trailers, motorcycles, scooters, ships, work vehicles, tent trucks

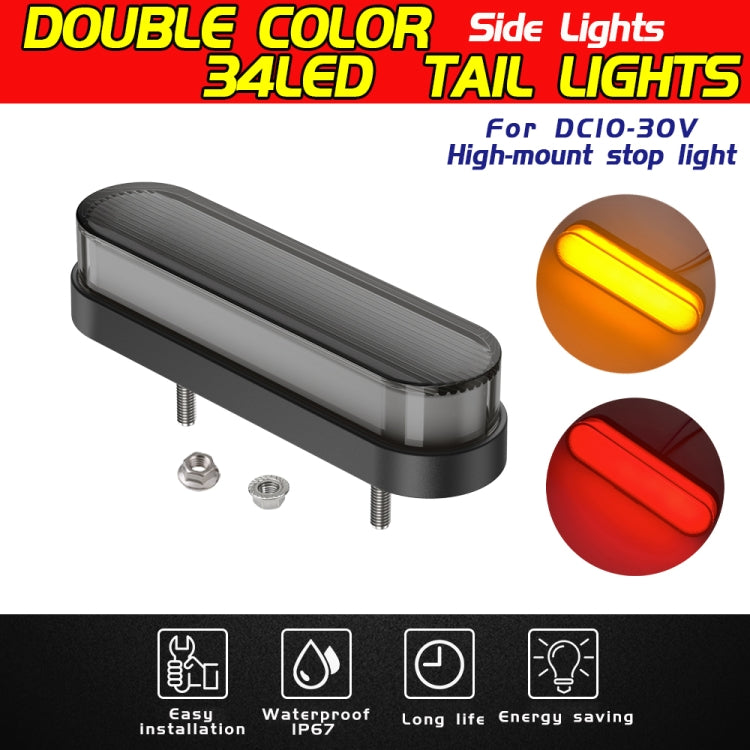

5. Voltage: DC10-30V for vehicles and heavy trucks
6. Installation position: tail light, high-mounted brake light, side marker light, turn signal light
7. DC12V operating current: brake light 0.22A, running light 0.05A, turn signal light 0.17A;
DC24V use current: brake light 0.11A, running light 0.02A, turn signal light 0.09A
8. Wiring method:
Black cable: negative
Yellow cable: turn signal
White cable: position light
Red cable: Brake Lights
Specification:
| Package Weight |
| One Package Weight |
0.15kgs / 0.33lb |
| One Package Size |
22cm * 10cm * 4cm / 8.66inch * 3.94inch * 1.57inch |
| Carton Weight |
13.50kgs / 29.76lb |
| Carton Size |
48cm * 42cm * 38cm / 18.9inch * 16.54inch * 14.96inch |
| Loading Container |
20GP: 348 cartons * 80 pcs = 27840 pcs
40HQ: 808 cartons * 80 pcs = 64640 pcs
|
|
