1. Built in high performance RTOS operating system and audio decoder chip, support DTS / AC-3.
2. Super fast start time about 3 seconds.

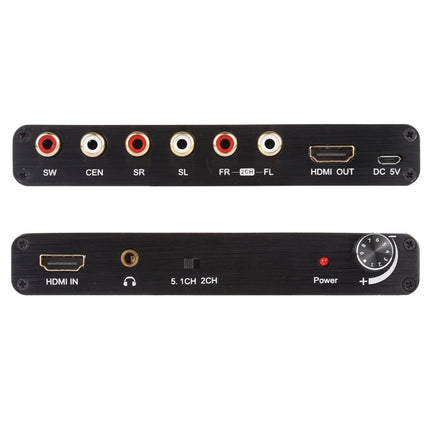

3. HDMI iutput, 1 x CEN, 1 x SW, 1 x FL, 1 x FR, 1 x SL, 1 x SR, 3.5mm headphone port.
4. HDMI input resolution: Up to 3840x2160 30Hz; 4096x2160 30Hz.
5. HDMI to achieve audio signal decoding synchronization. There are PASS / 2.0CH / 5.1CH three audio mode options.
6. Support 6CH volume synchronous adjustment.
7. Auto decode AC-3/DTS (LPCM/PCM/RAW) input signal without any action.

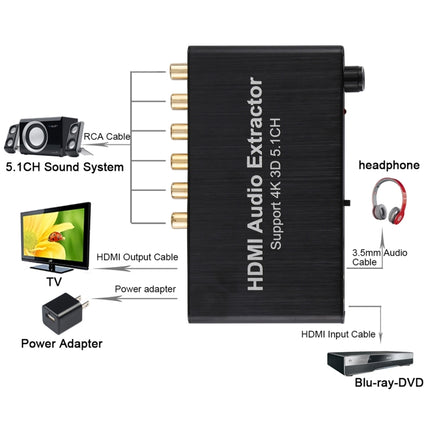

8. Compatible with network player, HDTV, Blu-ray DVD, DVD, PS4, Xbox 360, DM500S, DM800HD etc.
9. Small size and metal case, anti-interference.
10. Adopt 6CH RCA / 3.5mm headphone port output, convenient and efficient in use.
Specification:

| General |
| Interface | 1 x HDMI IN,                 1 x SPDIF,                 1 x 3.5mm audio jack |
| HDMI Resolution | 2160p@30Hz, 1080P@50/60Hz, 1080i, 720P, 1576i, 480P, 480i |
| Power Supply | DC 5.0V / 2.0A |
| Video Color Format | 24bit,                 30bit,                 36bit |
| Frequency Bandwidth | 10.2Gbps |
| Audio Format | DTS,                 MP3,                 AC3,                 WAV,                 WMA,                 AAC,                 ALAC,                 FLAC,                 APE,                 OGG,                 M4A |
| Input Cable Distance | =<7m, AWG26 standard cable HDMI |
| Output Cable Distance | =<8m, AWG26 standard cable HDMI |
| Input/ Output TMDS Signal | 0.5-1.5Volts p-p (TTL) |
| Input/ Output DDC Signal | 5Volts p-p (TTL) |
| Frequency Response | 20Hz~20KHz |
| Operating Temperature | 0 ~ 70 Degree Celsius |
| Storage Humidity | 5 ~ 90 Percent RH (No condensing) |  |

| Package Include |

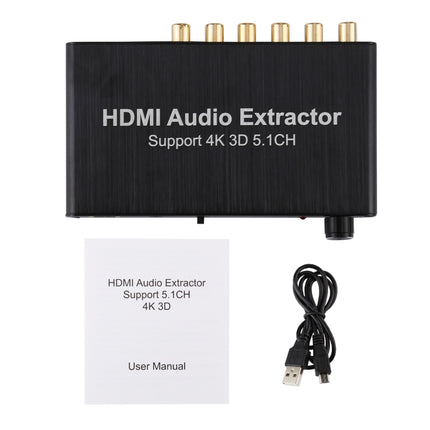

| Package Contents | 1 x Converter 1 x USB Cable
 1 x User Manual
 |  |

| Package Weight |
| One Package Weight | 0.33kgs / 0.73lb |
| One Package Size | 20cm * 16cm * 6cm / 7.87inch * 6.3inch * 2.36inch |
| Carton Weight | 9.40kgs / 20.72lb |
| Carton Size | 40cm * 34cm * 32cm / 15.75inch * 13.39inch * 12.6inch |
| Loading Container | 20GP: 612 cartons * 20 pcs = 12240 pcs 40HQ: 1422 cartons * 20 pcs = 28440 pcs

 |  |
